COMPACT WET PALETTE by S C A L I T Y

COMPACT WET PALLETE by S C A L I T Y

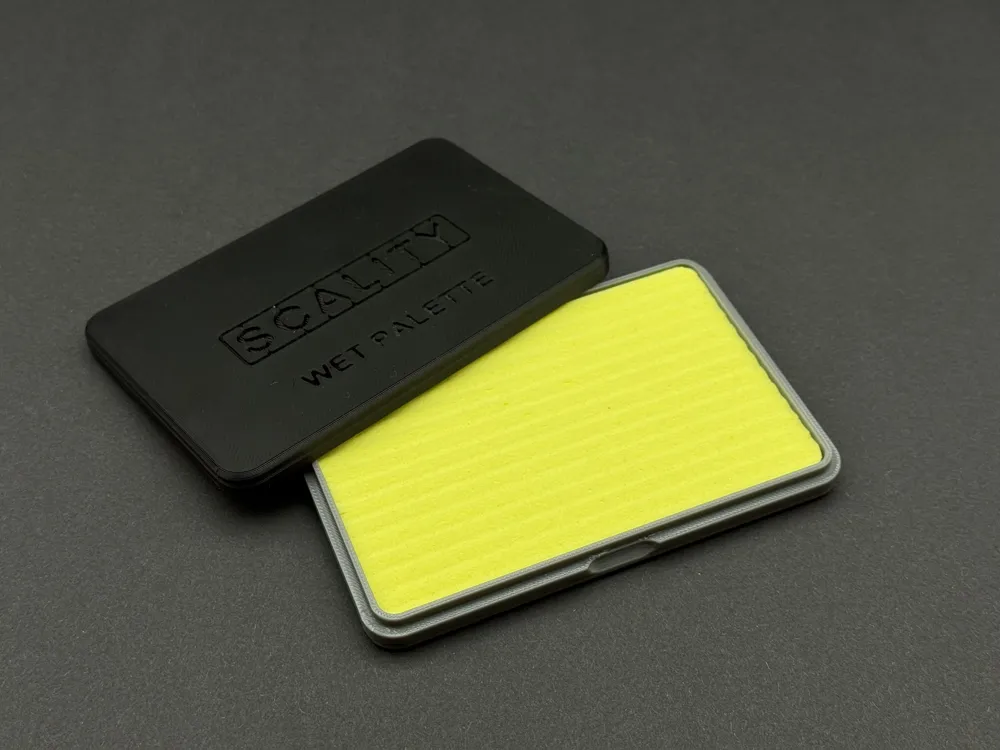

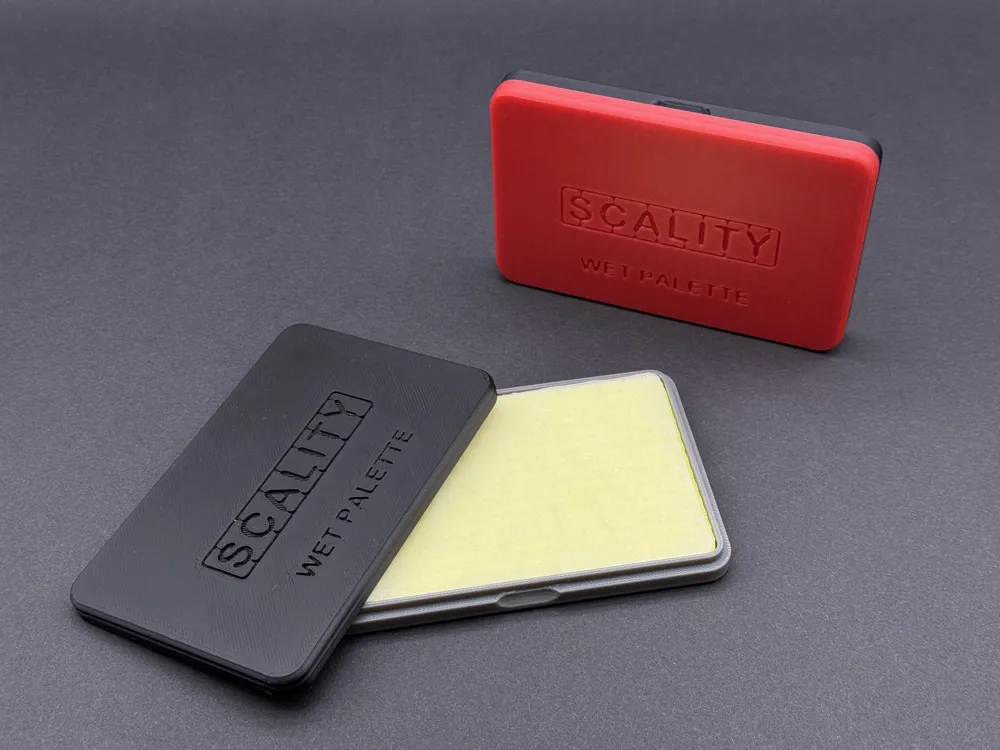

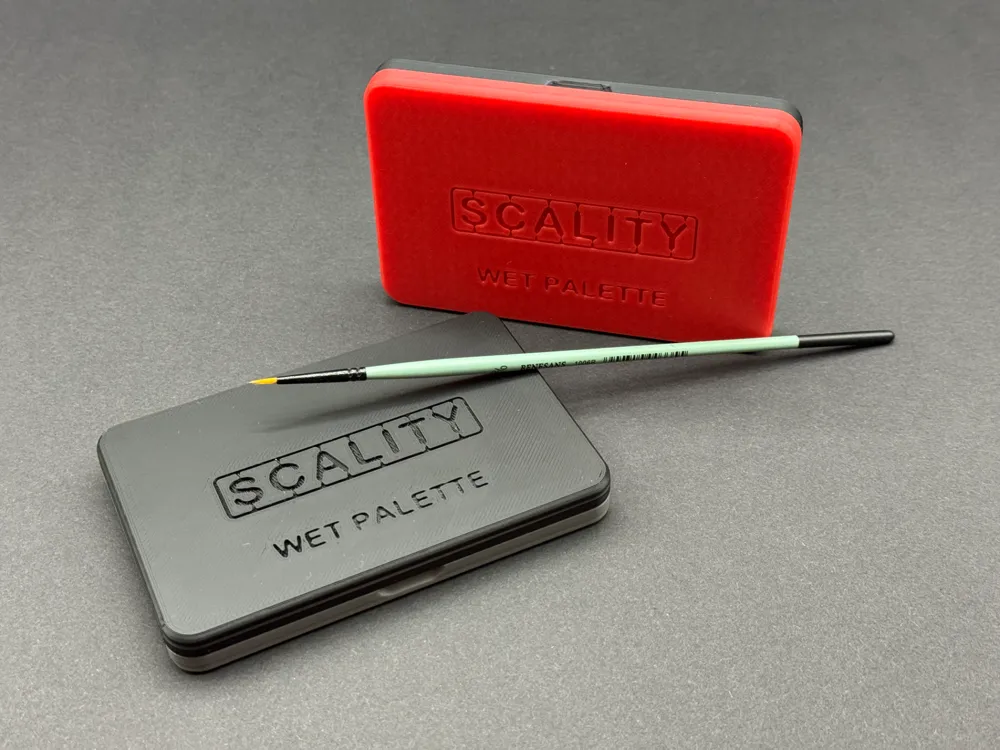

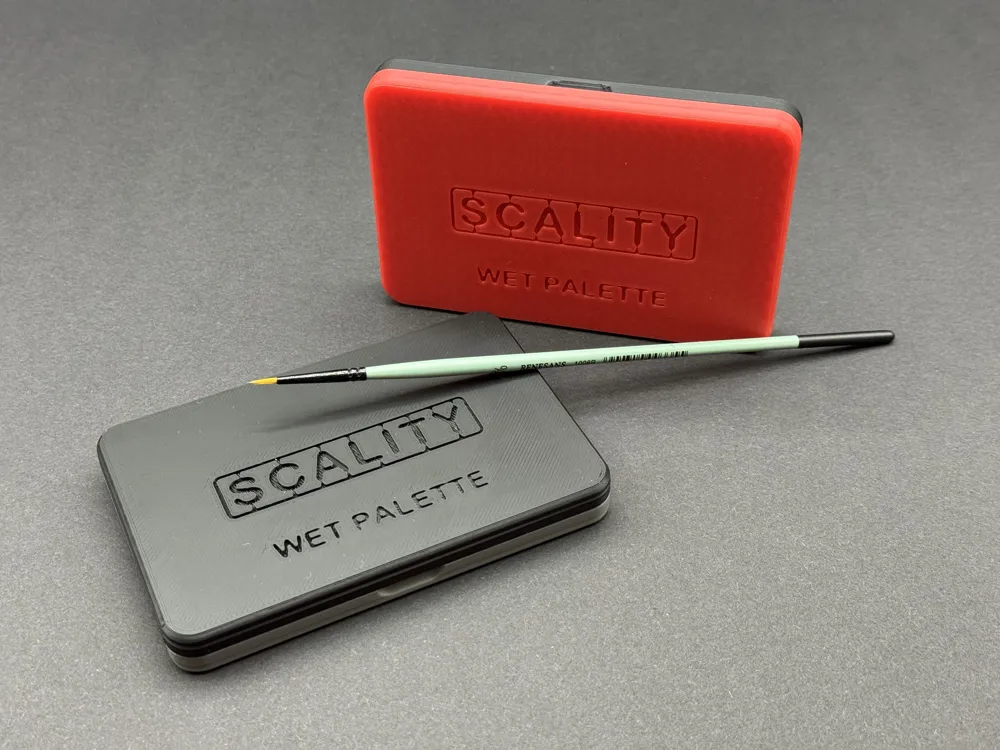

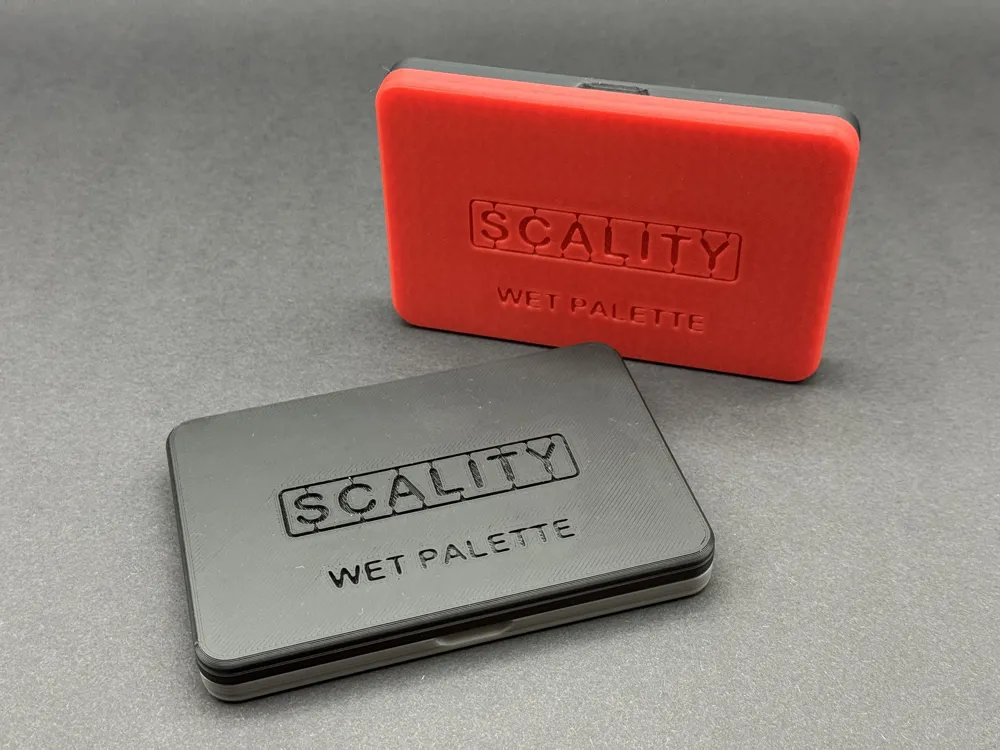

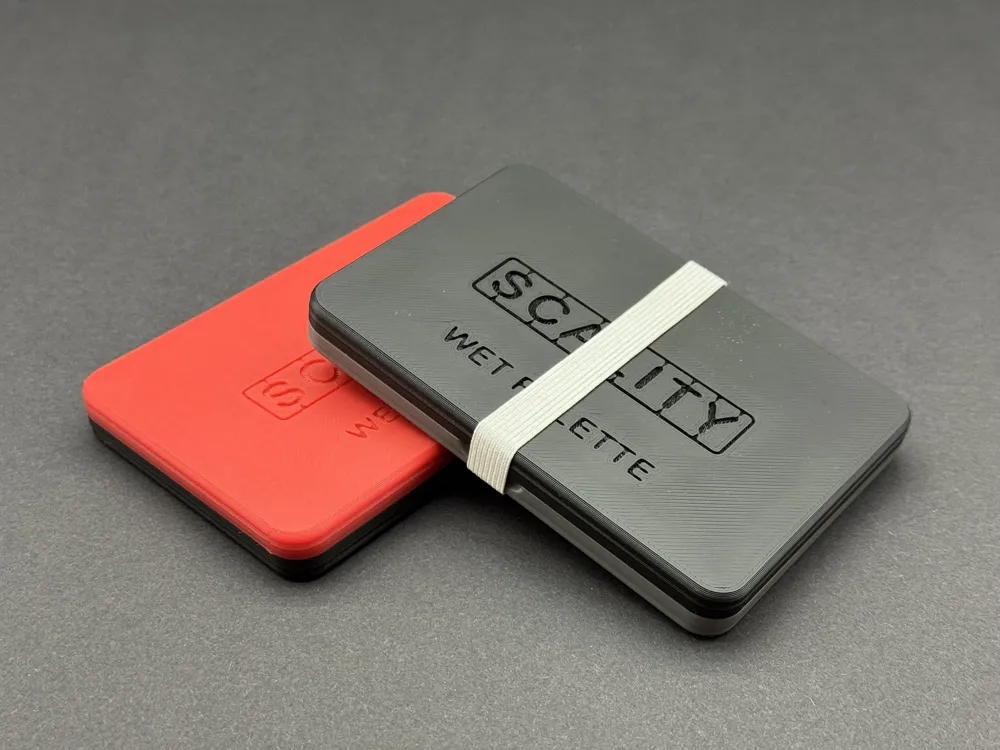

A small, compact wet palette for use in modeling. I am a modeler myself and I love projects aimed at this type of hobby. I designed the palette to be size-friendly, which can be taken anywhere - in a backpack, in a bag. I hope you like the project.

IMPORTANT INFORMATION:

1. FILAMENT:

I used SUNLU PLA +/SUNLU PLA + 2.0 filament.

2. PALLET DIMENSIONS

120 x 80 mm (external dimensions)

112 x 72 mm (internal dimensions)

3. PLACEMENT ON THE BOARD

Please do not change the orientation of the elements on the board. The arrangement of the elements allows for the best visual effects.

4. FIT:

Both parts are designed to snap together, allowing the pallet to remain tight. I cannot guarantee that each filament used will give identical dimensional results. That is why I have provided the brand of filament above on which the print was tested.

If both parts do not fit together, I suggest changing the XY Contour Compensation value in Bambu Studio to -0.05 mm or gently sanding the inner wall of the top cover.

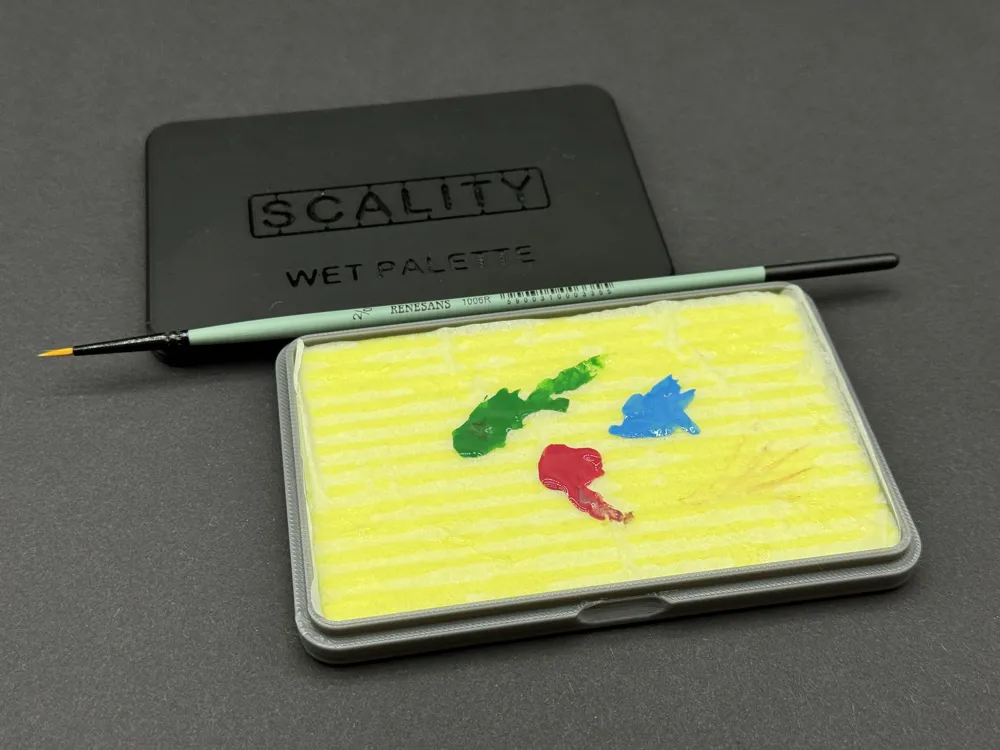

In order for the wet pallet to fulfill its task, I used sponge cloths as the material for the absorbent sponge, which can be purchased at any chain store with cleaning products. The sponge cloth should be cut to the internal dimensions of the pallet (dimensional drawing below).

I used baking paper as the hydro paper. I recommend looking for the white version in stores. Also cut the baking paper to the same dimensions as the sponge cloth.

I wish you a pleasant use!
