Mitre Joint Gluing Aids Set – 45° & 22.5°

🪚 Mitre Joint Gluing Aids – 45° & 22.5° with Strap Guide

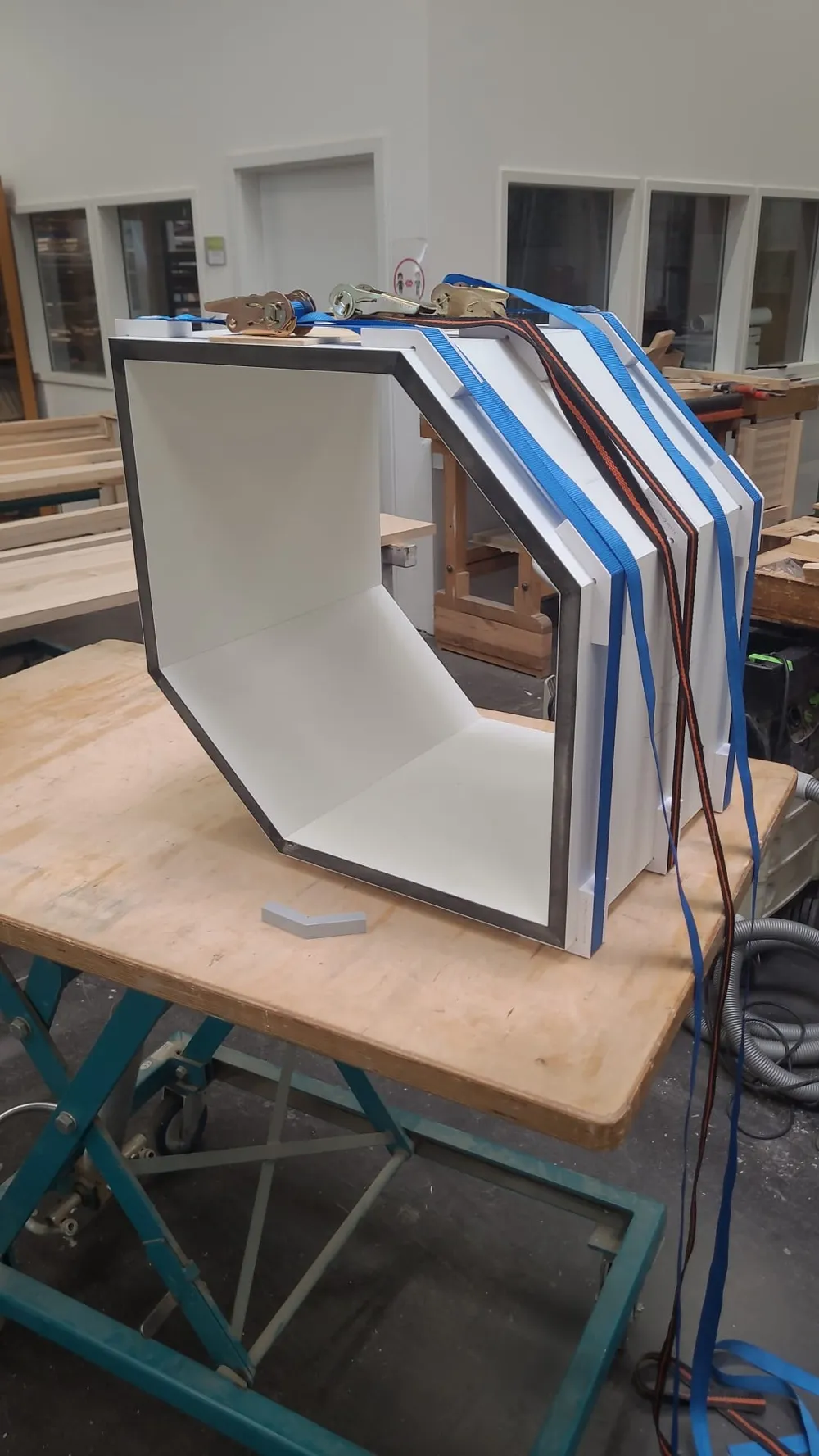

I designed these two unique gluing aids for my journeyman's project in the carpentry/joinery trade – and used them successfully (see photo). They are perfect for gluing together housings with mitre joints – in two different angles:

✅ 45° – classic mitre joint
✅ 22.5° – ideal for special shapes such as partial octagons (see image)

🎯 Highlights:

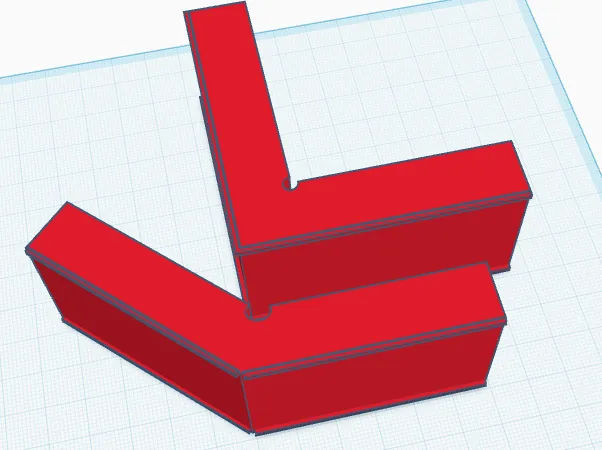

• Two separate models – specifically for 45° and 22.5°
• Integrated anti-slip edge: The strap remains exactly in place when tightened
• Stable hold and precise positioning
• Especially helpful with unusual shapes where normal clamps fail
• Optimal in combination with two people – for precise alignment and even tensioning

💡 Tip:
For an even better result, the inner edge can be lightly sanded to compensate for minor irregularities from the pressure and distribute the pressure on the housing parts more evenly.

🔧 Application:

• Mitre joint gluing with strap or ratchet
• Housing construction, furniture construction, octagonal elements and much more
• Specifically designed for the requirements of the journeyman's piece – functional, fast and clean

🖨️ Printing instructions:

• Material: PETG recommended
• Infill: 30–40 %
• Layer height: 0.2 mm
• Support: Not necessary
• Nozzle: 0.4 mm
• Brim recommended for secure adhesion
• Print flat
