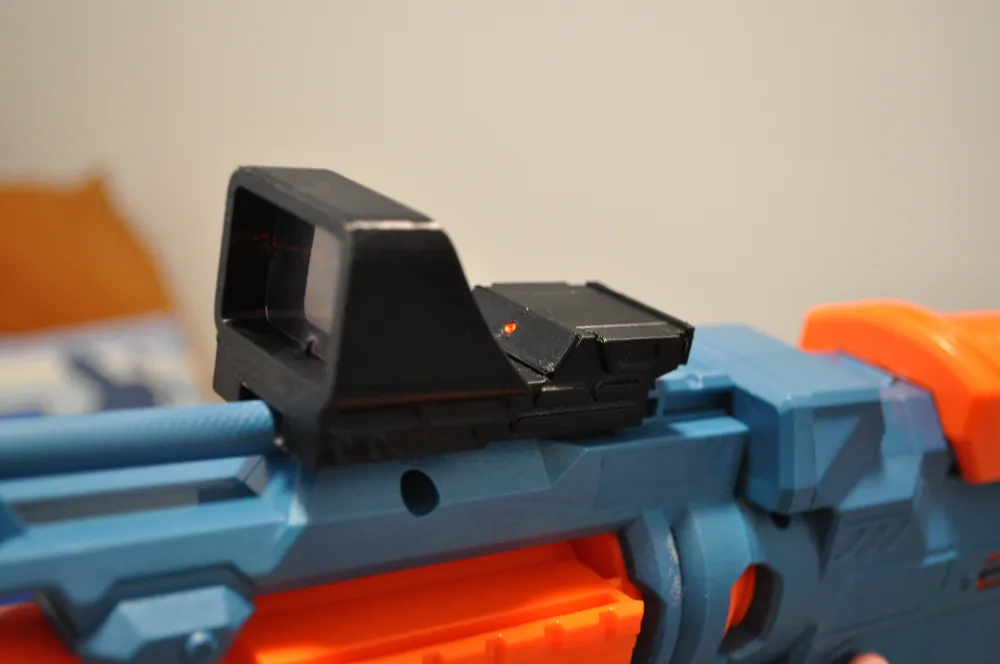

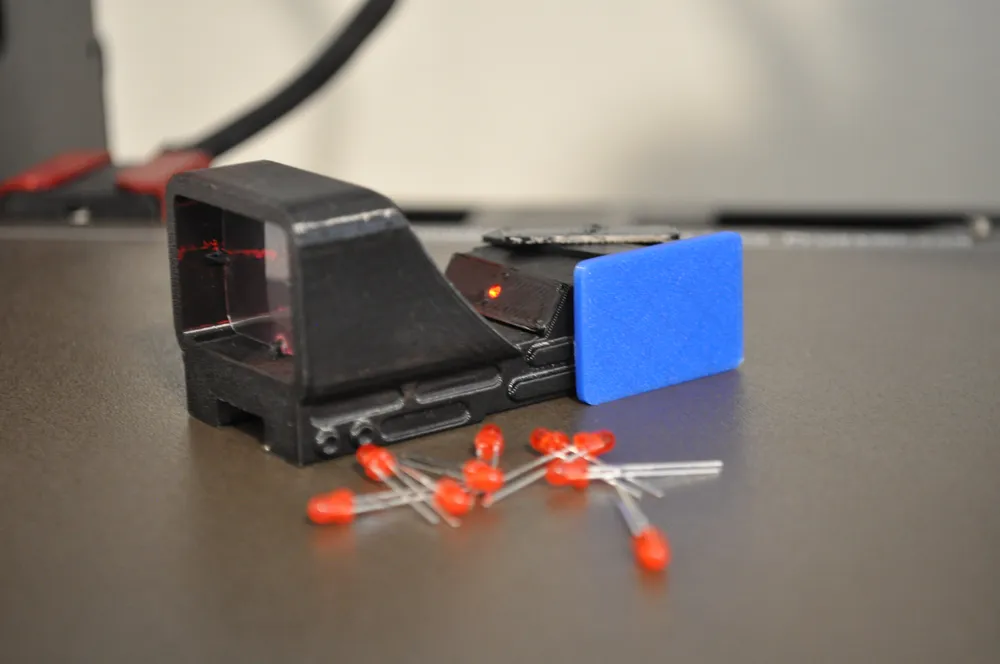

Nerf Red Dot Sight Addons

I printed the red dot sight that @ThompsonStudios made, but I felt like there were somethings that could be improved. My list of things that weren't quite the way I wanted is:

1. The battery slot was not very good, and I wanted a slide in battery case
2. It was hard to cut the screen and it would be nice if there was a template

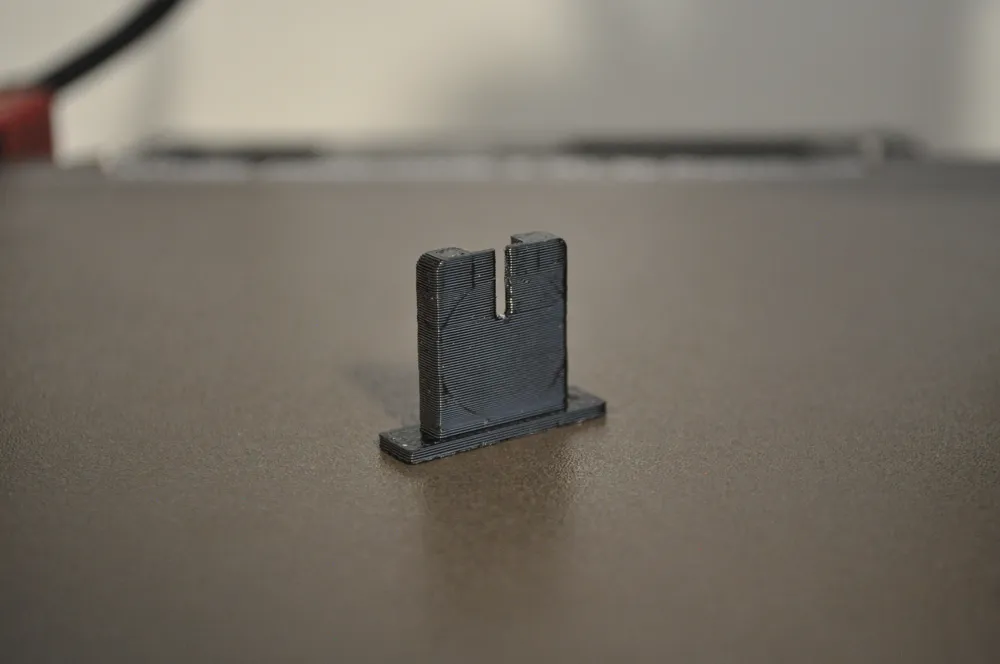

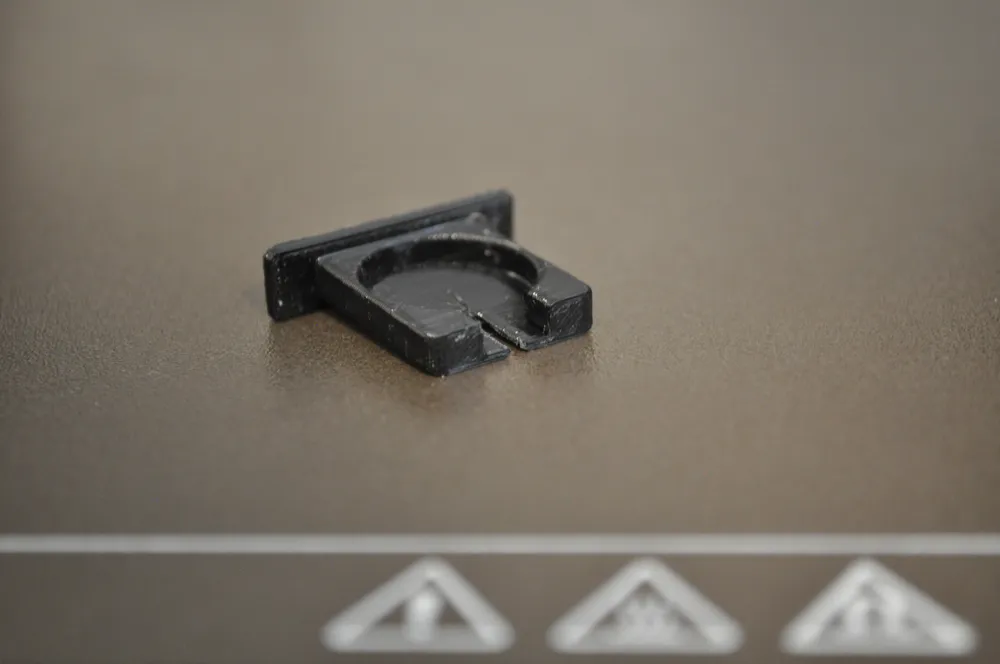

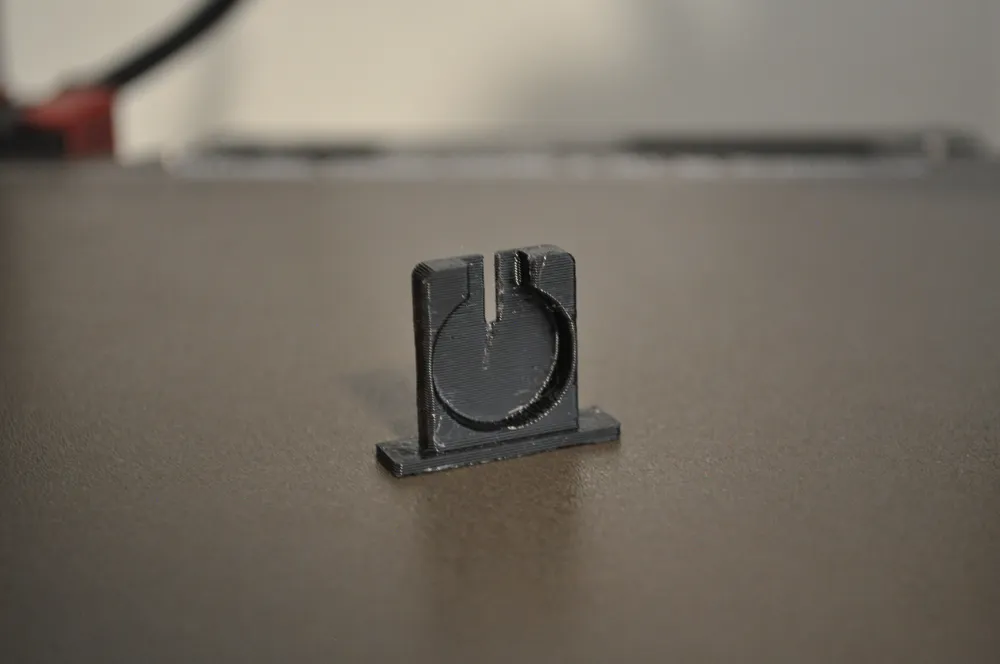

3. There was no model for a dimmer for the LED included in the model, so I needed to make that

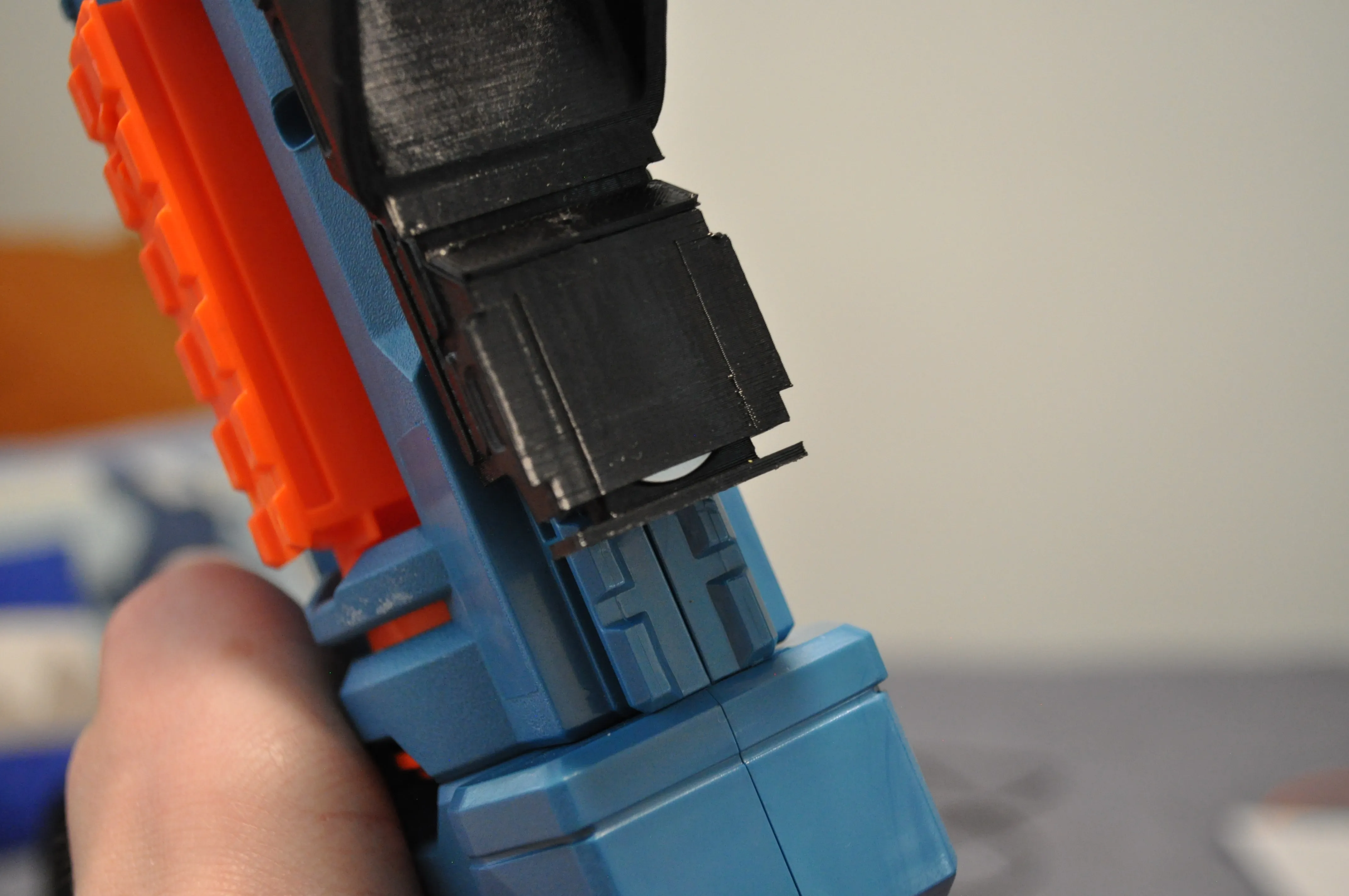

4. The way the rail connection was designed, it limited the use to only a few guns

So I made all the things to make it the best nerf red dot sight on printables!

Here are a few tips for assembly:

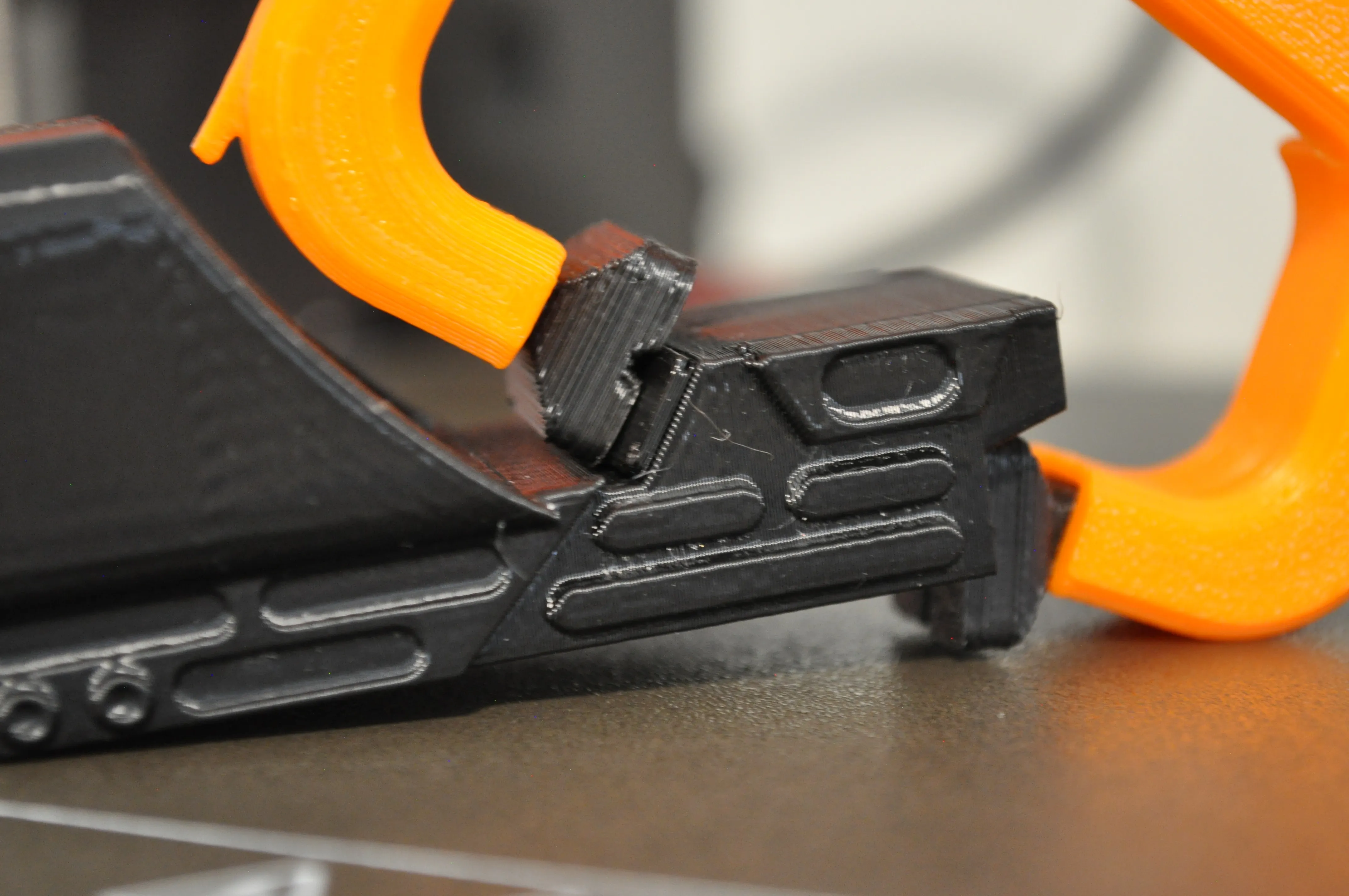

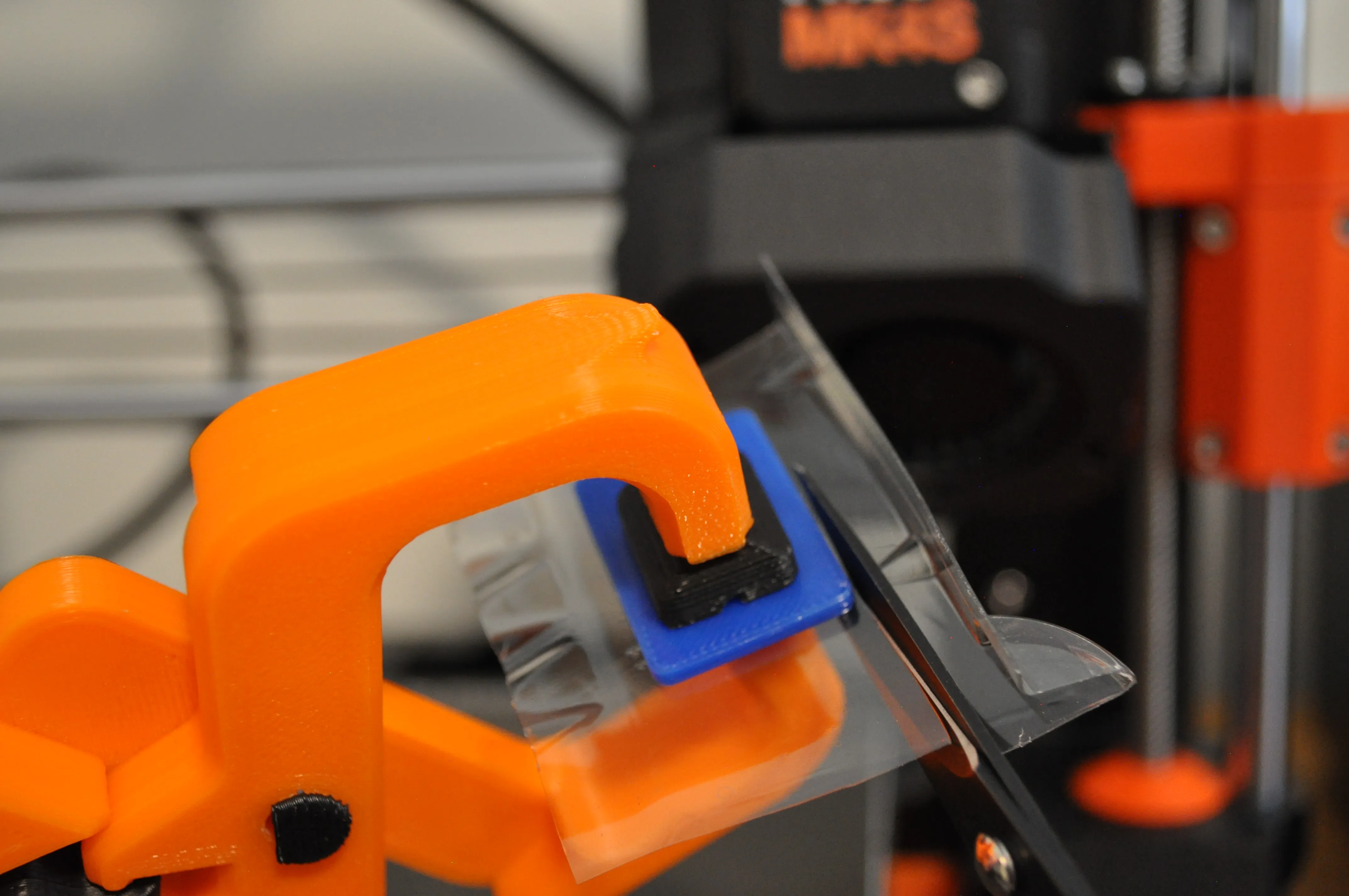

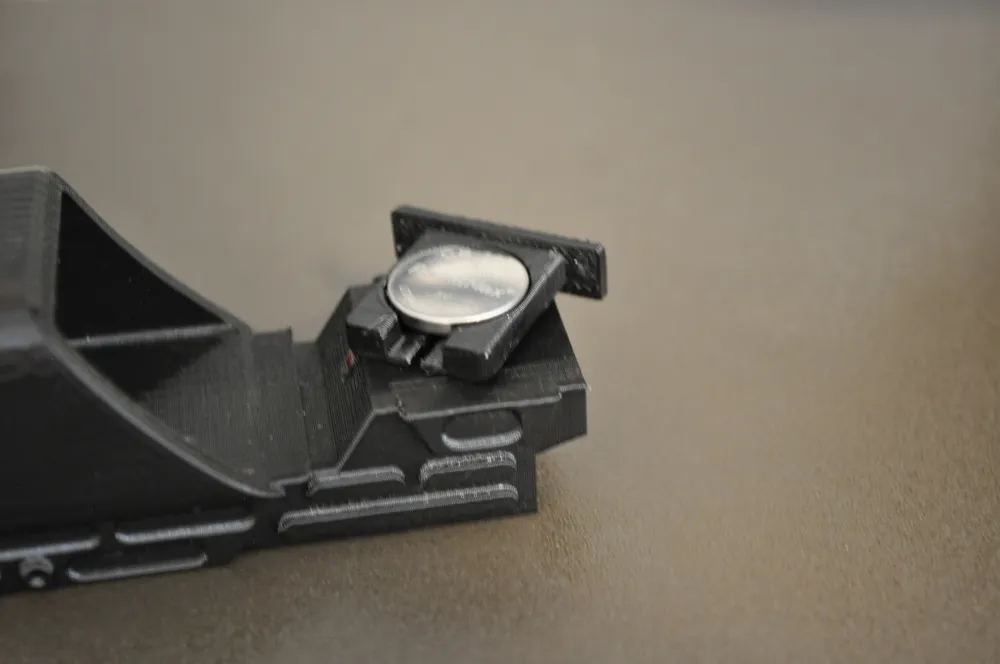

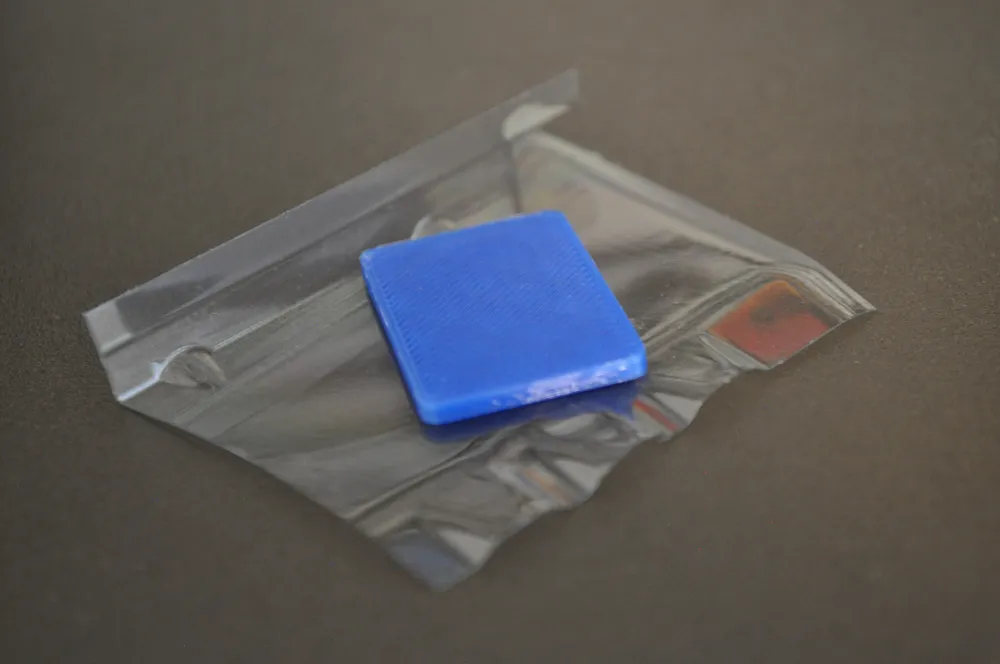

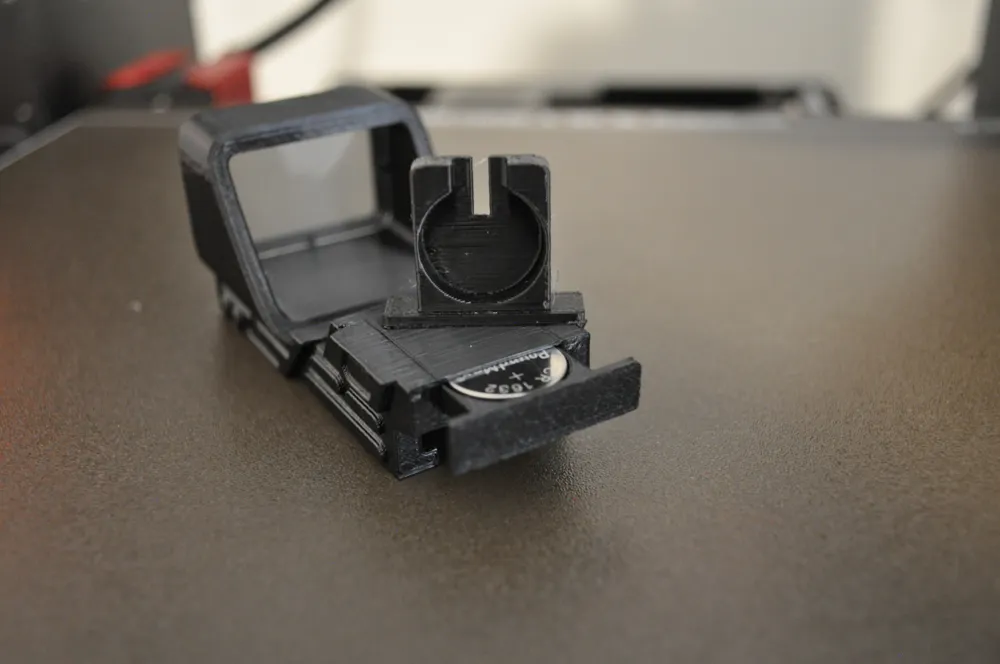

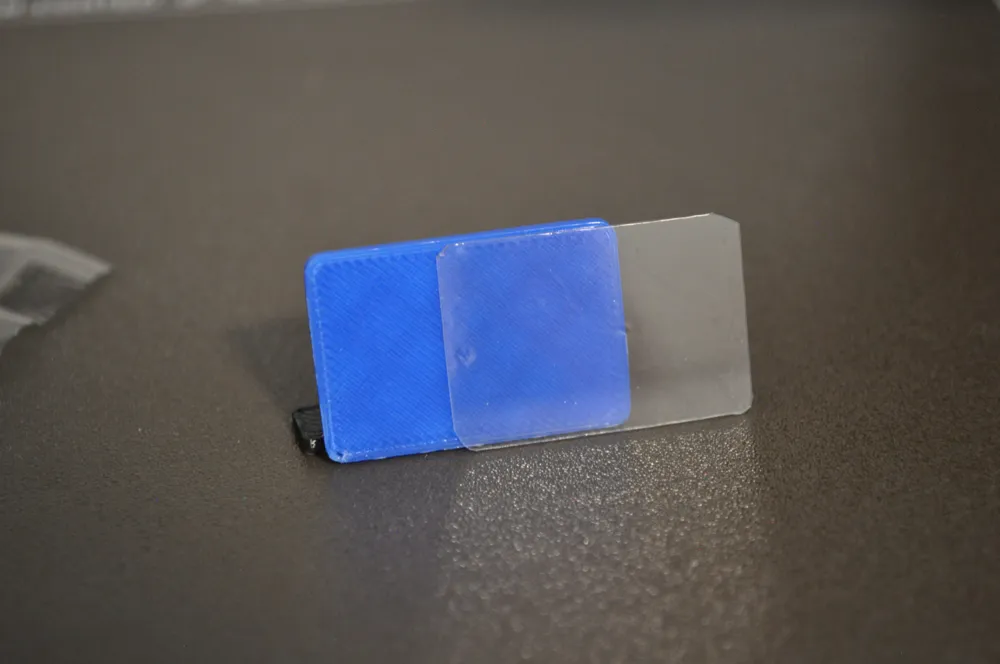

When you are gluing on the dimmer I recommend clamping it on and letting it dry for about 5 min before continuing with the build.	I also found it easier to cut the plastic screen if you clamped the template onto the plastic. After you cut it put some small dabs of glue onto the tabs on the sight and put it on.	Once it is all done you can put the battery holder in. The wires of the light might get a bit squished, but it doesn't really matter. The only thing you want to make sure of is that the light turns on. For easy storage of the battery just pop it open a bit till the light turns off.

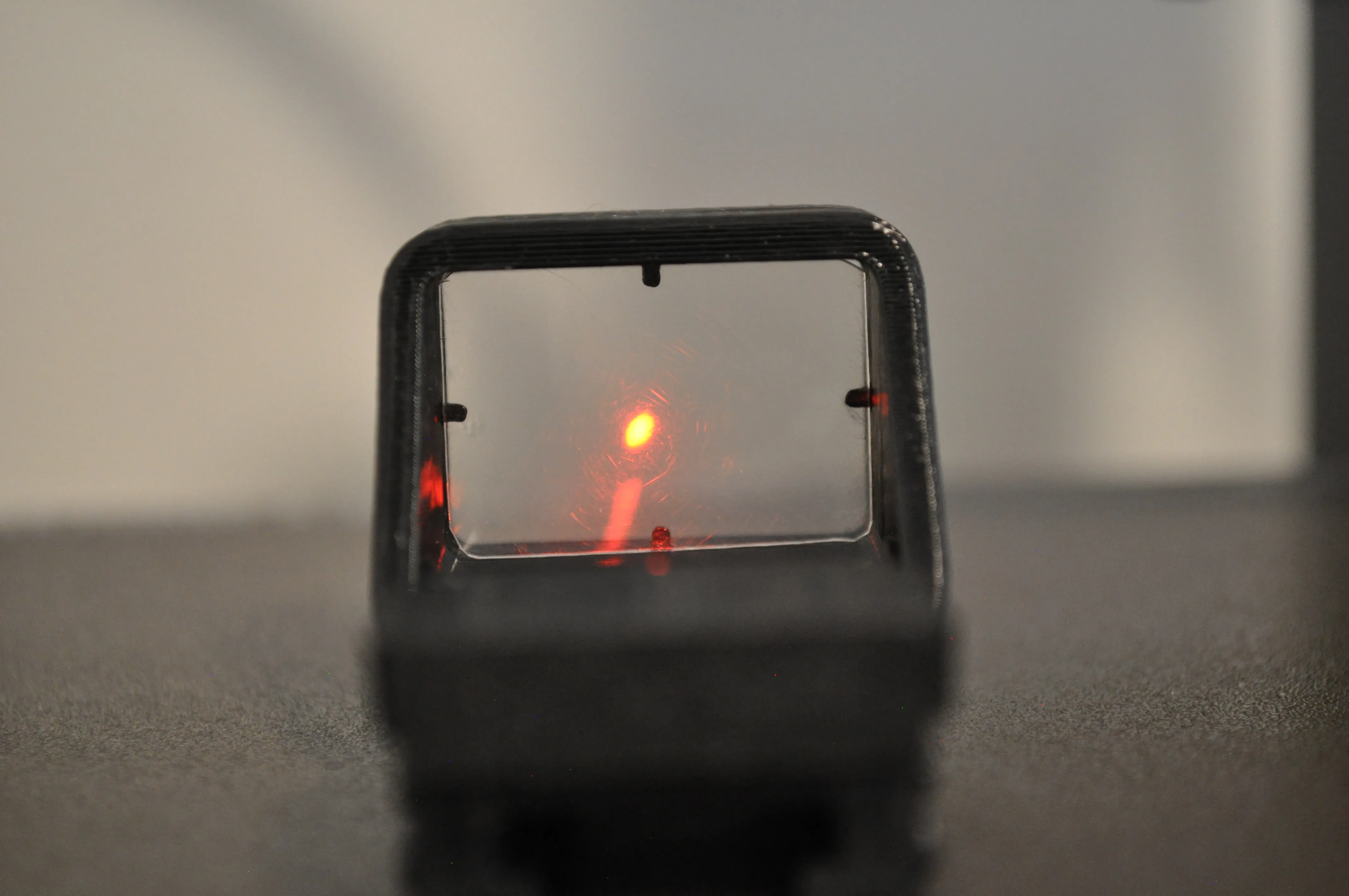

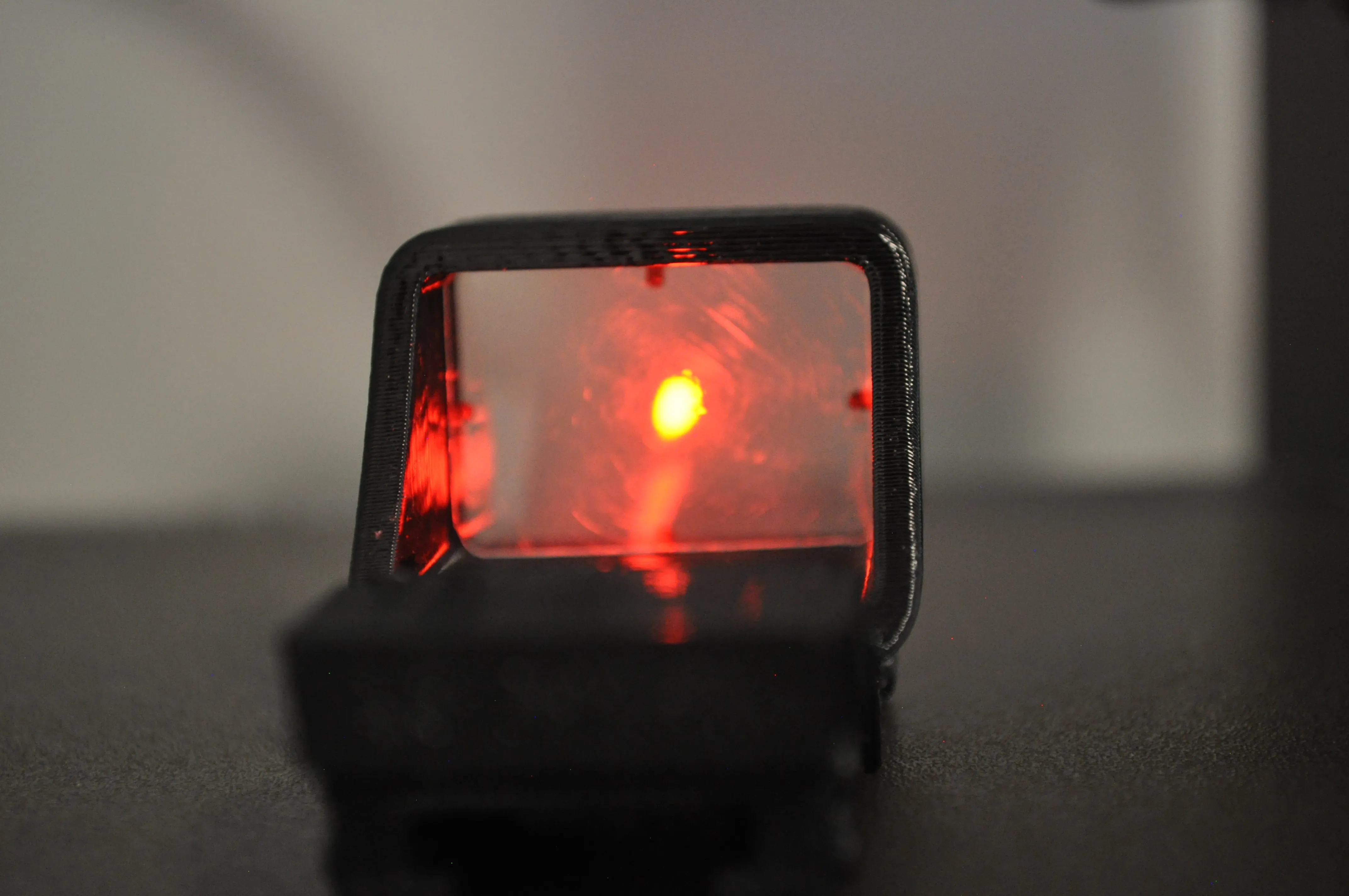

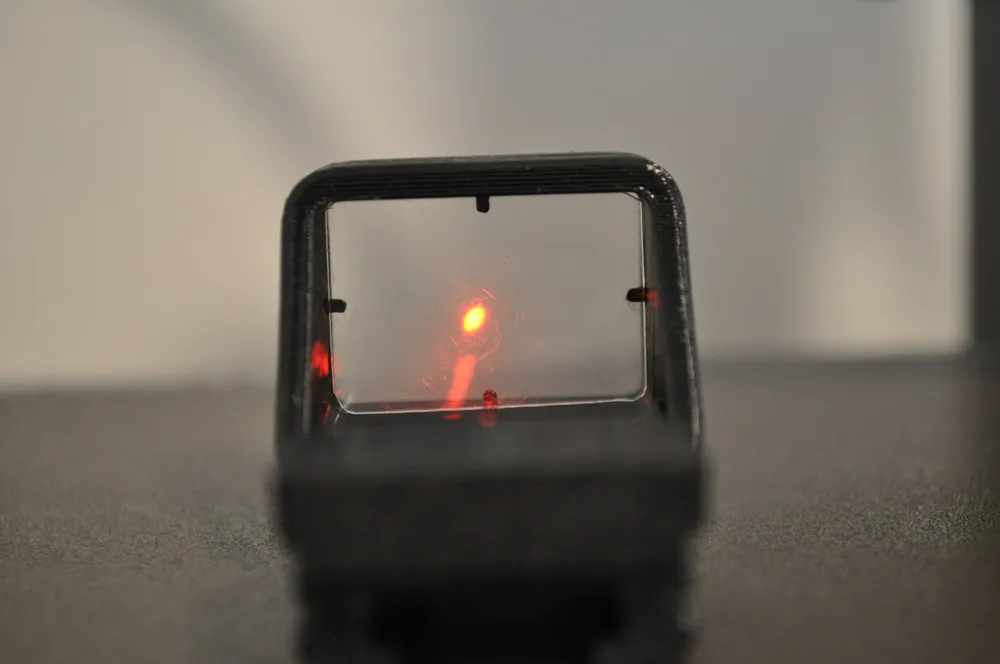

Here is a before and after of when the dimmer is put on:

Print Settings:

I printed it without any supports, but my printer is pretty good at overhangs so you might want to turn them on depending on your printer.
