Computer Remote Wake-up Module Box
Print Profile(1)
Description

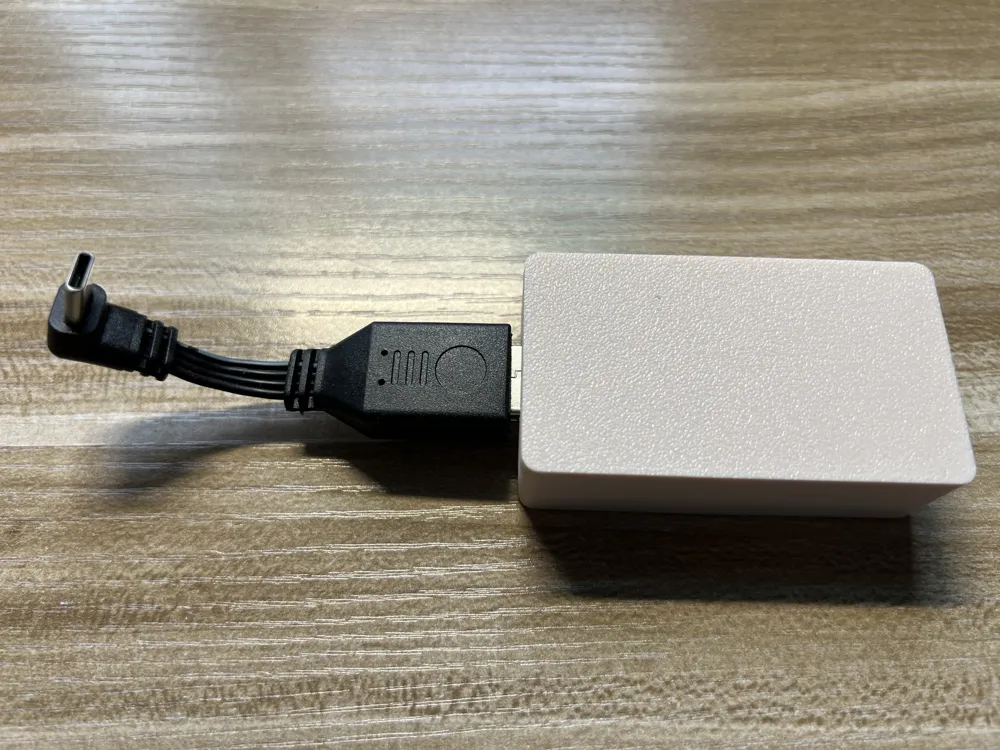

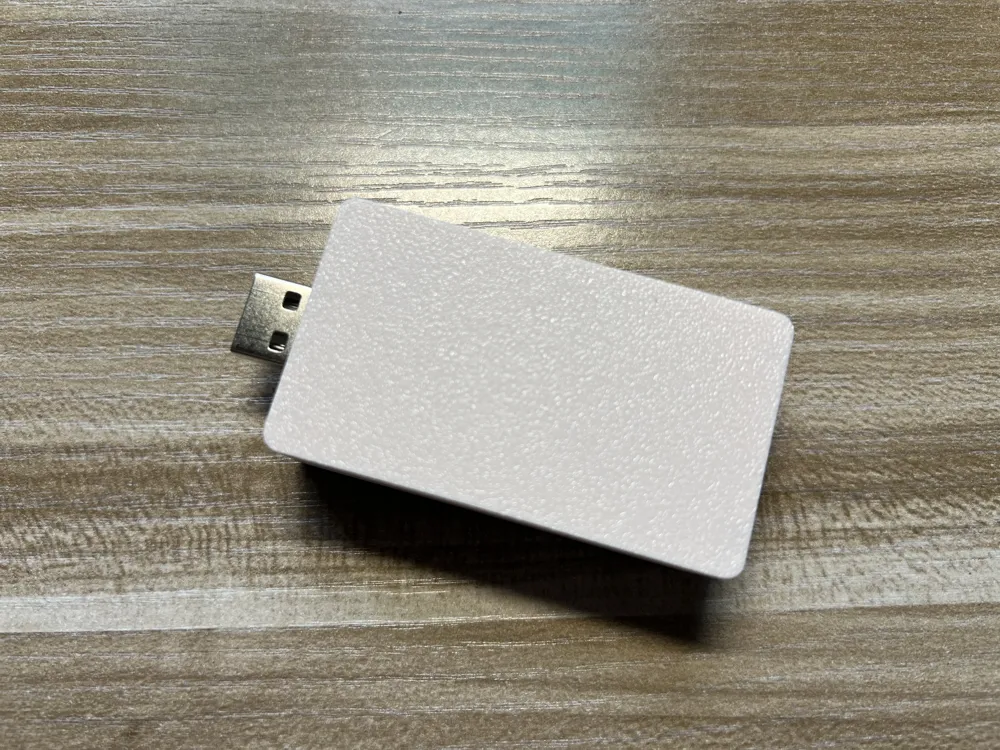

Remote Wake-Up Module Case for Computers
Enables remote wake-up of computers via an ESP8266 and CH9329 chip by remotely controlling the chip to simulate keyboard input, thereby waking the computer from sleep mode.

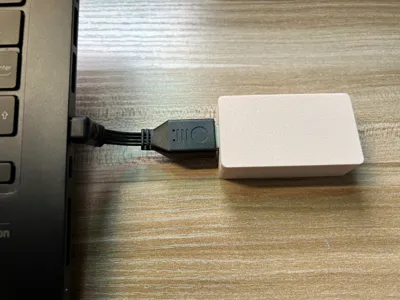

Designed for remote wake-up of some laptops lacking WOL functionality, this solution improves upon the previous method of using an ESP8266 to control a servo motor to physically press the power button; it requires only a single data cable and chip, offering a more elegant solution.

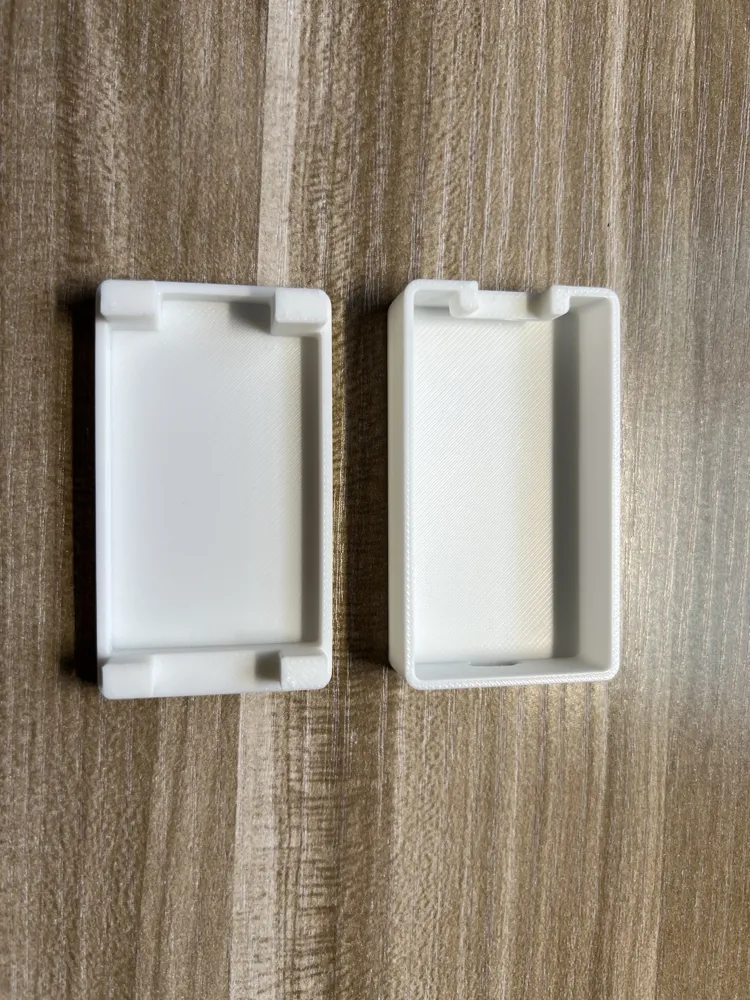

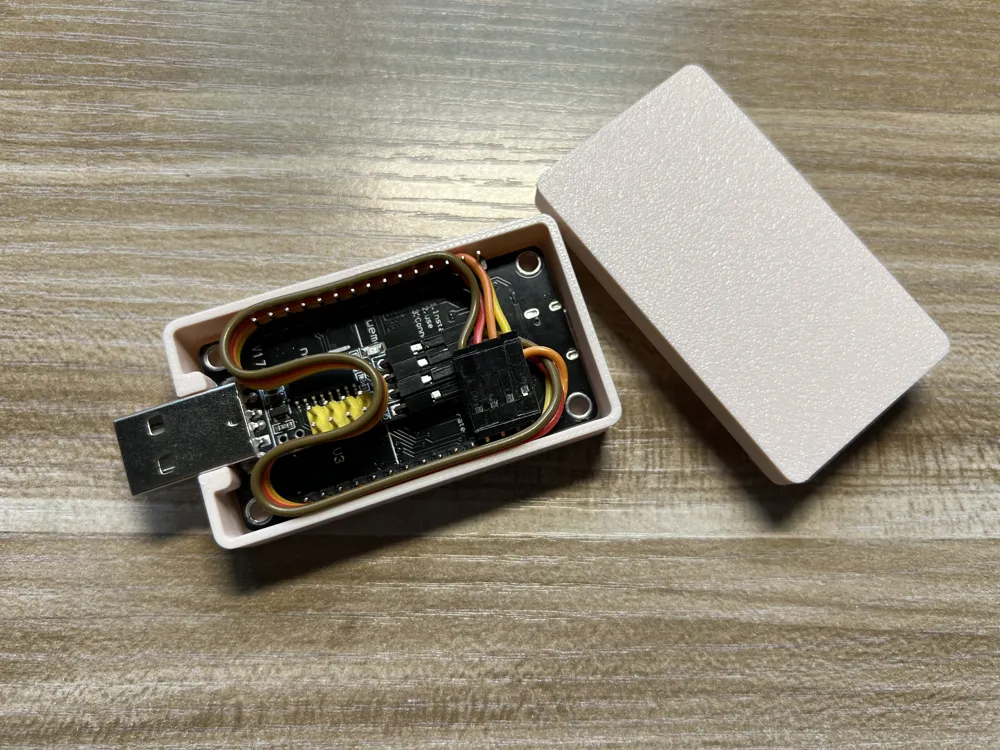

This listing provides only the enclosure; for chip installation, refer to the cover image. Operational documentation and code are included in the attachments.
Boost Me (for free)
If you enjoy this model, please consider boosting me, thank you very much!
