Screw Hose Clamp (80–120mm) –for 4" Hoses
Print Profile(1)
Description

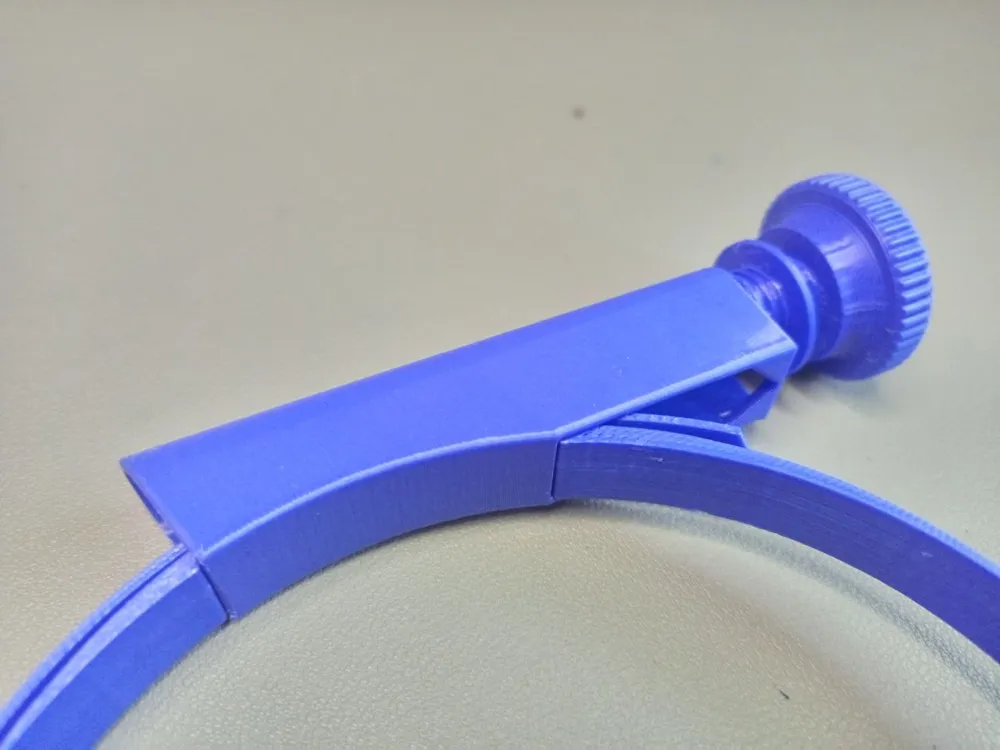

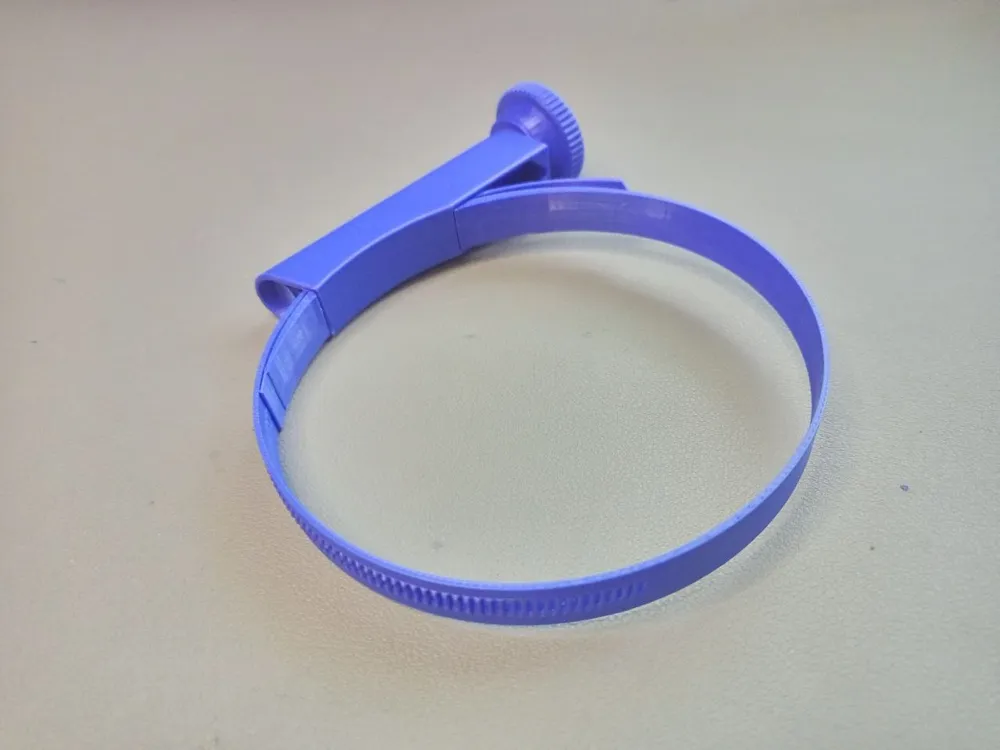

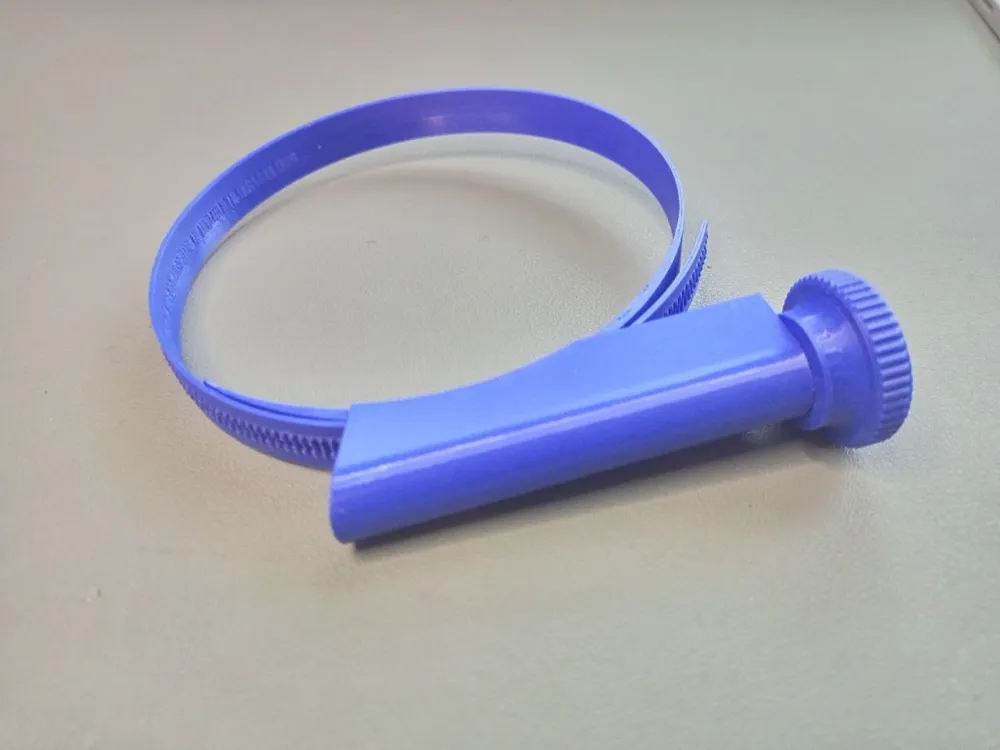

3D-Printed Screw Hose Clamp (80–120mm) – Now for 4" Hoses!
User-Requested Design – Thanks to makers, this expanded clamp should fits H2D printer exhaust systems* and other large-diameter DIY needs!
🔧 The Upgrade You Asked For
After the success of the 25–40mm clamp, this scaled-up version uses the same robust screw mechanism but for 4" hoses (80–120mm). Not yet tested on H2D systems – your feedback will refine it!
Boost Me (for free)
✅ Key Features:
✔ Wider Range: Adjusts 80–120mm (fits 3–4" hoses)
✔ No Supports Needed – but brim is suitable

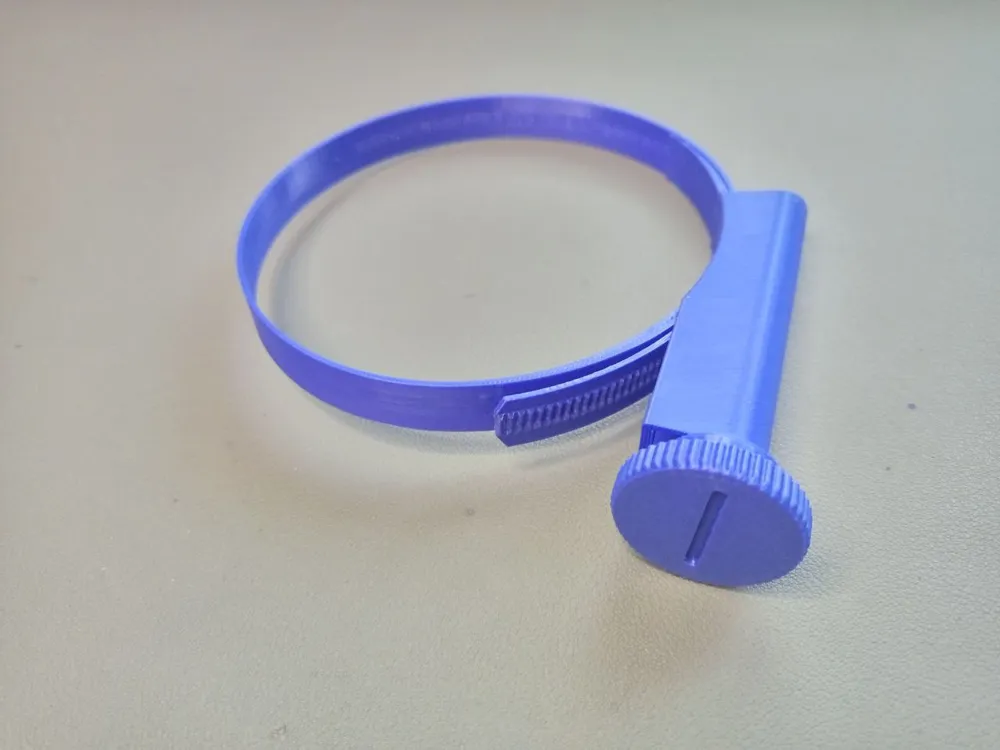

✔ M12 Knurled Screw Included – Or use standard M12 metal screws
✔ Optimized for PLA – better than PETG for this design
⚠ Critical Notes:
• DO NOT USE for automotive, gas, flammable fluids, or high pressure.
• Industrial clamps are safer – This is a prototype. Use at your own risk!
• Cylindrical Surfaces Only: Ensure the hose is round where clamped – uneven surfaces cause weak spots!

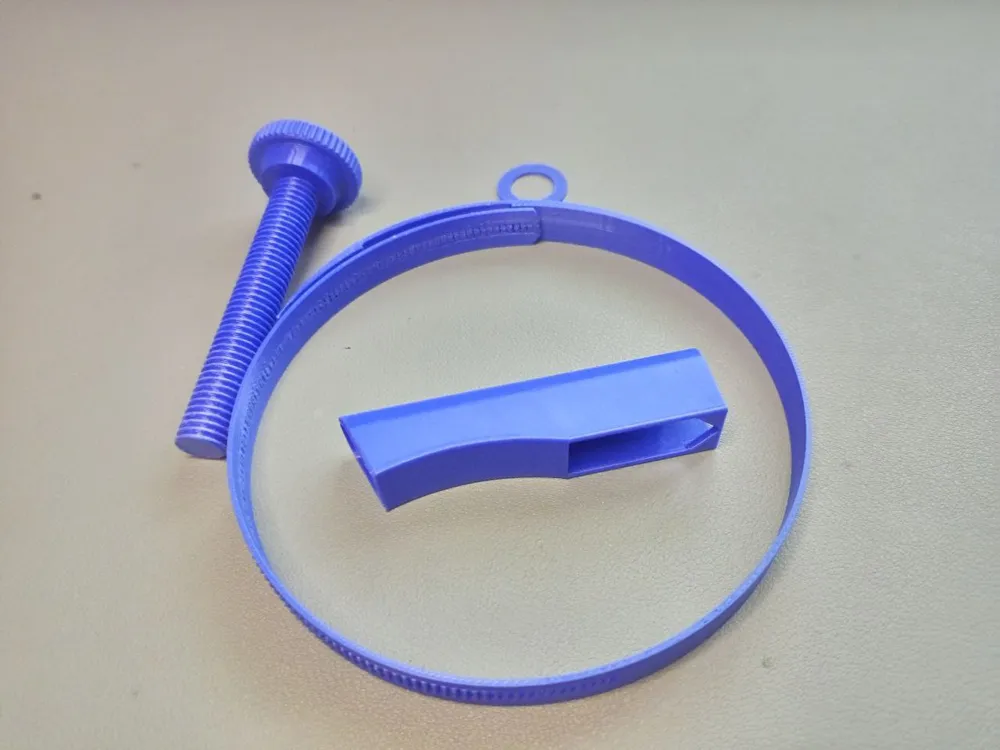

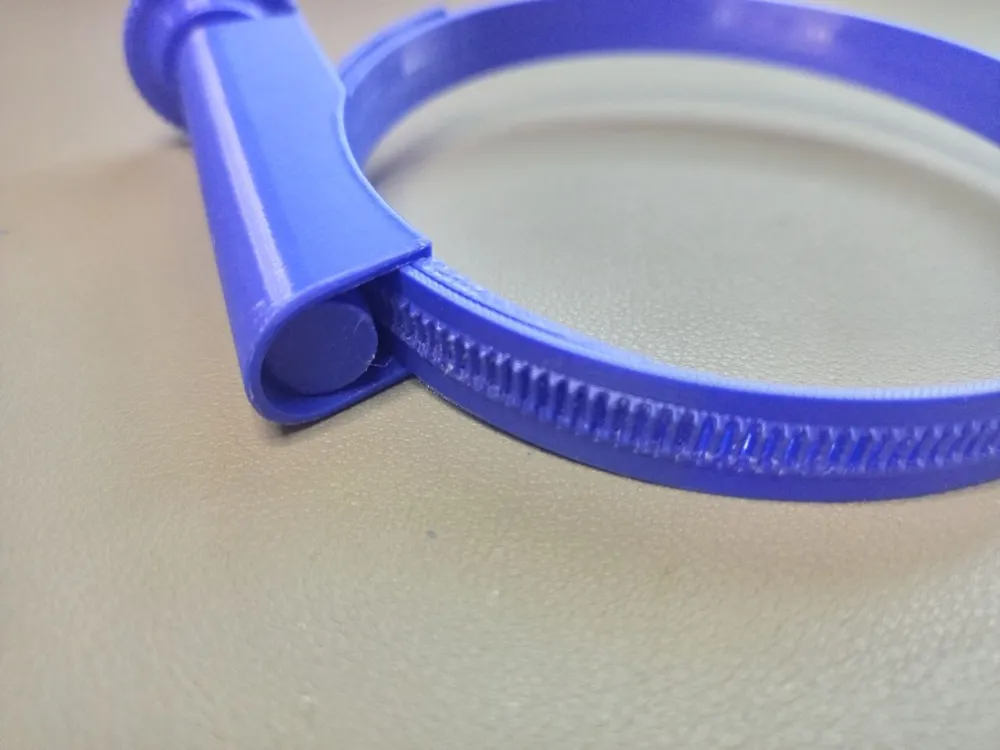

• Assembly Matters: The "house" block must fully seat into the band groove. Test-fit before tightening!
🔧 Print Tips:
• Material: PLA recommended (better than PETG here)
• Tolerances: Tight by design – may feel stiff initially
🚀 Join the Development!
Help improve this community-driven design:
→ DOWNLOAD & Test (Especially on H2D exhausts!)
→ BOOST to support open engineering
→ SHARE your results – Is 80–120mm the right range?
💡 Need Another Size? Check another versions, or message me – your needs guide future updates!
How it works:
