Joolz Geo 3 Bottle Holder
Print Profile(3)
Bill of Materials
- M3,5 x 20 selbstschneidende Schraube x 2:
- M3,5 x 25 selbstschneidende Schraube x 2:
Description
Update 17.10.2025:

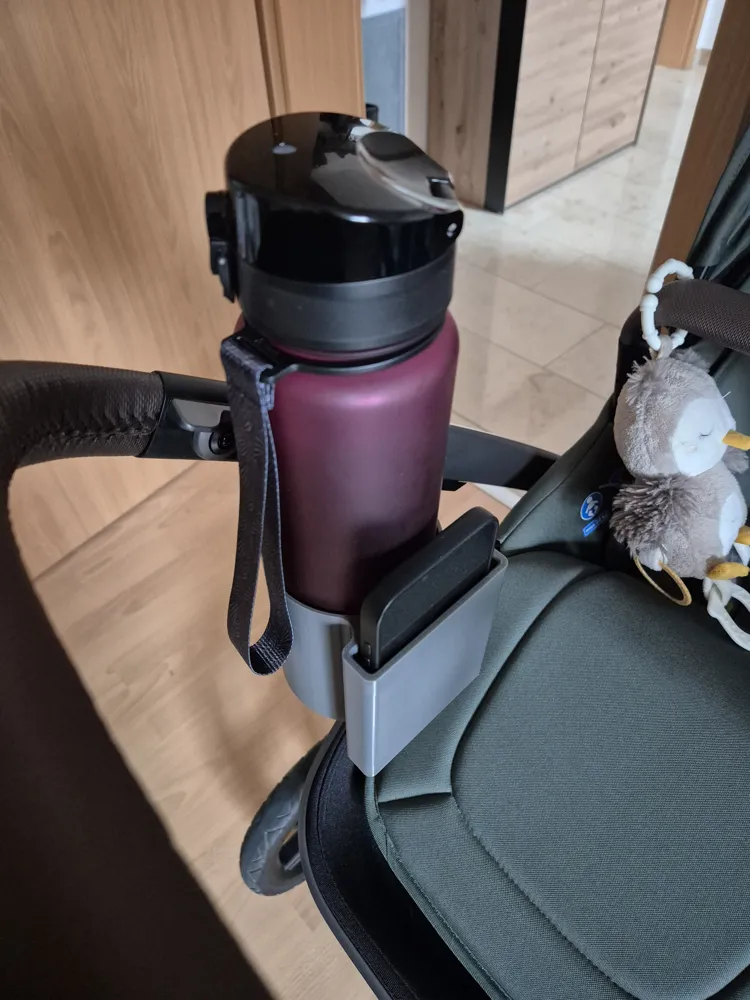

2 new versions for the 1 liter 720° bottle (inner diameter holder 81 mm)
With and without phone compartment.
Due to the bottle's weight, external clipping is not recommended, therefore a straight clip for internal attachment to the stroller.
----
The through-holes in the lock component were not long enough.
Corrected with Set_v3
---
Design error on the lock in v1.
The gap for inserting the mushroom head on the lock was not present.
Corrected with Set _v2
---
My wife asked me if I could print her a bottle holder for the stroller.
Since I couldn't find anything for the Joolz model, specifically Geo3, I created something myself.

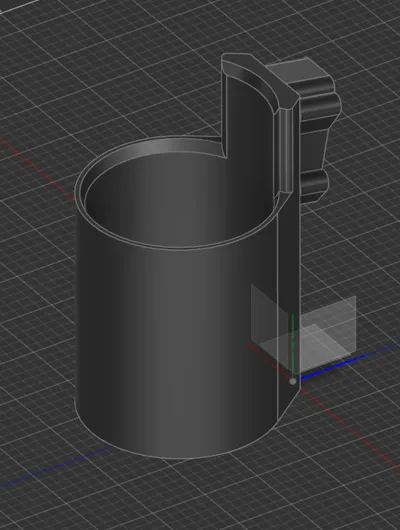

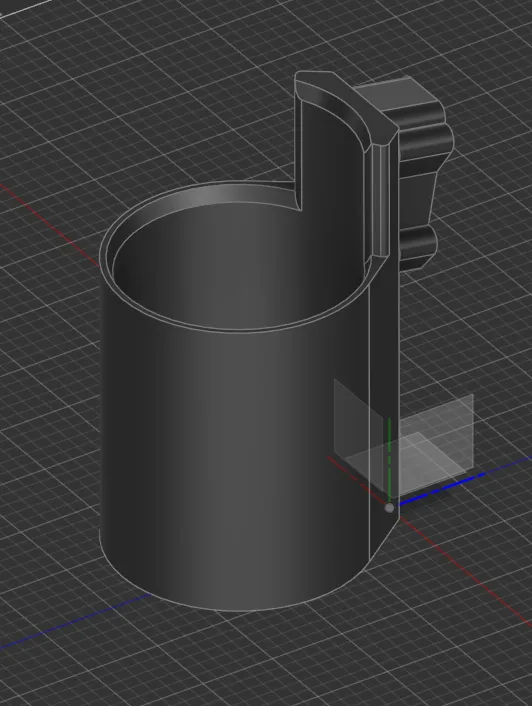

For easier printing, the set consists of 3 parts.
- Clip for the stroller handle - supports needed here
- Lock part
- Cylinder for the bottle itself

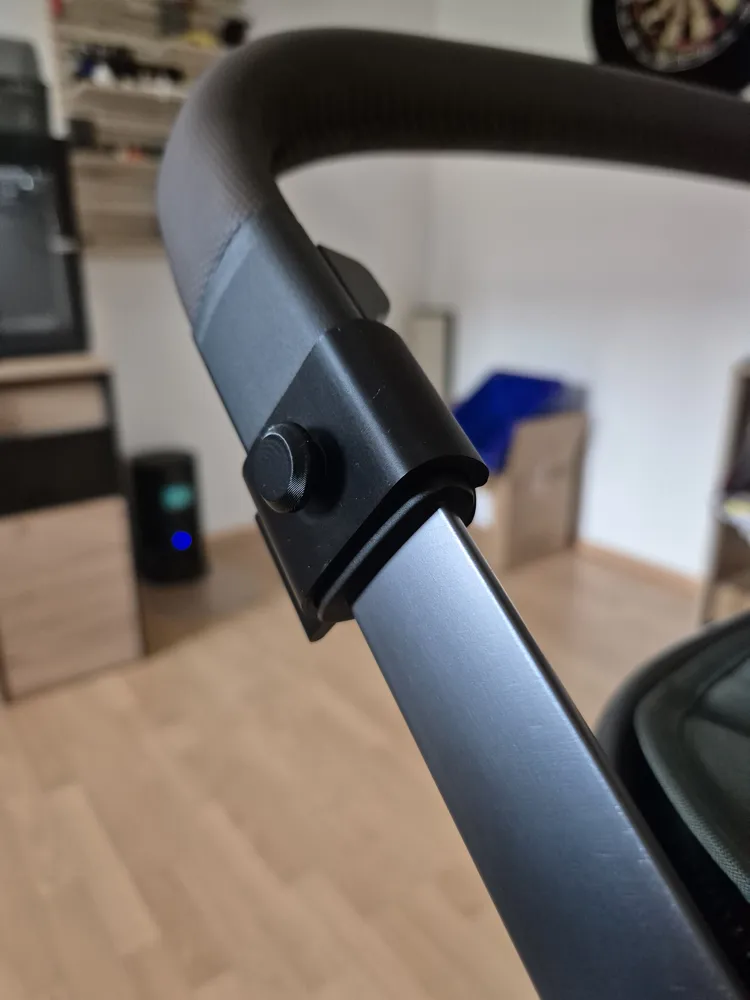

The closure is modeled after the existing one for the changing bag.
To allow for faster testing/development, I designed the lock to be screwed on.

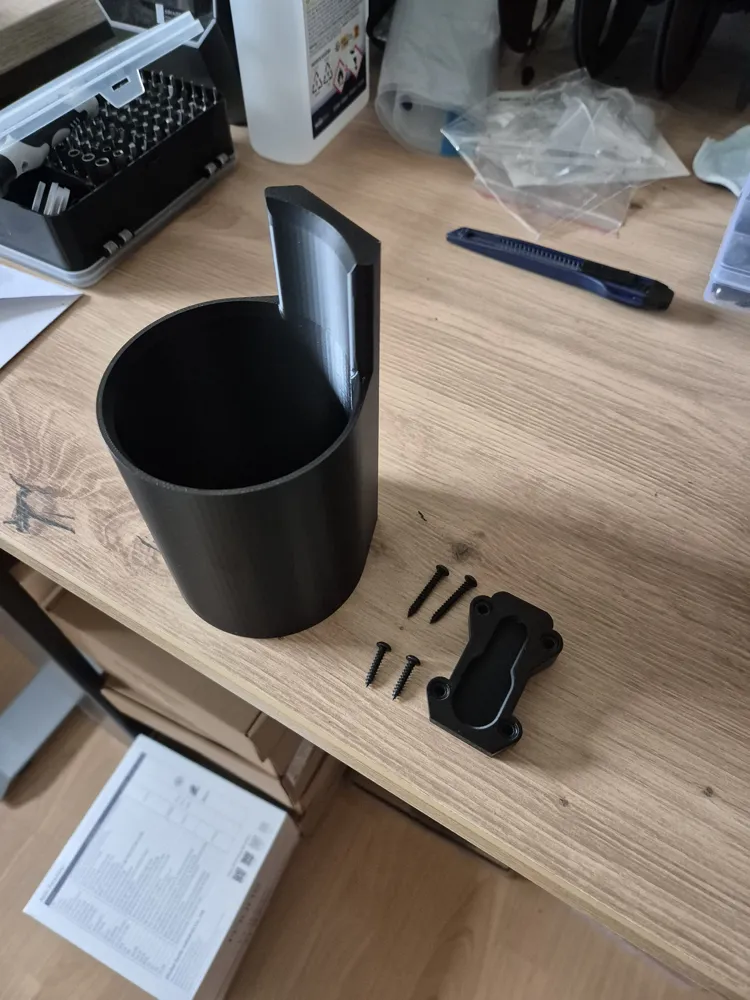

It is attached to the cylinder with 4 self-tapping screws. I bought a set for such purposes on Amazon.

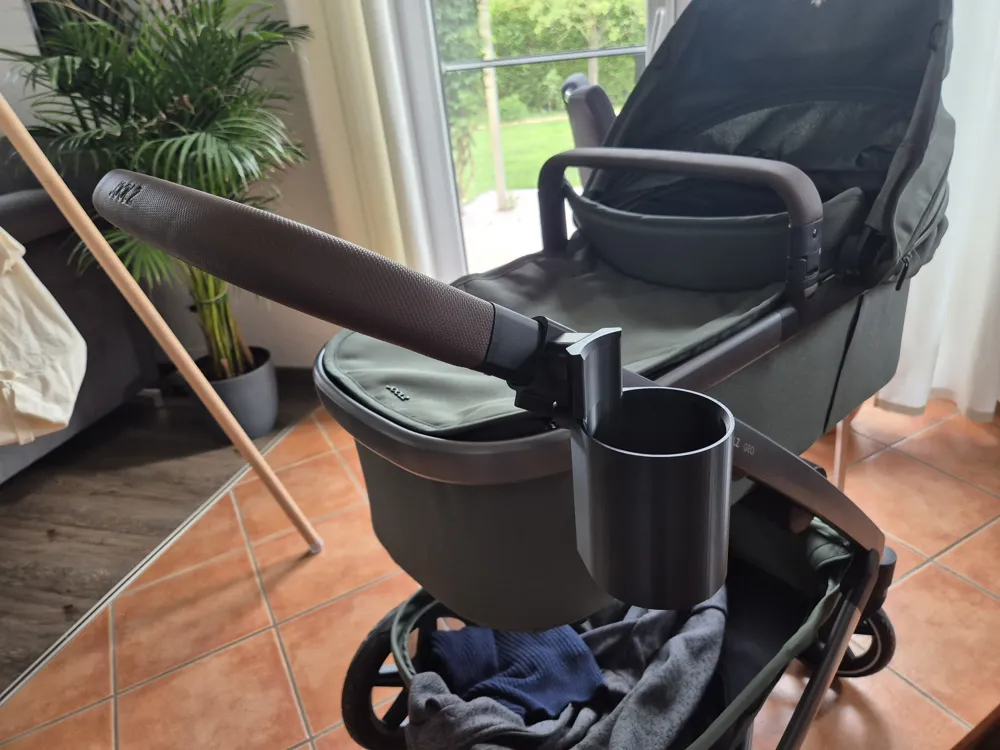

Since the clip sits crooked on the handle, the lock is angled 10° relative to the bottle cylinder so that the bottle stands straight afterwards.

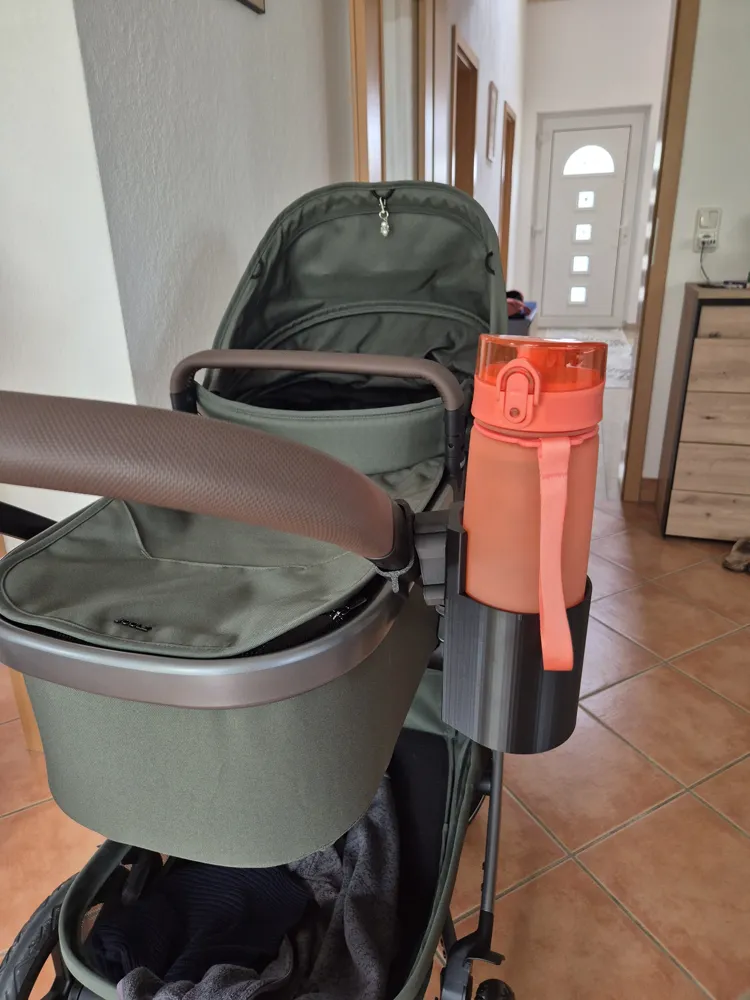

Inner diameter for the bottle: 76 mm
I built the model variably, other sizes may follow if needed.
My model/the pictures are printed in PETG.
For assembly, the following are also needed:
2x M3.5x20
2x M3.5x25
Info if other screws are to be used:
Countersink for screw head: D=6.5 mm, t=2 mm
Through-holes lock D=3.5 mm
Holes in cylinder d= 2.8 mm
Happy printing
Stay hydrated
