H2D Sealed Quick-Release Magnetic Waste Bin
Print Profile(1)
Description

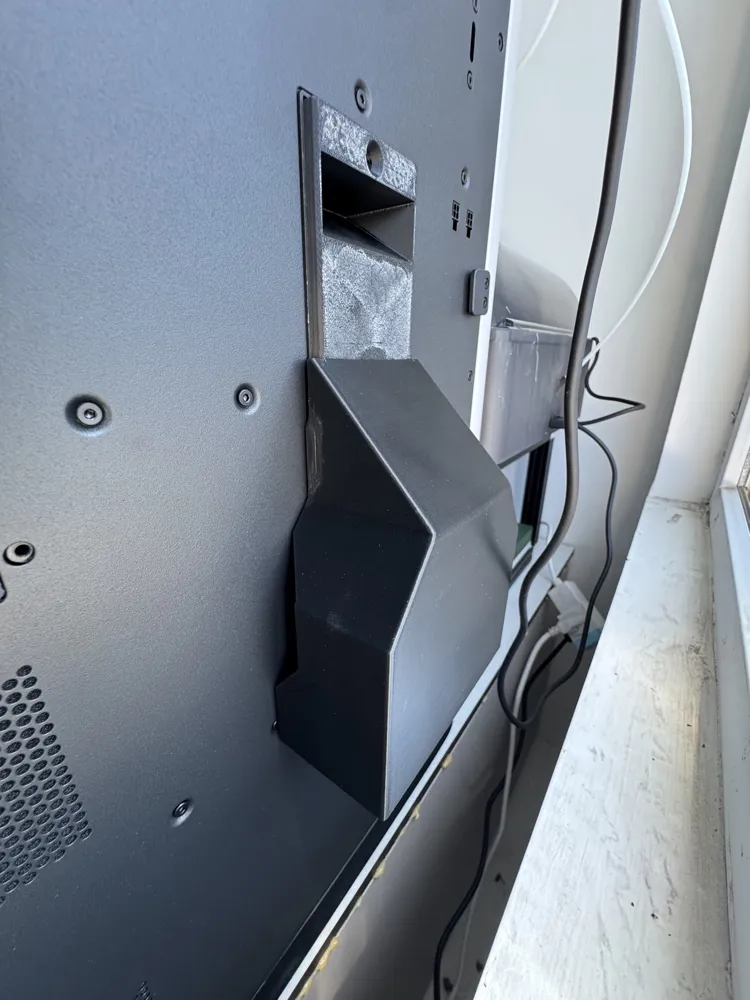

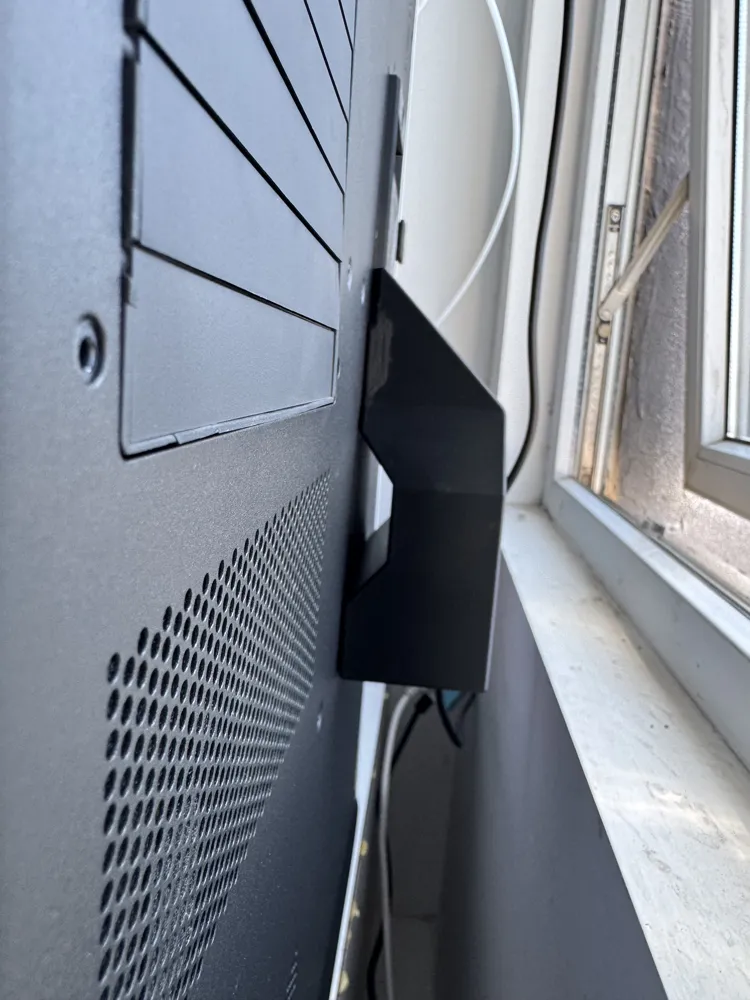

Even with a sealed ABS print on the H2D, a slight odor still escapes from the waste receptacle.

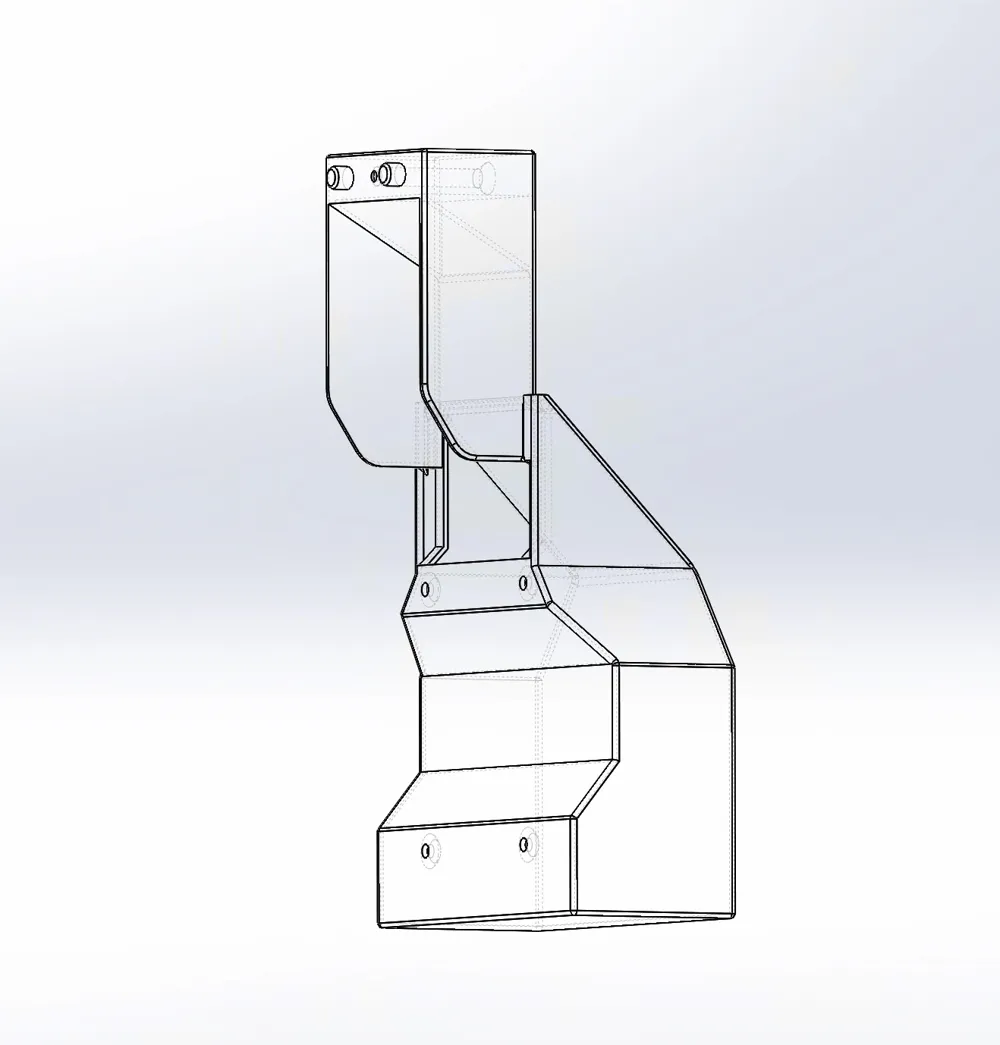

Therefore, this design was created. It allows for direct ABS printing and ensures a snug fit.
Applications:
- Materials requiring temperature retention and odor containment.
- Achieves odorless containment and allows for quick assembly and disassembly. Offers a larger capacity.

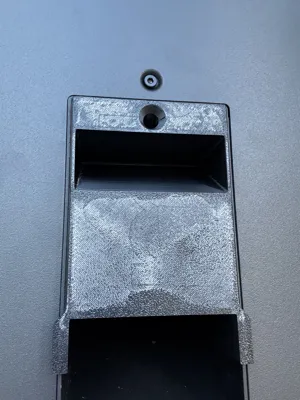

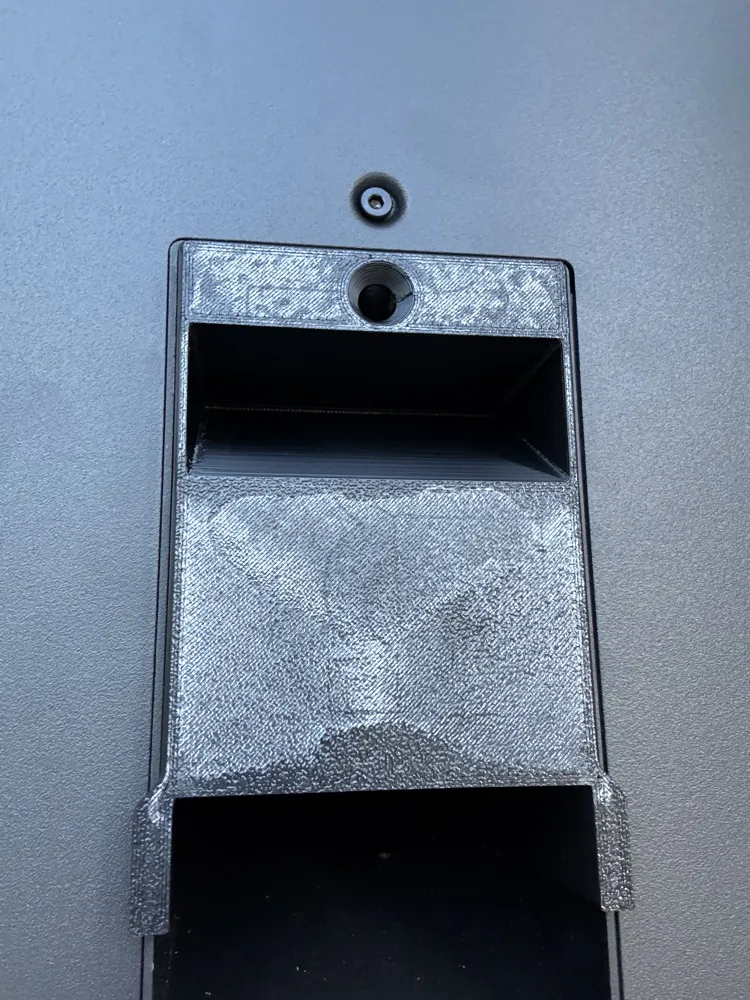

Requires removal of a single screw from the H2D waste bin for installation and securing.

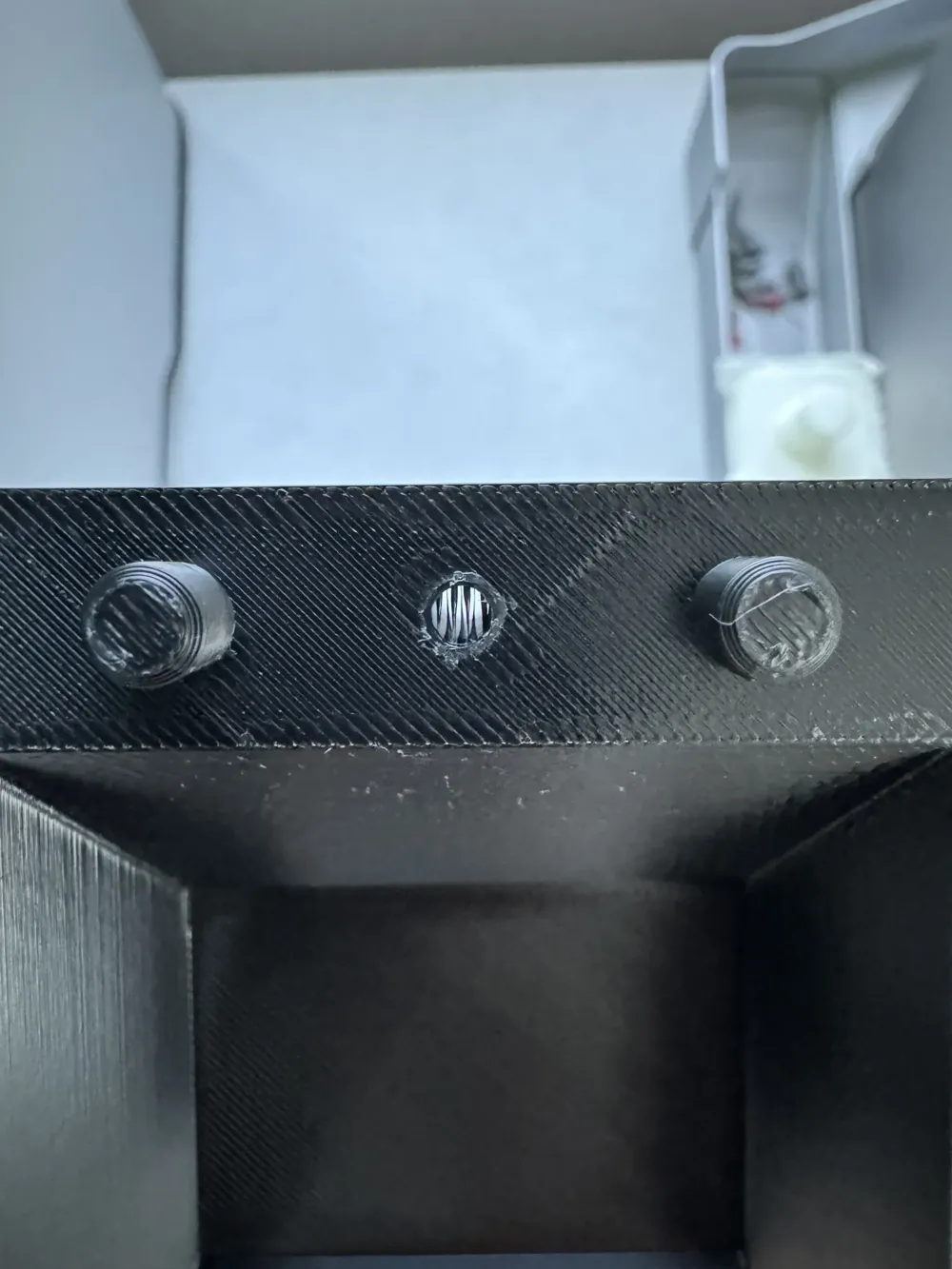

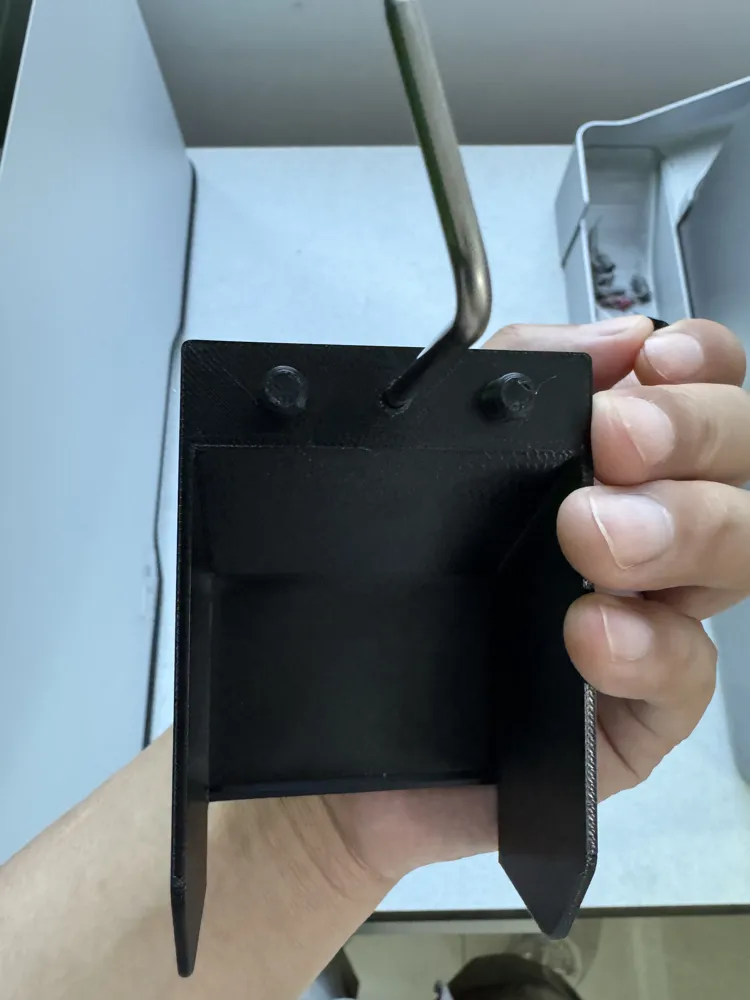

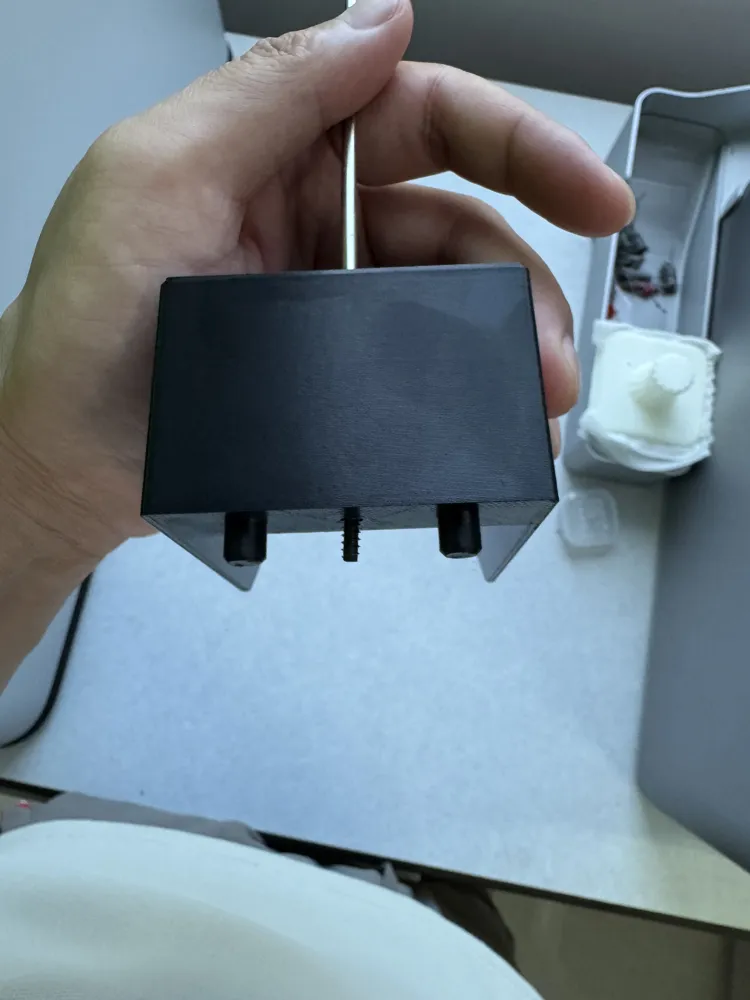

The waste bin features four magnetic mounting holes (I believe magnets are unnecessary; it's already quite secure).
Magnet specifications: 4x1.6. The design avoids the back plate vents, leaving air pump intake unimpeded.
An optimized print profile is provided, enabling printing with any material, requiring no supports, and using approximately 110 grams of filament.
ABS is recommended for printing to withstand high chamber temperatures.
