Magnetic Stirrer

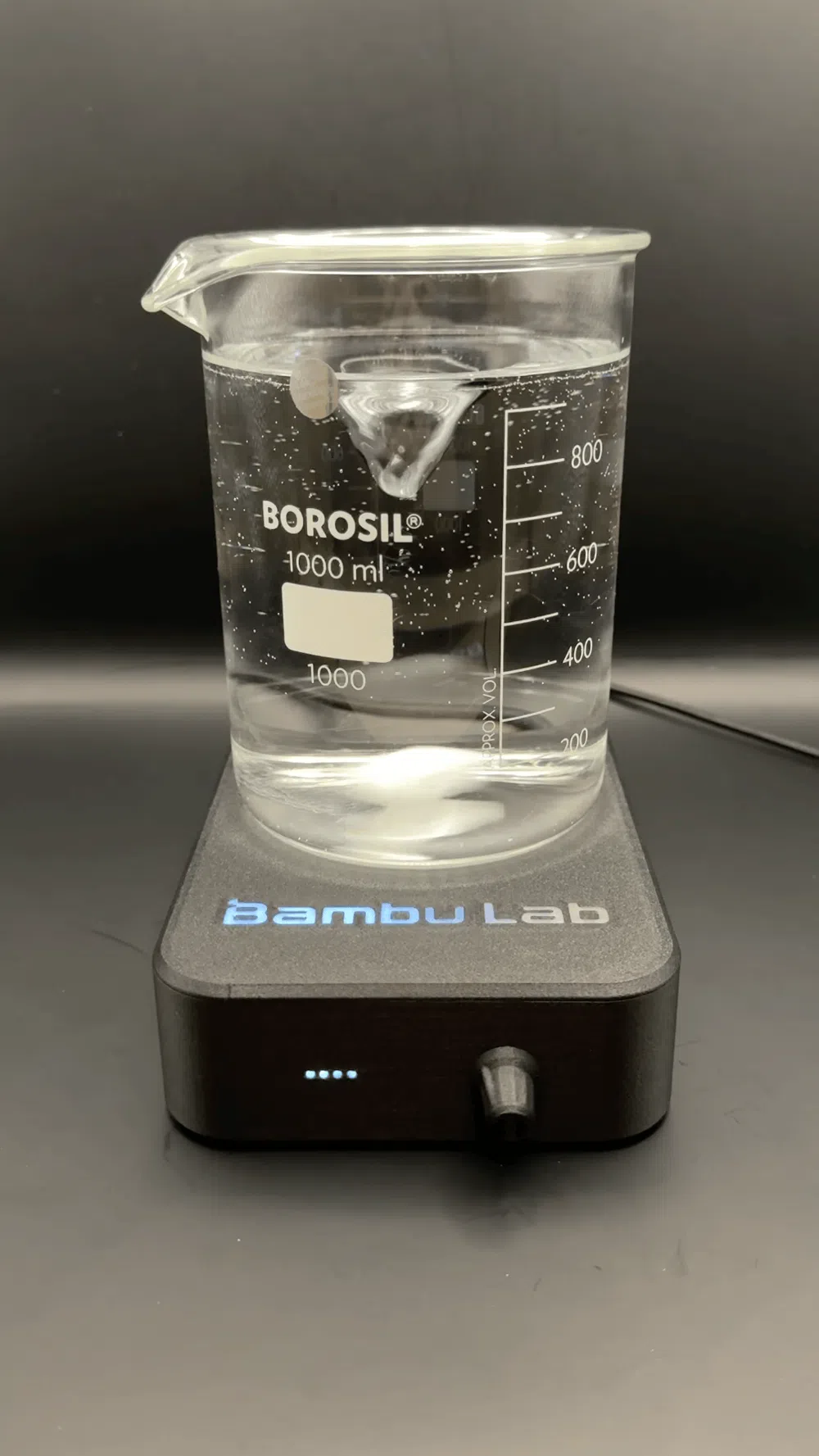

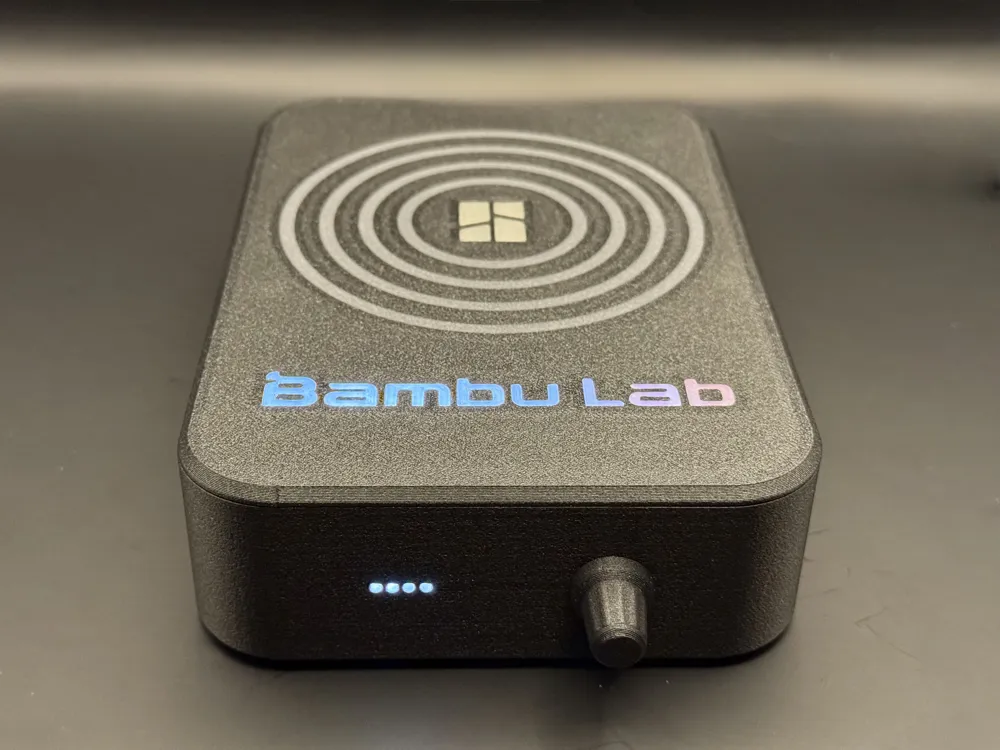

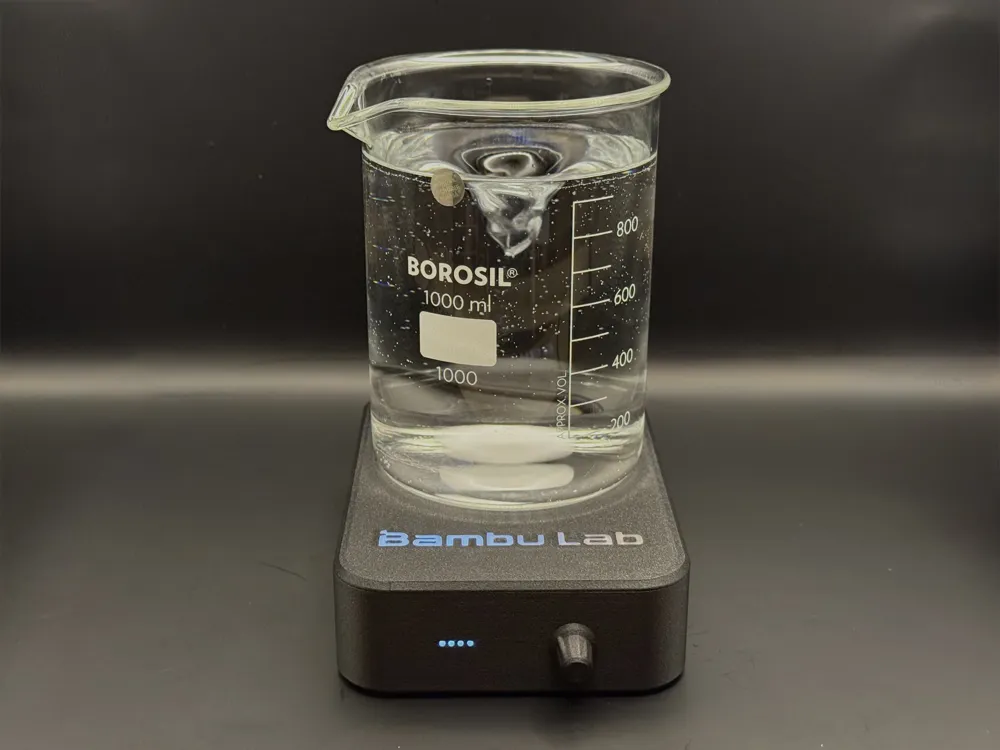

Modern, Cheap and Easy DIY Magnetic Stirrer

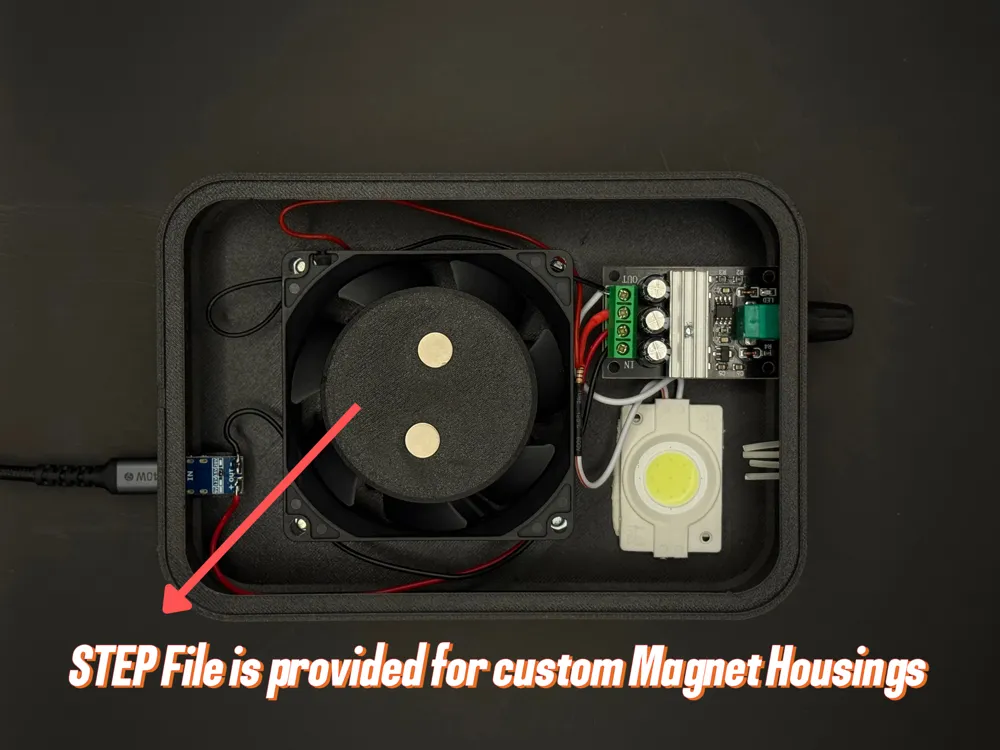

IMPORTANT! STEP File of Magnet Housing is provided to customize for different size of magnets. OR Simply comment your special size magnet requests below and I will provide asap!

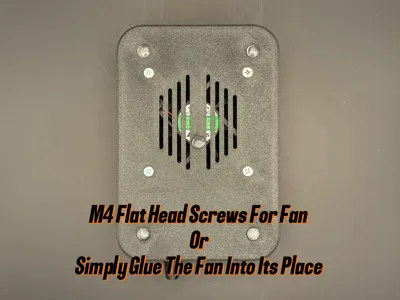

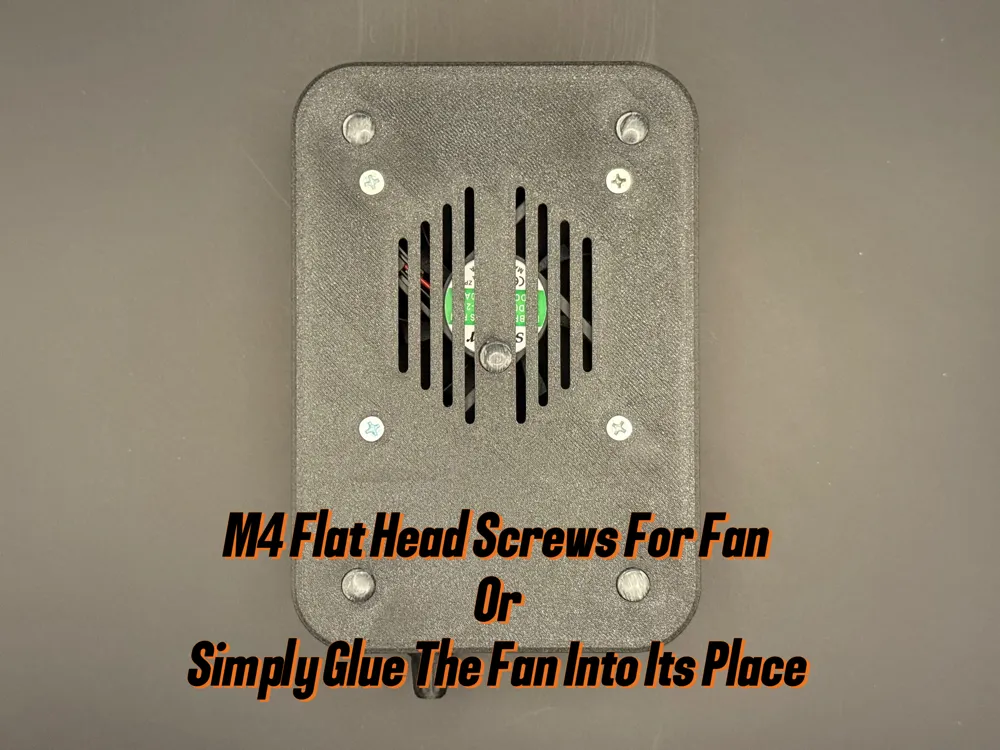

• To install fan to the housing you can use 4ea M4x20 OR just glue it.

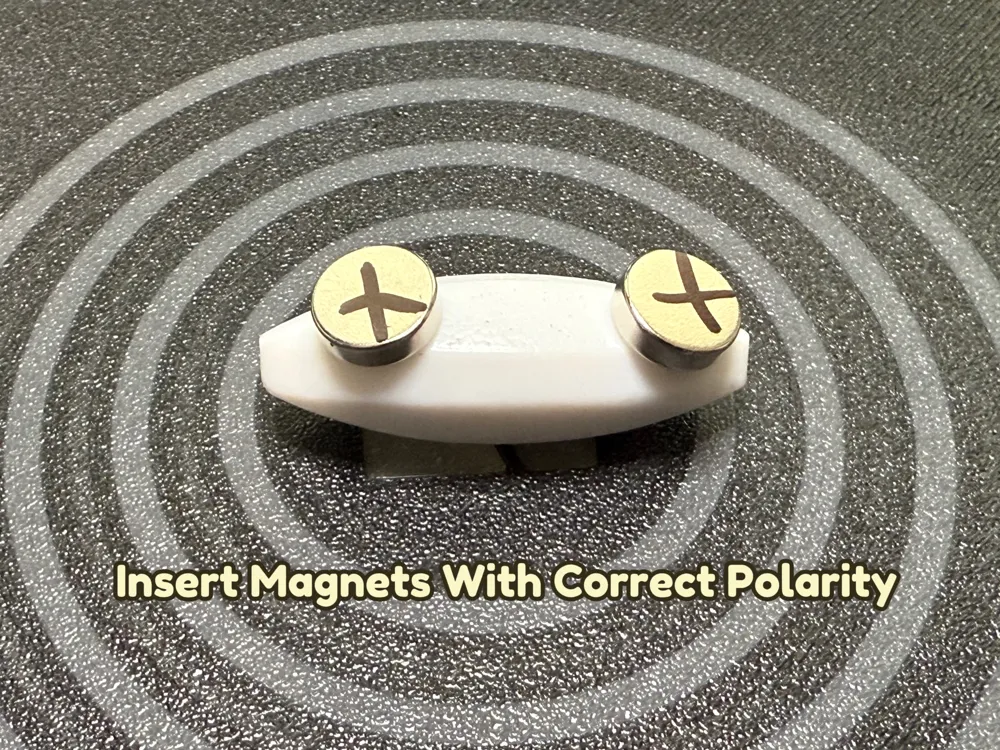

• Glue the magnets with correct polarity. Little force is needed to press fit inside.
• After magnets inserted to the magnet holder, Glue the magnet holder to the center of the PC Fan. It should be centered perfectly to avoid imbalance. The groove will help to center it.

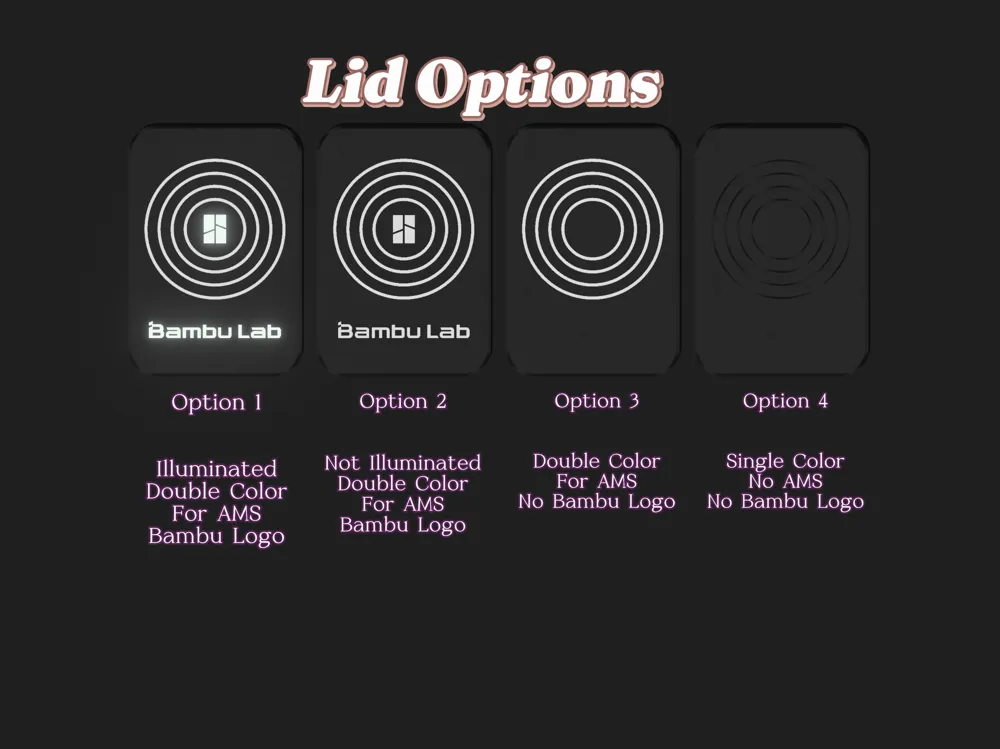

• Finally just drop the lid into its place. I did not use any screws or something to fix the lid to the housing for easy access to the internal mechanism any time. If you needed you can just glue it with a small drops of gel super glue to the 4 corners only.

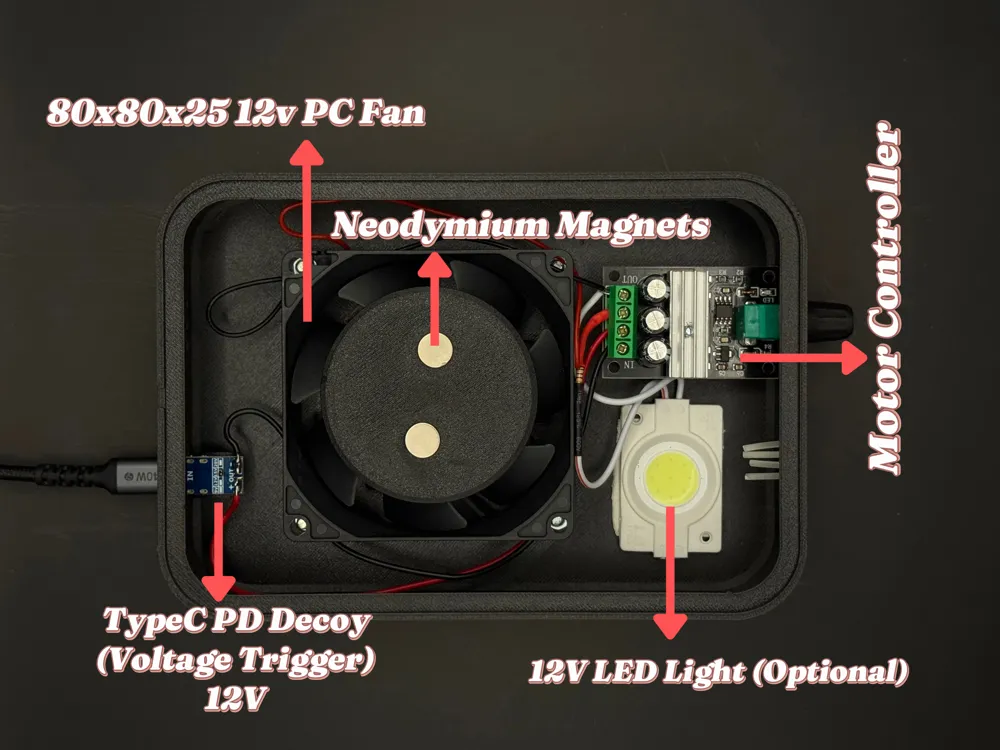

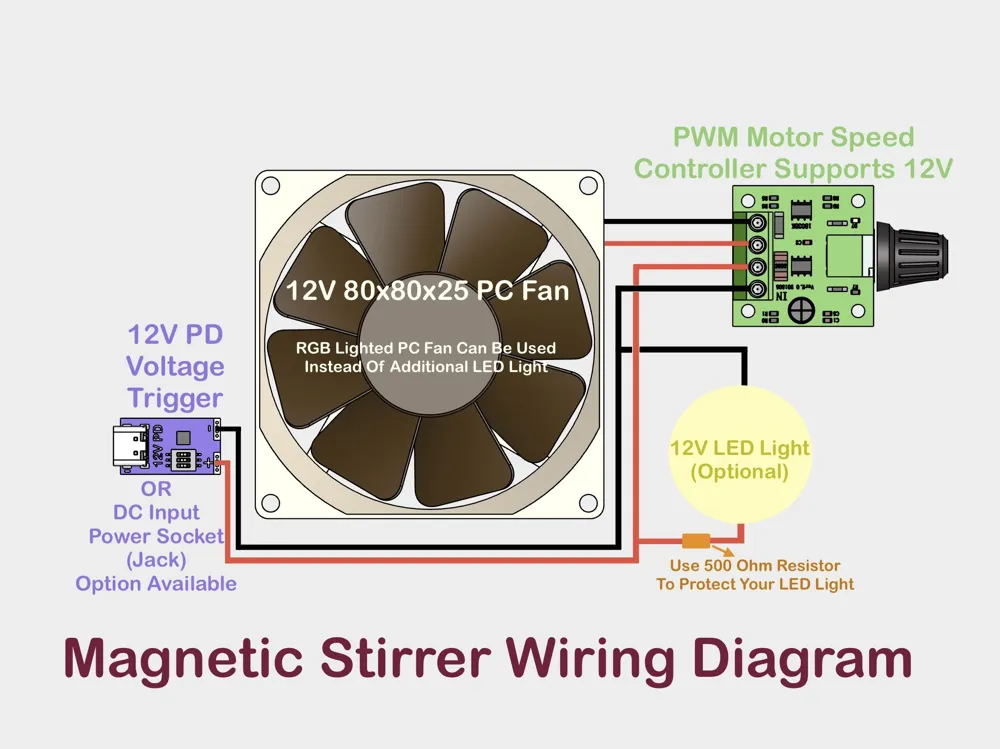

Materials to be supplied; ( The links provided are just for demonstration of materials, collect them with your own research)

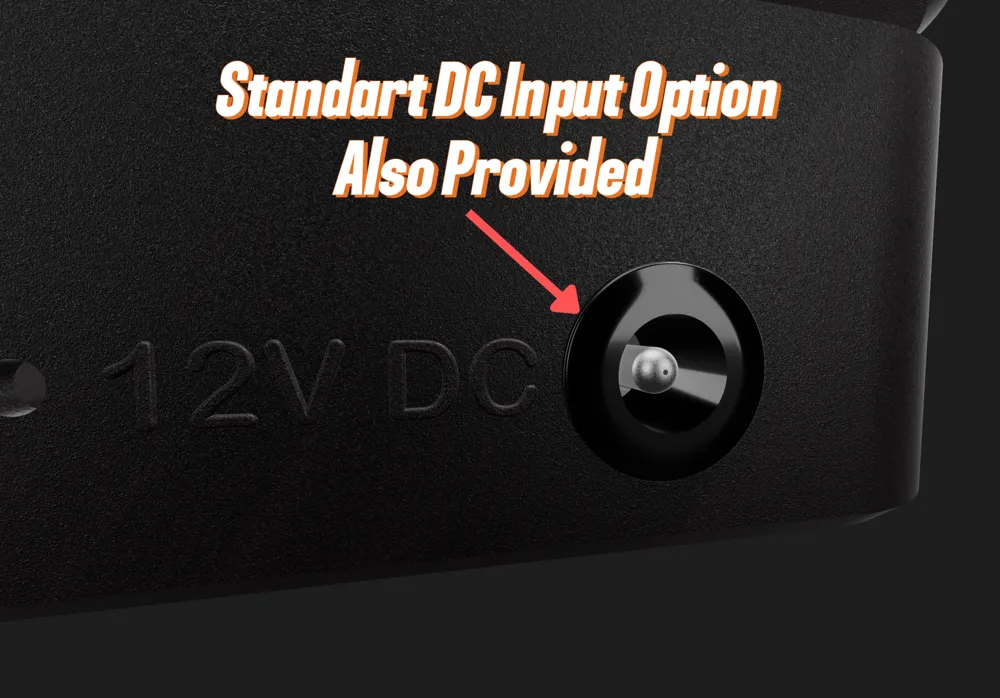

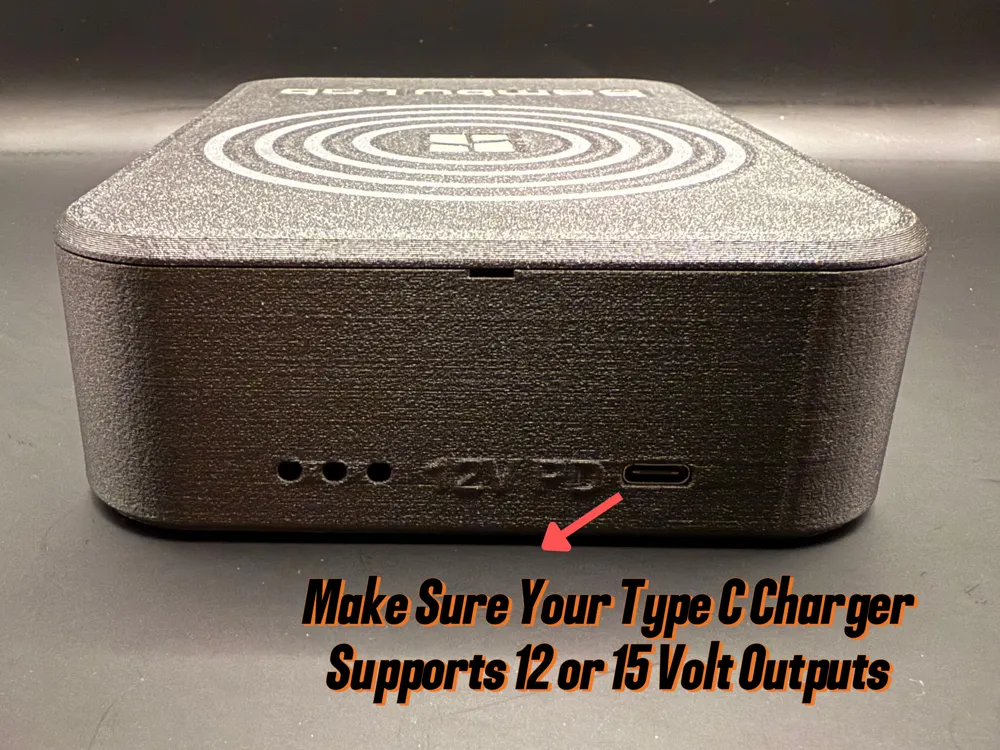

1. 12 Volt PD Decoy or DC Power Input Socket Jack
2. 12 Volt 80x80x25mm PC Fan or RGB Lighted Fan for FUN :)
3. PWM DC Motor Speed Controller or same but cheap PWM DC Motor Speed Controller

4. 2 ea Neodymium Magnet 10x3mm - Weak Stirring Effect

   2 ea Neodymium Magnet 15x5mm - Strong Stirring Effect

   (or Different Size magnets - STEP file included to customize the magnet housing) Magnet Size is optional; bigger&stronger magnets work better. STEP File of the part to attach magnets is attached to the files. OR comment down for your special magnet size requests and I will publish print profile for that..

     5. Magnetic Fish 40x15mm Olive Type (Olive Type will work better)

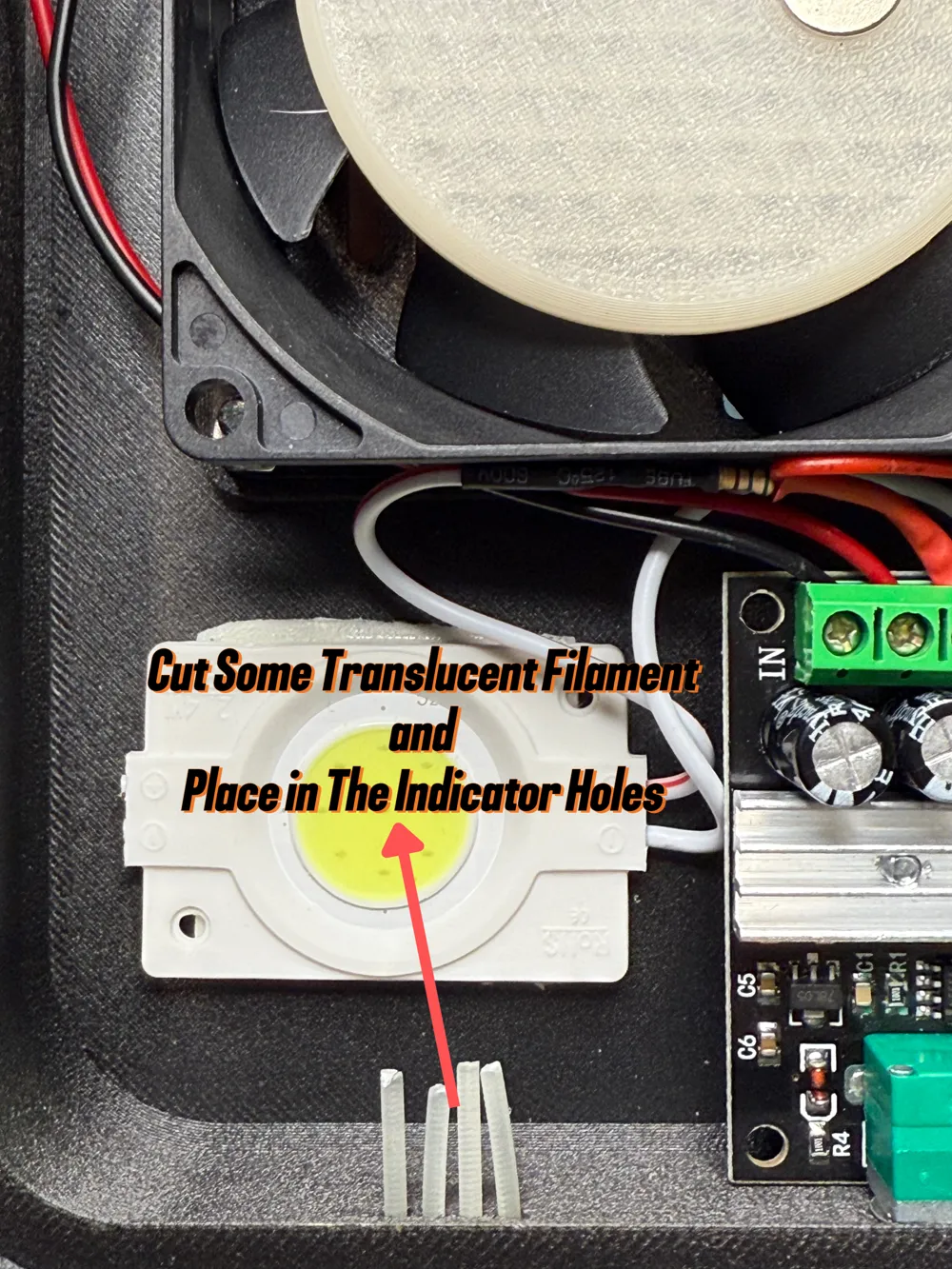

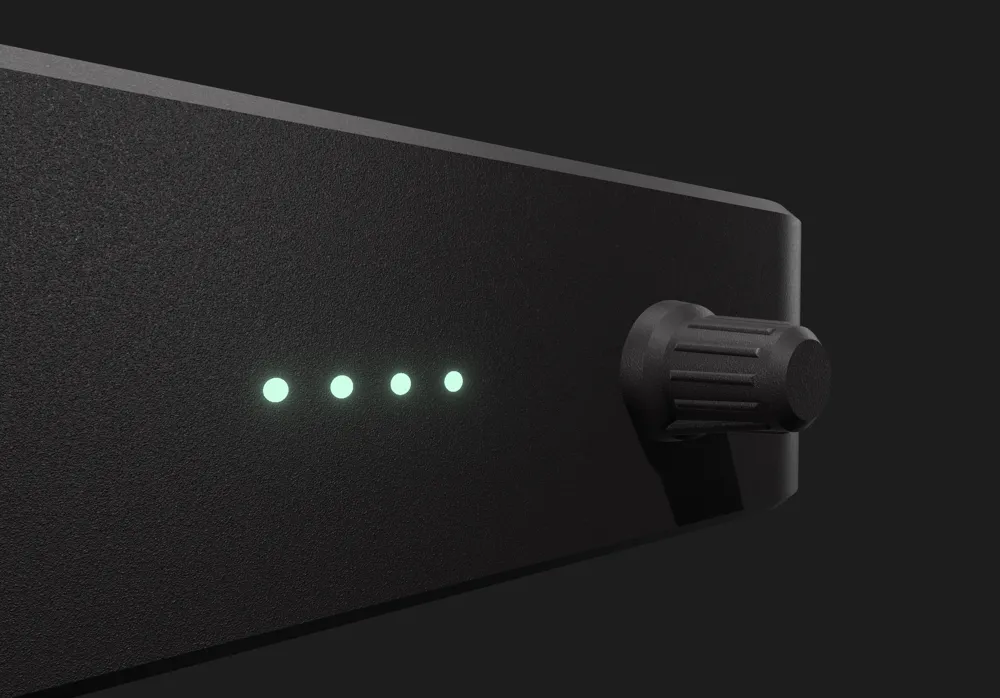

     6. Translucent Filament (Optional) For Illuminated Parts
