Drying tray (1 liter) for Graef DA-2042 dehydrator
Print Profile(1)
Description

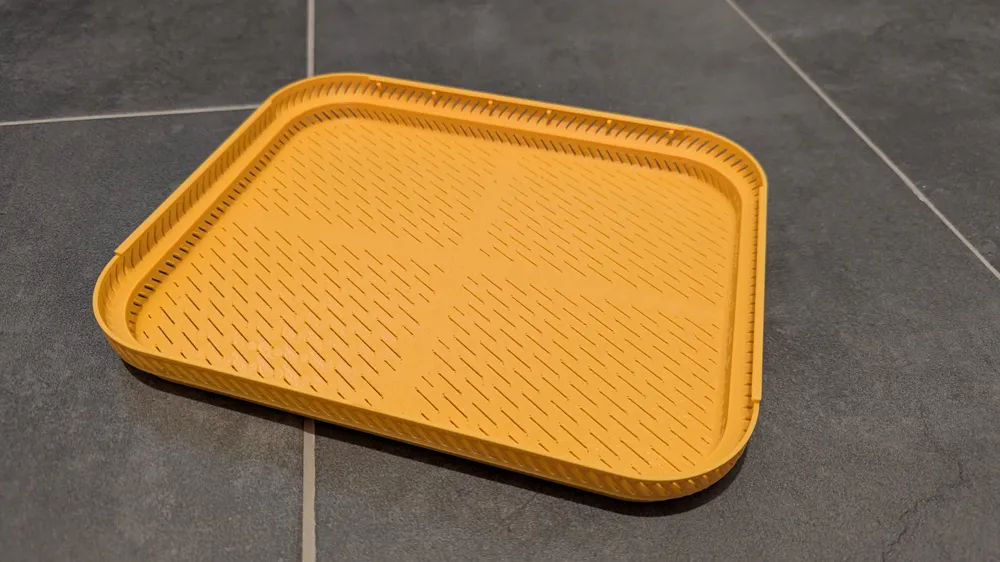

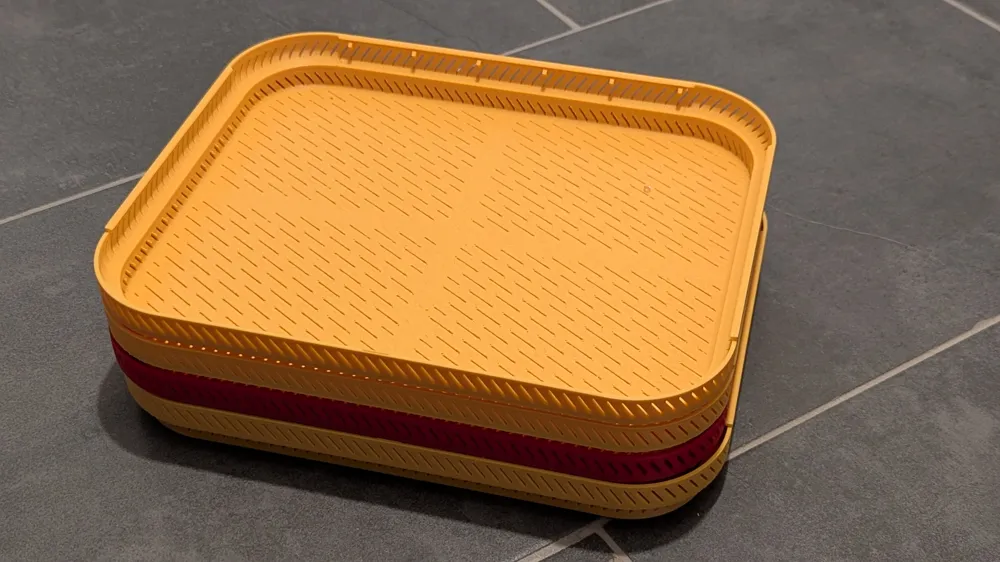

With this drying tray you can dry your silica balls in the Graef DA-2042 dehydrator.

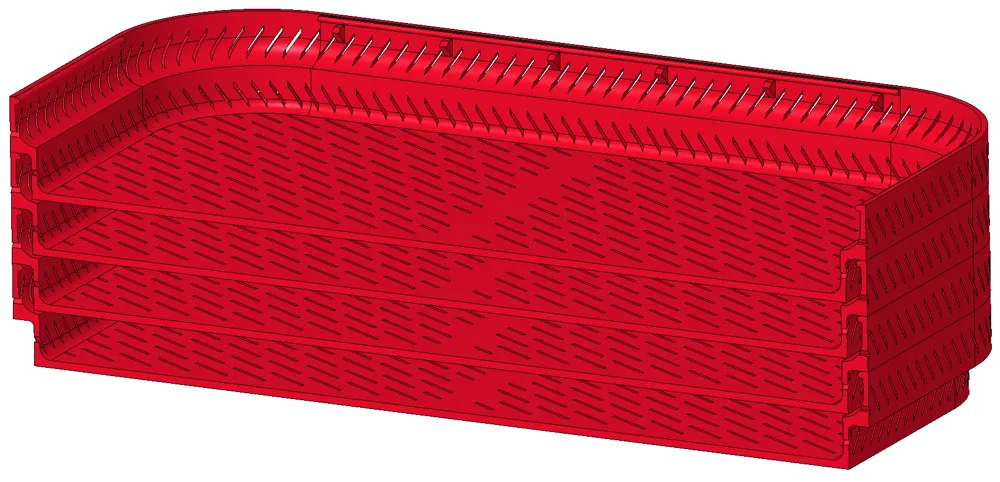

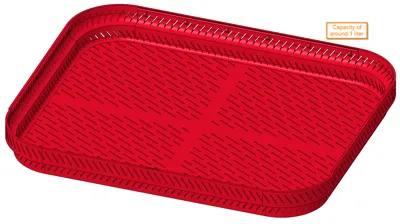

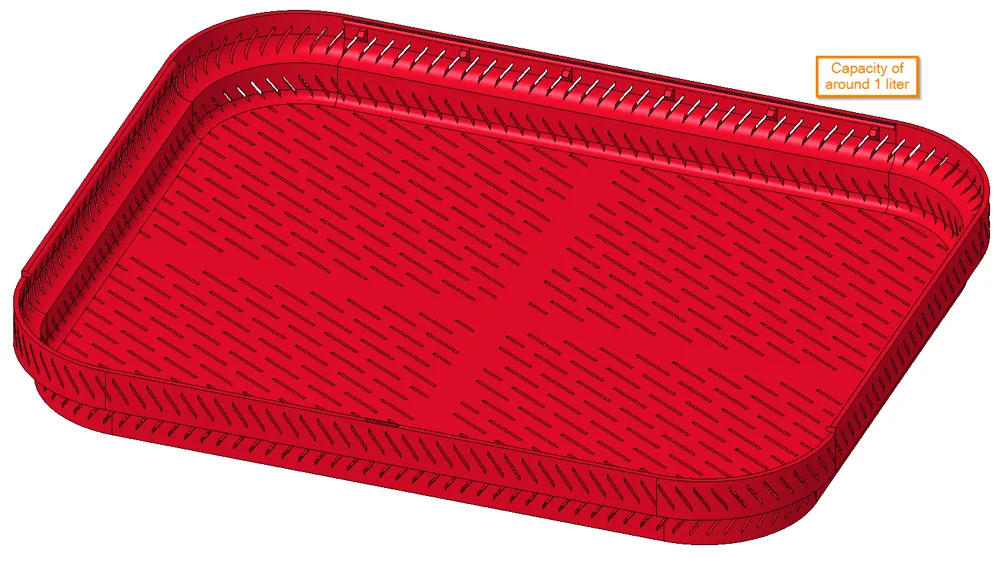

4 of these trays can be put into the machine at once. One tray holds around 1 liter.

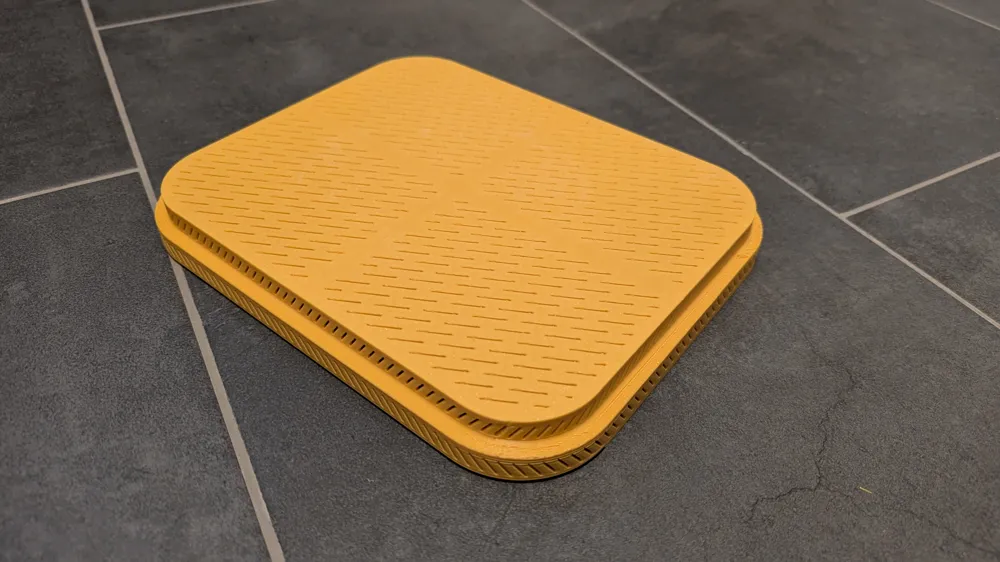

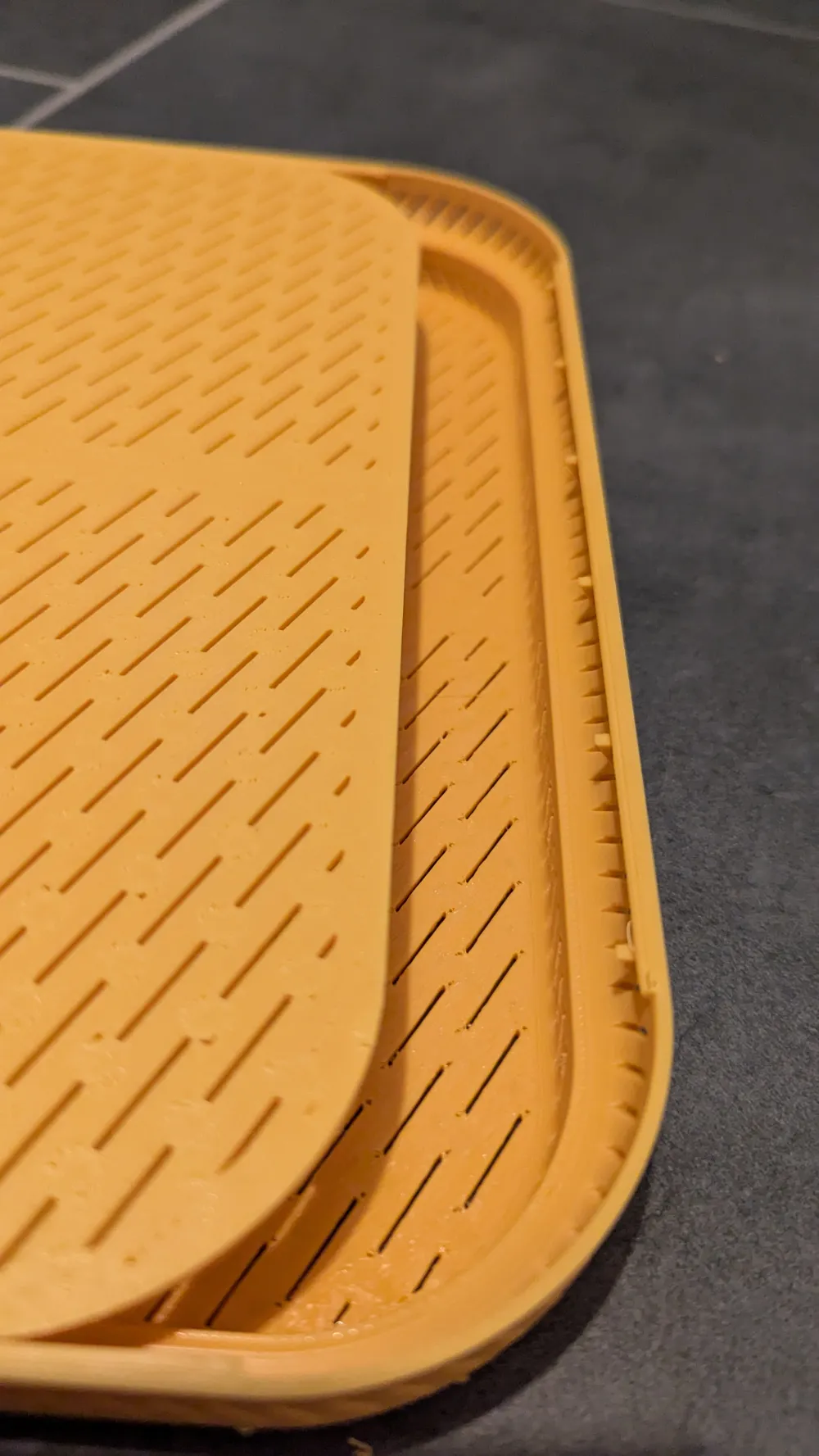

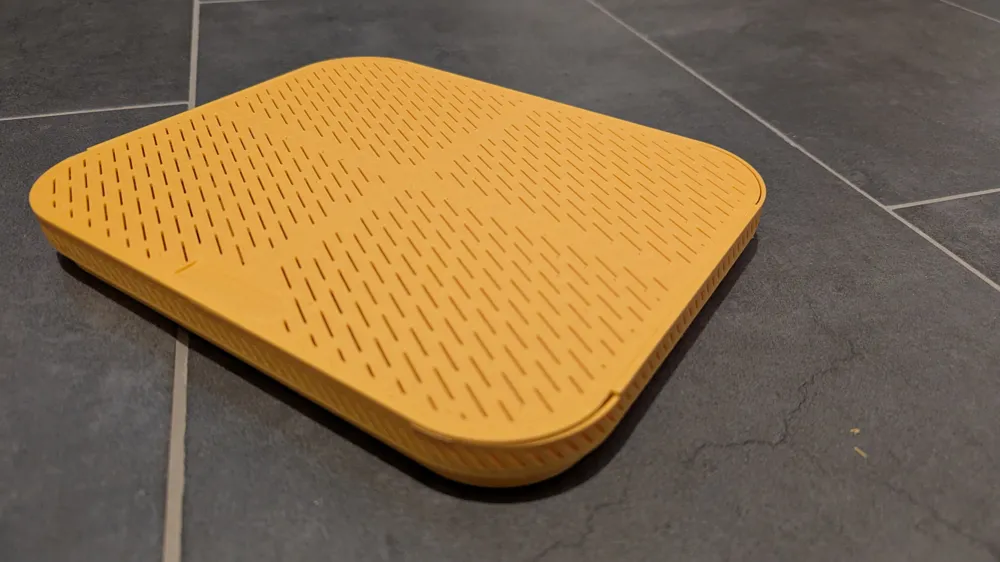

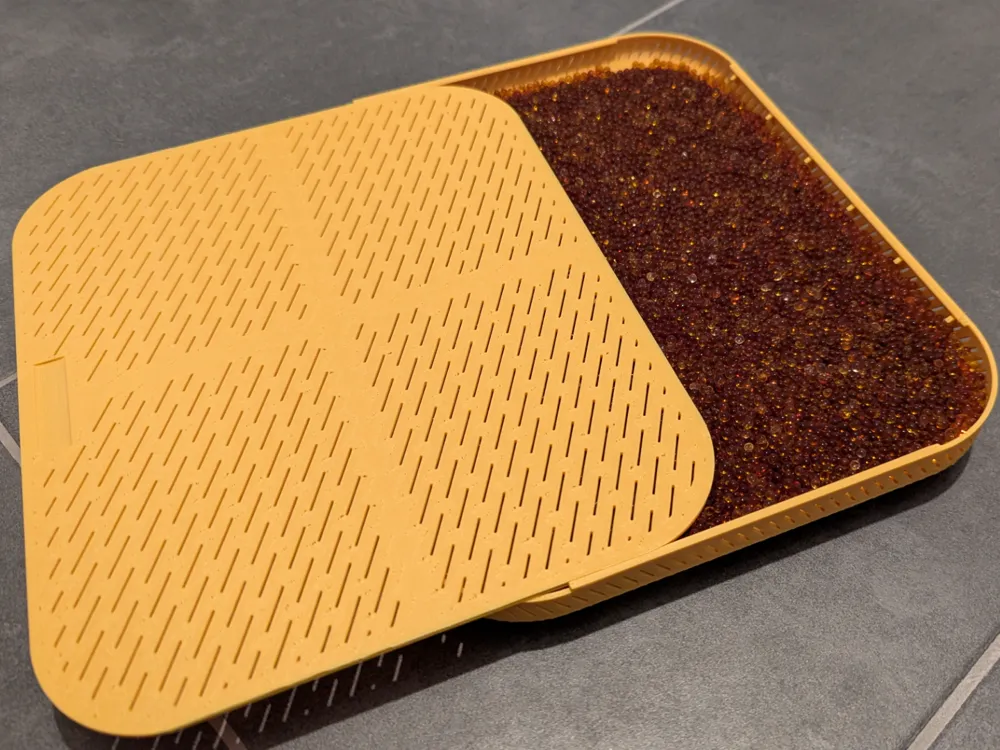

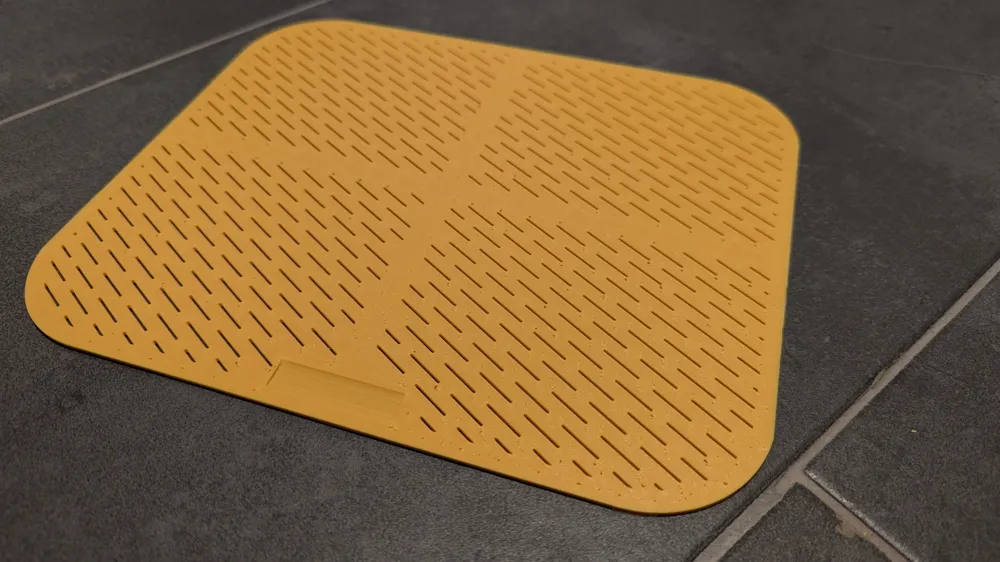

The lid is optional, you no not really need it.
Take care about the drying temperature! PLA is NOT possible.
Even with ABS/ASA you cannot go up to the normal limit of the material. I experienced that the tray will deform earlier. That is because of the weight of the silica that creates a big load additionally to the warm temperature. So with the time, the tray will start to deform even if you stay just below the critical temperature.

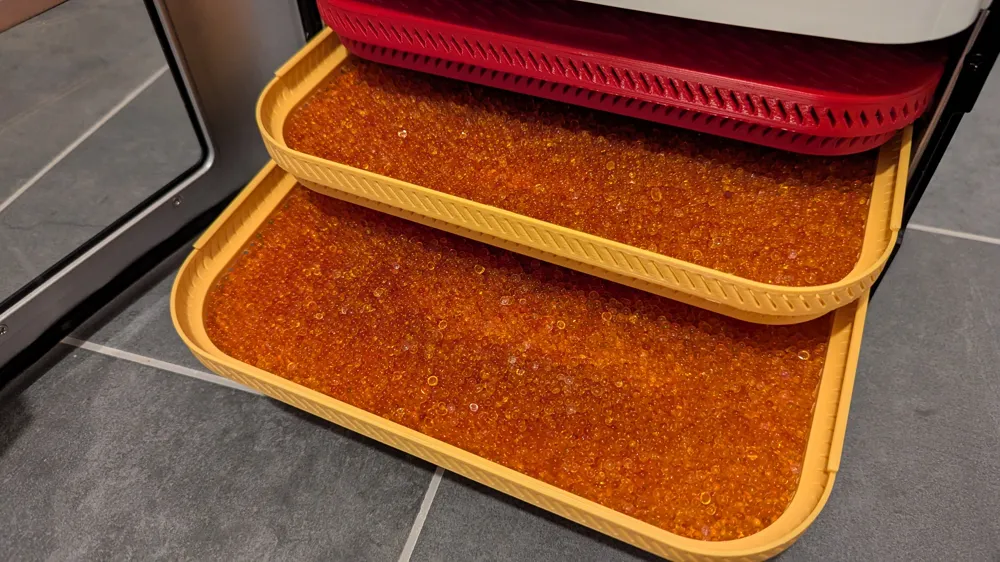

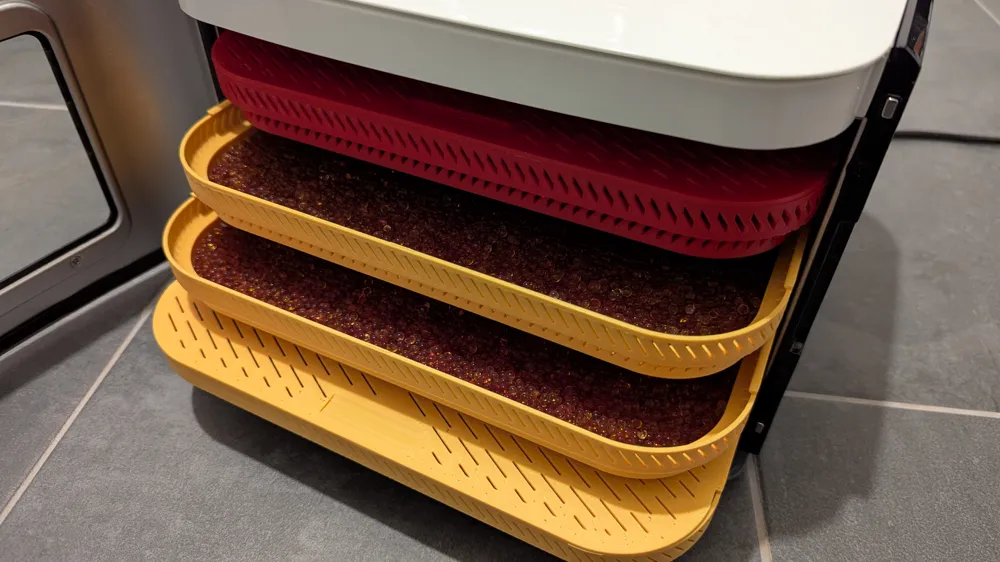

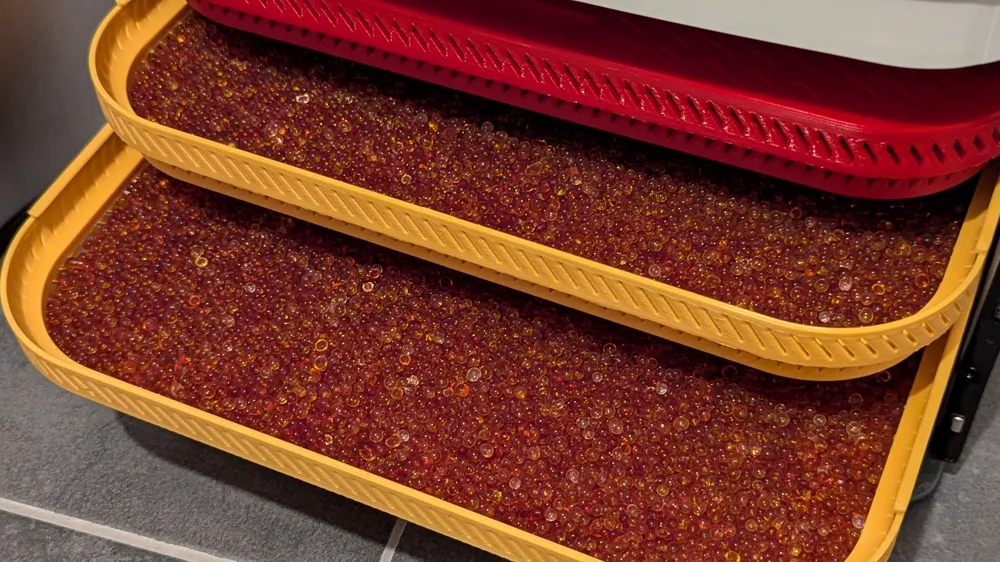

But after 4 hours with a low temperature (I think it was around 60 °C) the silica was completely as new - see my pictures.

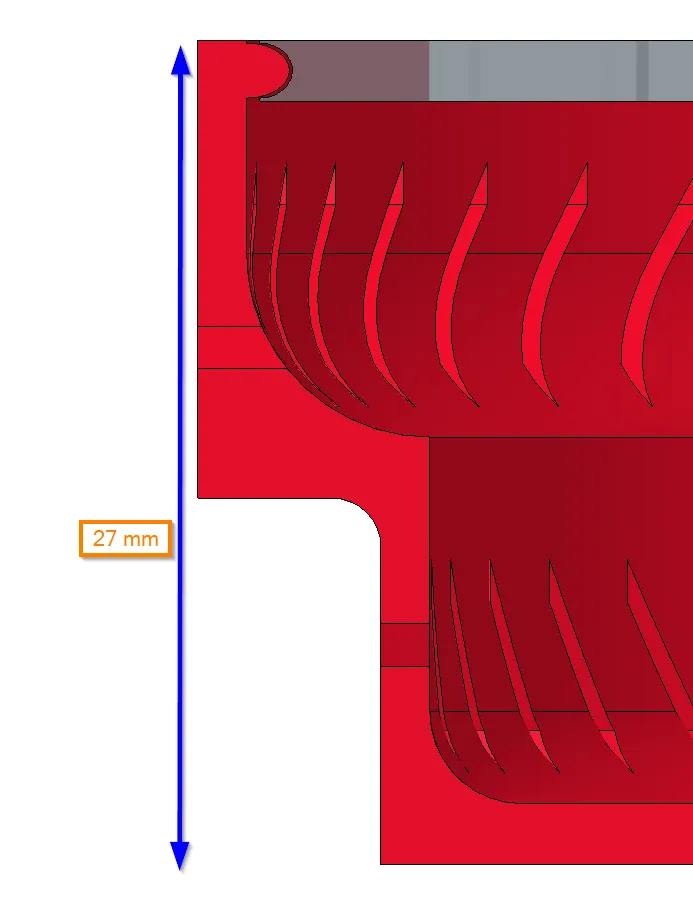

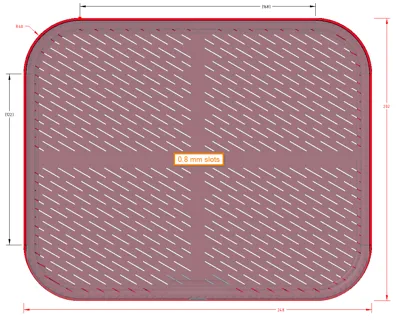

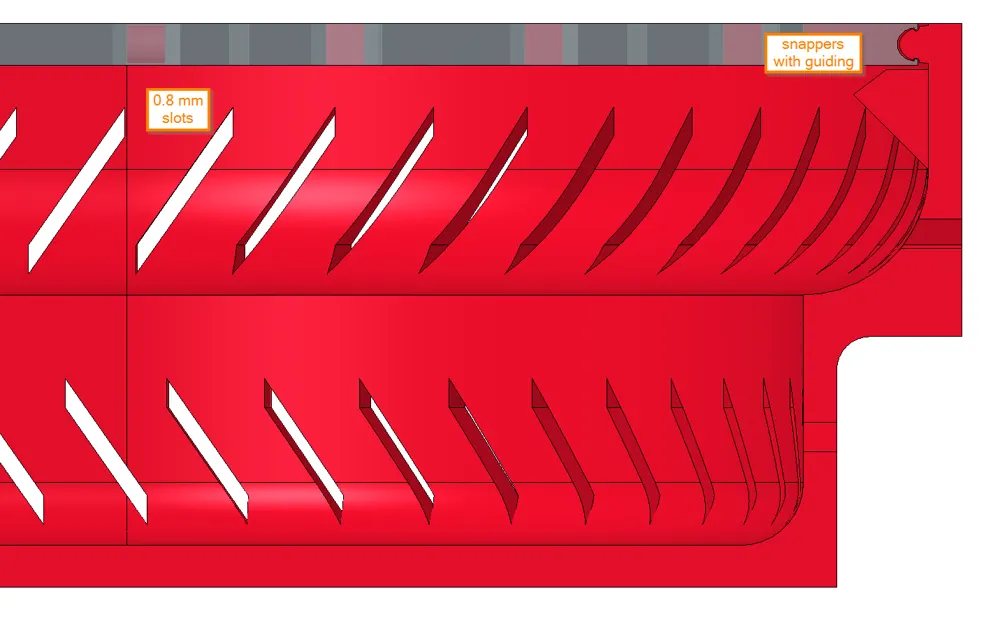

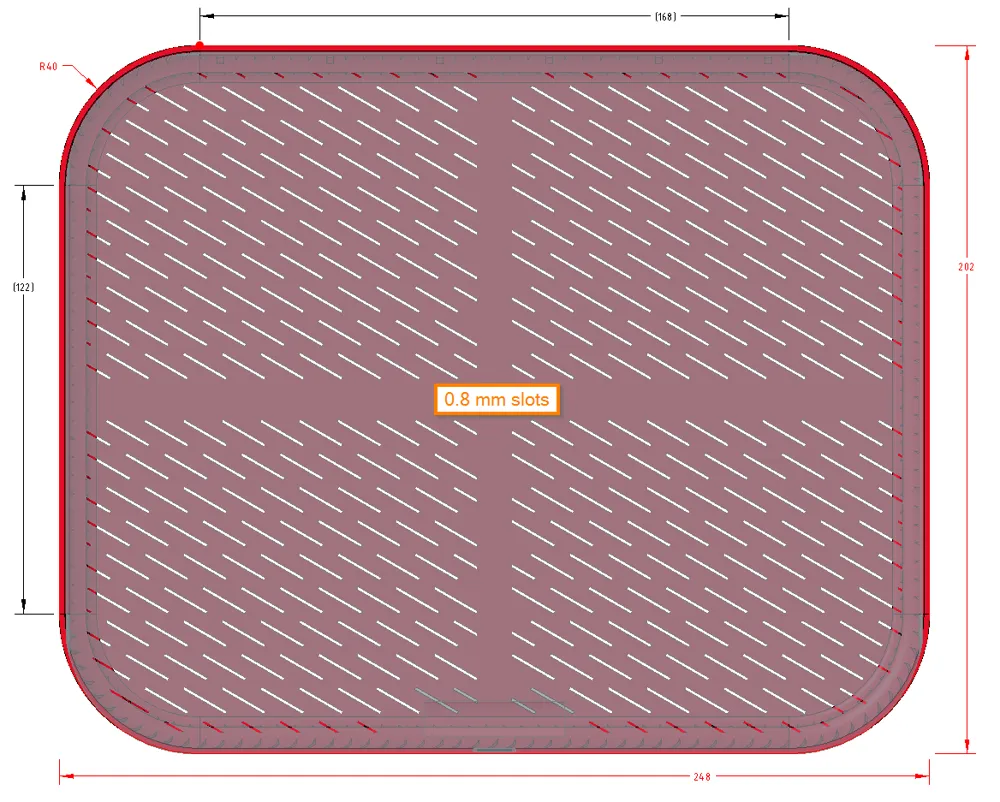

For dimensions see my 3D pictures.
The supports at the tray can be removed easily!

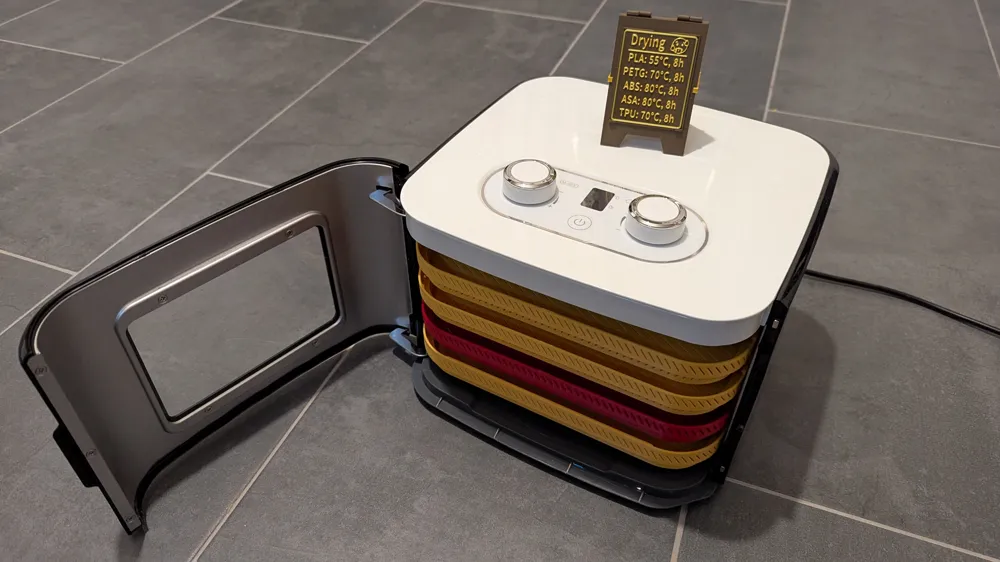

The drying temperature sign that you see standing on the machine is this one:
https://makerworld.com/en/models/1501651-drying-temperature-sign#profileId-1570992
