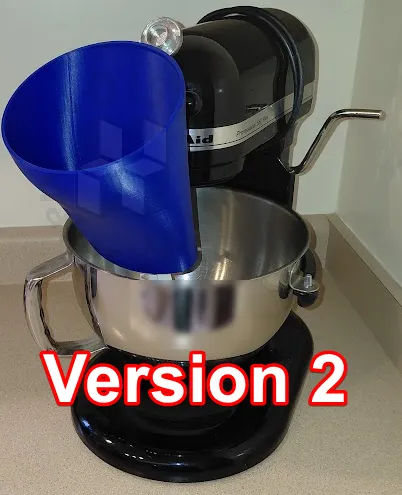

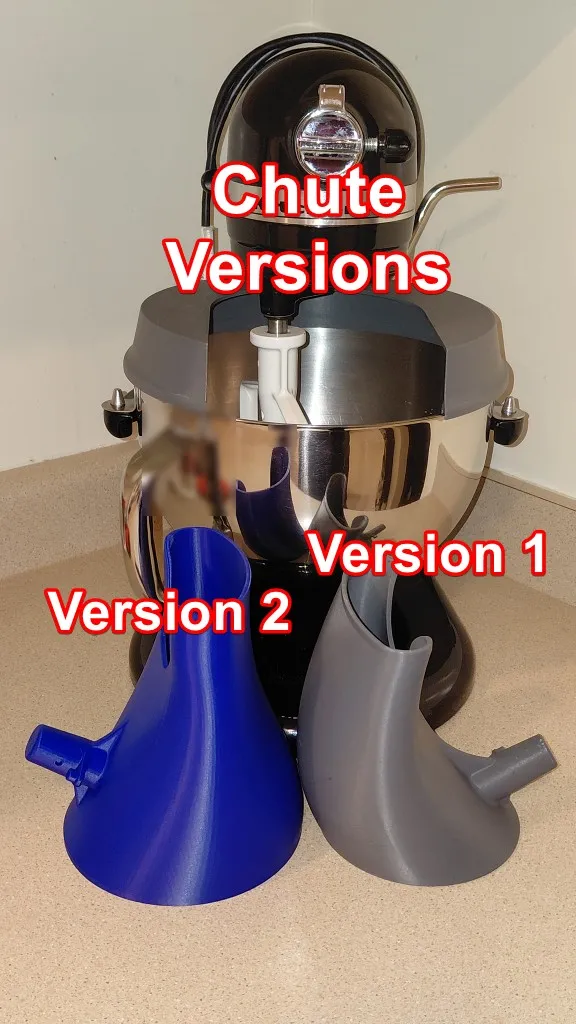

UPDATED Kitchen Aid Chute Version 2 - New Nov 2025!

Designer

3.8 h

1 plate

4.9(54)

Kitchen Aid Chute Version 1

Designer

3.2 h

1 plate

4.9(36)

Splash-Shield V2 - Works with Dough Hooks and Chute

Designer

2.6 h

1 plate

4.9(19)

Kitchen Aid Splash Shield (not for use with Dough Hook)

Designer

1.7 h

1 plate

5.0(8)

Open in Bambu Studio

Boost

1249

3278

280

2.5 k

1.4 k

Released

Description

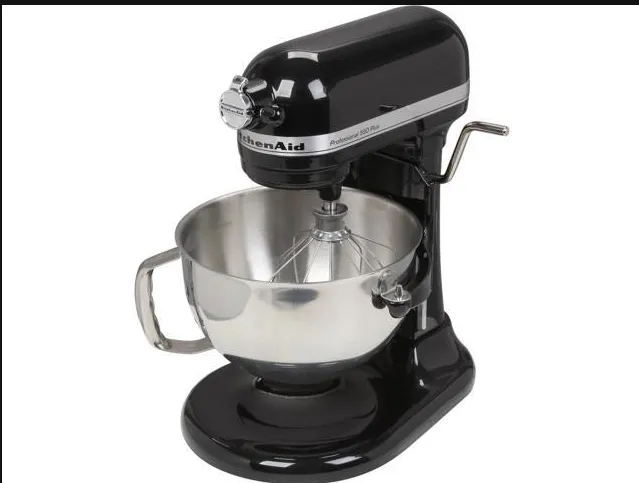

Chute and Lid for Kitchen Aid Professional 550 Plus (5.5 Quart bowl)

(This may fit other Kitchen Aid models. Please post a comment and include your mixer model number.)

Designed for:

KV25
KSM55

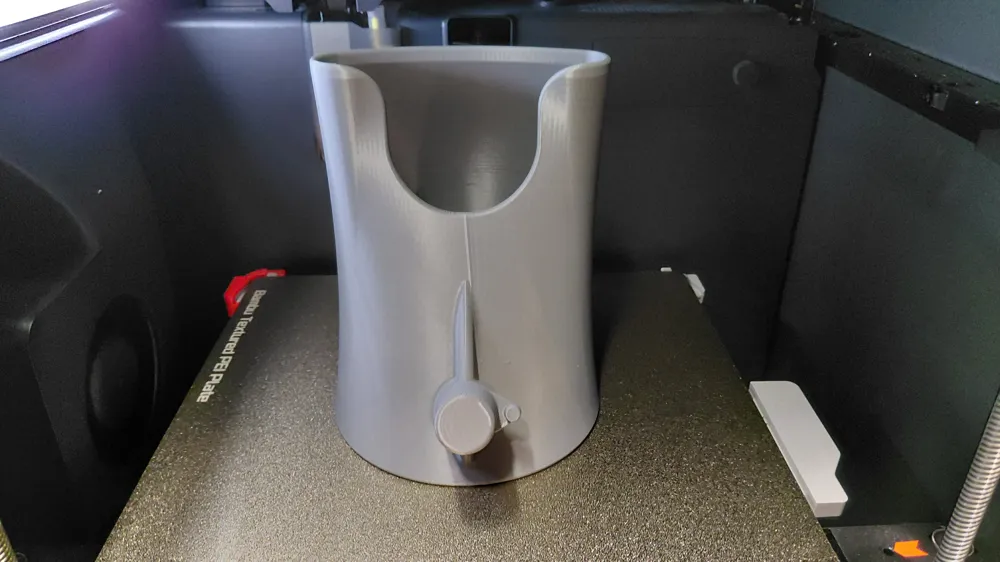

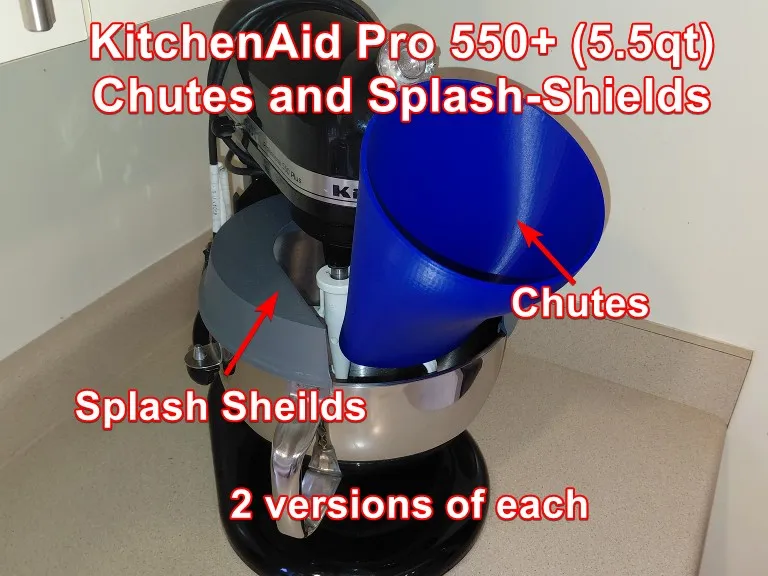

Chute attaches to accessory drive with anti-swivel pin and locked in place with the accessory screw (do not over tighten). Provides easy pouring of ingredients when the bowl is lifted and with the machine running or not (clears all paddles and whisks and dough hook that I own, please check your clearances). 120mm opening at the top, slanted for ease of access and support-free printing.

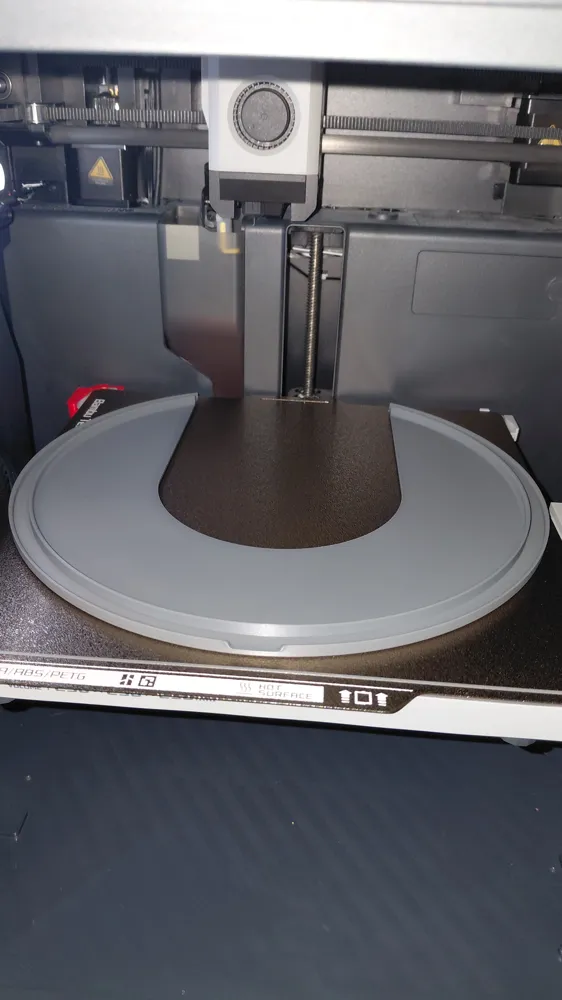

Splash-guard attaches to the lip of the bowl (bowl's lip outside diameter = 249.5mm). Print inverted, fits on 256mm or above print beds (will not fit on A1 Mini). Splash guard has 120mm opening to be used with or without the chute and clears paddles and whisks BUT NOT THE DOUGH HOOK so, check your clearances. There is a notch at back of the Splash-guard to clear the bowl locking clasp. Add this splash guard after adding whisk/paddle/hook attachment and raising the bowl. Remove first.

If you find a way to to hurt yourself with this (including food safety) it's your own fault.

UPDATE:

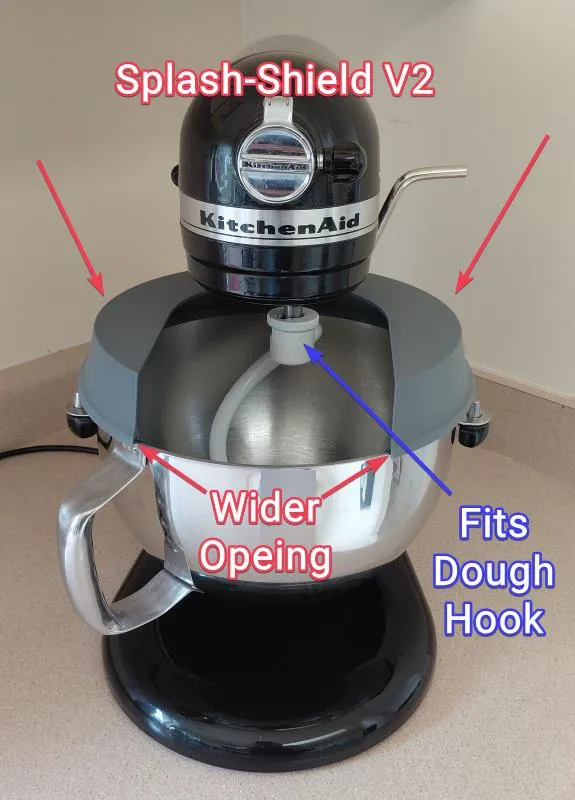

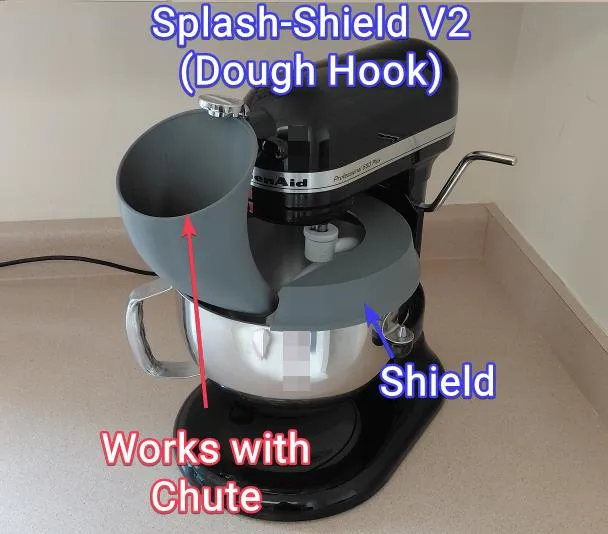

New Shield V2, works with Dough Hook (Find it in print profiles)

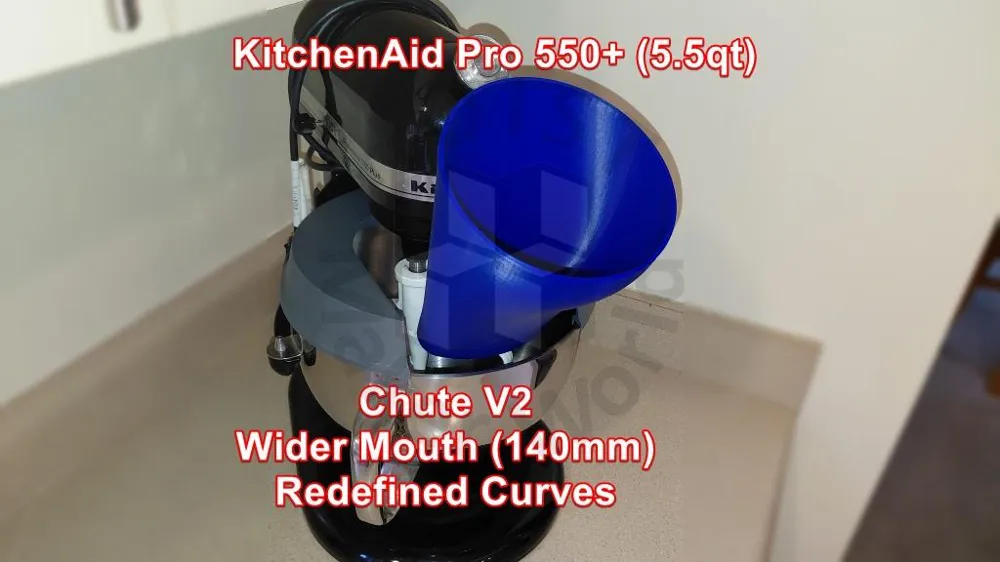

taller profile with 140mm (vice 120mm) wider opening.

Other Versions:

Head Tilt Mixers:

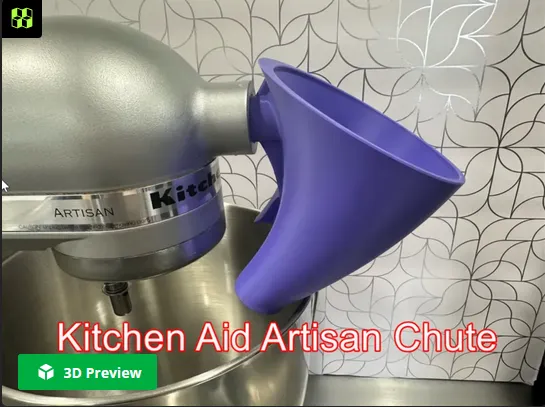

Thanks to @CookieMonsta, the Artisan version of the Chute is available here:

https://makerworld.com/en/models/1522695-kitchen-aid-aritsan-chute#profileId-1595855

Bowl-Lift mixers:

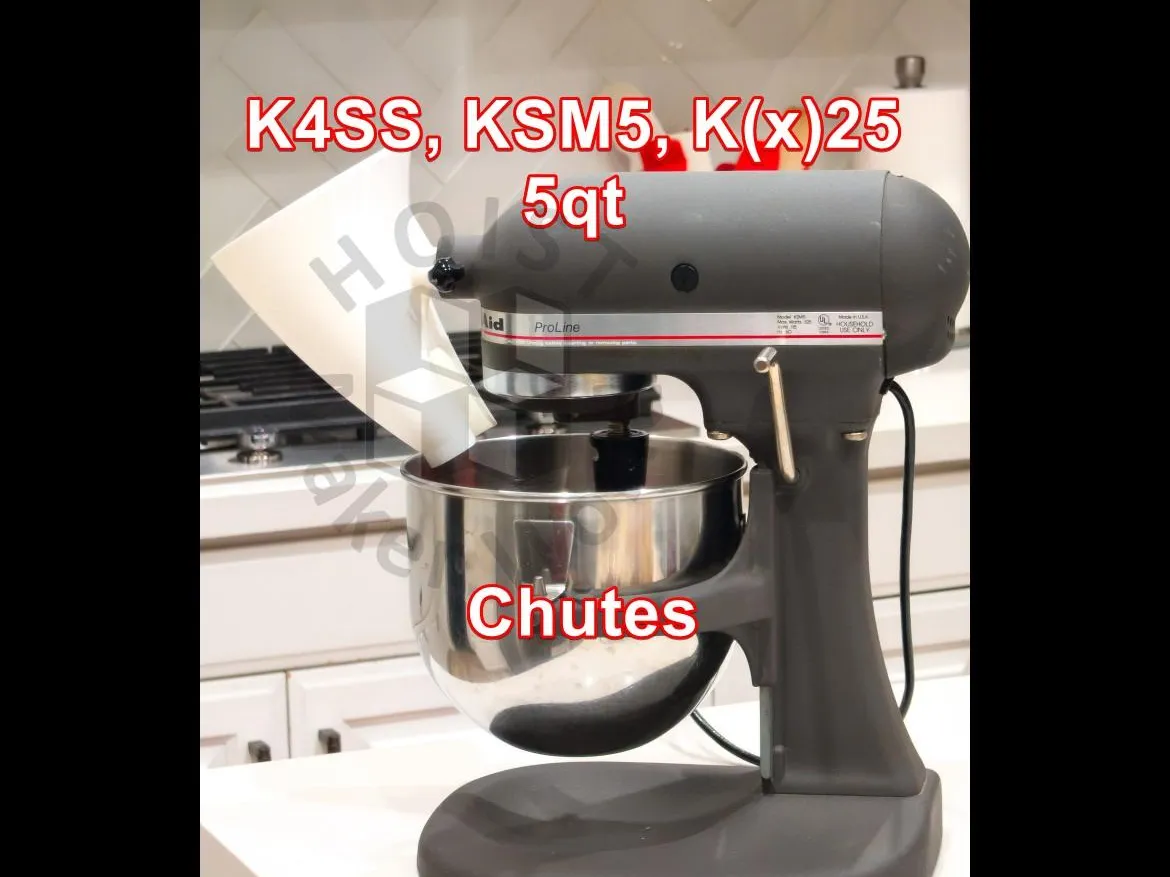

KitchenAid K4SS, KG25, KV25, KS25, KSM5 5Qt Chutes and Shield:

Kitchen Aid Pro 600 6qt Bowl-lift Chute:

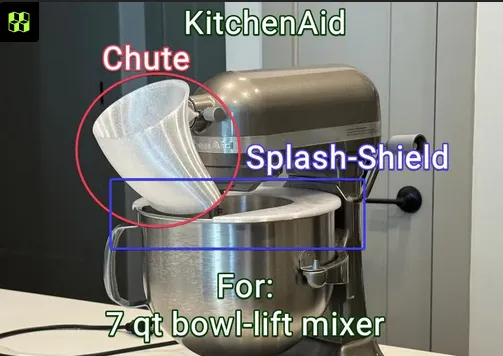

the 7 qt, Bowl-Lift Versions of the Chute and Splash-Shield:
