Mini Ironman x Dr. Doom Stand (Maglev) - Marvel

----2025.6.20 Quickfix on Ironman_MultiColor, fill in the missing gold on the jaw.

----

This is a maglev Iron Man toy for a friend, ended up being made into an Avengers 5 Dr Doom theme, and they're all played by Robert Downey Jr anyway :)

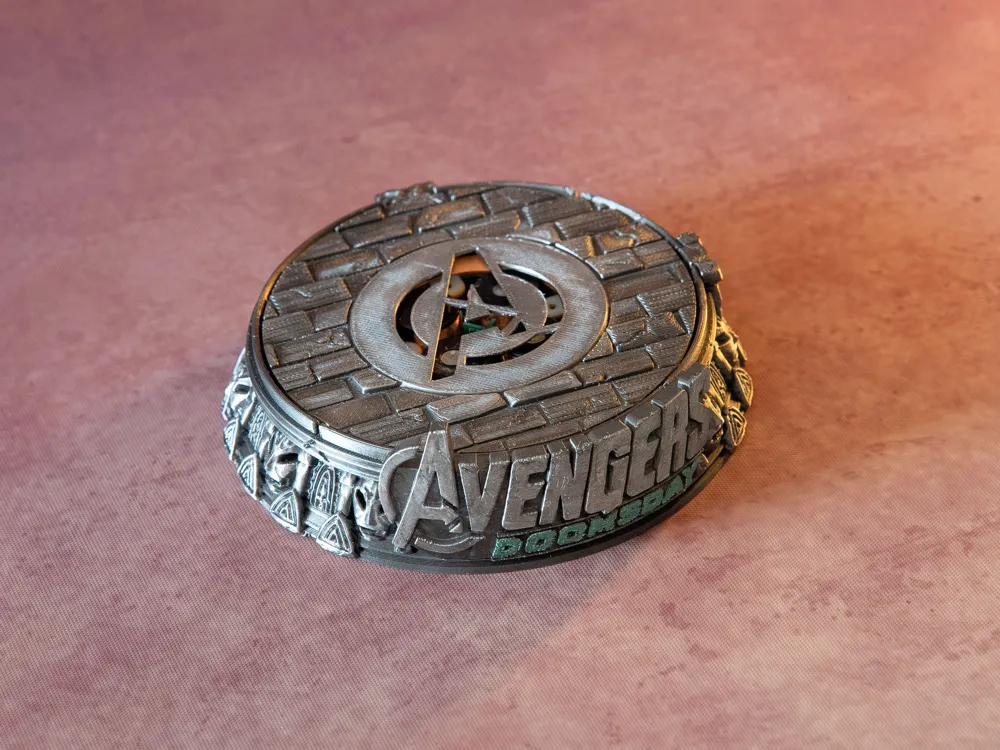

• The base can be fitted with a Maglev Kit (ZC008) from Maker's Supply, but of course it can be used without the maglev, it's a toy display stand in its own right.

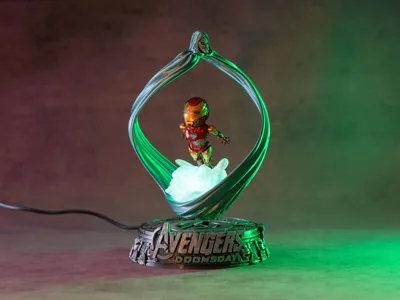

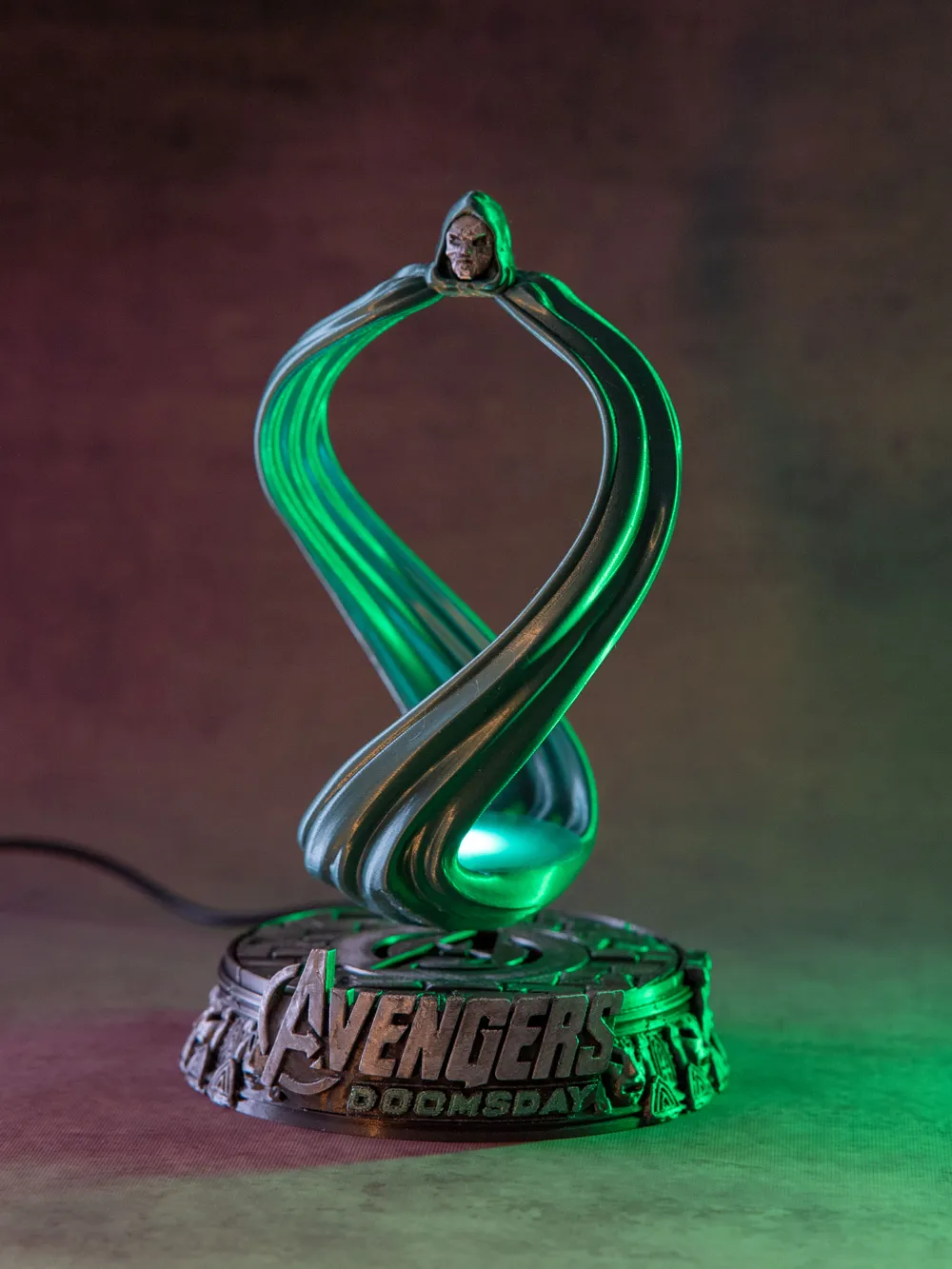

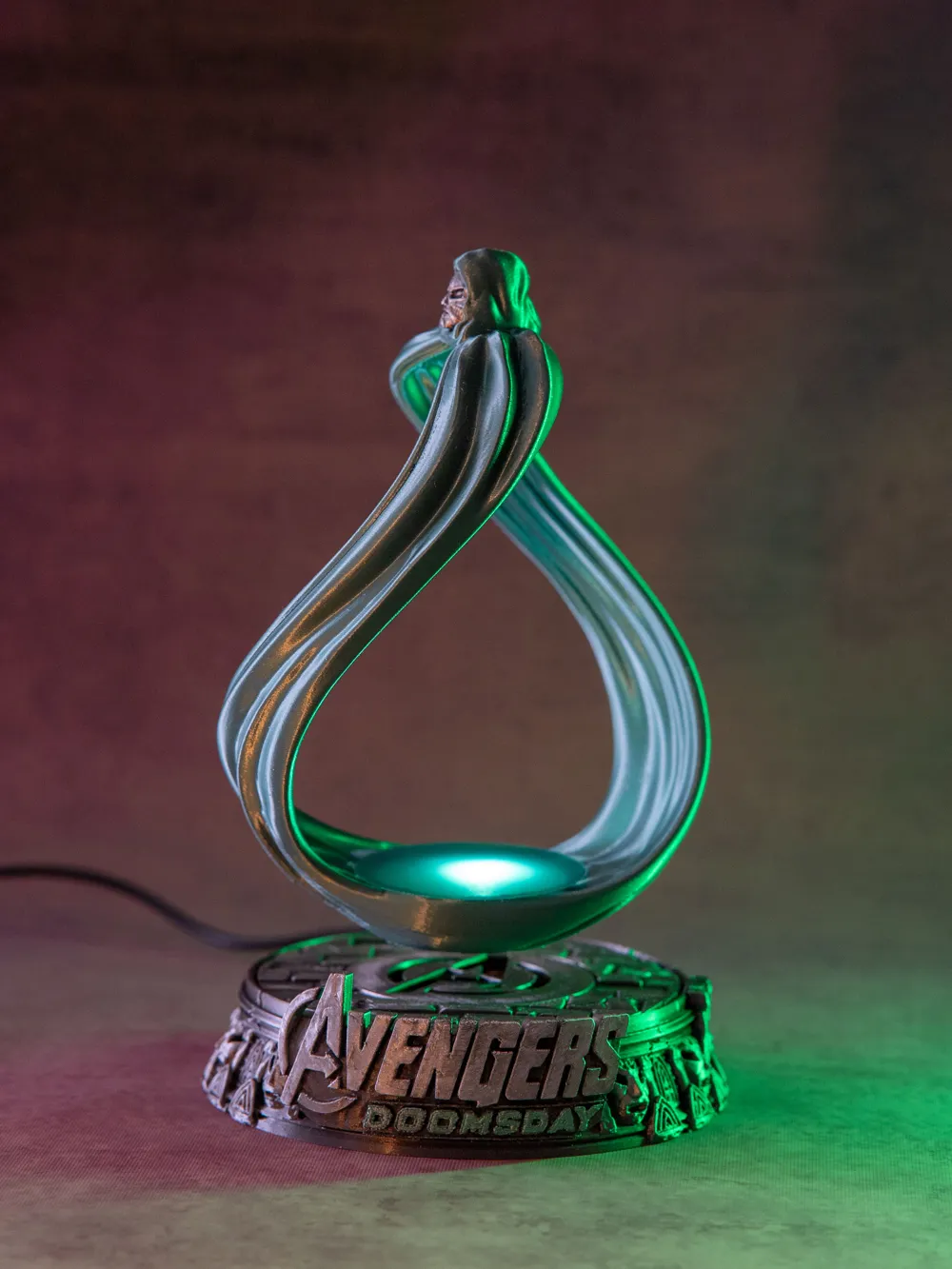

• The Dr Doom display stand, after installing the maglev kit, it can float to display small toys.

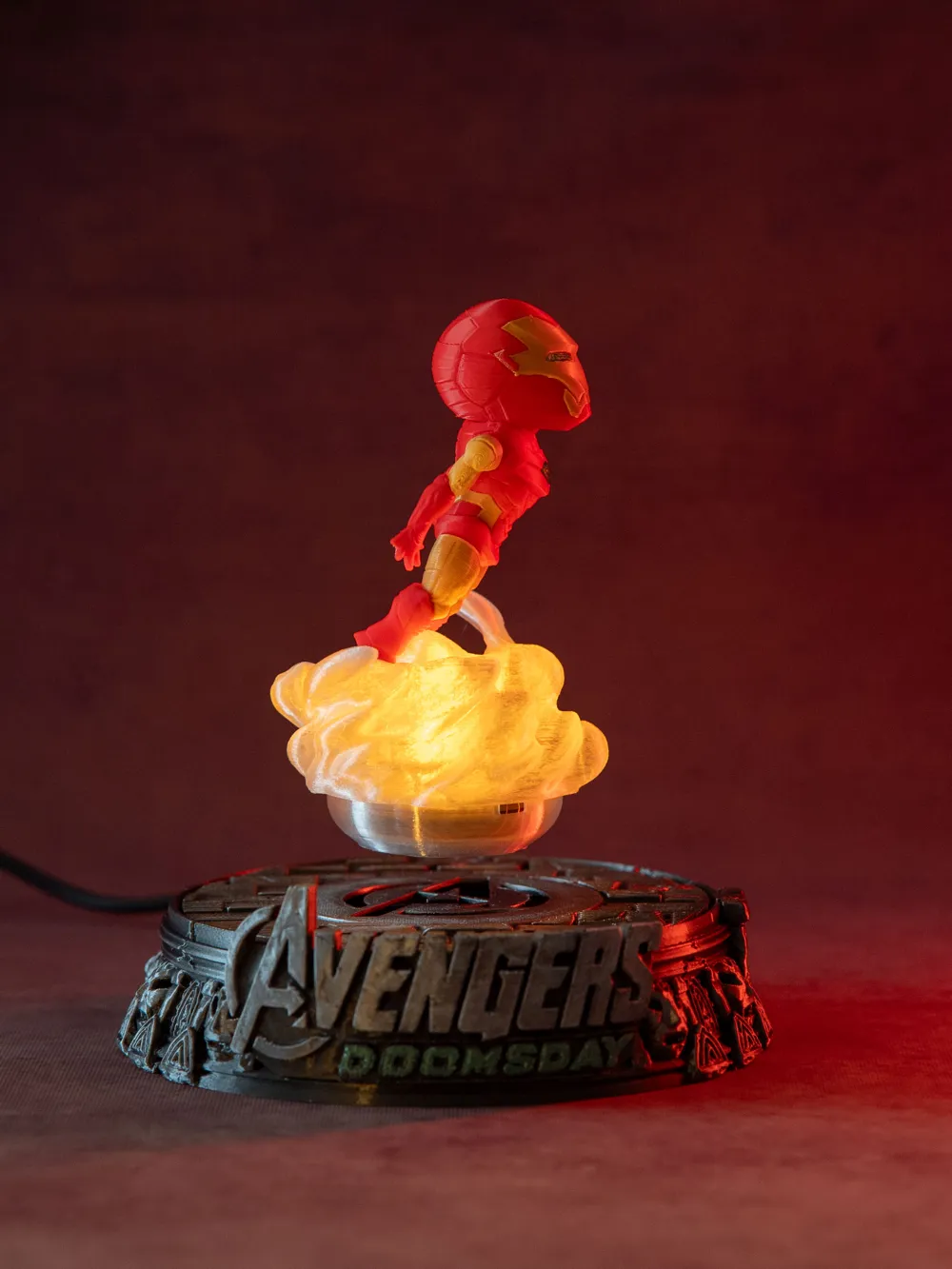

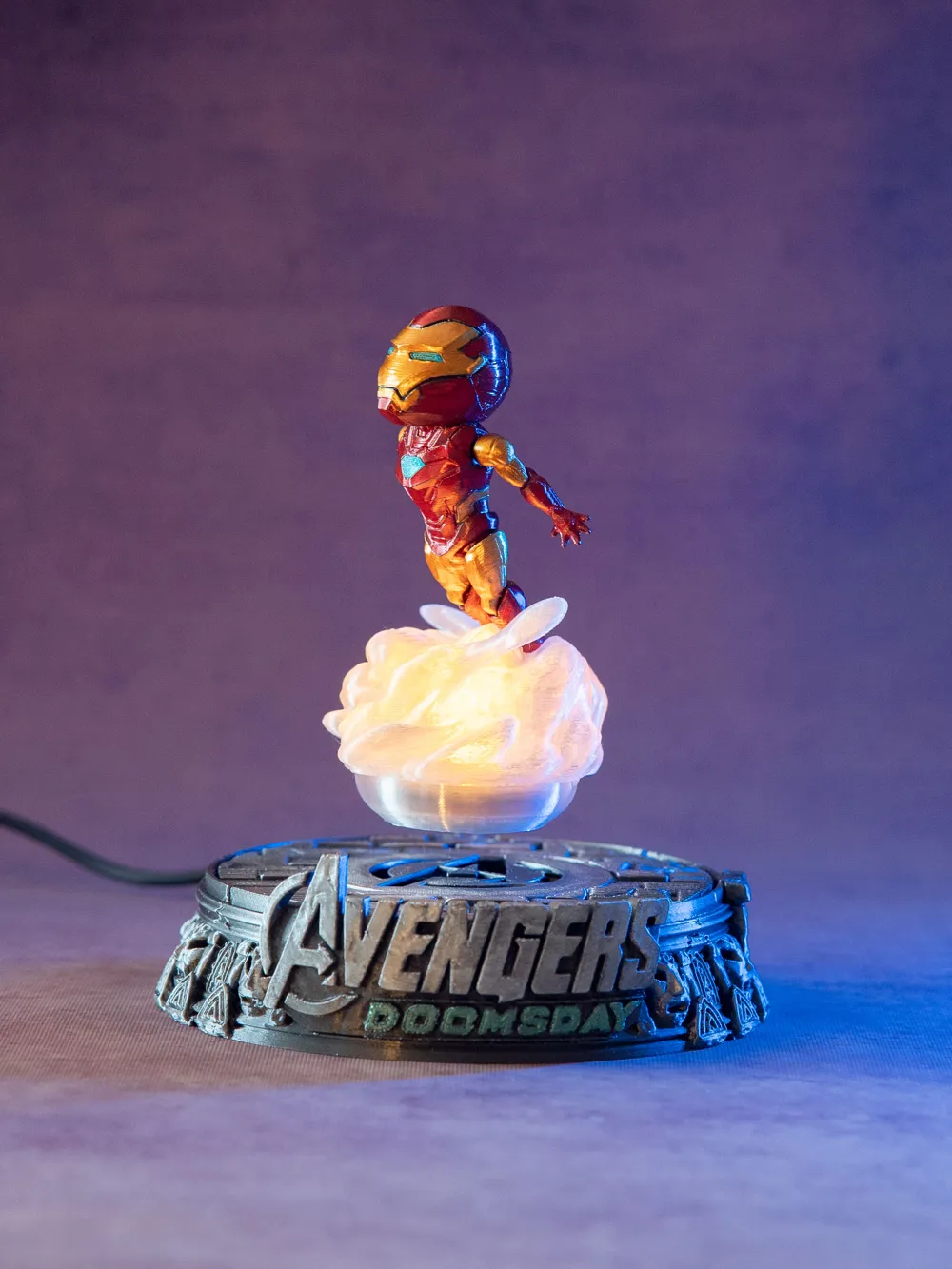

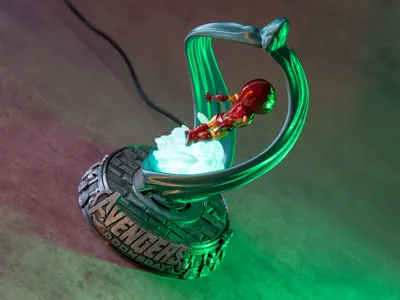

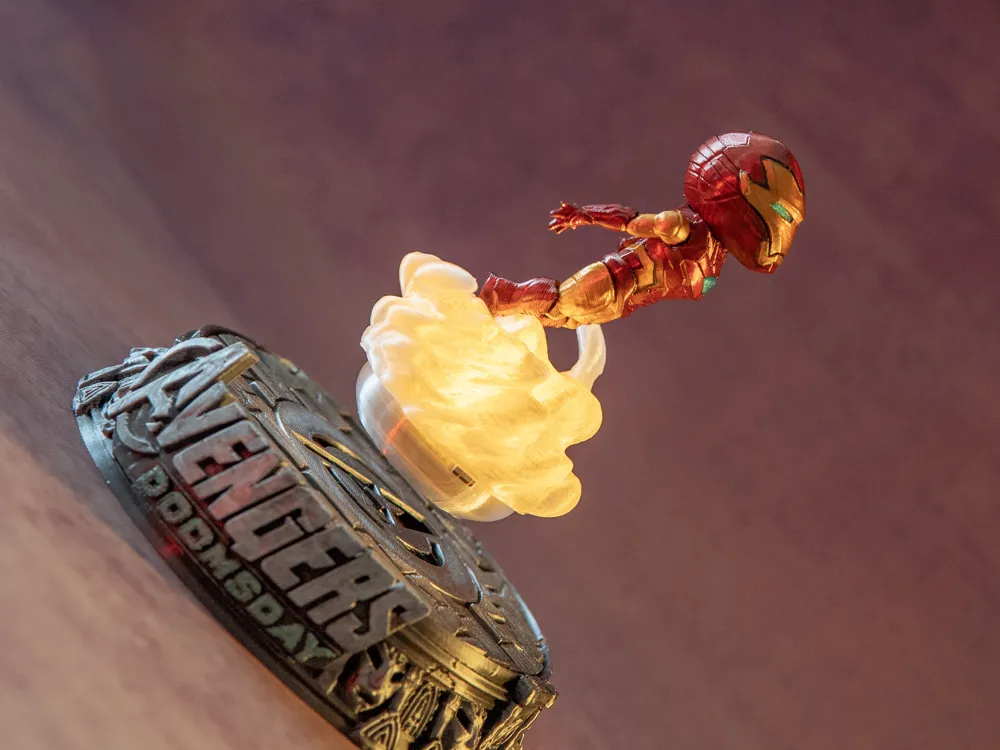

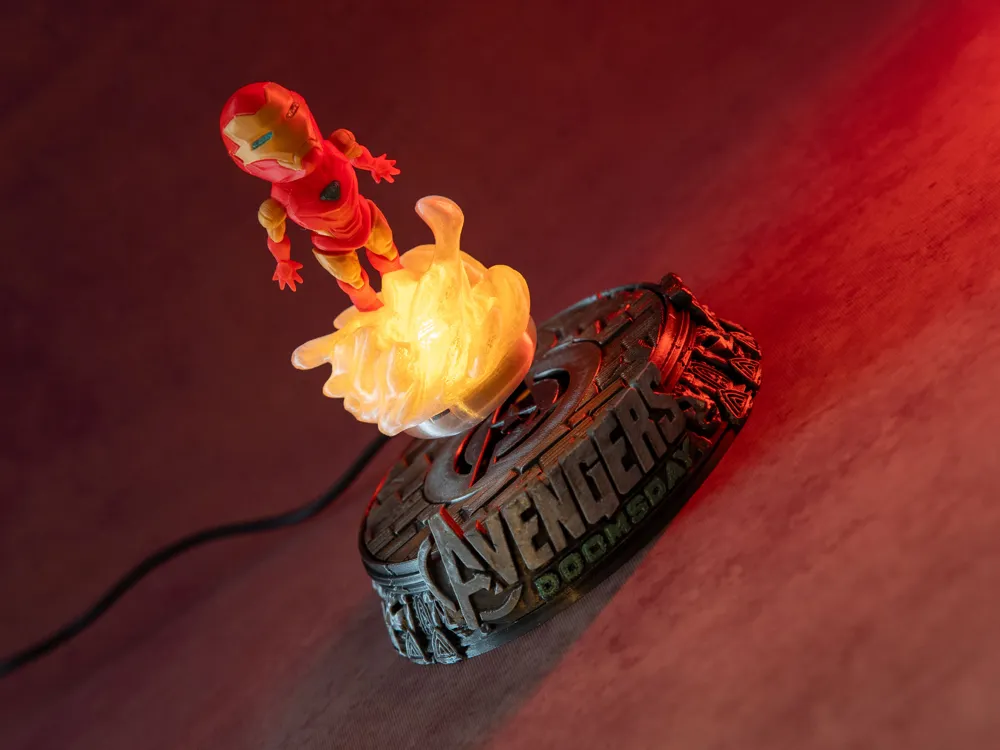

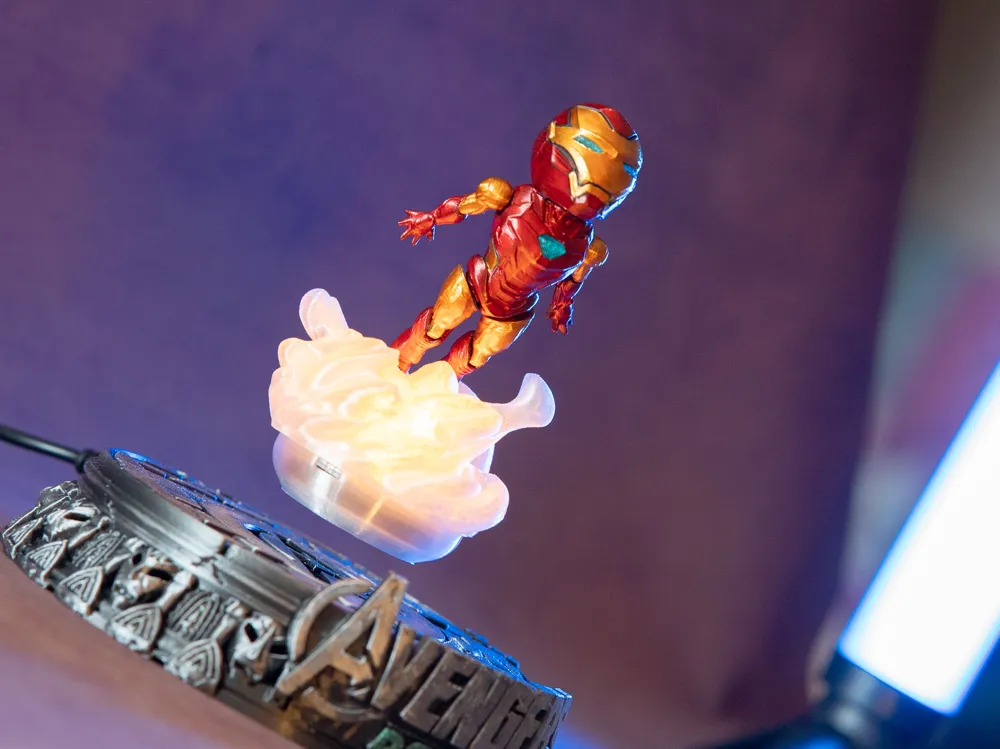

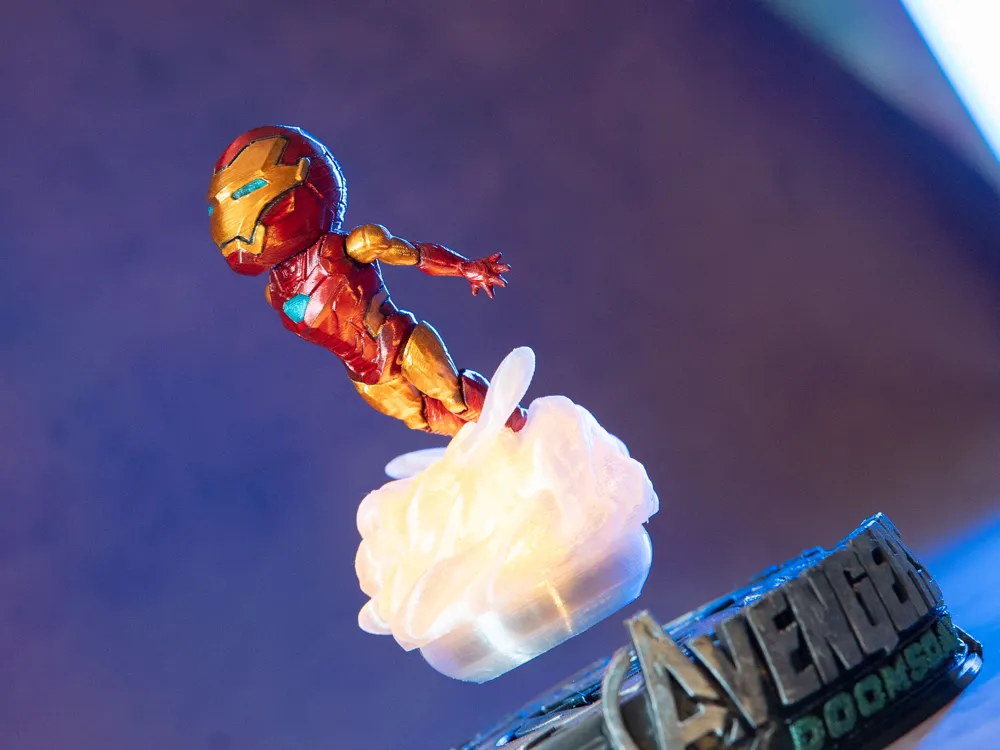

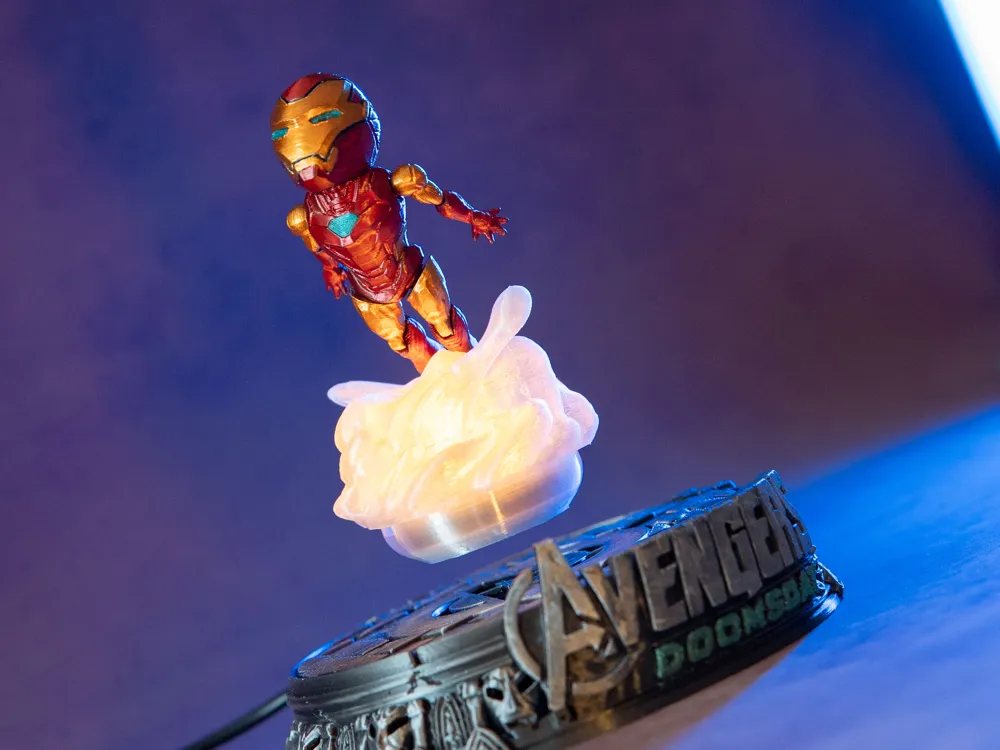

• The Mini Iron Man, can be placed directly on the Dr Doom stand without the float, or can be installed with the float and float directly on the base.

About Print Profile:

• All profiles are pre-supported and can be printed directly.

• The model is small and the layer height is preset to 0.12mm in order to enhance the detail.

• It is recommended to use PETG for the base, because the maglev kit is hot, but the actual test of PLA is also no problem, itself has done the design of thermal insulation and heat dissipation.

• The DOOMSDAY text on the base will pull more strings if your filaments are damp due to the small characters, then some cleaning is needed.

• PLA is recommended for the other pieces for better details, but PETG is fine.

• Since the details of Iron Man's face is too small, and I didn't want to give up the shape, so I couldn't split the face and the split color version of the face had to be colored manually.

About Assembly:

• The official shell of the maglev base and the float must be removed.

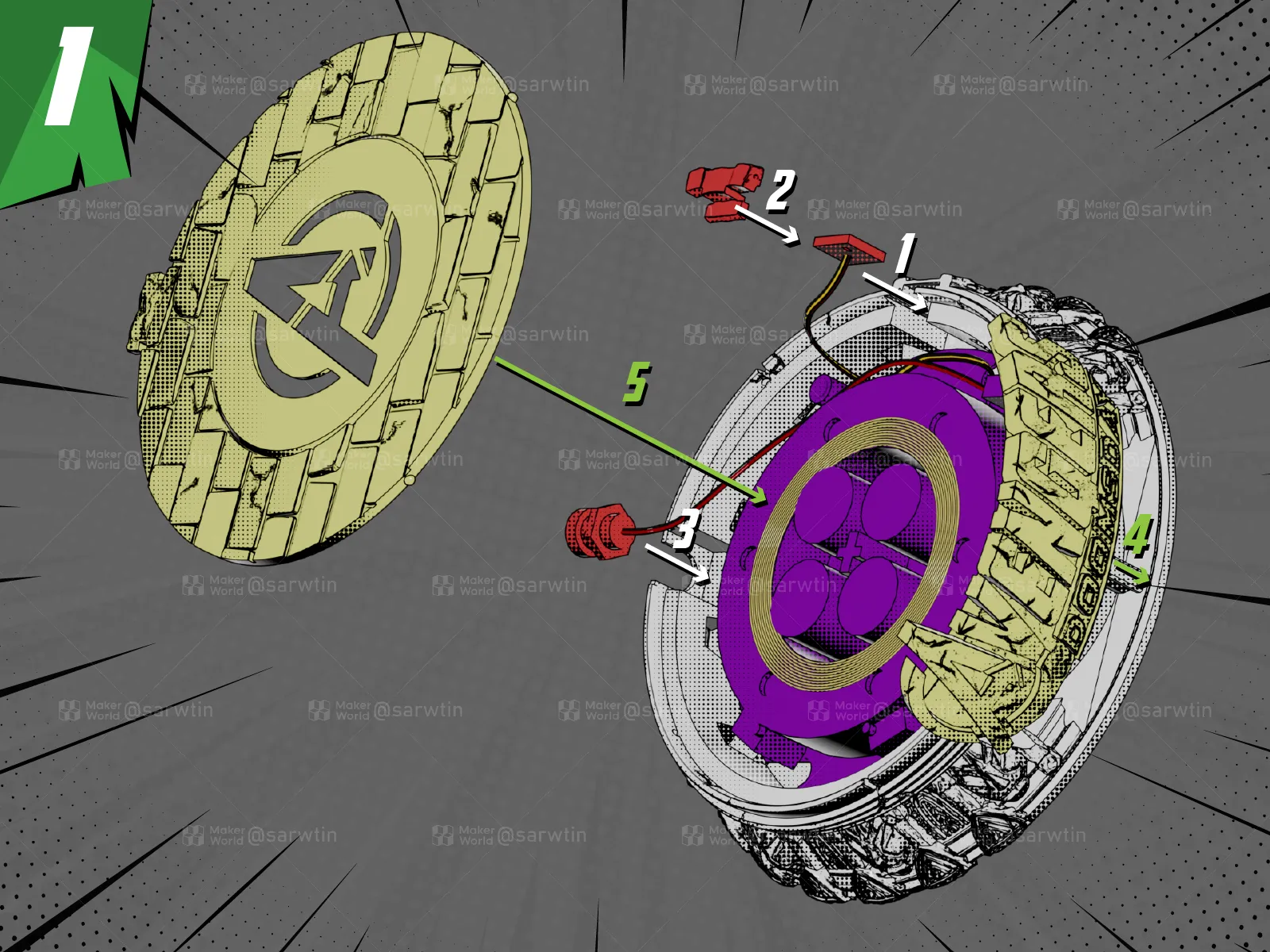

• The maglev base is assembled as shown below:

•

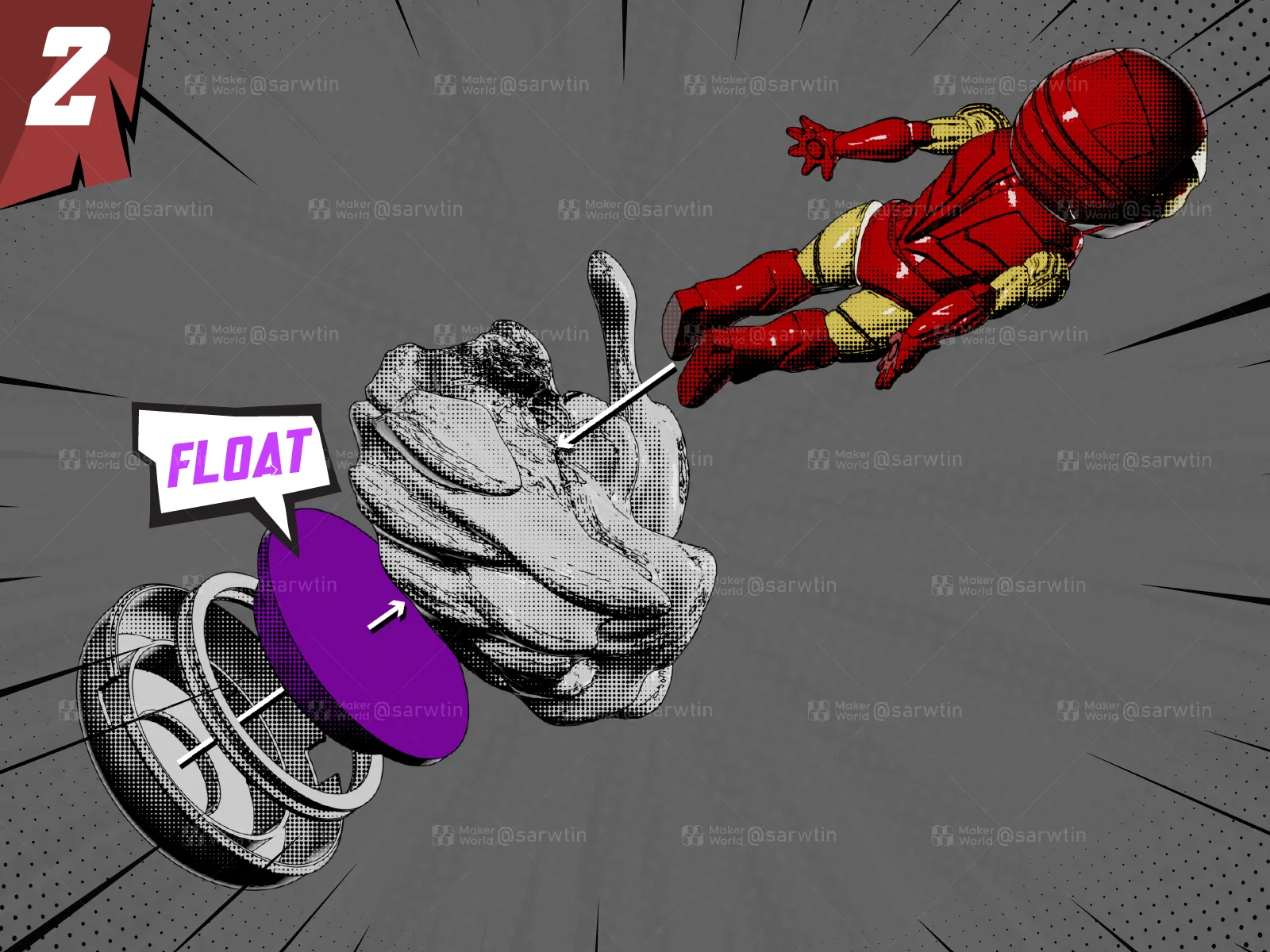

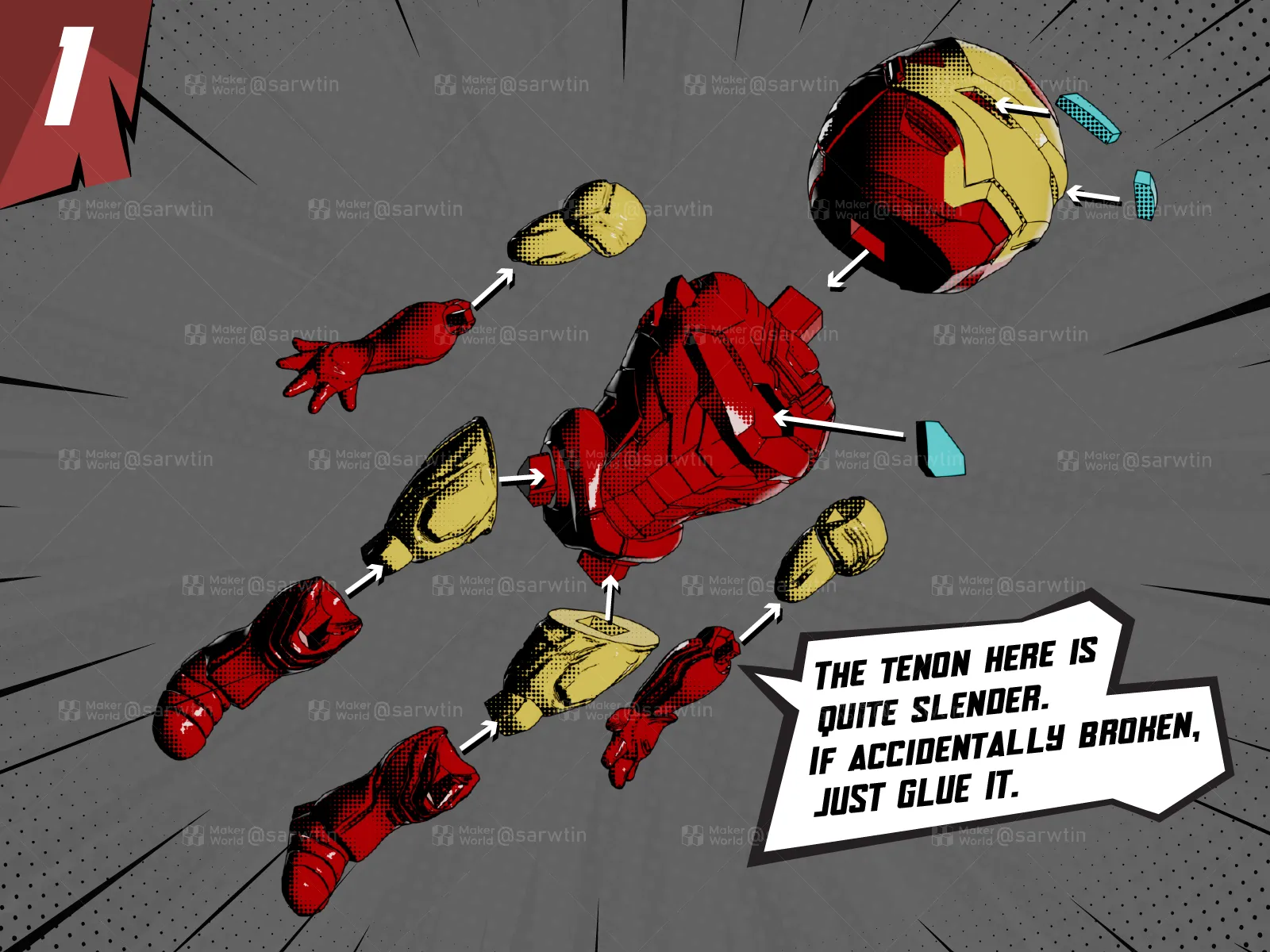

• The Mini Iron Man is assembled as shown below:

•



About Maglev:

• After the magnetic levitation base is powered on, wait for about 2 minutes until the coil is evenly heated before placing objects on it, otherwise it is likely to be unstable.

• The small Avengers logo on the side of the base is the touch switch.

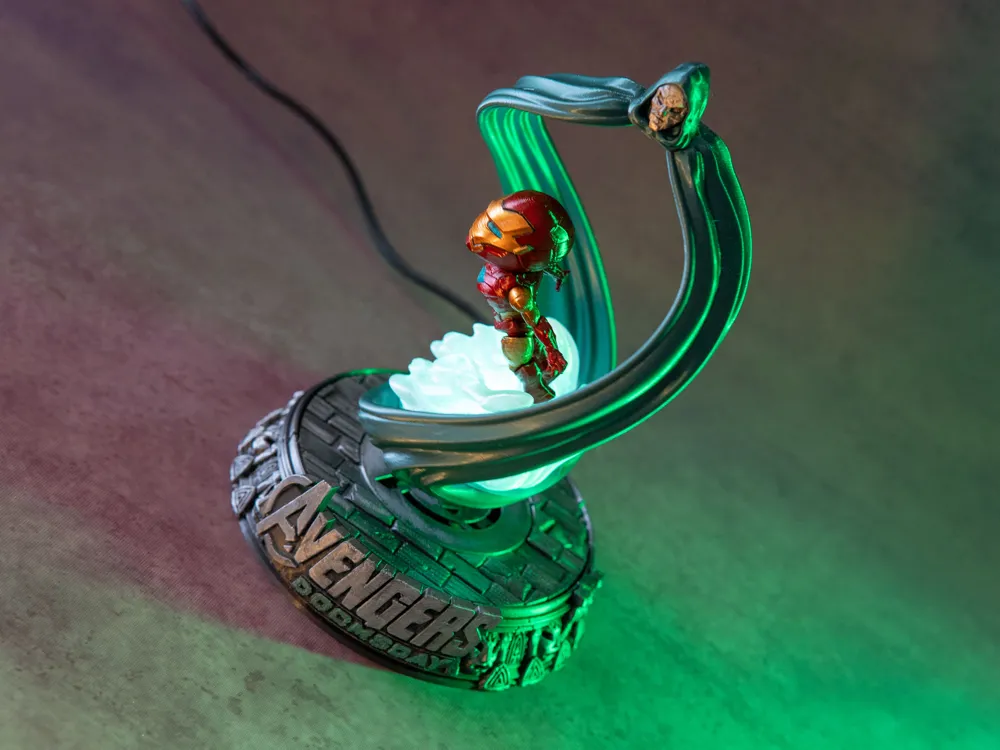

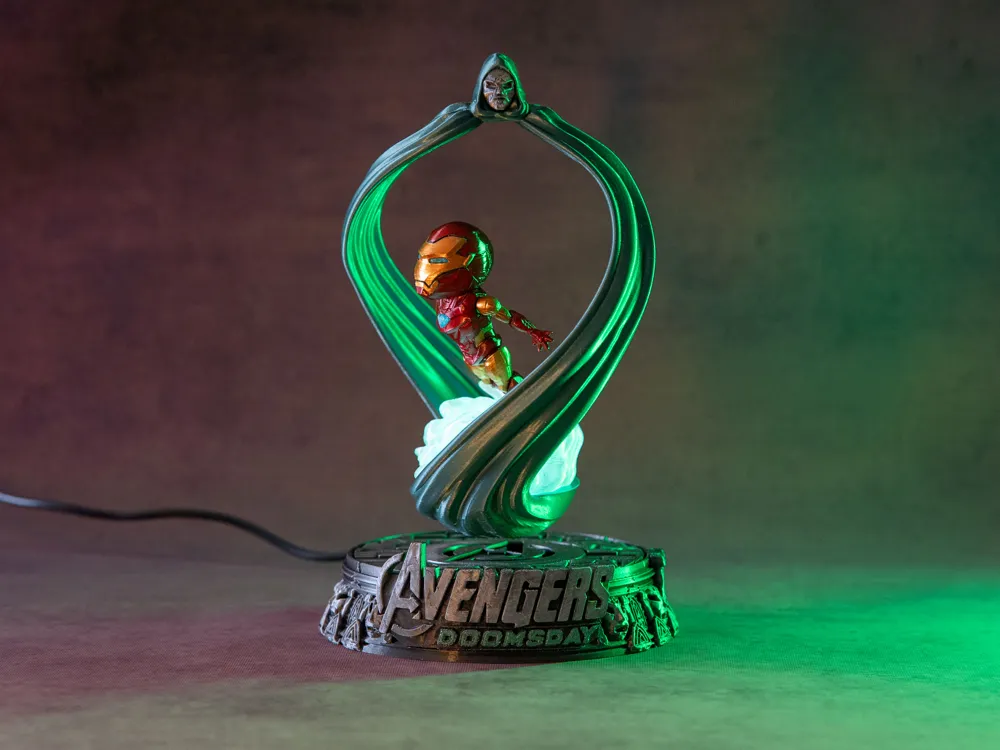

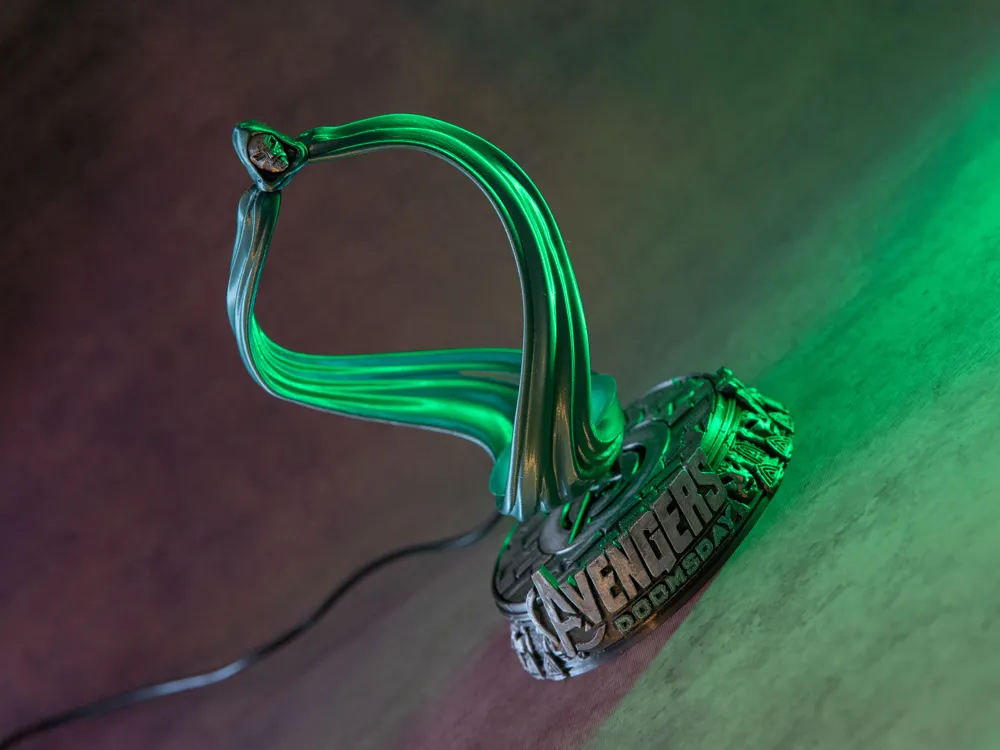

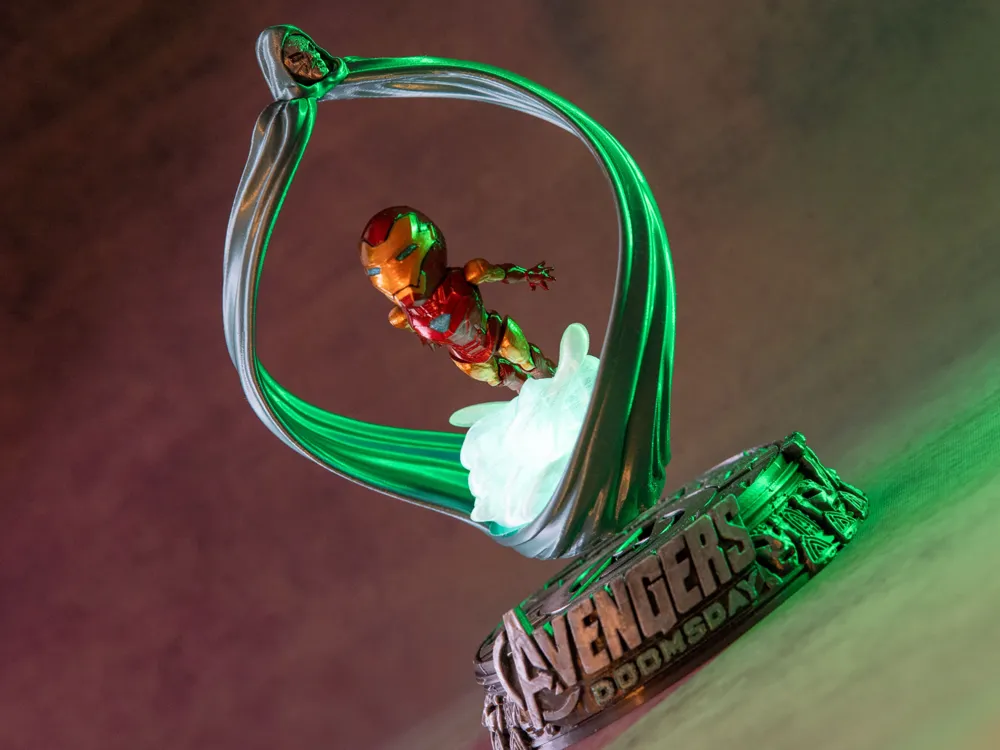

• Since the float's lights only have white and warm light, you can use color filter paper to change the color. The green float light shown in the pictures is achieved in this way.

•

About Color:

• Color references are preset in all profiles.

• The base can be dark grey or silver. In my pictures, it's dark grey filament + dry-brushed silver, with the Avengers title hand-painted.

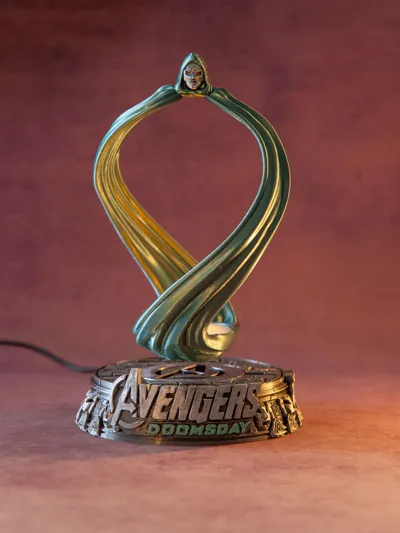

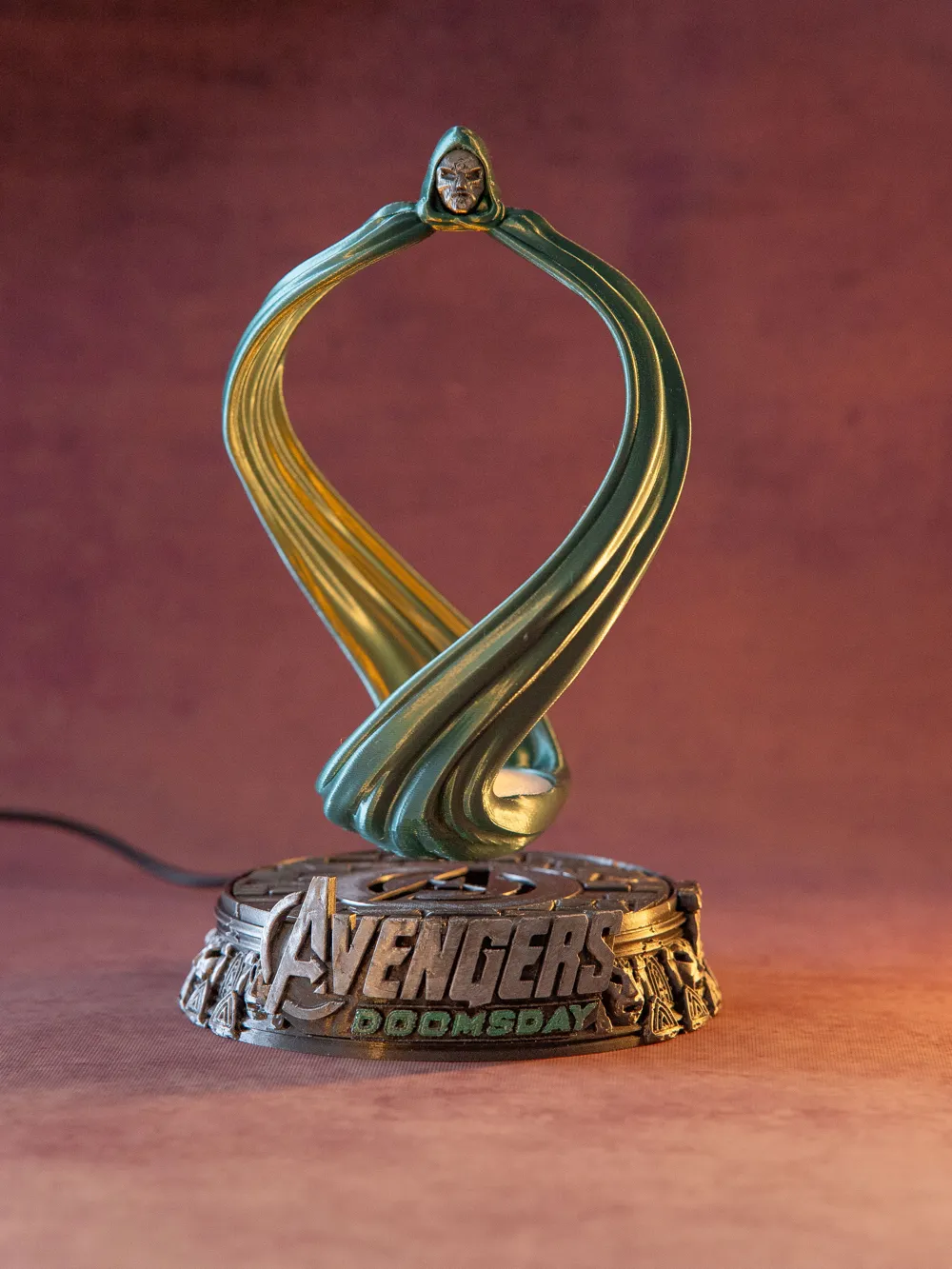

• The cape of the Doctor Doom display stand is metallic green, the face is silver.

• The Mini Iron Man body is metallic red + gold + transparent blue, the smoke base is pure transparent or transparent orange.
