Solder Fume Extractor – 3D Printing Project for Clean Air at the Workplace
Video:

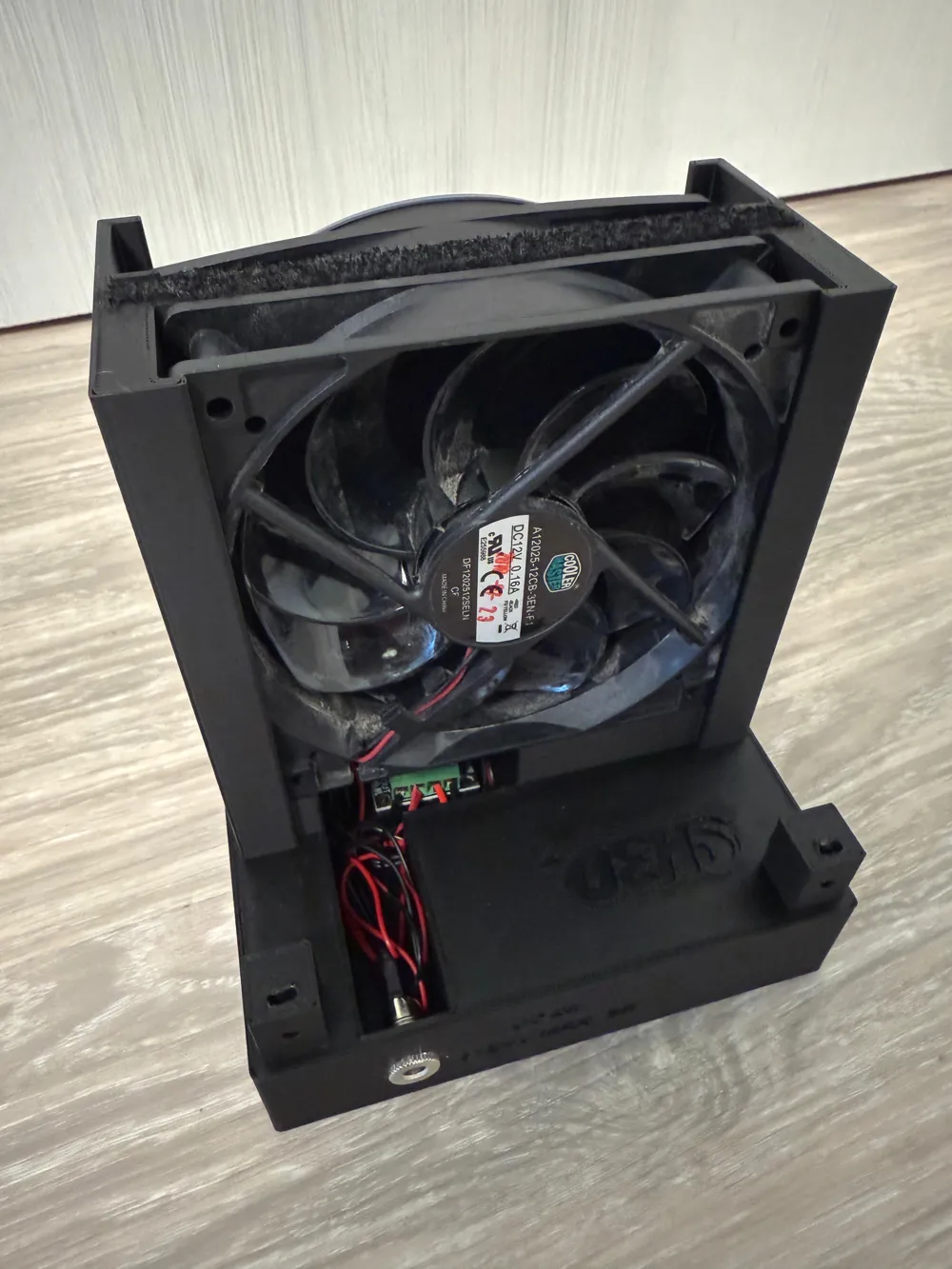

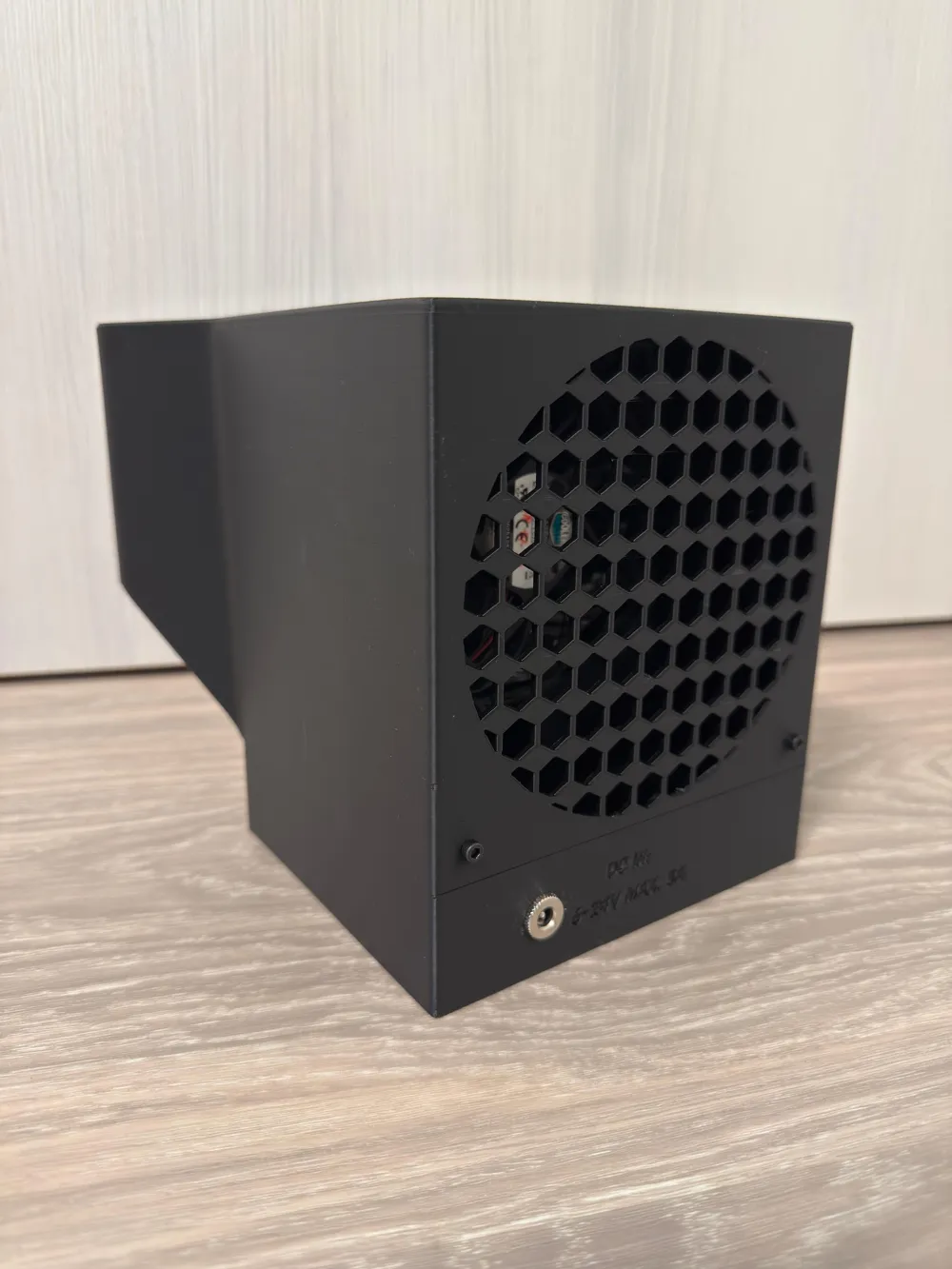

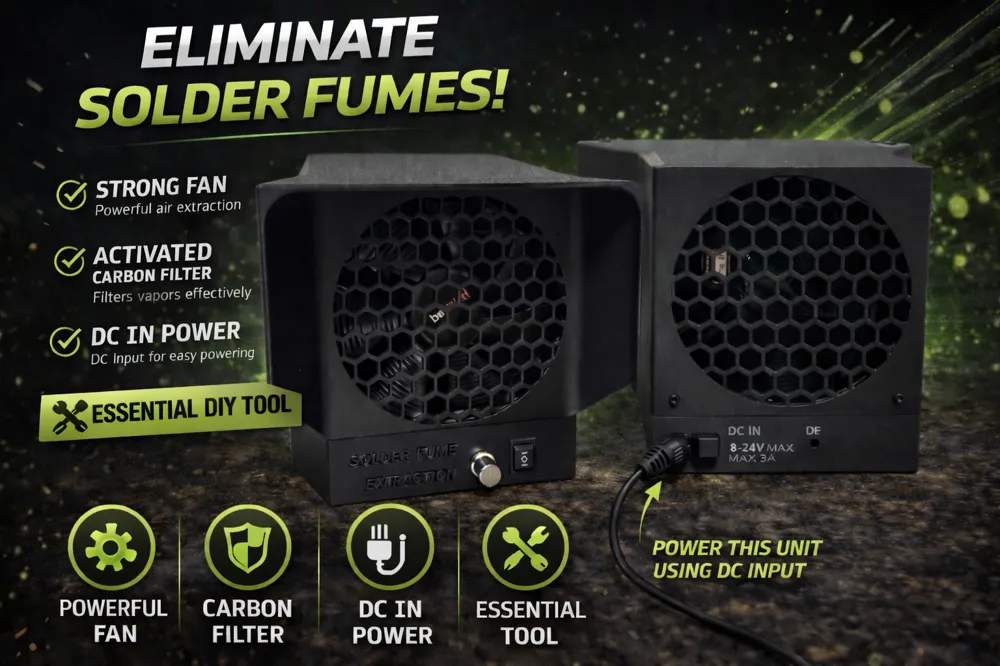

This self-designed solder fume extractor is a compact and practical DIY project for any electronics workbench. It was developed to effectively extract smoke and fumes during soldering, thereby improving air quality. The extractor has a modular design and is available in two variants:
- Variant 1: 1x 120x120 mm fan + 1x 136x136 mm fan (e.g., from old PC power supplies)
- Variant 2: 2x 120x120 mm fans (for easier parts access)
Components used:
- 1x 120 mm fan
- 1x 136 mm fan (mostly from old ATX power supplies)

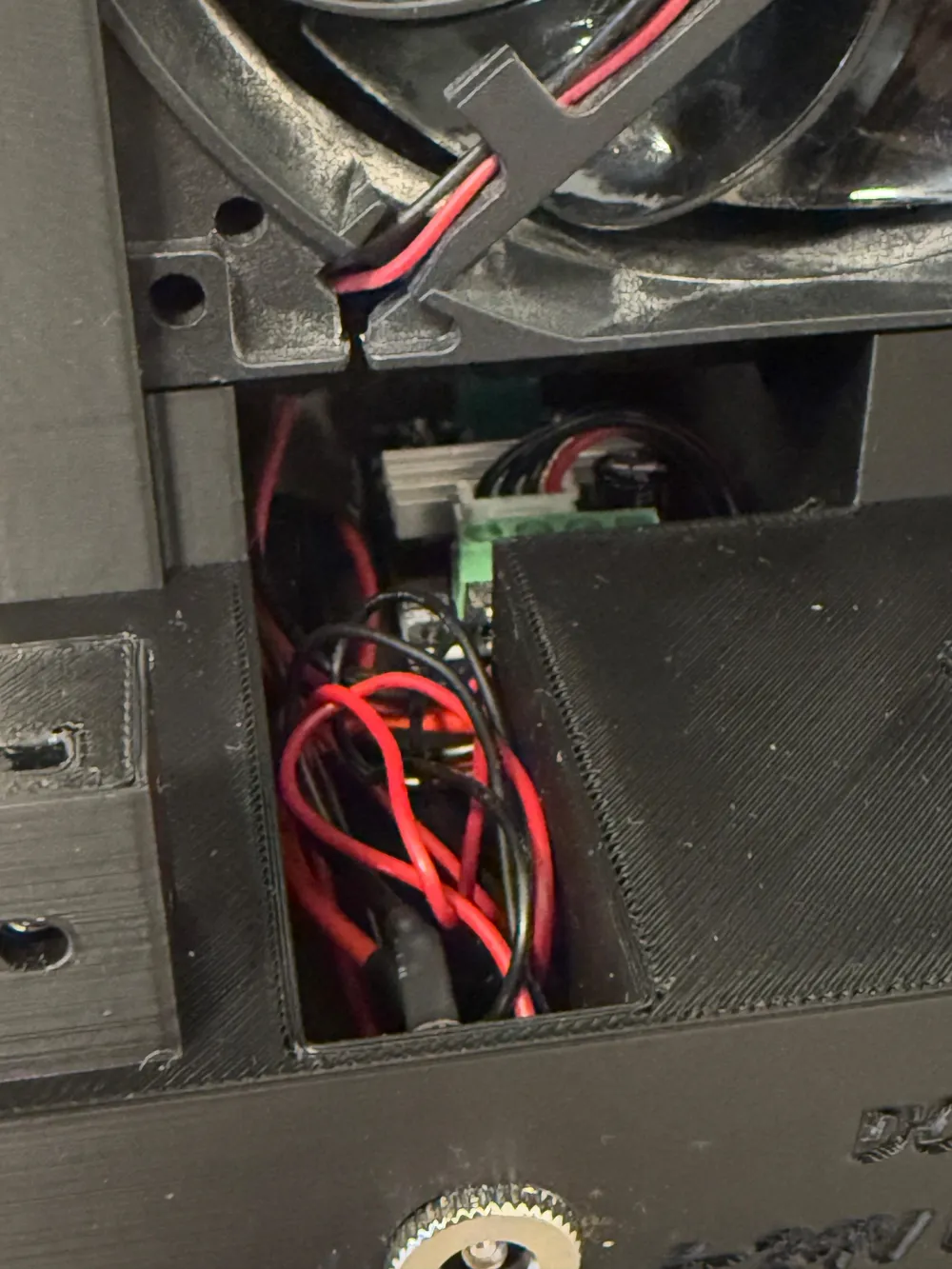

- 1x Speed controller: (Link: https://amzn.eu/d/aWCpoGK

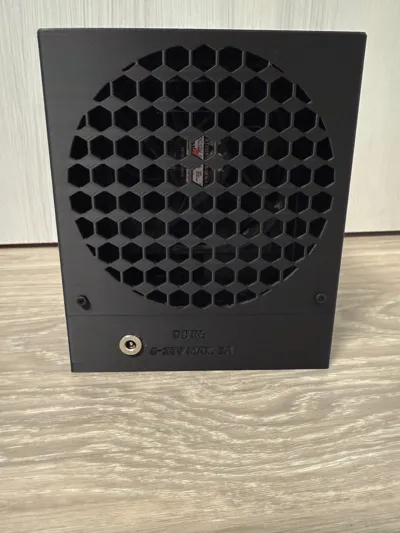

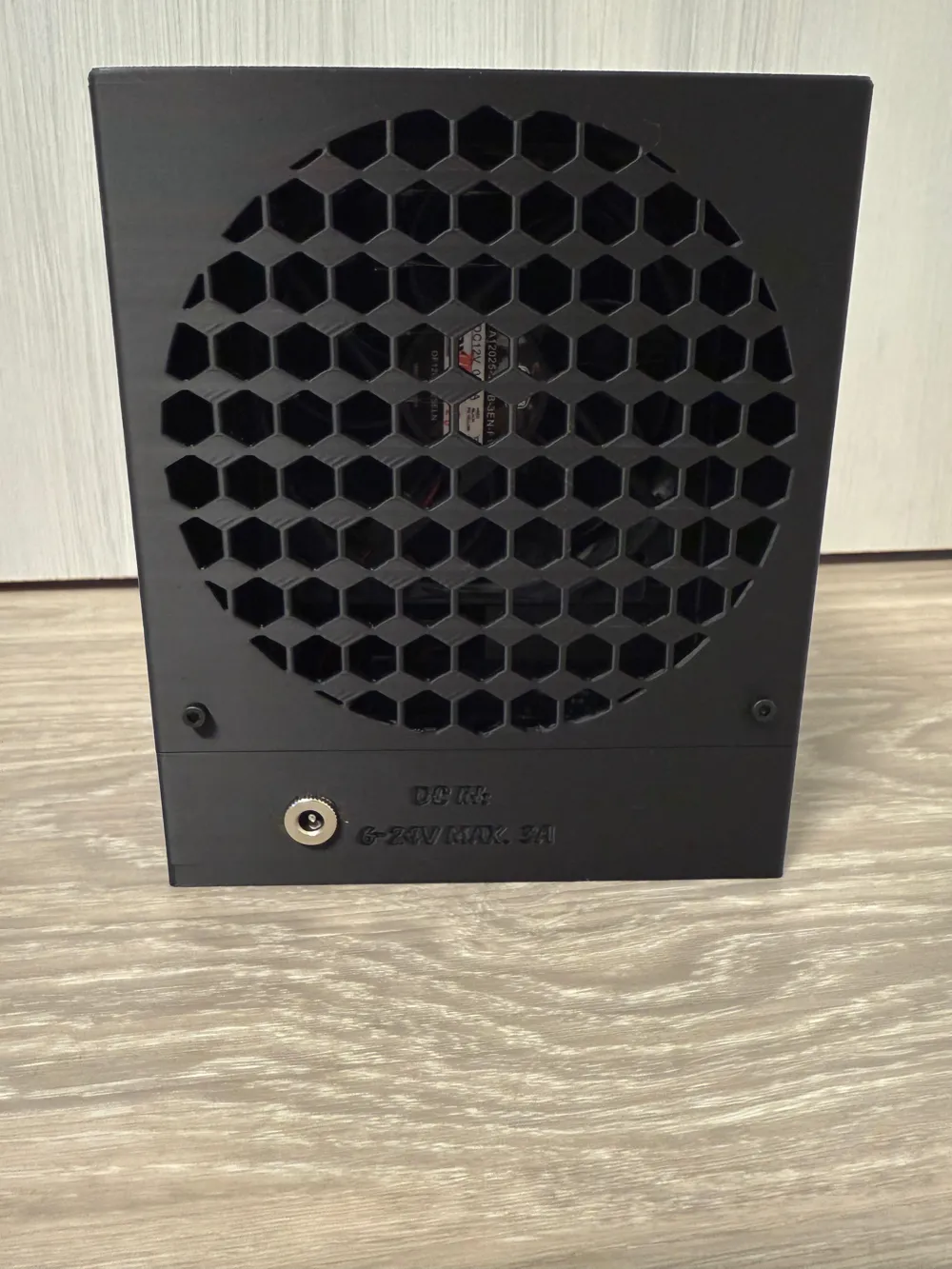

- 1x DC barrel jack 5.5 x 2.1 mm: (Link: https://amzn.eu/d/78H6PAc
- Optional:
- 2x M3 threaded inserts (5x5 mm)
- 2x M3 screws (between 9 mm and 20 mm in length)
Special features:
- Robust construction for secure fan mounting
- Compatible with standard power supplies (12V recommended)

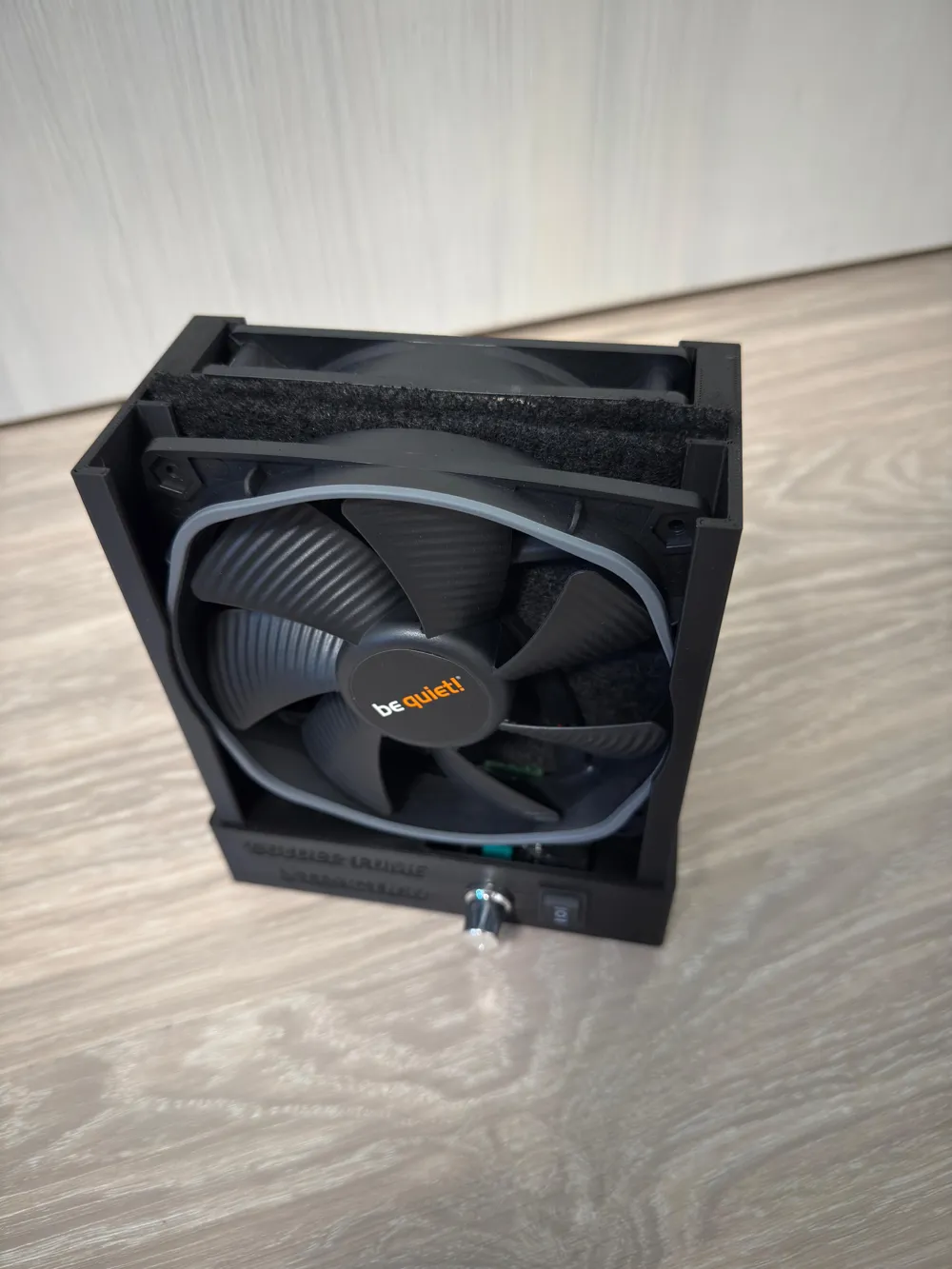

- Space for an activated carbon filter or sponge optionally integrated

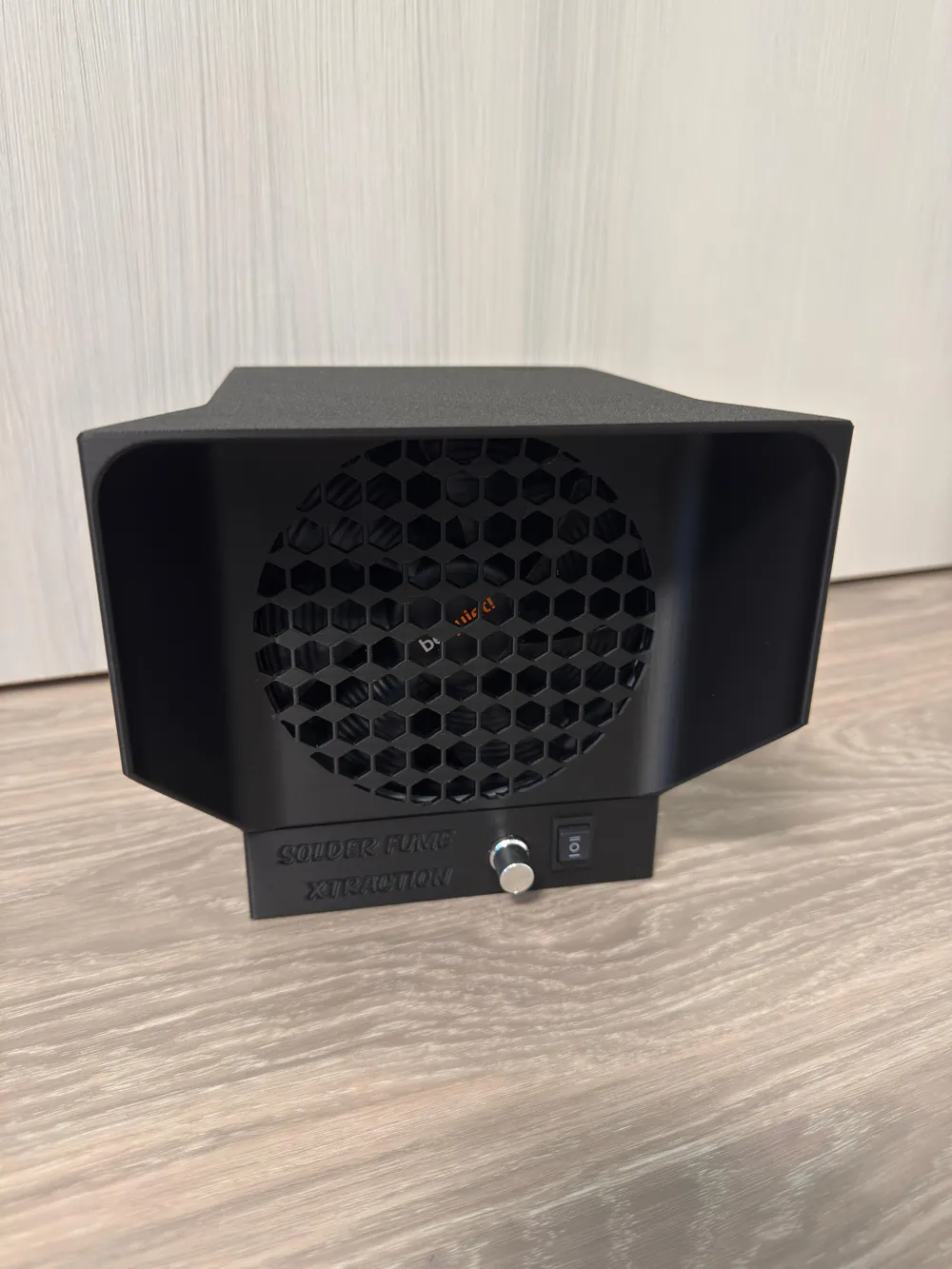

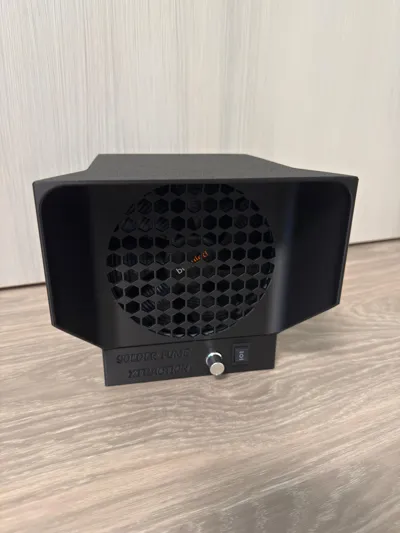

- Front-facing airflow for optimal fume extraction
- Optionally mountable with or without threaded inserts
Note:
The model is designed to utilize as many recycled parts from old PCs as possible – ideal for hobbyists who prefer sustainable projects
