Description

PLEASE READ CAREFULLY: the blade holder piece must be printed carefully, as It's prone to failing by detaching itself from the bed. It's a tall and thin piece, so you must print with a clean nozzle, and at low speeds. Use the profile provided and modify it to your own filament and printer. Clean your bed for best adhesion, highly recommend a smooth plate such as the supertack.

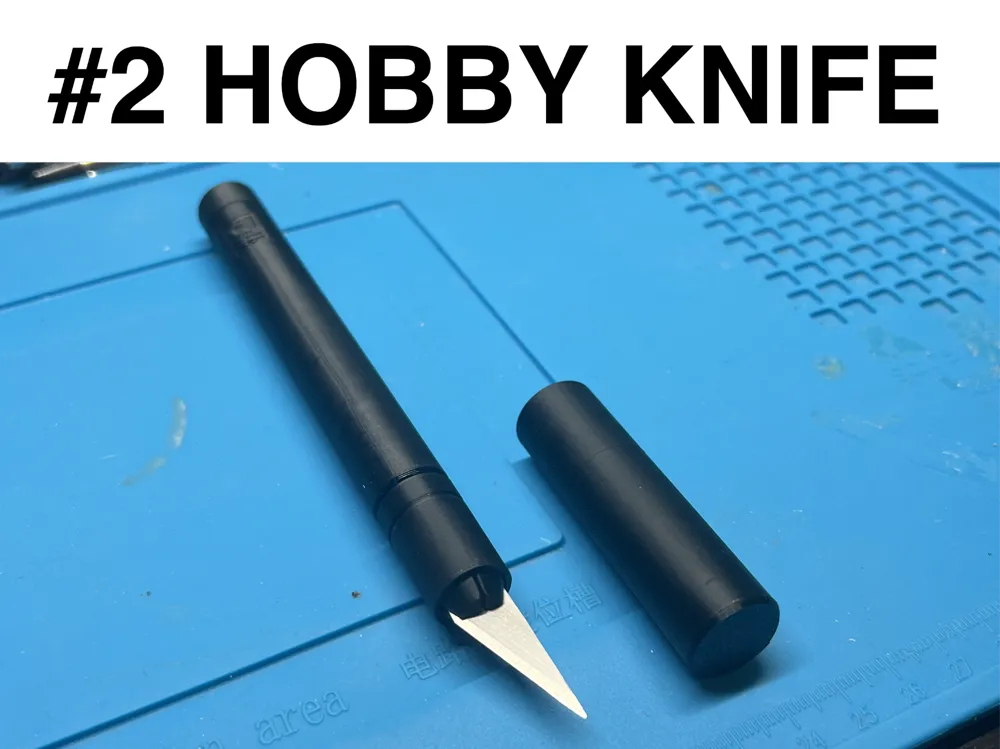

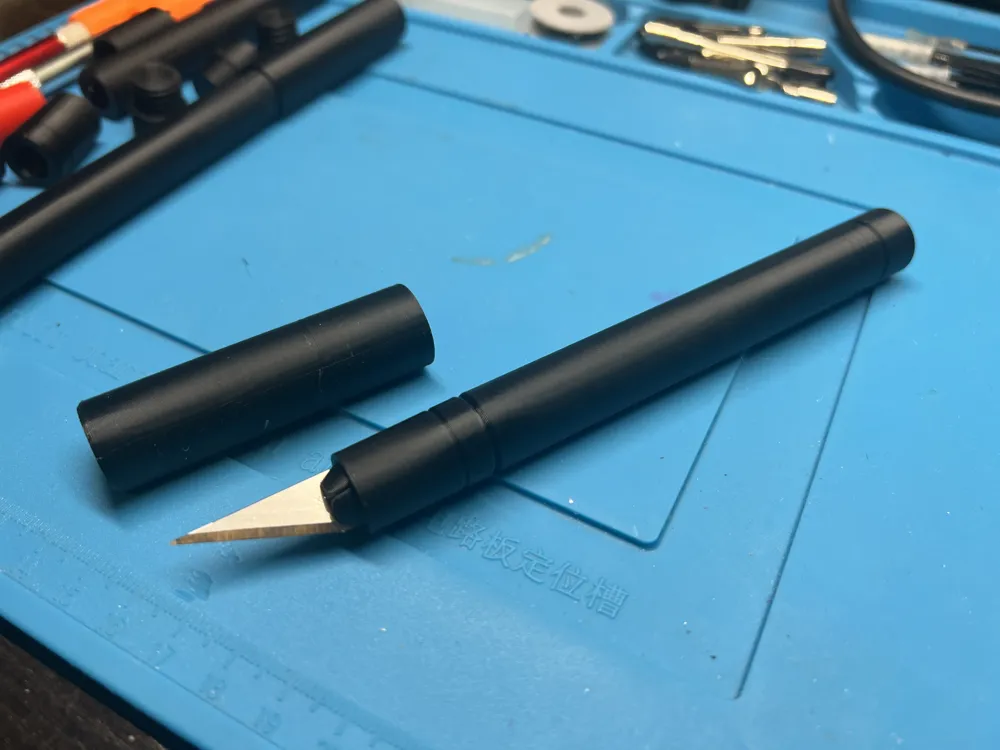

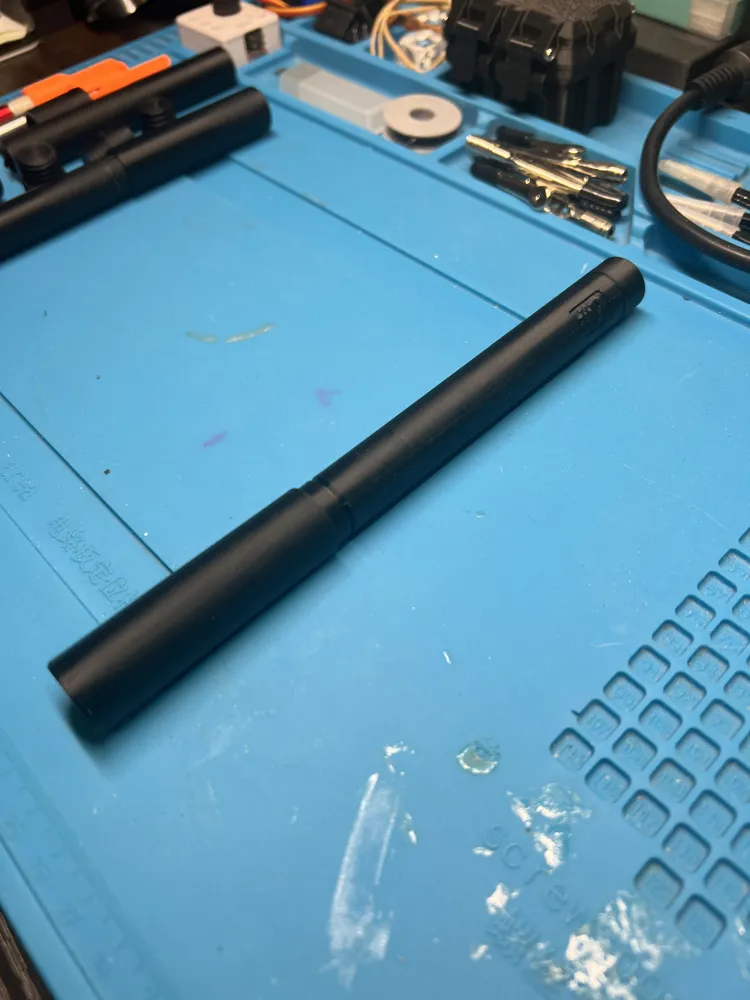

#2 Hobby knife handle with extra blade compartment and cap for safe storage. Best used with #2 X-Acto blades (~8.8mm width at the base), it might work with smaller blades, but they won't be held in place as firmly.

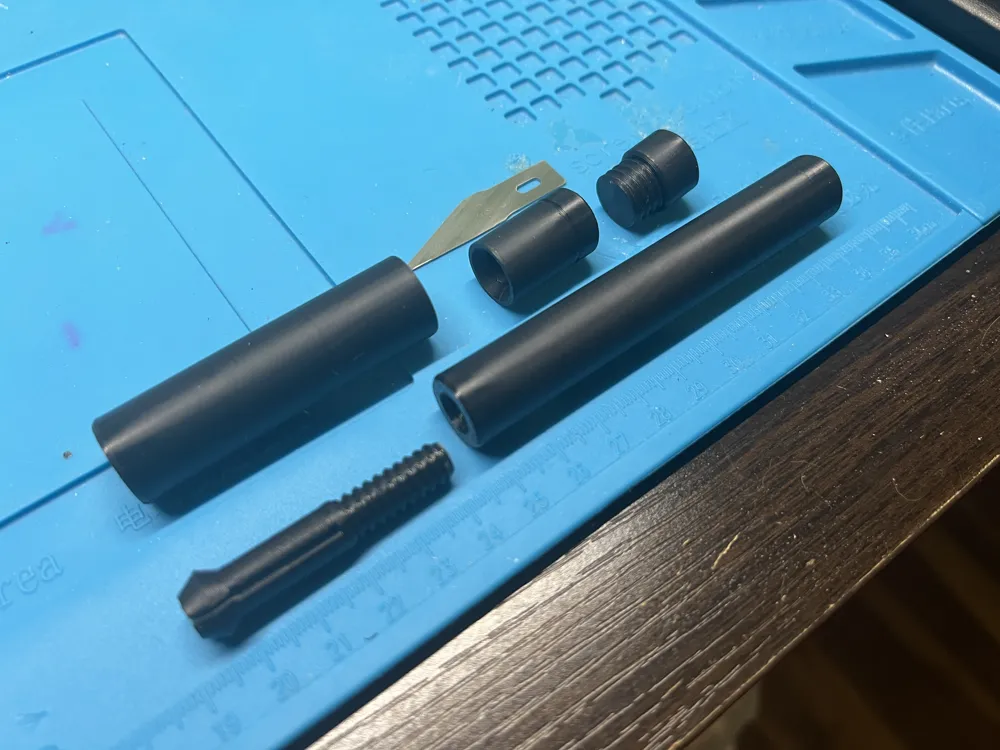

No need to overtighten the plastic screws to hold the blade, simply tighten until the blade is held in snug through friction.

PETG may be preferred to prevent the blade holder from breaking due to material creep.
