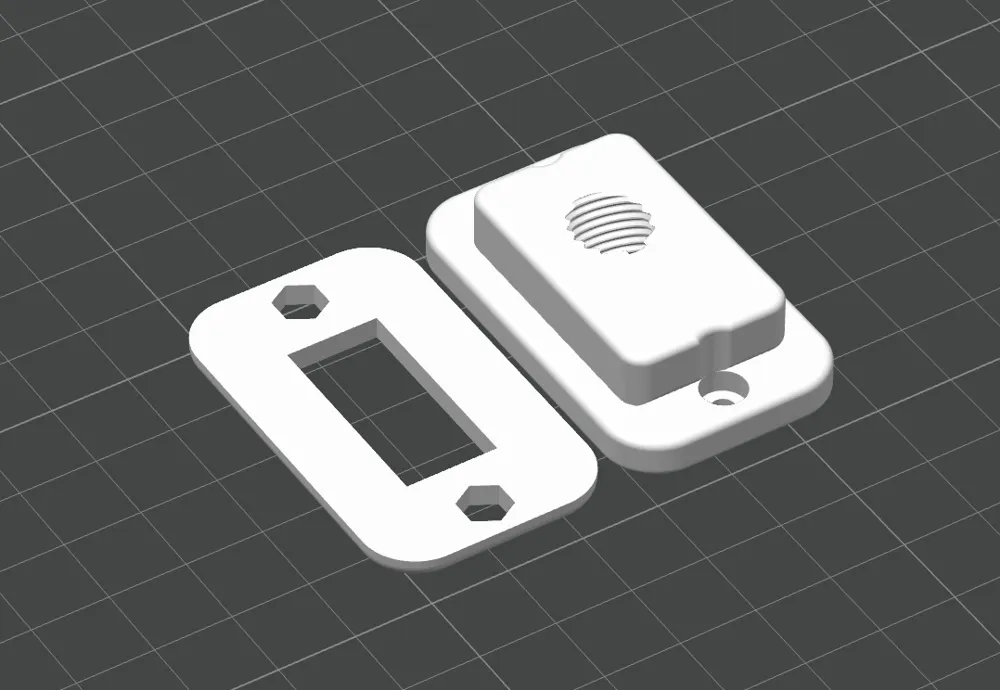

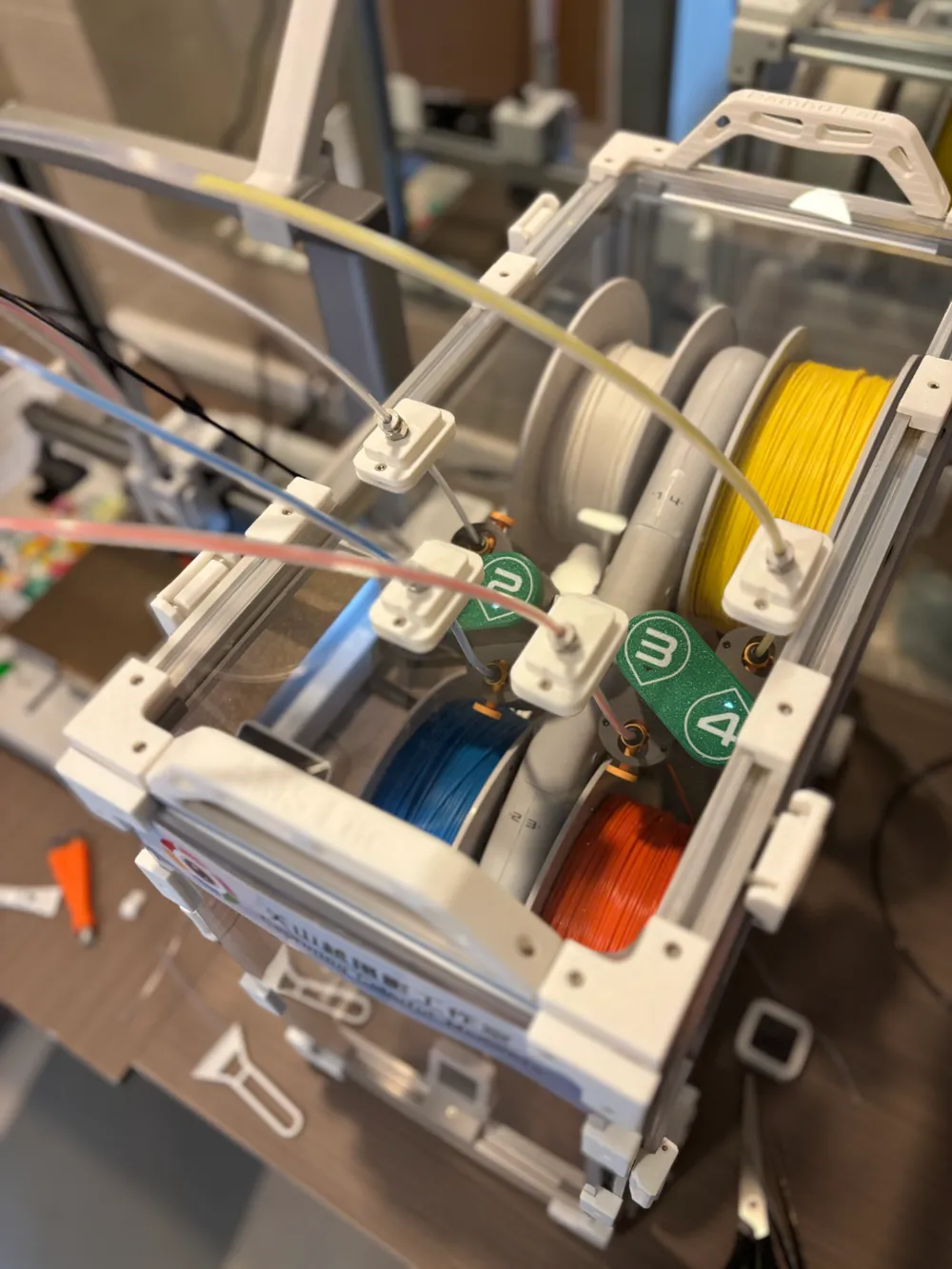

AMS lite drying cabinet top pneumatic connector module and top acrylic panel

Remixed by

Print Profile(1)

All
A1
P1S
P1P
X1 Carbon
X1E
X1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate

Open in Bambu Studio
Boost
26
81
15
1
193
5
Released

Description

改进了干燥箱卡料问题

除了3d打印件外,还需要:

1.气动接头PC4-01直通型;

2.定制亚克力板,厚度3mm,设计图见模型源文件

3.M3螺丝与螺母

4.特氟龙管,2.5*4mm(内径/外径)



Improved the issue of material jamming in the drying oven

In addition to 3D printing, it is also necessary to:

1. Pneumatic joint PC4-01 straight through type;

2. Customized acrylic board with a thickness of 3mm, design drawings can be found in the model source file

3. M3 screws and nuts

4. Teflon tube, 2.5 * 4mm (inner diameter/outer diameter)
