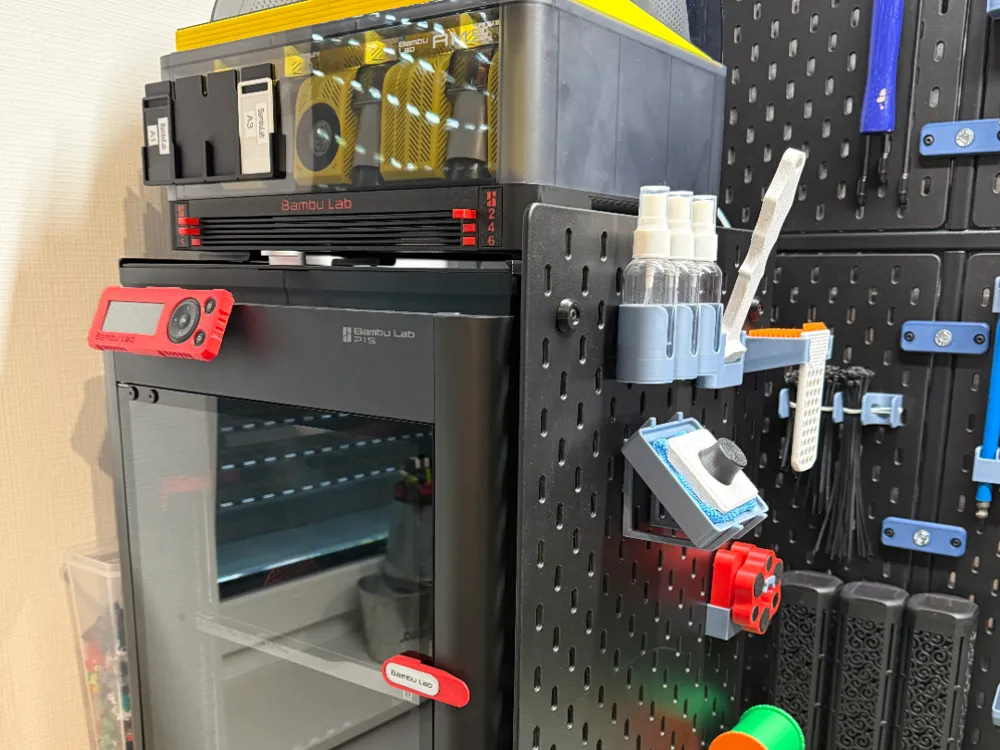

This is a simple holder that adapts an SKADIS board to the AMS Glass Riser from Sanja3D.

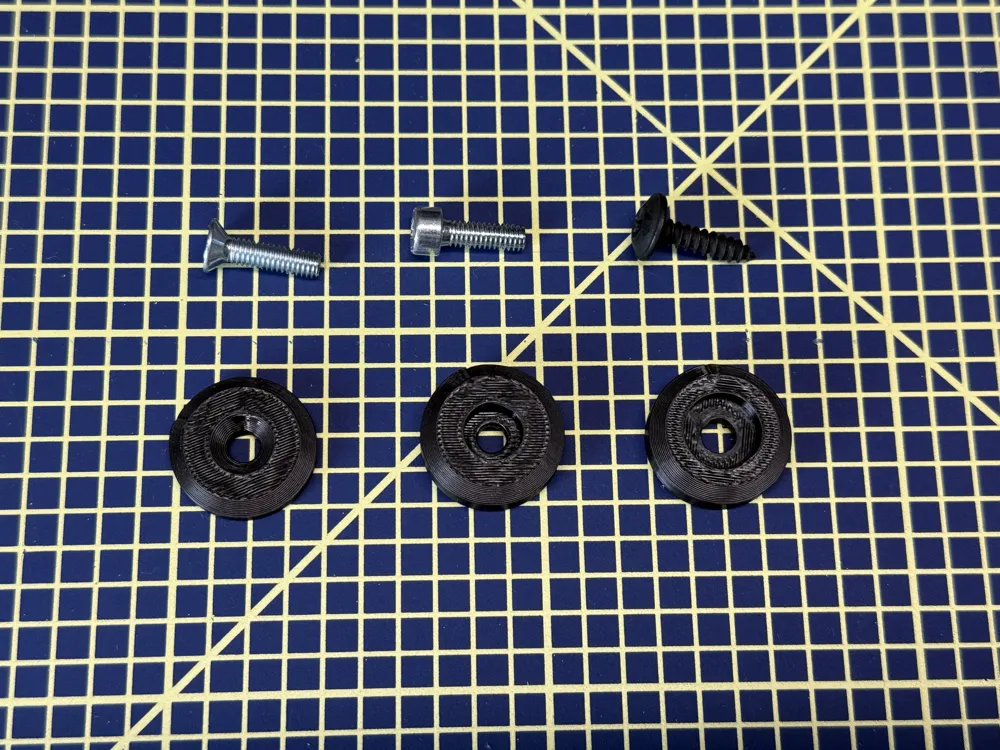

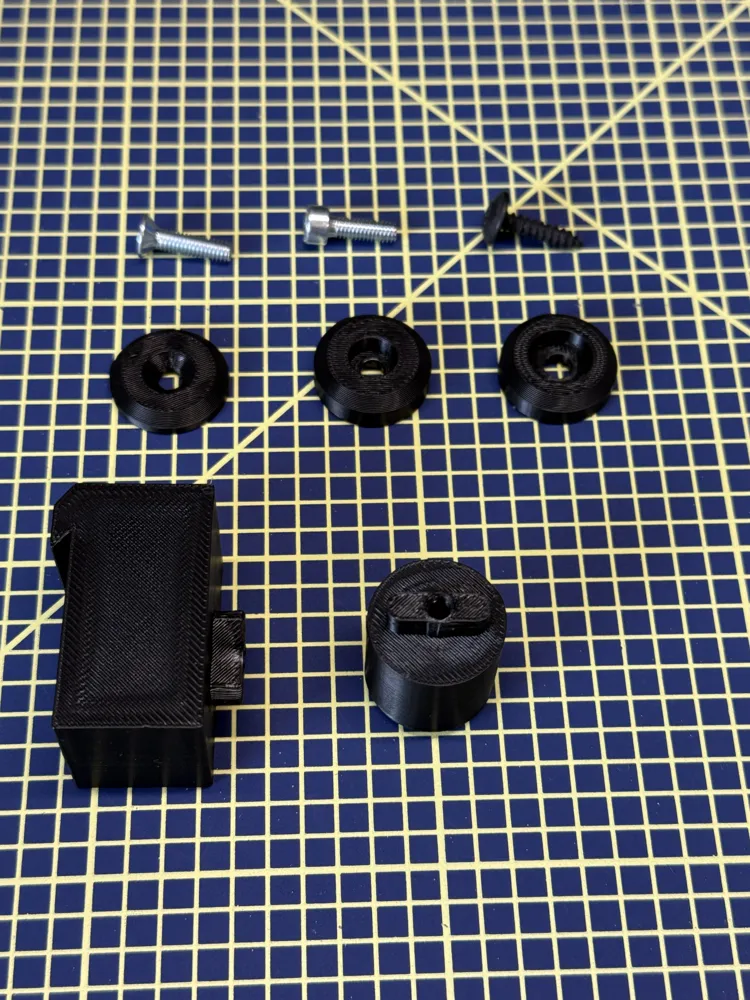

The holder is available for M4 screws (countersunk and cylinder head) and 3.9x16 sheet metal screws.

The only difference is the washer that presses the plate against the holder. If you want to use different screws, I have uploaded the .step files. You can design your own "washers."

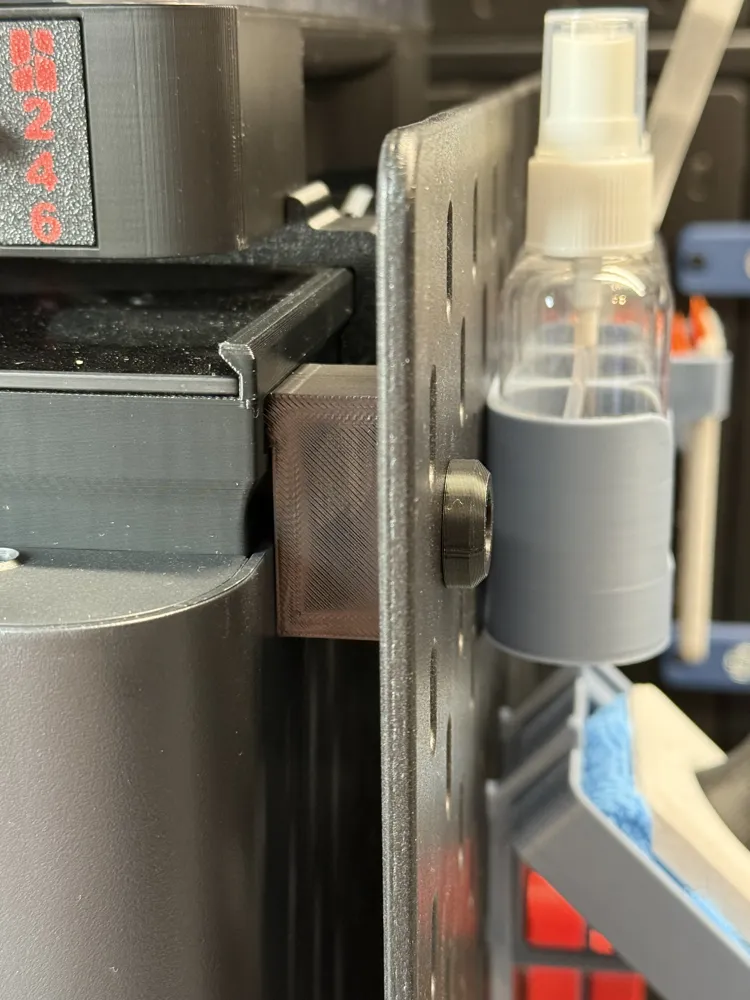

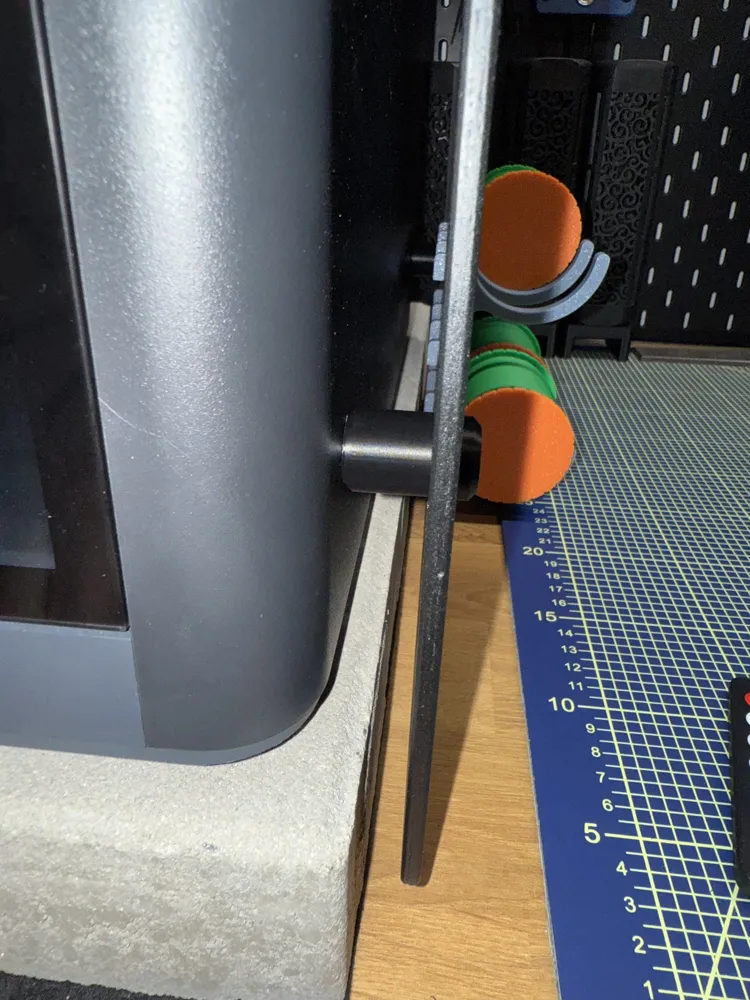

The holder creates a 20 mm distance from the printer.

Use M4x16 mm screws.

AMS Glass Riser from Sanja3D:

→ https://makerworld.com/en/models/1265731-adjusted-v4-5-ams-glass-riser-slider-for-p1s-x1c#profileId-1291418

This is a list of all my SKADIS holders: https://makerworld.com/de/collections/10923314-holder-for-ikea-skadis

I would love to hear your feedback!

Feel free to show me the printed parts, and check out my other models :)

Boost Me (for free)

1 boost = 54g filament for my next project :)
