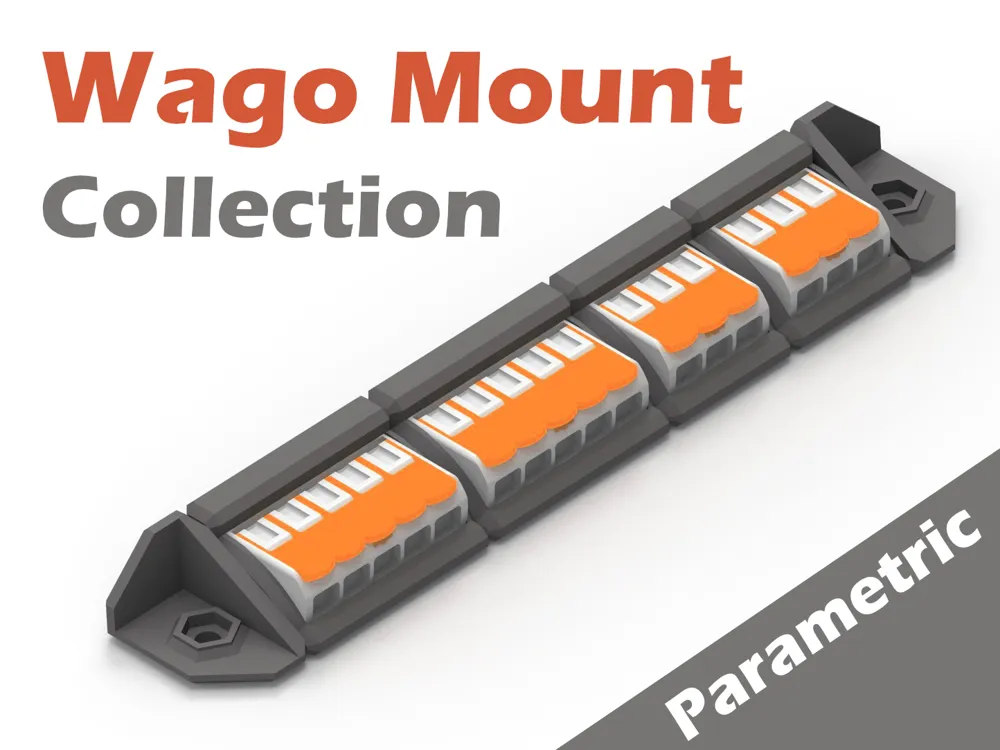

WAGO 221 Mount - 11 Variations

WAGO 221 mounts, 11 variations for 3 & 5 connection WAGOs. Secure with 2 M3 bolts/nuts. Print side = numbers. Infill:40%

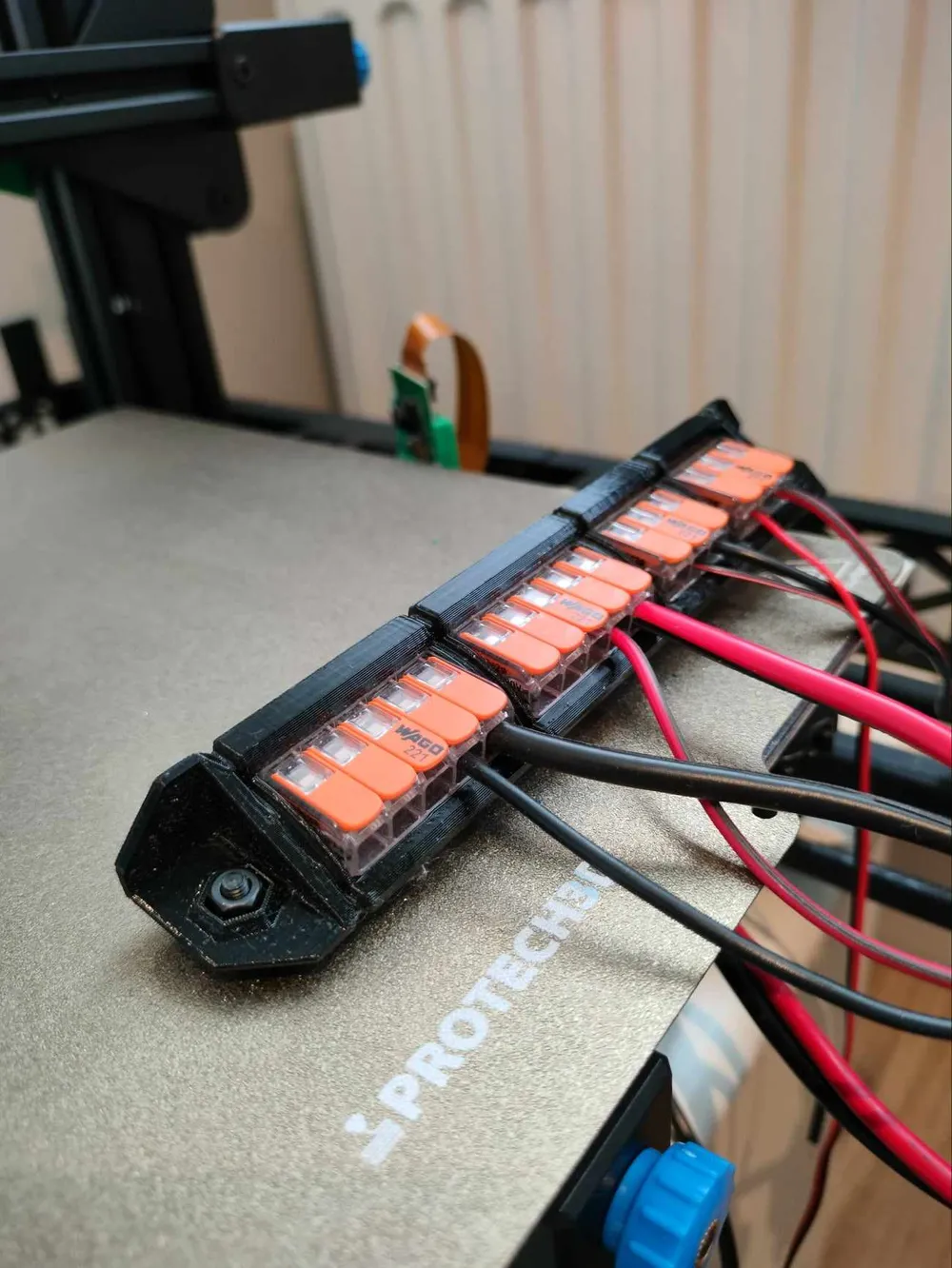

Description: These snug-fit mounts are designed for WAGO 221 connectors, offering 11 different variations to accommodate 3 and 5 connection WAGOs. The mounts are functional when the WAGOs are in place. To release them from the mount, use a screwdriver to poke through the hole on the bottom. The mounts have a height of 14.25 mm and a width of 24.5 mm. Secure them using 2 M3 nuts and bolts. Print orientation is the side with the numbers, with an infill of 40%.

Features:

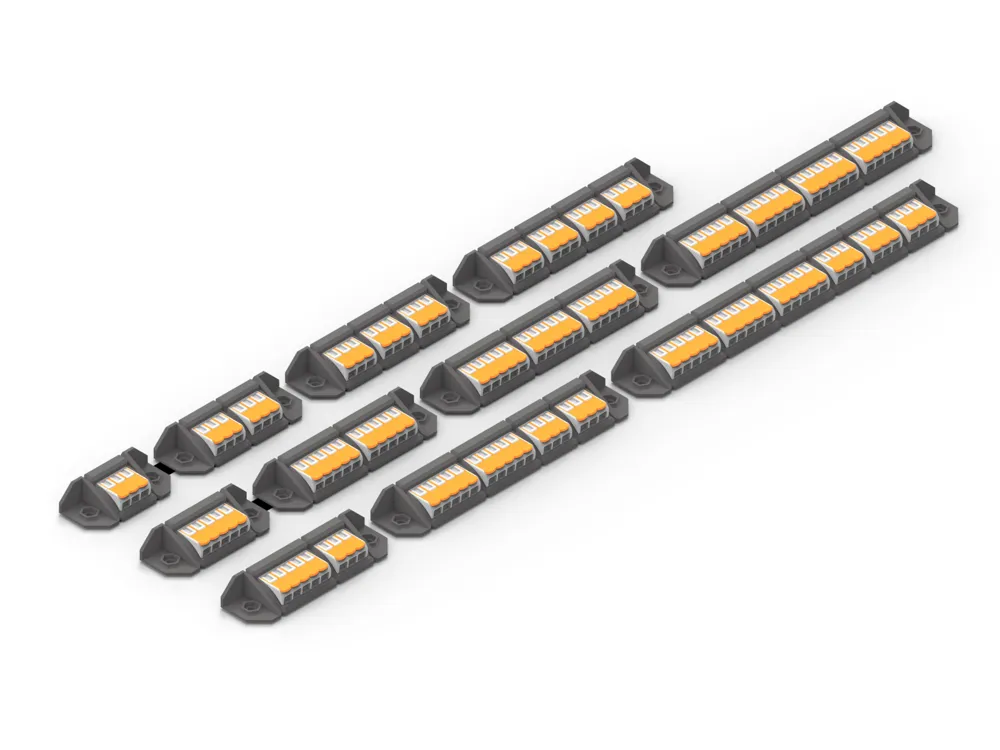

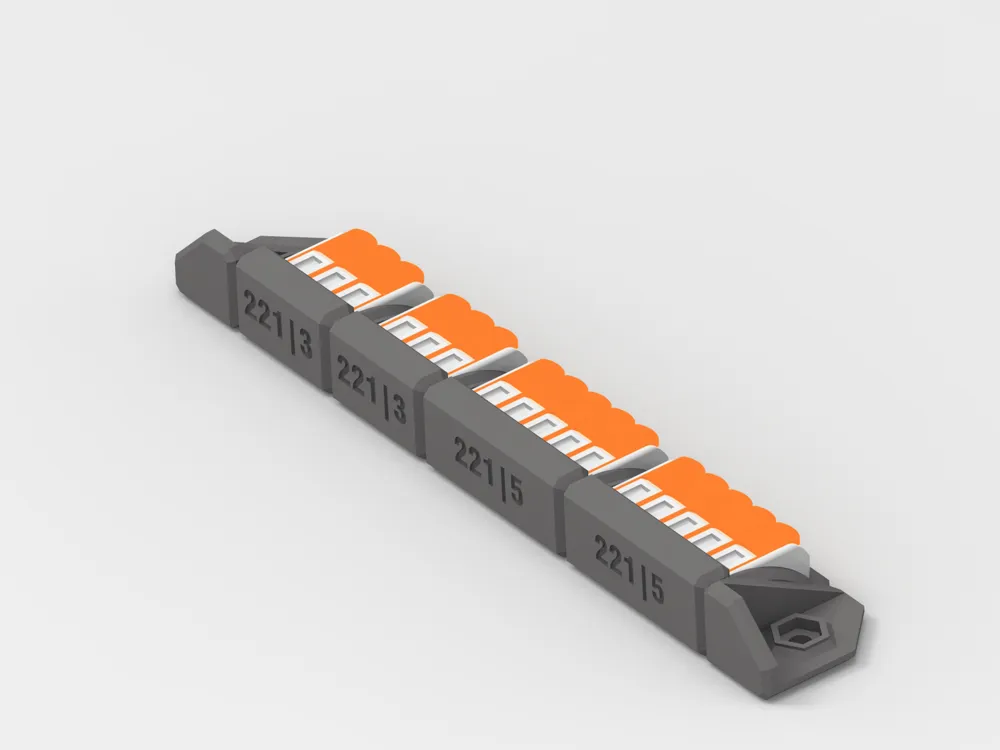

• Variations: 11 different variations for 3 and 5 connection WAGO 221 connectors.
• Dimensions: Height: 14.25 mm, Width: 24.5 mm.
• Secure Fastening: Uses 2 M3 nuts and bolts.
• Snug Fit: Ensures WAGOs are functional when in place.
• Easy Release: Use a screwdriver to poke through the hole on the bottom.
• Bolt Location Dimensions:
  • WAGO_221_5X_3X_1: 71 mm
  • WAGO_221_5X_3X_2: 127 mm
  • WAGO_221_5X_3X_3: 183 mm
  • WAGO_221_5X_1: 48.5 mm
  • WAGO_221_5X_2: 82 mm
  • WAGO_221_5X_3: 115.5 mm
  • WAGO_221_5X_4: 149 mm
  • WAGO_221_3X_1: 37.5 mm
  • WAGO_221_3X_2: 60 mm
  • WAGO_221_3X_3: 82.5 mm
  • WAGO_221_3X_4: 105 mm
• Printing Recommendations:

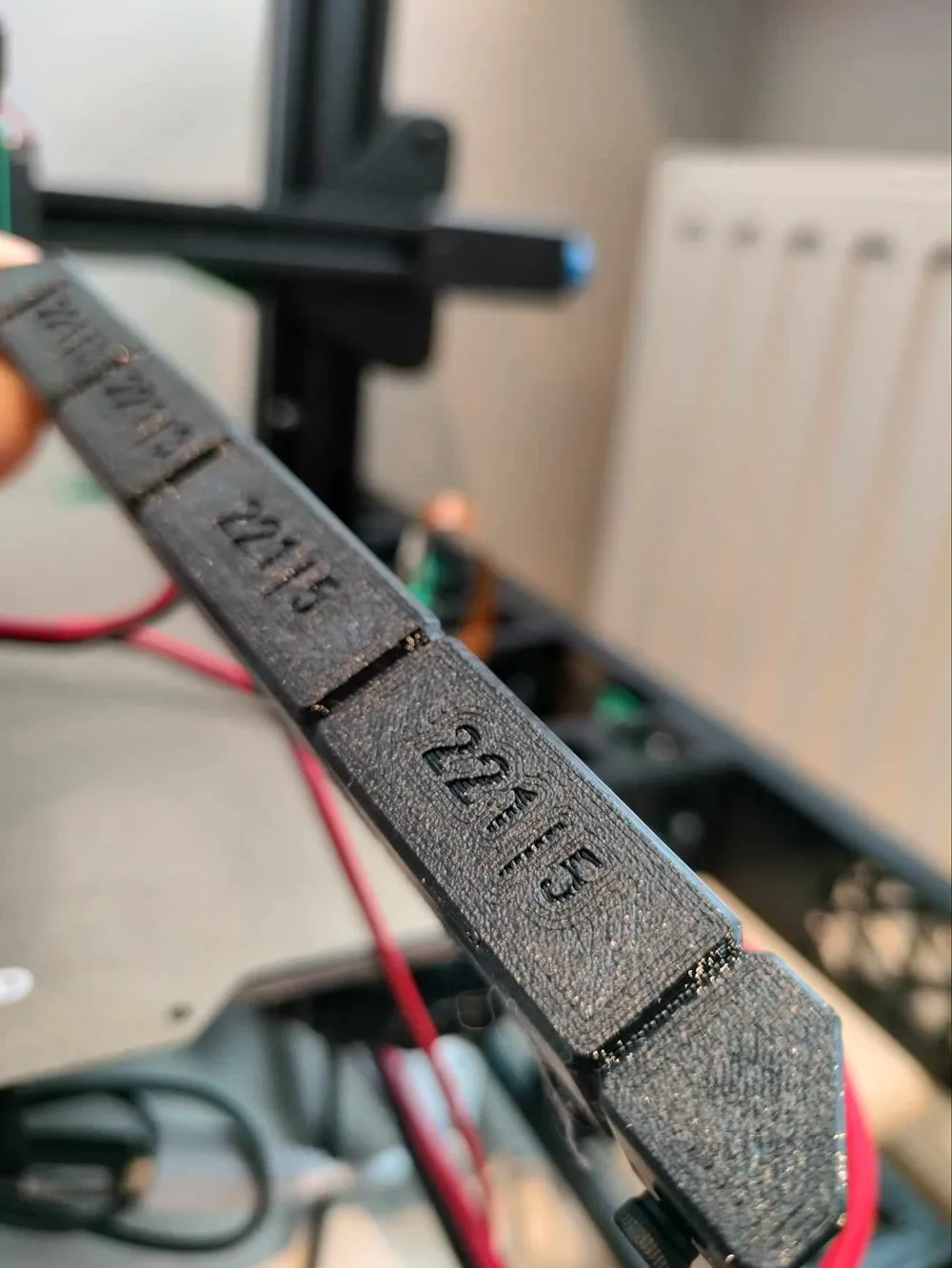

  • Orientation: Print on the side with the numbers.
  • Infill: 40% for optimal strength.

If you would like the step files you can always contact me :)µ
