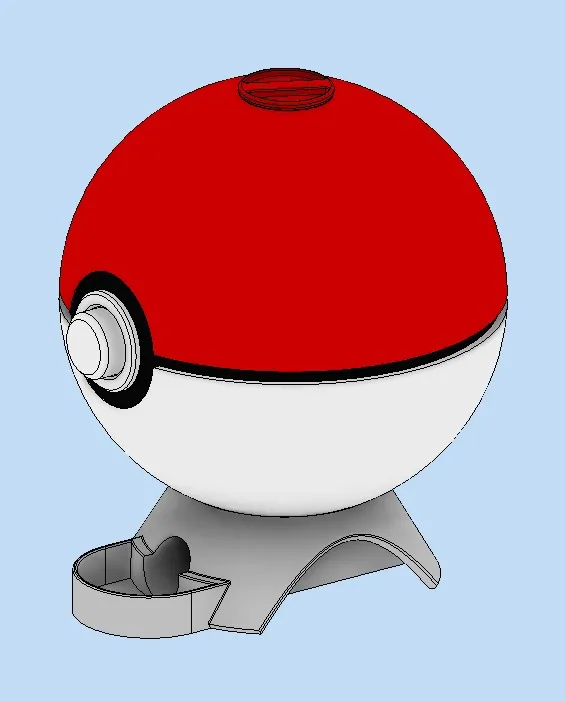

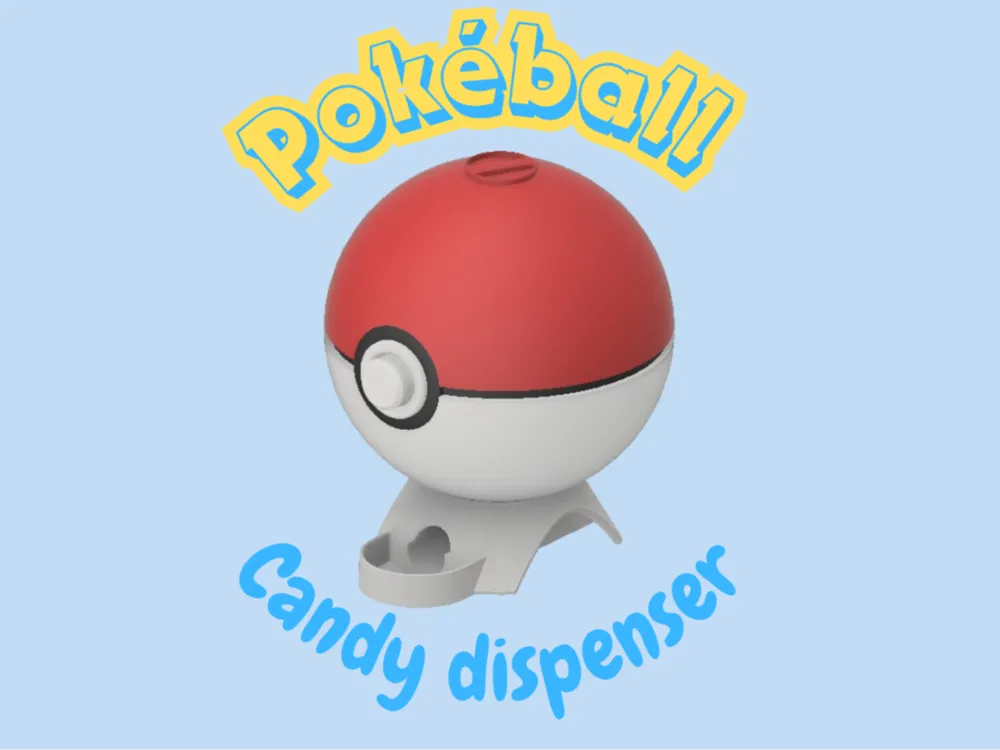

Pokéball Candy Dispenser

With this Poke Candy Dispenser you can bring joy at every Pokemon theme based party!

The assembly is easy:

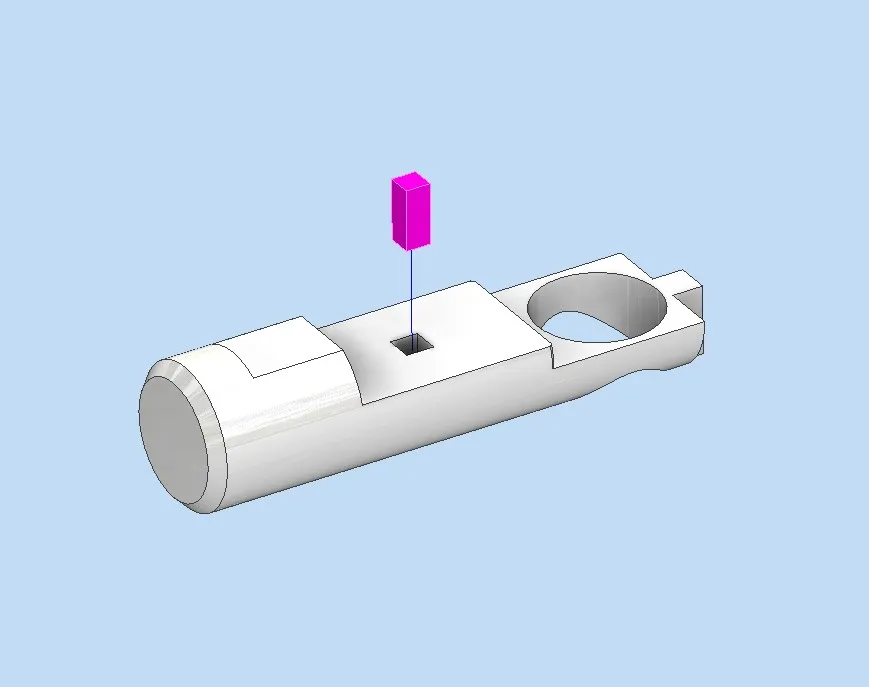

1. Start with the push button part. Attach the squared pin with a bit of glue

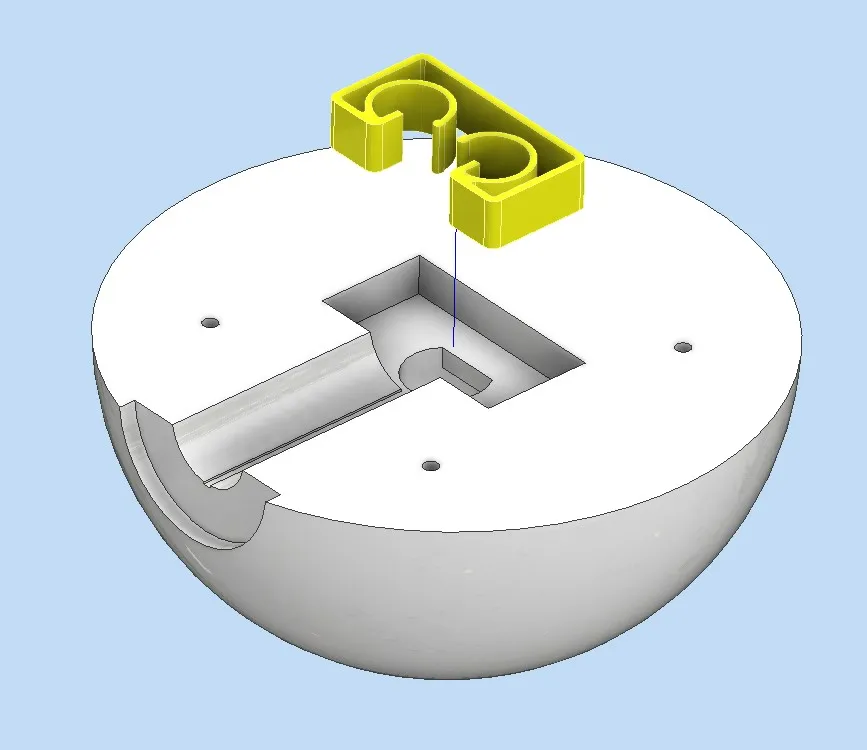

2. Then take the bottom part press fit 4 M3 threaded insert and position the spring.

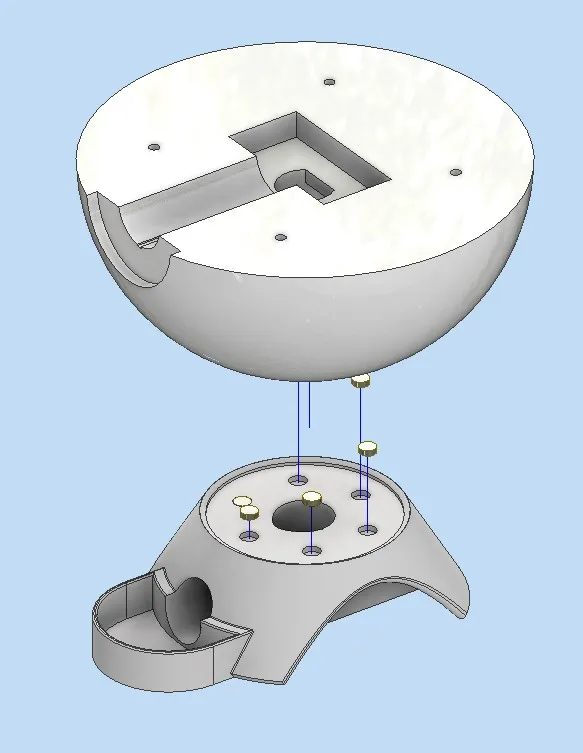

3. Now take your magnets, you can use 3 to 6 as you want, and glue them inside the holes of the bottom and base parts.

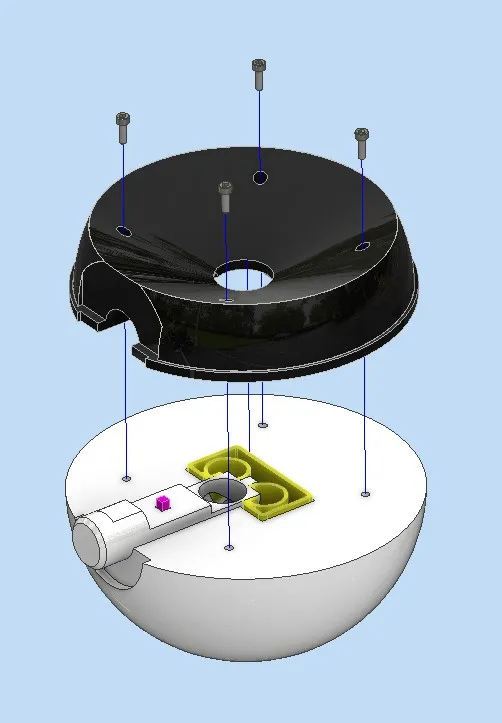

4. Position the push button and attach the middle part, paying attention to allign the spring and the pin. Screw it to the bottom part with 4 cylindrical M3 screw. Do not screw with too much force.

4b. If you want you can test the system before the final assembly.

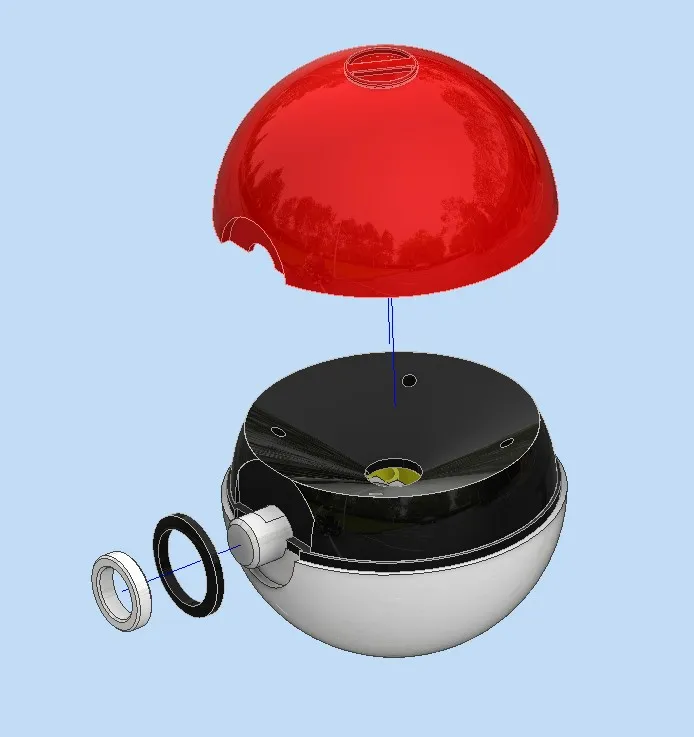

5. Now get the rings, glue them to the bottom part using the white push button as a guide. Now place over the red part (if you want you can glue this to the middle part, but i prefer to leave slightly pressed so I can dissasemble it if I need it)

6. Magnetically attach the PokeDispenser to the base.

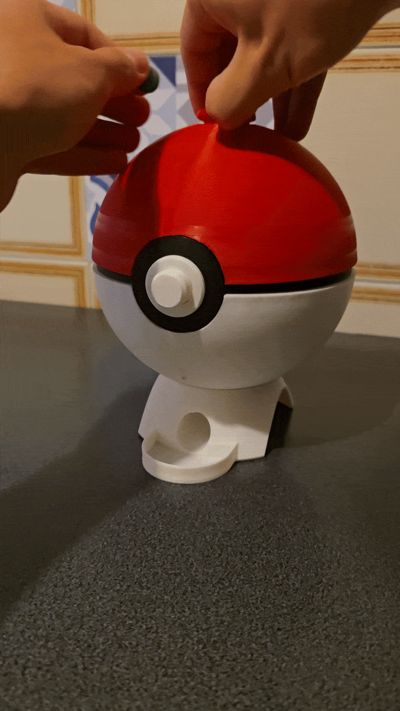

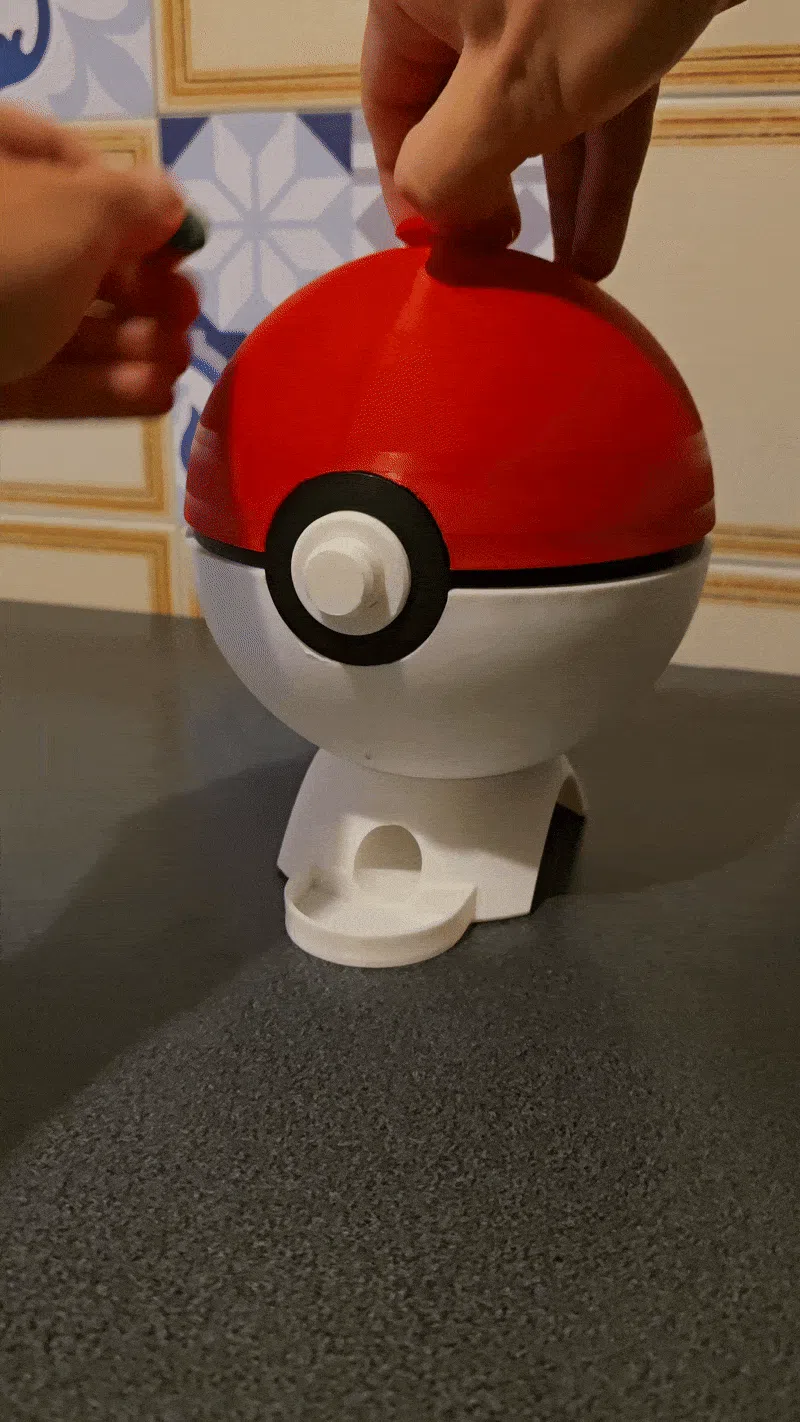

Finish! Now you can load your M&M's, or every other sweets that is compatible with the inside dimensions, and close it with the screw cap. Enjoy!

And if you need you can print also the compatible funnel to facilitate the loading.

____________________________________________________________________________________________________________________________________________________

PRINTING SUGGESTION:

I printed everything with a layer height of 0.12 mm, thank to this I obtained a perfect surface and the ability to avoid the support in many place like the base, where the arches and the slide are quite critical. Even the semisphere, as you can see in the 3mf I placed them in a way that the external surface is printed in the best quality possible.
