Description

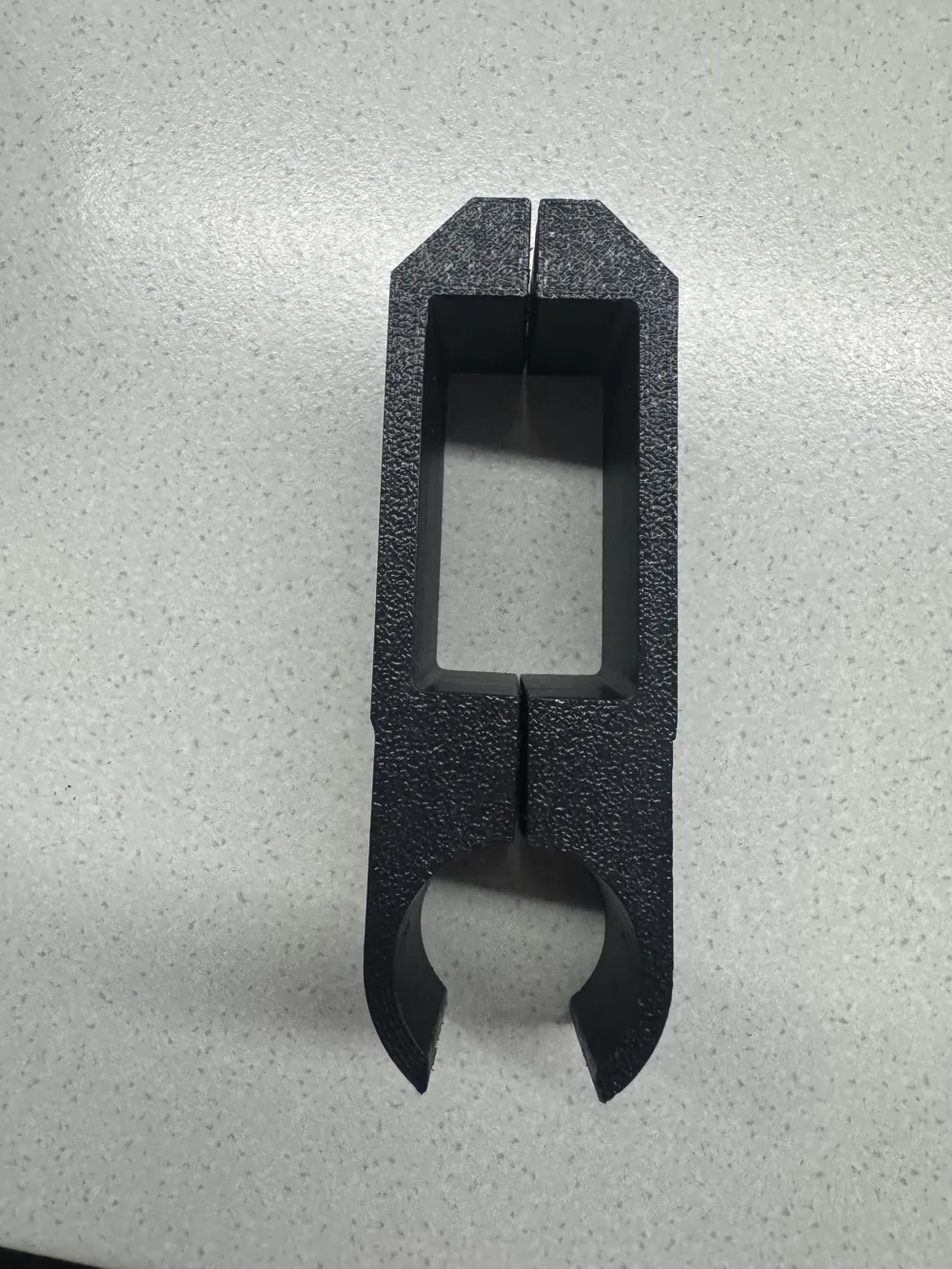

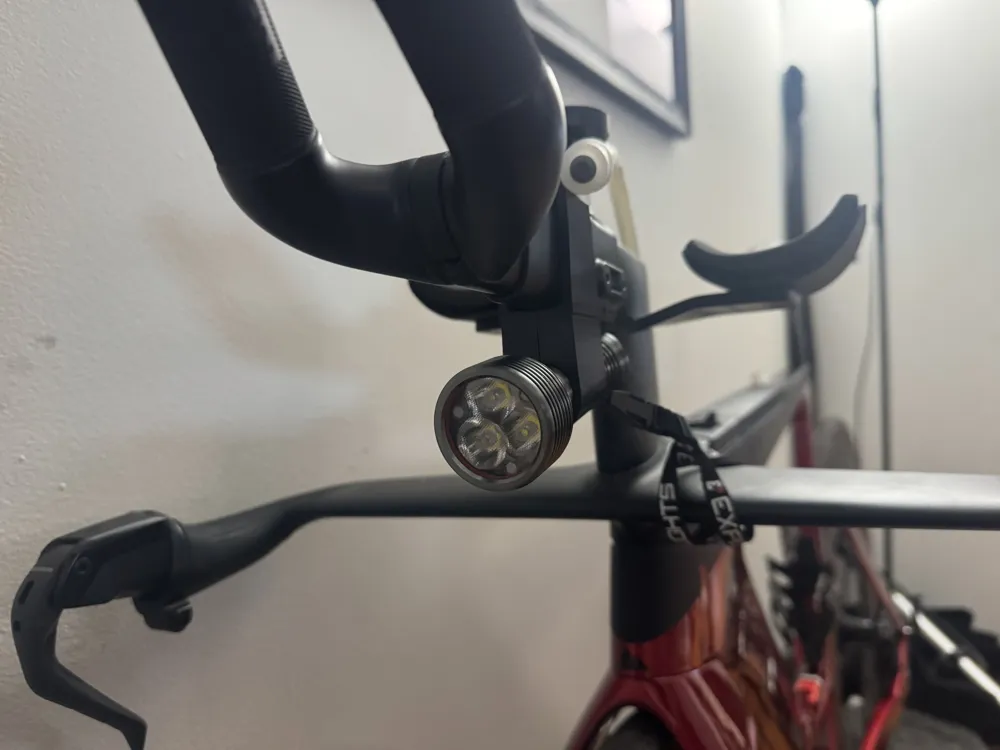

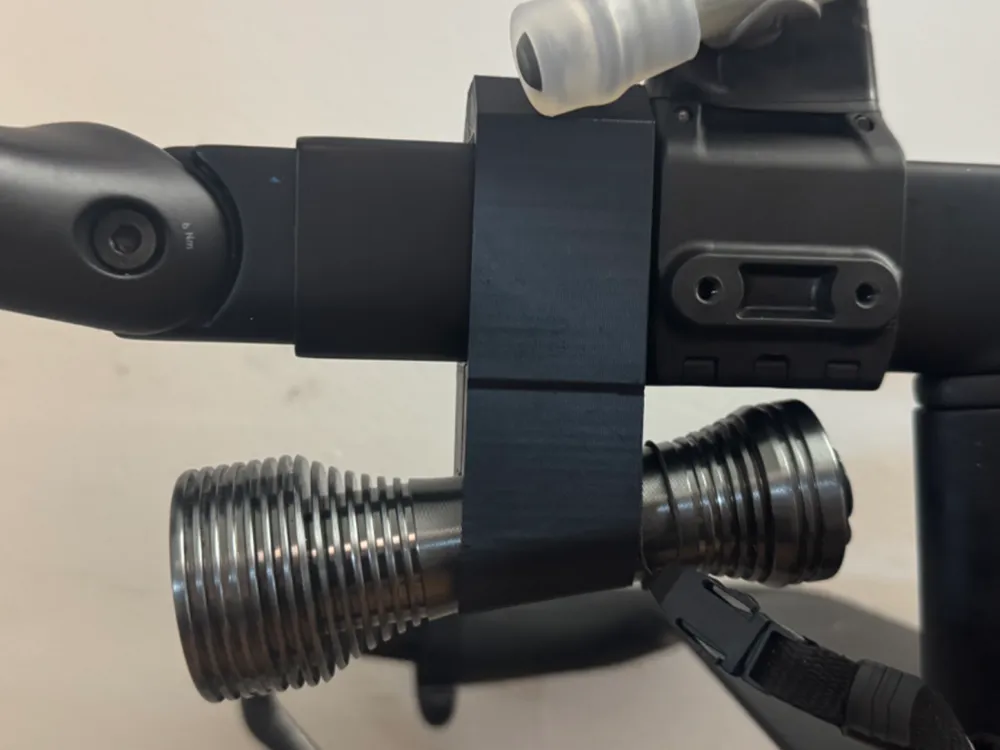

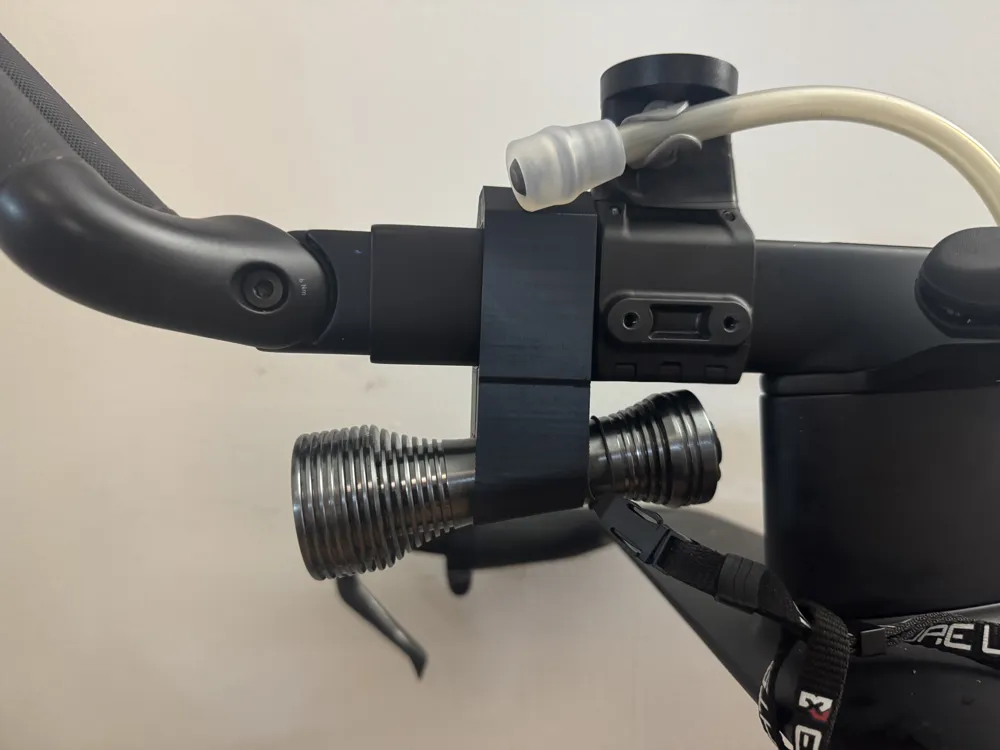

A custom designed light mount for the Canyon CFR SpeedMax. It fits the Exposure Diablo light. It's designed to fit very snug and securely so I suggest you loosen the bottom bolts to remove the light. It is angled down so not to blind oncoming traffic. The print profile is for ASA - I did not need any supports (on my P1S).

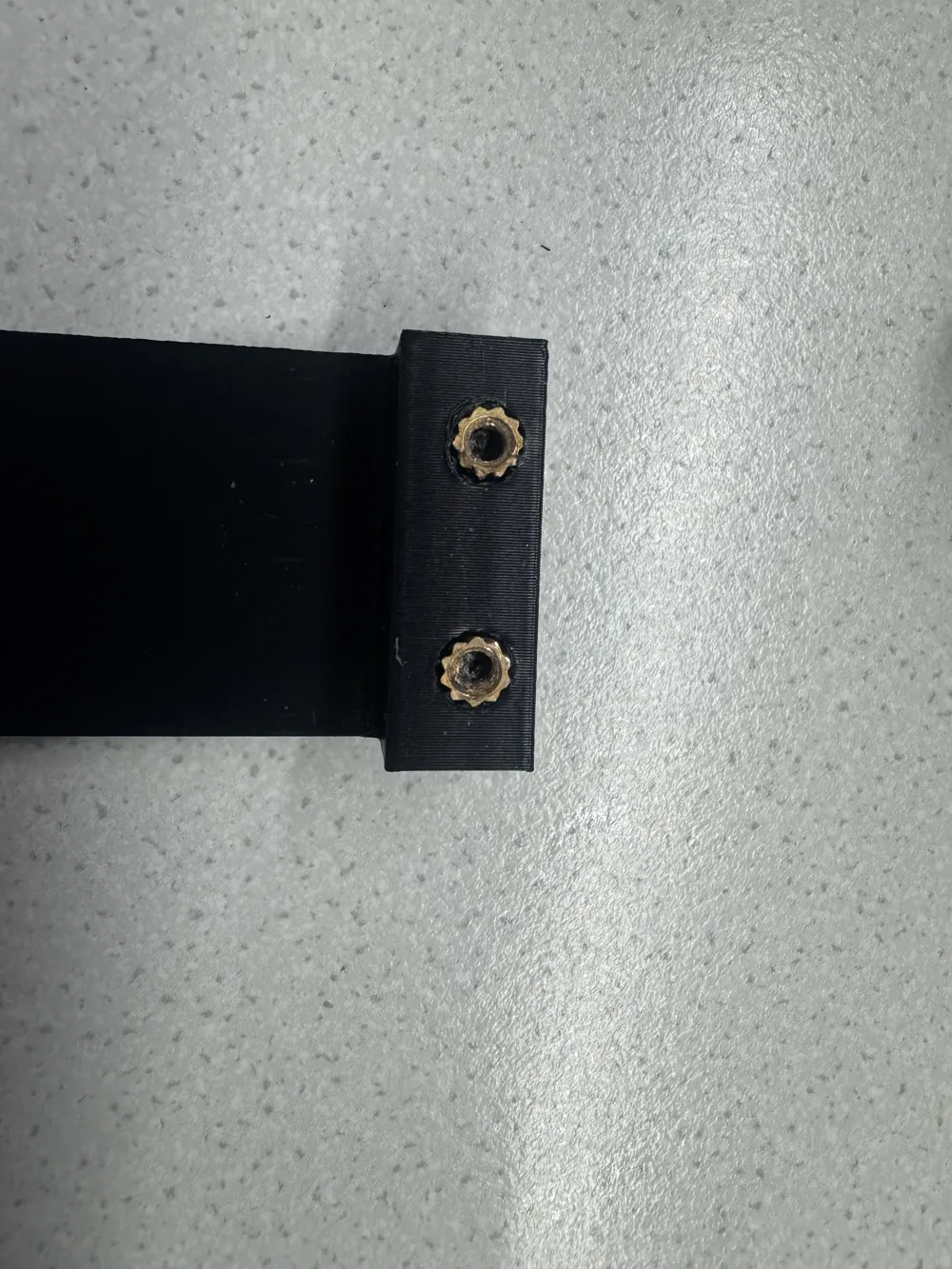

NB: You will need 4 M3x6x5mm imbedded threaded inserts (as per last photo) as well as 4 M3x12mm bolts. I suspect you can use 4 self tapping screws, but I have not tested this. I found the closest hardware on Maker Supply and listed it below.
