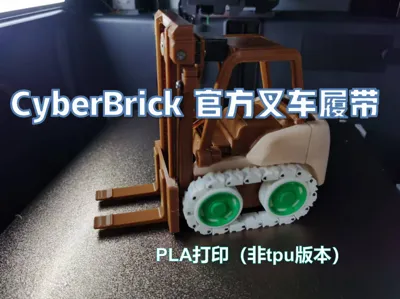

CyberBrick Official Forklift PLA Tracks

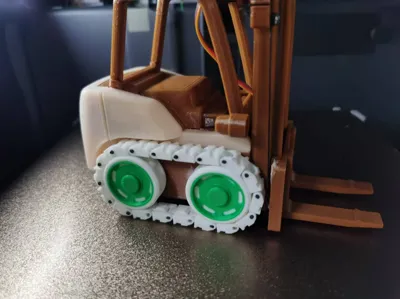

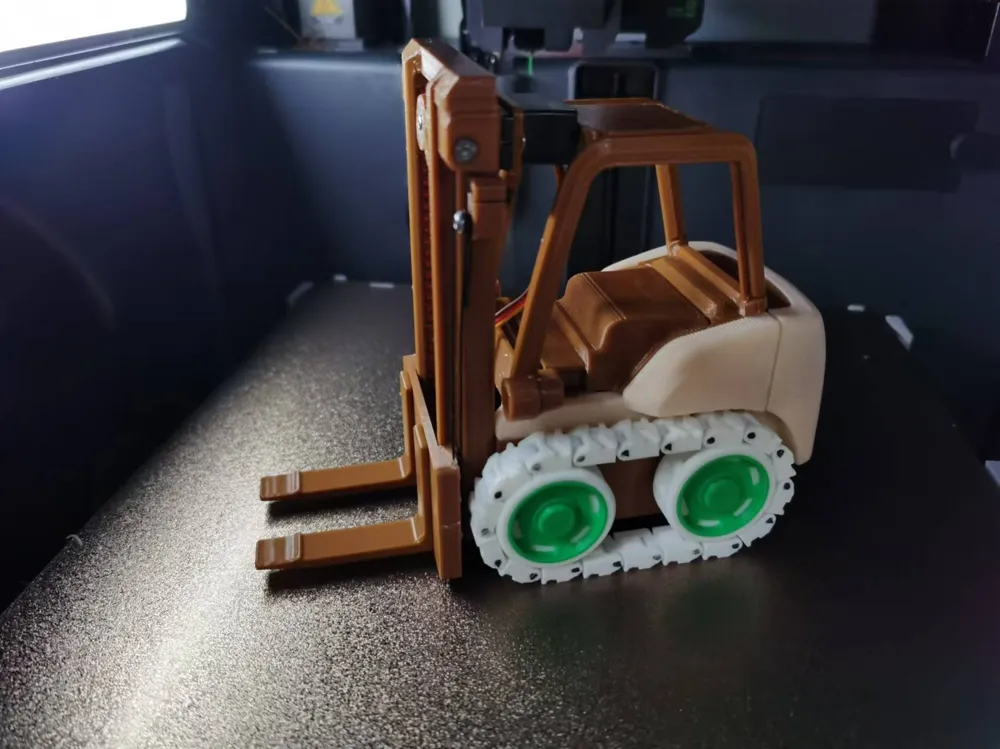

PLA/PETG Tracks for Official CyberBrick Forklifts

2025-07-05 Update Log:

    —>   Added a print-in-place track version, offering comparable functionality to the original tracks

    —>   Adjusted track parameters for improved integration with the wheel hubs in the print-in-place version

    —>   A 0.2mm layer height is recommended; for enhanced detail, consider a 0.12mm layer height

-----Official forklift tracks are TPU, but many users may not have access to TPU filament

-----Consequently, this track design is optimized for PLA filament, with the original track wheels measuring 35mm

-----To enhance track smoothness, the wheel diameter has been redesigned to 30mm

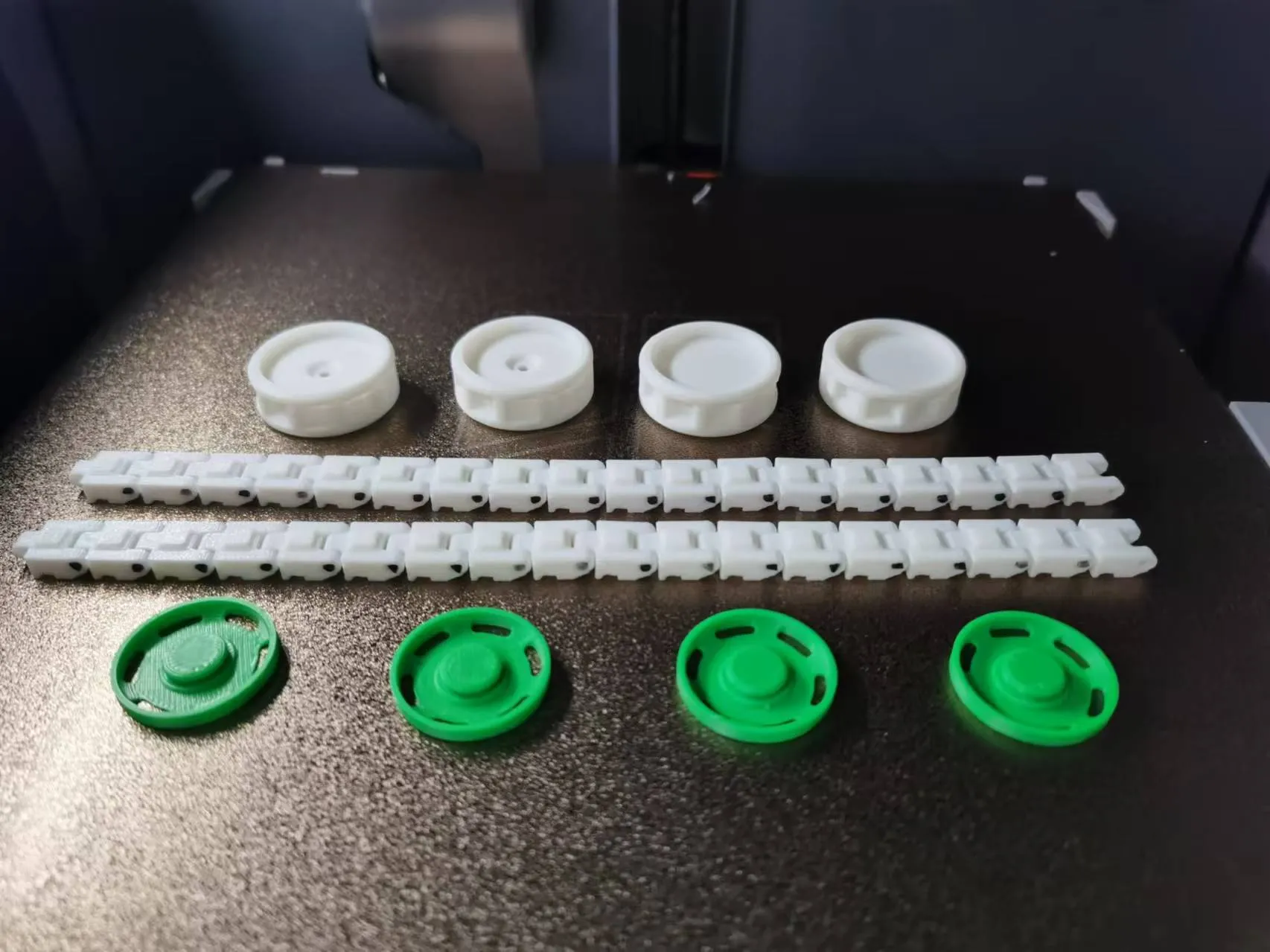

-----PLA filament serves as the connecting axle between tracks, with each axle measuring approximately 8mm in length. Each track comprises 18 track plates, thus requiring a total of 36 plates for a pair of tracks

-----Printing without a brim is feasible; it's recommended to print extra track plates as spares
