Nerdminer x3 10"Rack_1U Panel

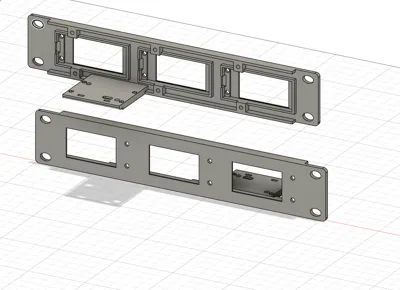

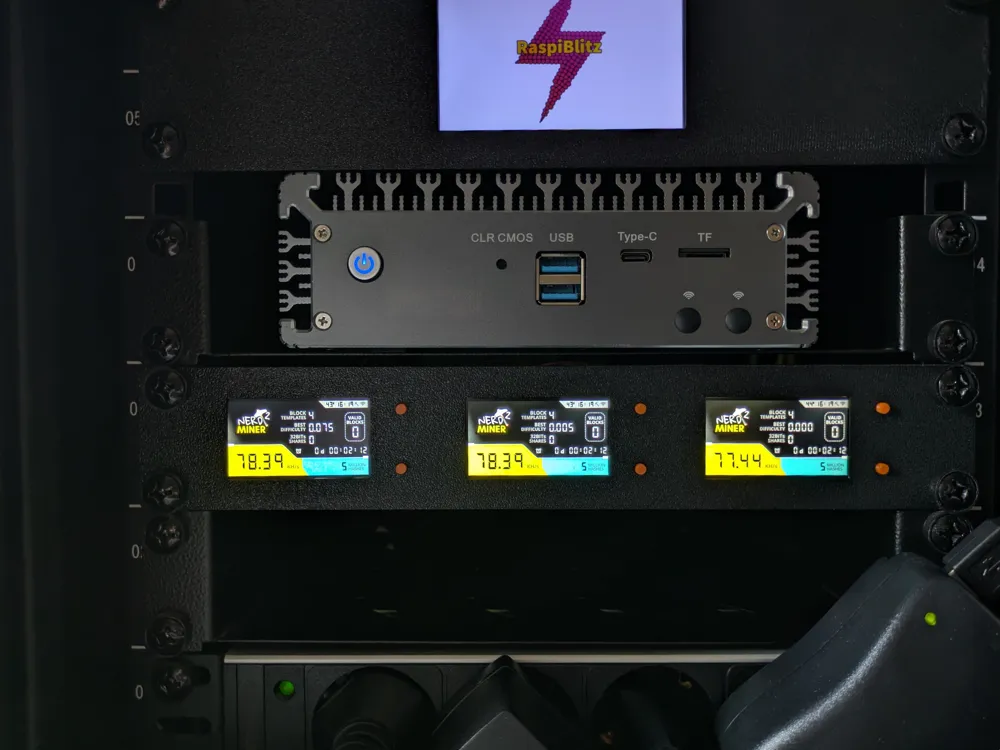

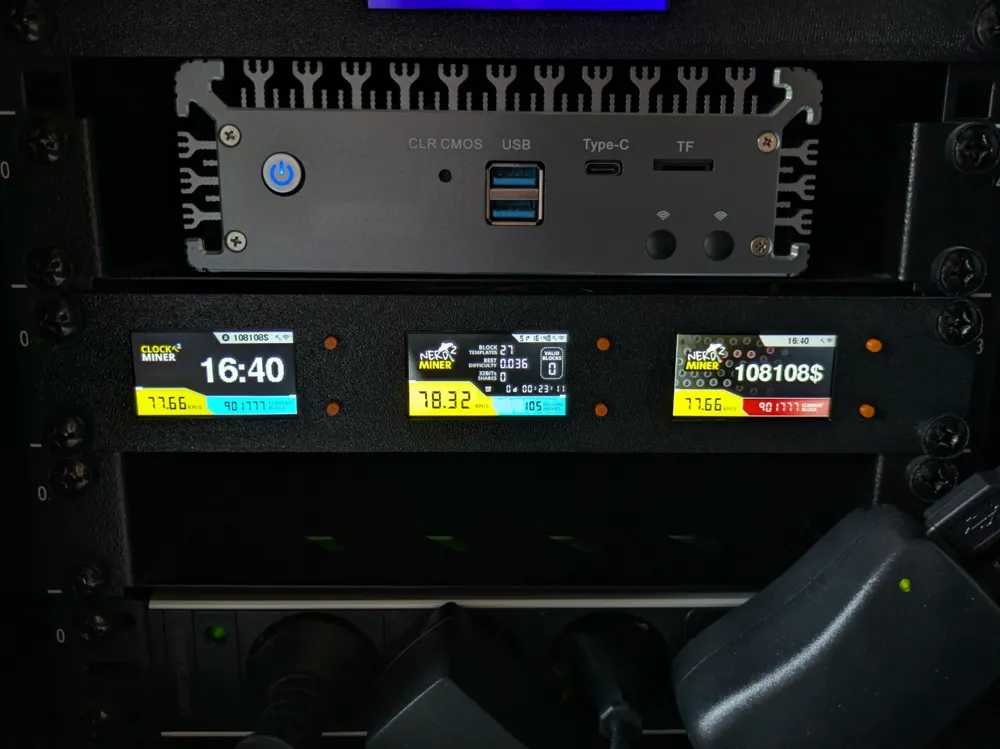

A 1U front panel for a 10-inch rack, designed to hold 3x T-Display-S3 ESP32 S3 1.9Inch modules.

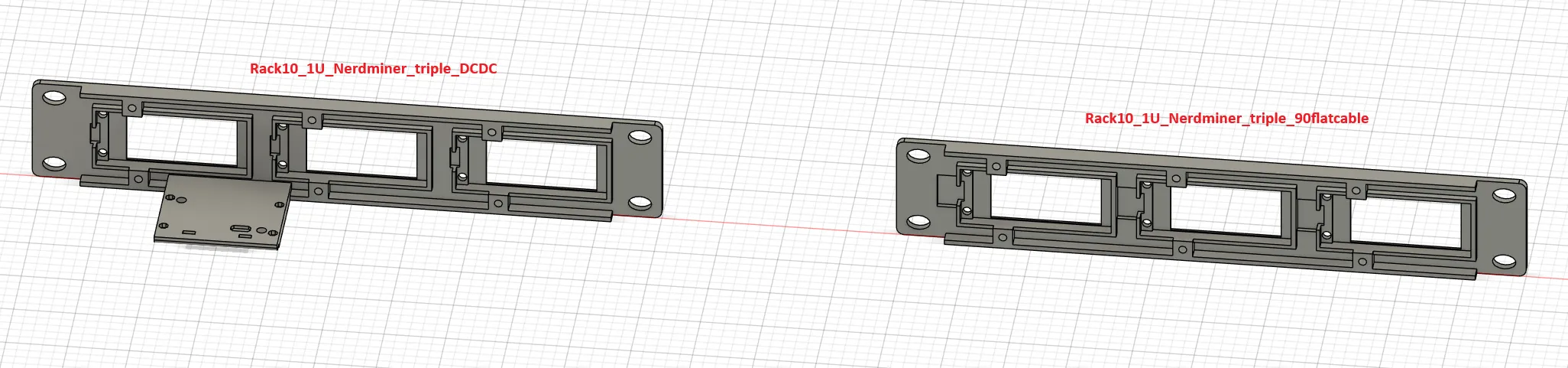

Two Versions:
- Rack10_1U_Nerdminer_triple_DCDC
- Rack10_1U_Nerdminer_triple_90flatcable
NerdminerV2 Project: GitHub

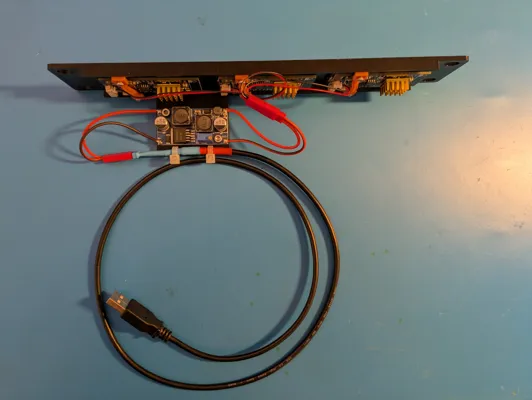

1. Rack10_1U_Nerdminer_triple_DCDC

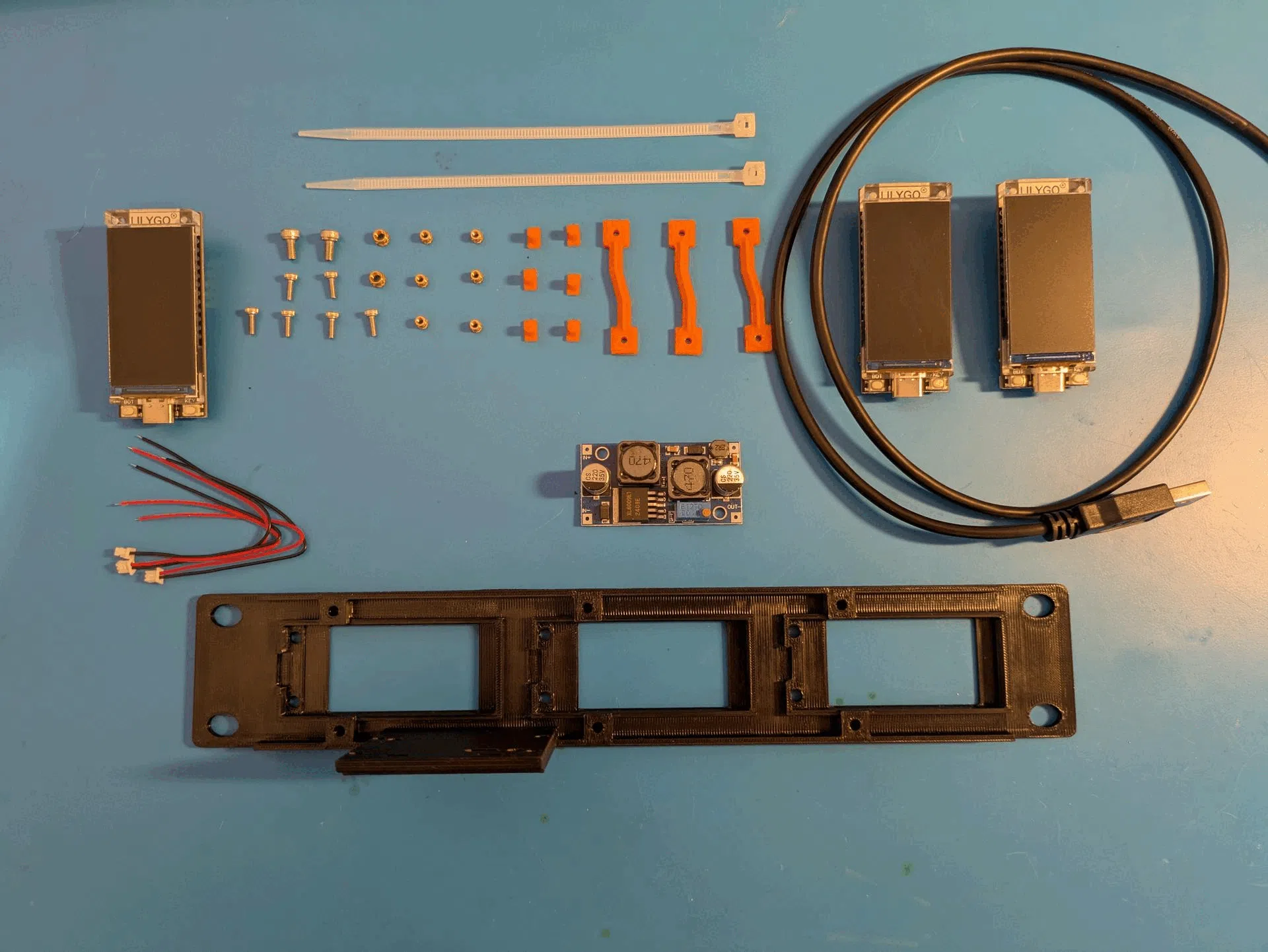

Requires:
6x M2x3 threaded inserts
2x M3x3 threaded inserts
6x M2x6 socket head cap screw
2x M3x6 socket head cap screw
1x USB Cable
1x DSN6000AUD DC-DC (Set output to 3.7 V BEFORE connecting the T-Display / NerdMiner! - see the DSN6000AUD_Guid)
3x T-Display-S3 ESP32 S3 1.9Inch LCD
2. Rack10_1U_Nerdminer_triple_90flatcable
Requires:
6x M2x3 threaded inserts
6x M2x6 socket head cap screw
3x 90° flat USB-C Cabel
3x T-Display-S3 ESP32 S3 1.9Inch LCD
Print Settings:
Resolution: 0,2
Infill: 15-25%
Supports: No
Brim: recommended for ABS
