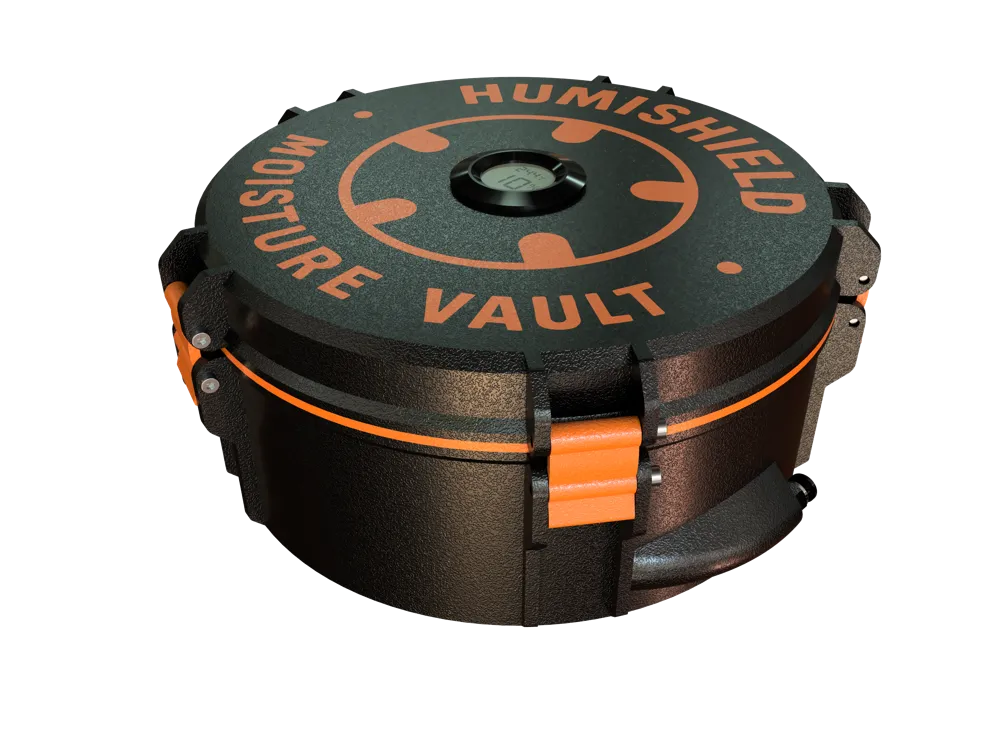

HUMISHIELD - MOISTURE VAULT
Project Description

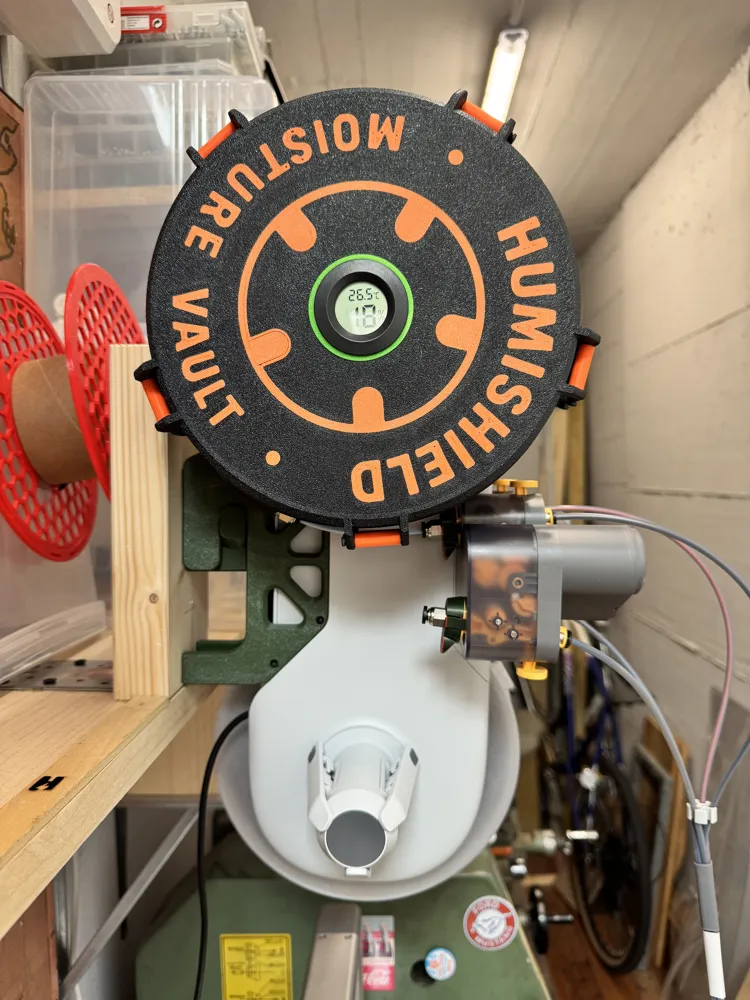

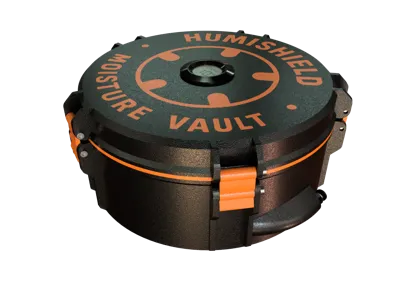

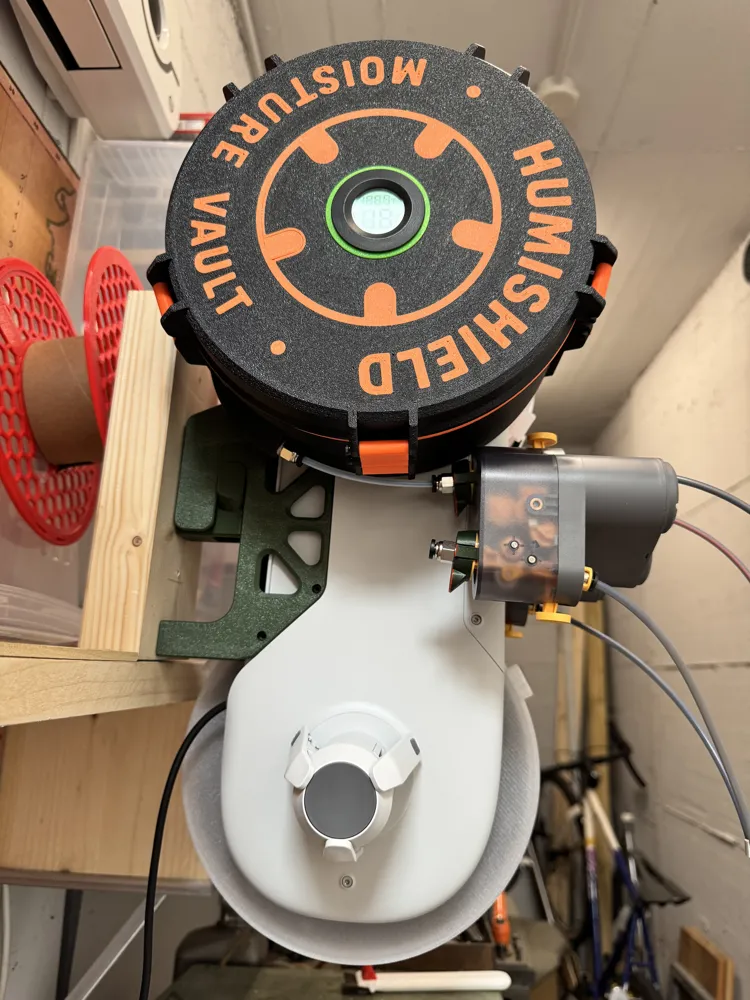

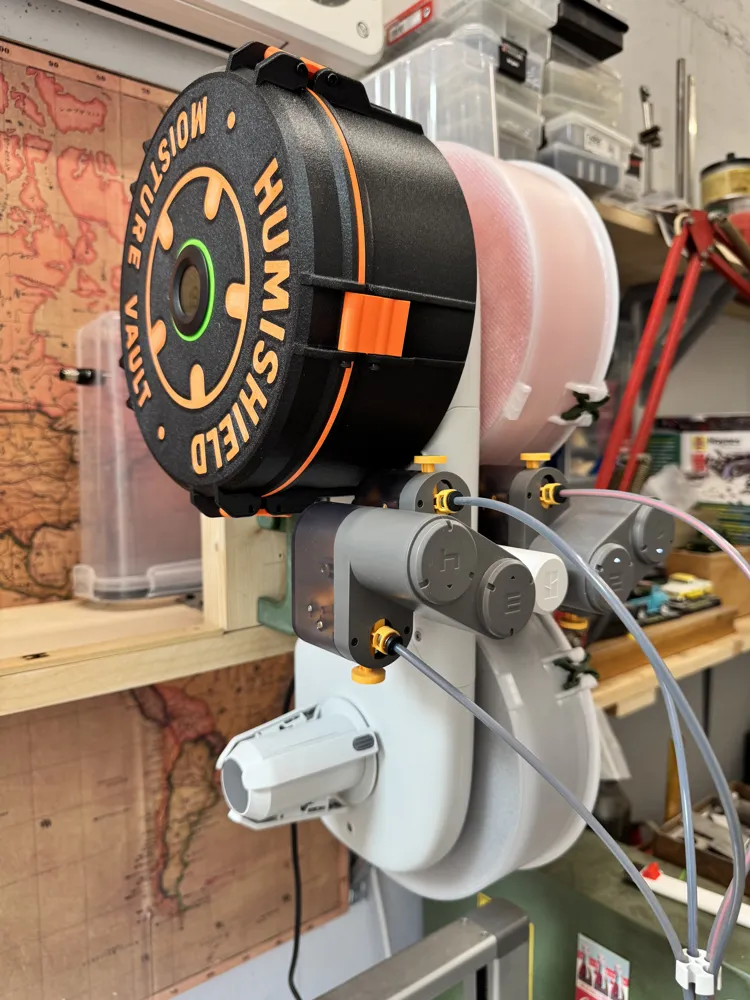

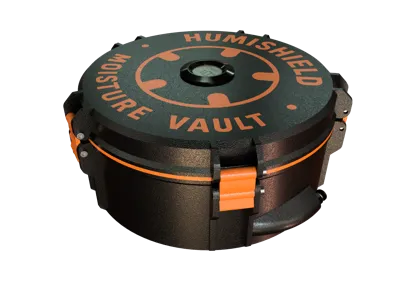

These 3D printable airtight containers are designed to keep your filament dry while it's mounted on
the Bambu Lab AMS Lite. With a compact, modular design, they minimize filament exposure to
moisture, improving print quality and reducing issues like stringing, bubbling, and inconsistent
layers.
Features
- Fully compatible with the Bambu Lab AMS Lite
- Modular design
- Airtight sealing using printed TPU gasket
- Big container for desiccant packs (silica gel beads)

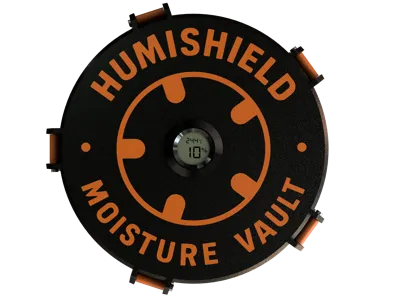

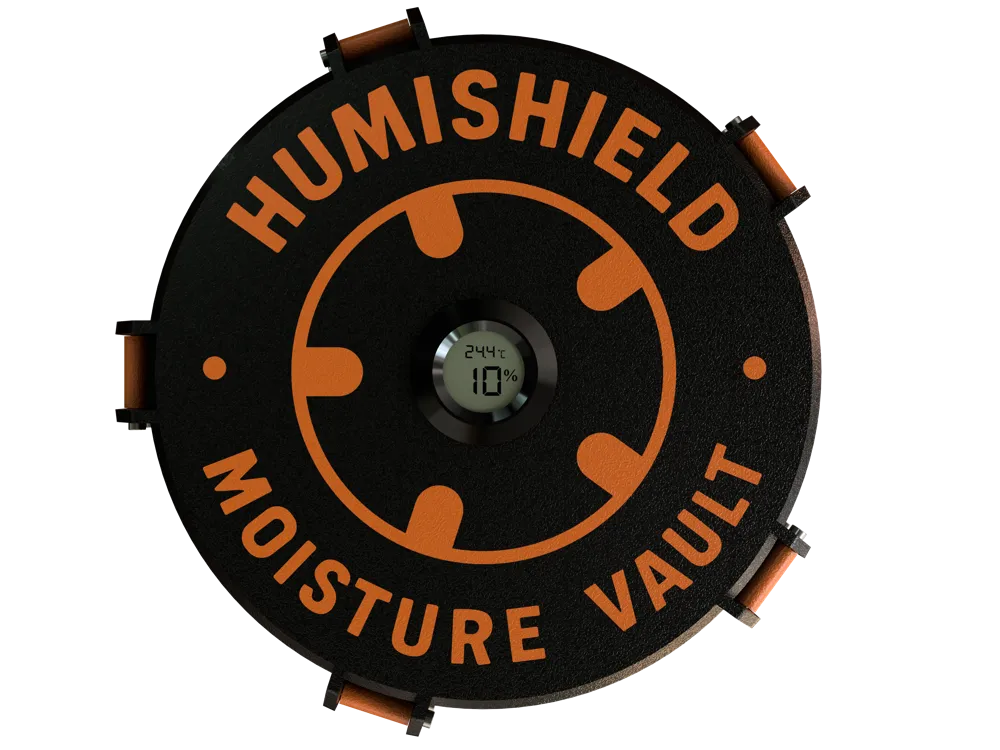

- Mount for humidity sensor
- Support-free printing
- Easy integration with PTFE tubing
Print Settings
- Recommended Material: PETG or ASA for moisture resistance
- Layer Height: 0.2 mm
- Infill: 15%
- Supports: Not required (with correct orientation)
- Mirror the main body to have the ptfe connector oriented correctly ( 3-1 and 2-4 )

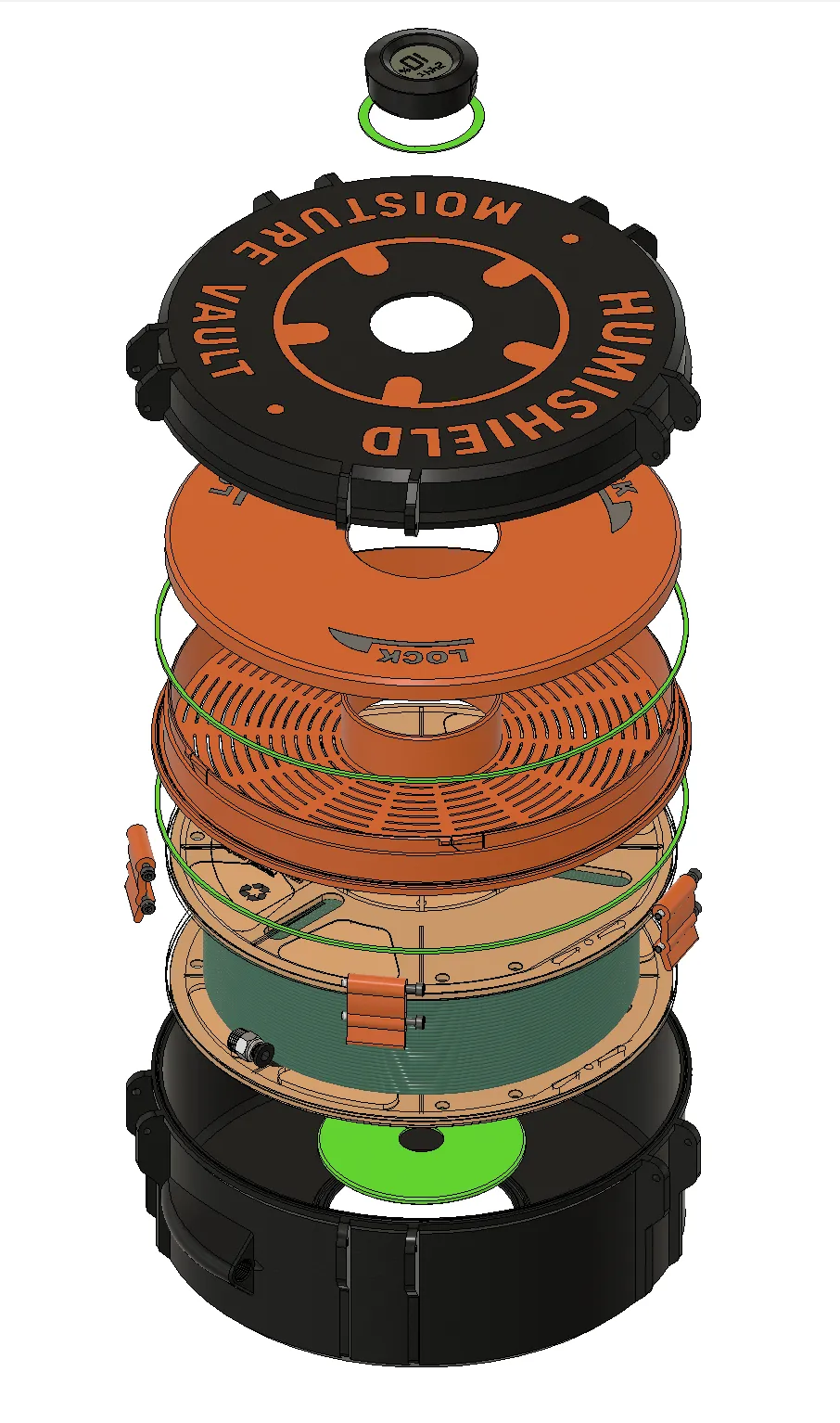

Exploded view
Note
- It is recommended to use a piece of PTFE tube to connect the dry box to the AMS in order to keep it in place ( this project will fit perfectly https://makerworld.com/en/models/514558-ams-lite-feeder-ptfe-tube-connector-saver#profileId-430689 )
- Use superglue to fix the round TPU gasket on the main body container
