Mechanical Structure 11-Bevel Gear
Print Profile(1)
Description
Learning Mechanical Structures from Scratch
11. Bevel Gears
Bevel gears, also known as miter gears, are used to redirect power transmission. The transmission angle is the intersection angle between the two gear shafts. Unlike helical gears, whose shafts are not coplanar, bevel gear shafts lie in the same plane.

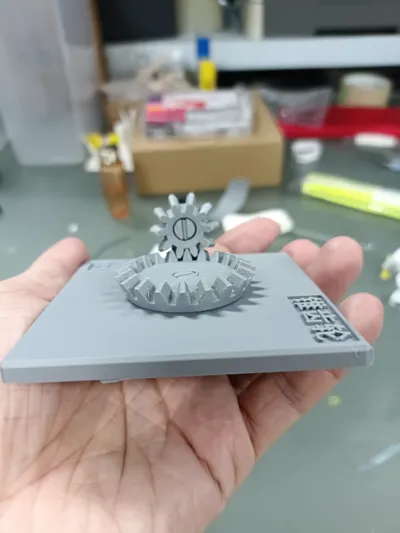

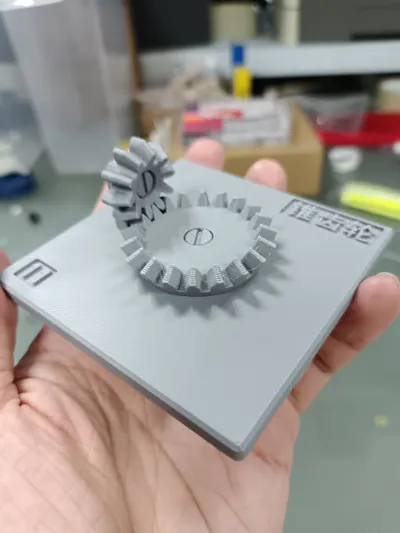

This model features two bevel gears: M2Z10 and M2Z20, with a shaft intersection angle of 90°
