Fresh air wall-mounted duct kit (plug-in snap-on type)
Print Profile(3)
Description
Boost Me (for free)
This design may not perfectly suit your needs, in terms of size or style, but hopefully it provides inspiration, please support me, thank you

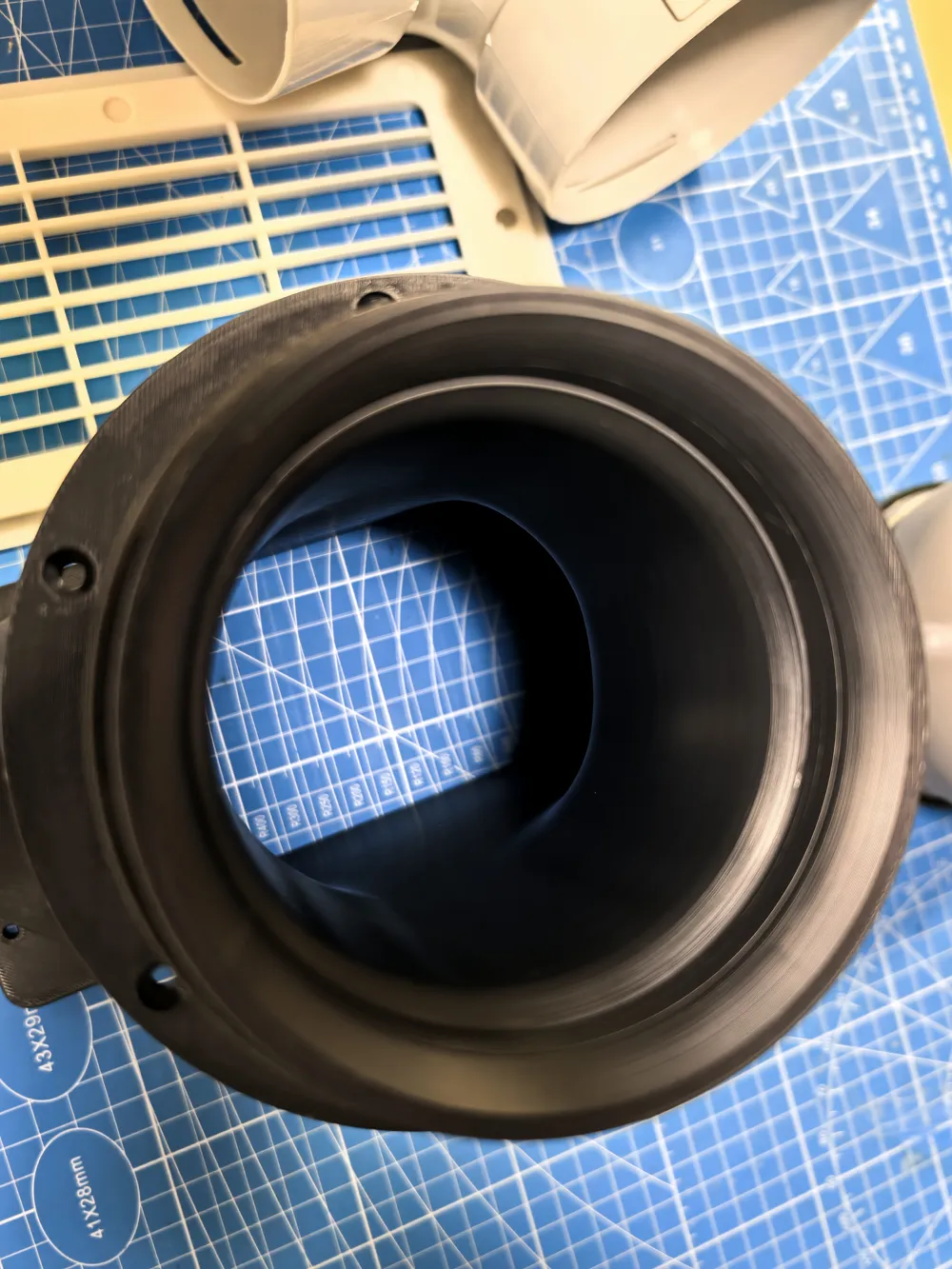

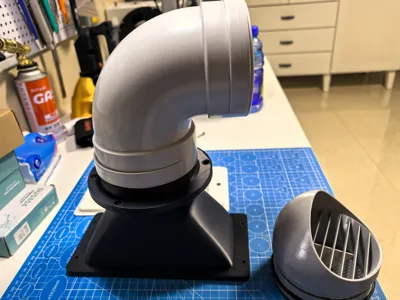

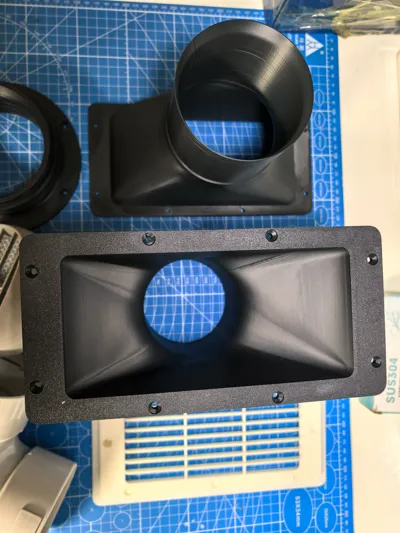

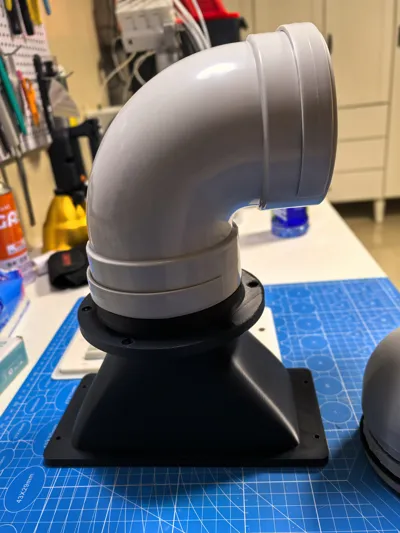

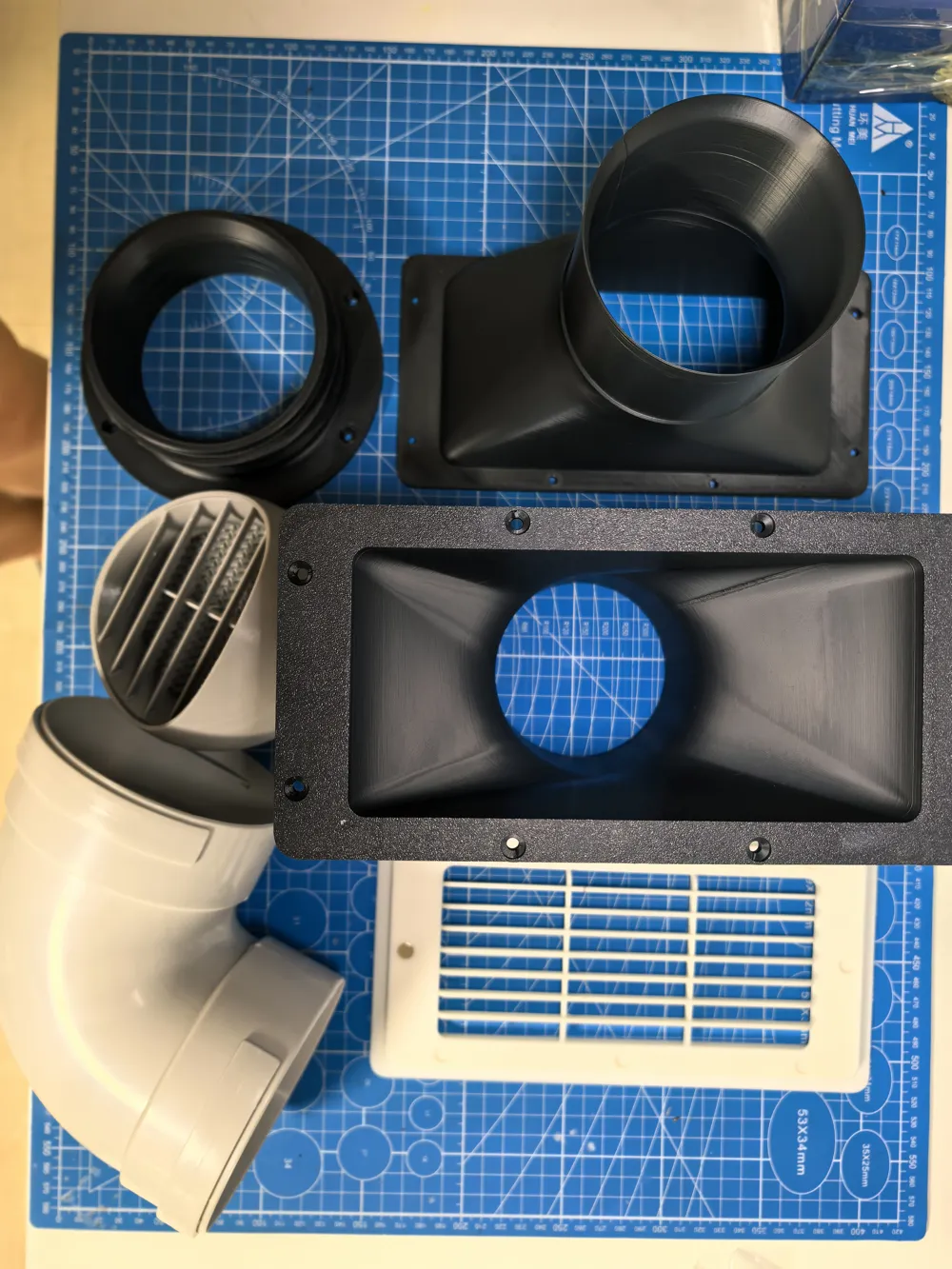

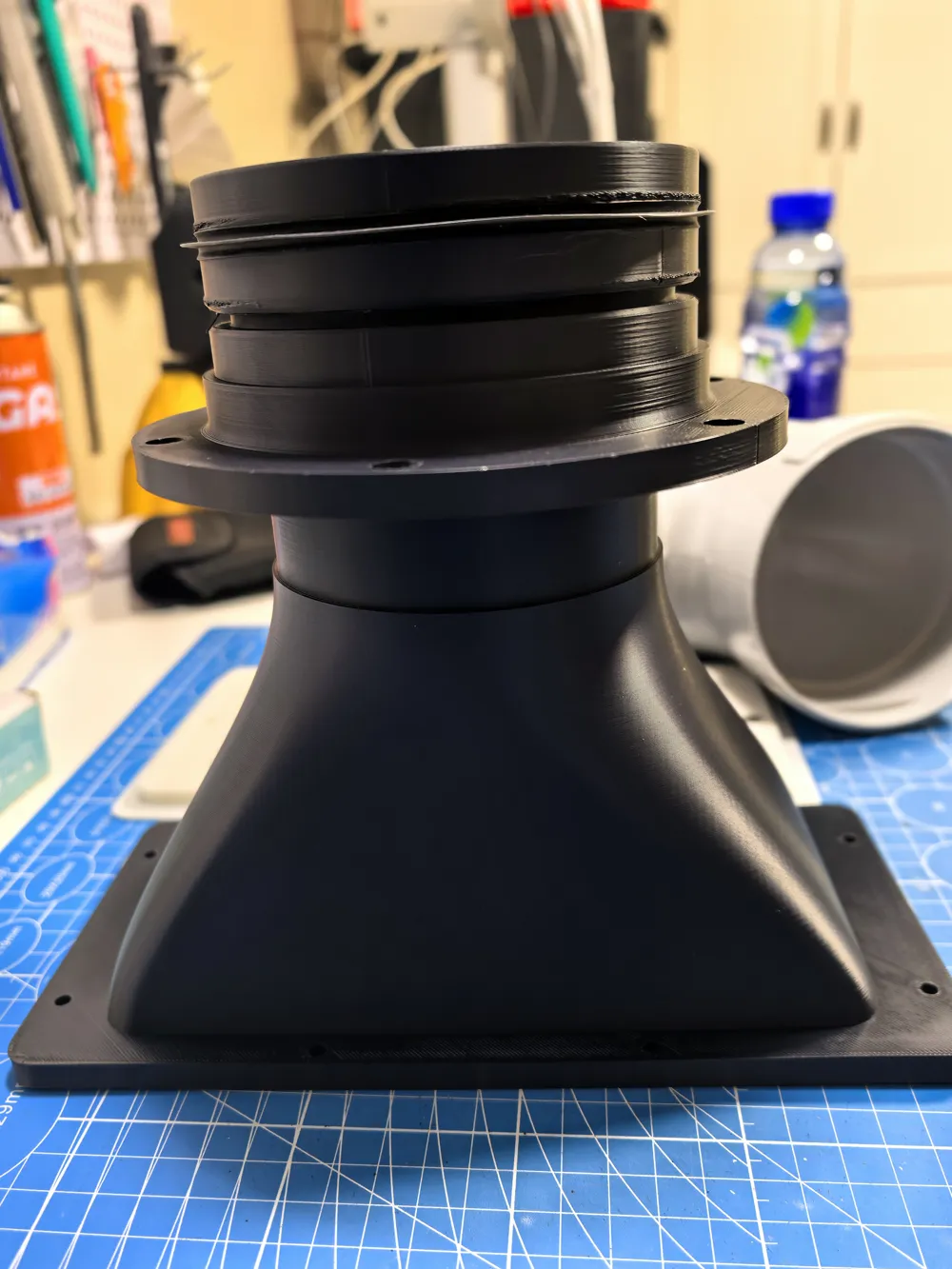

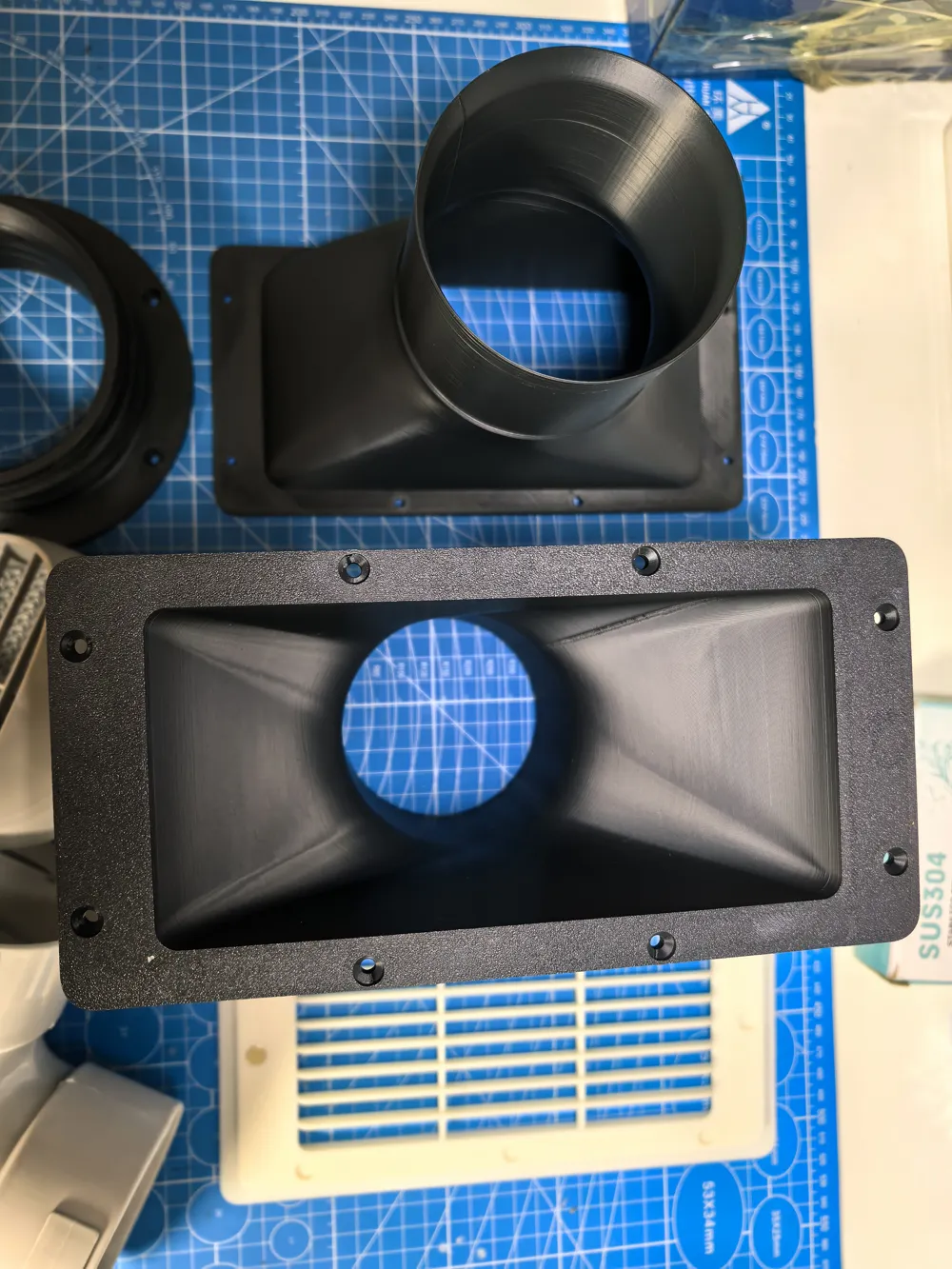

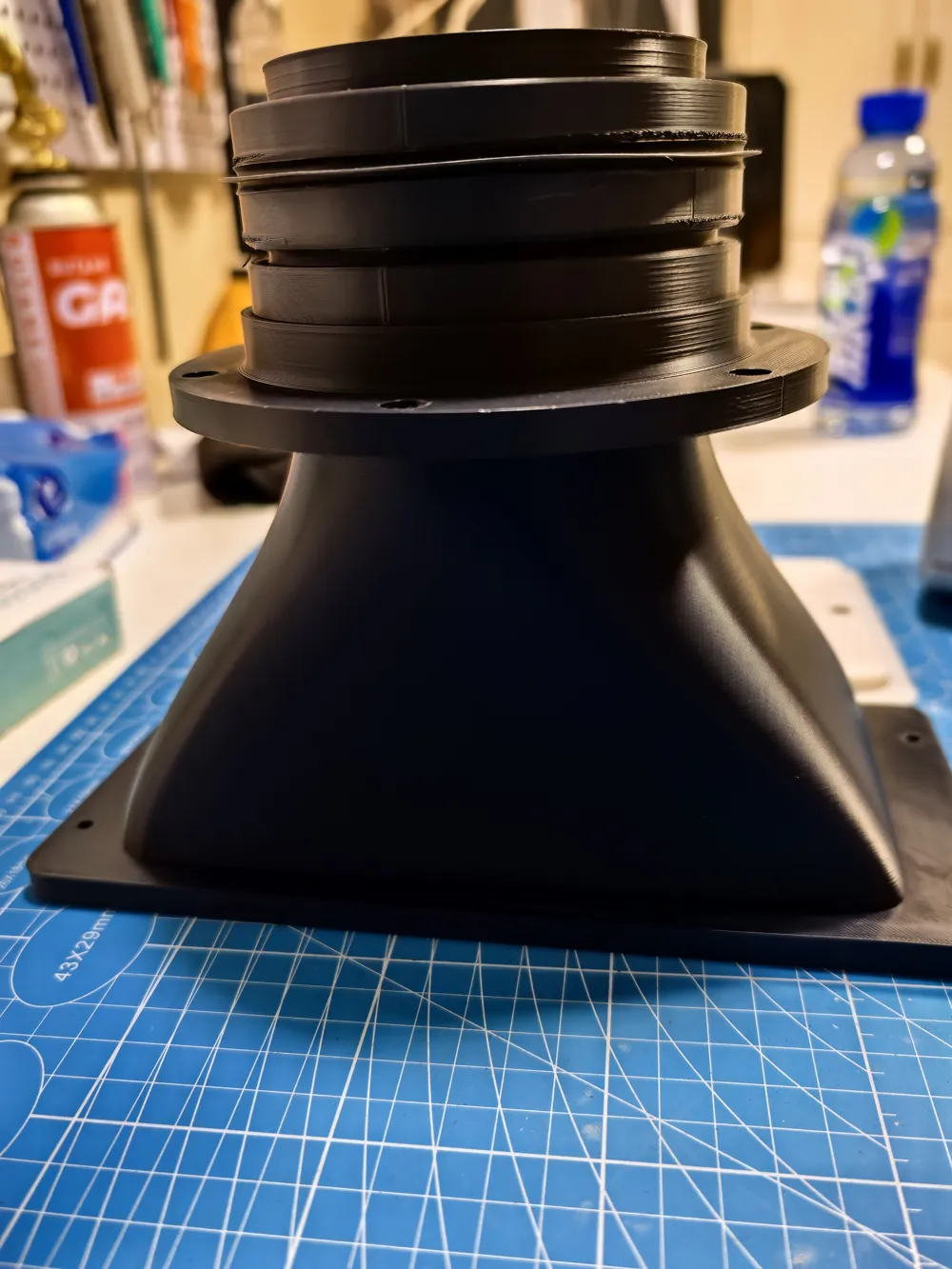

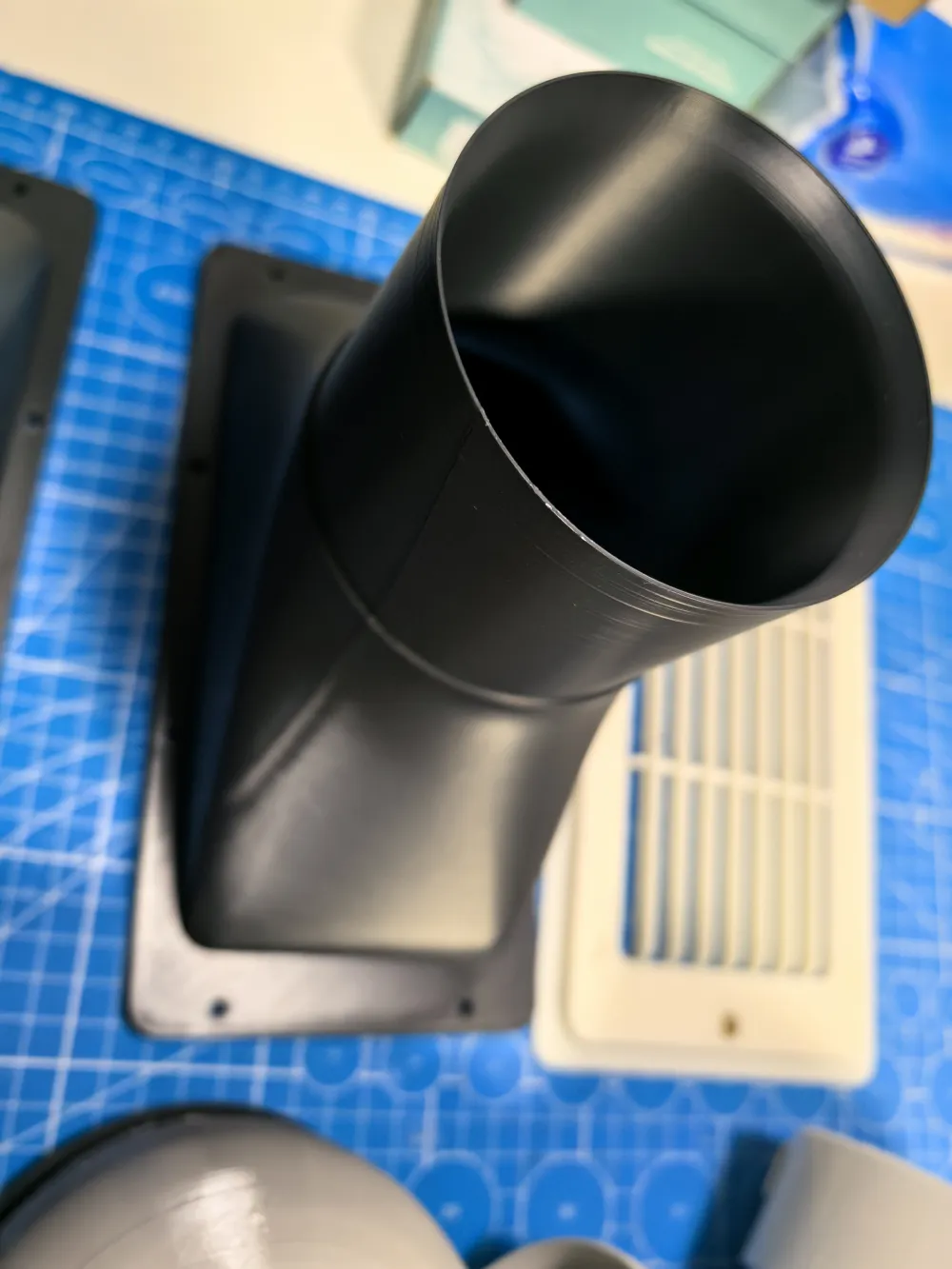

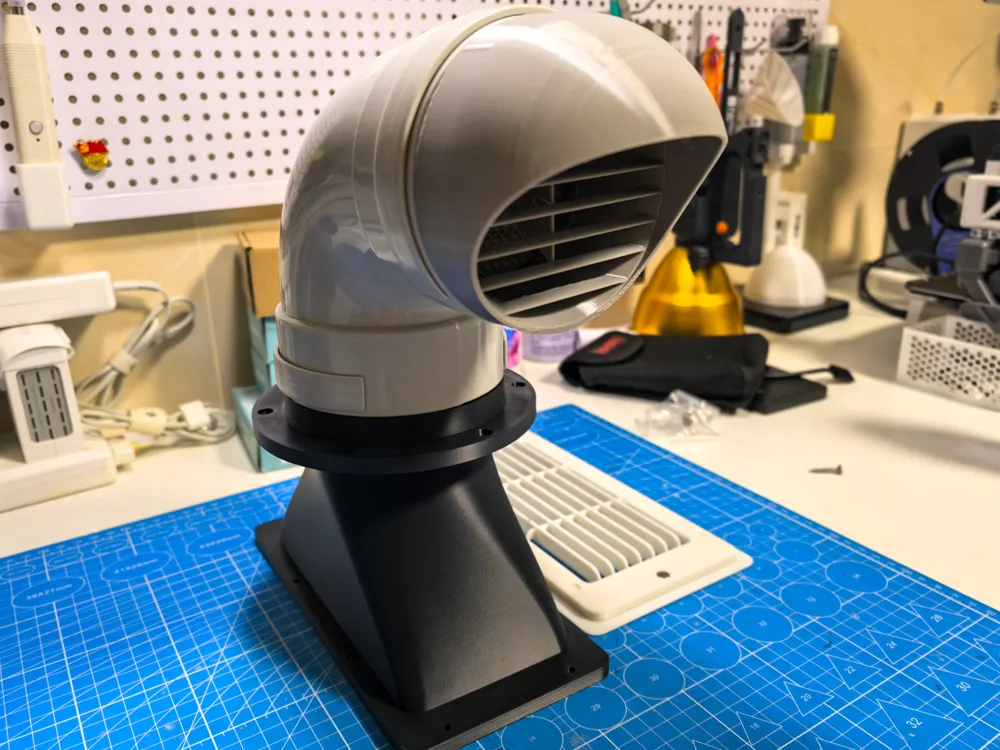

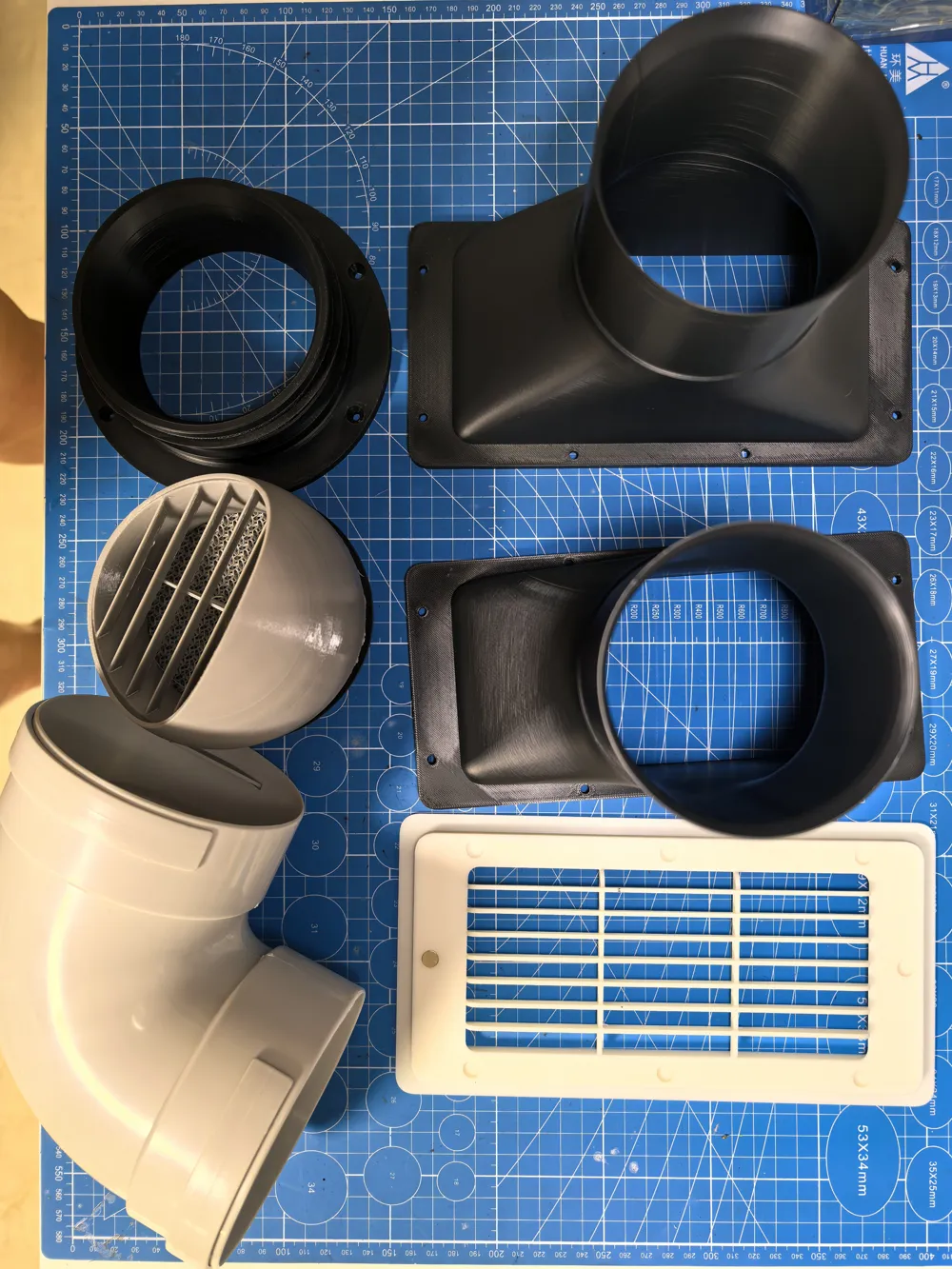

A new style of plug-in wall-mounted ventilation duct kit, used in locations where ventilation needs to pass through a wall, includes a wall-mounted pipe, outdoor fasteners, and a panel, and also includes the previously released inlet and outlet, all using plug-in snap-fit installation for easy installation and disassembly

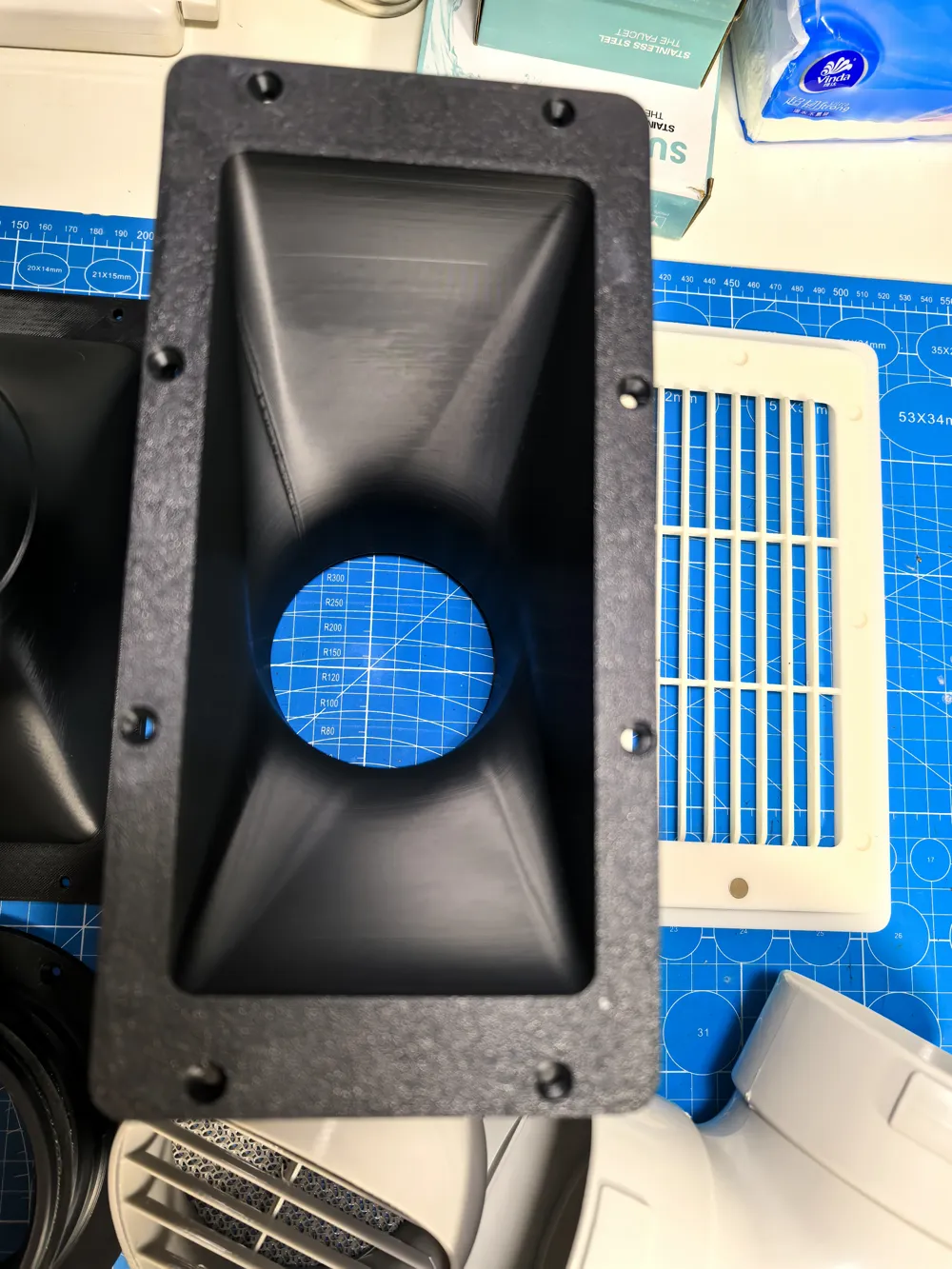

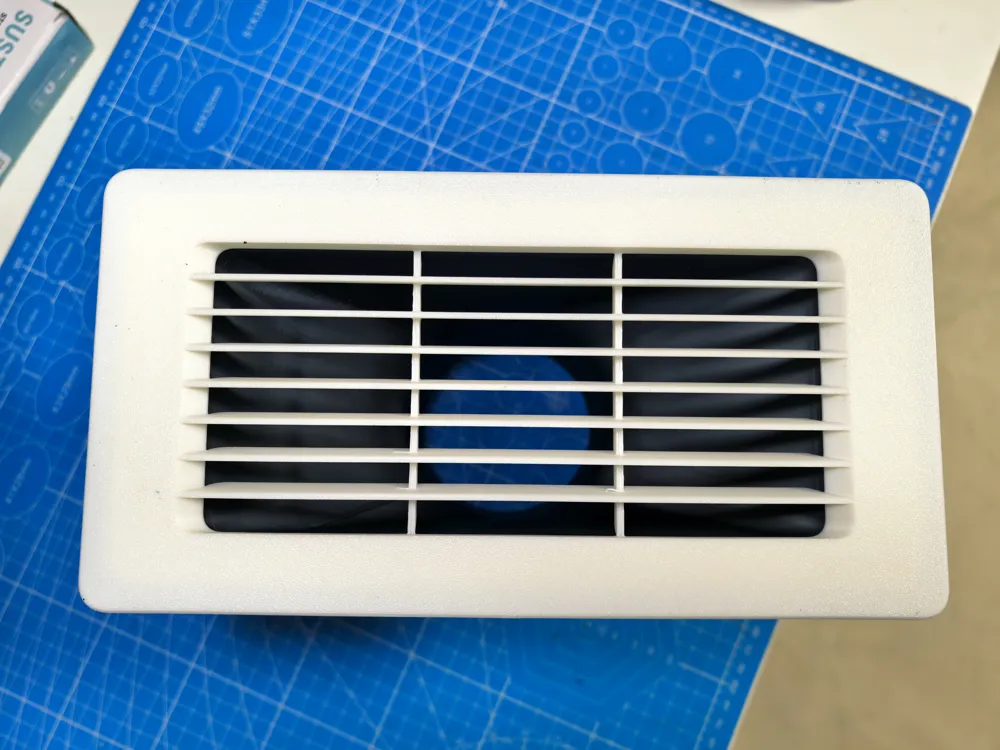

Because the indoor vents available on the market are mostly round or square, suitable for ceilings, but for walls, I prefer rectangular ones, thus this design came to be
This design may not be suitable for your needs, regardless of size or style, but hopefully it provides a point of reference

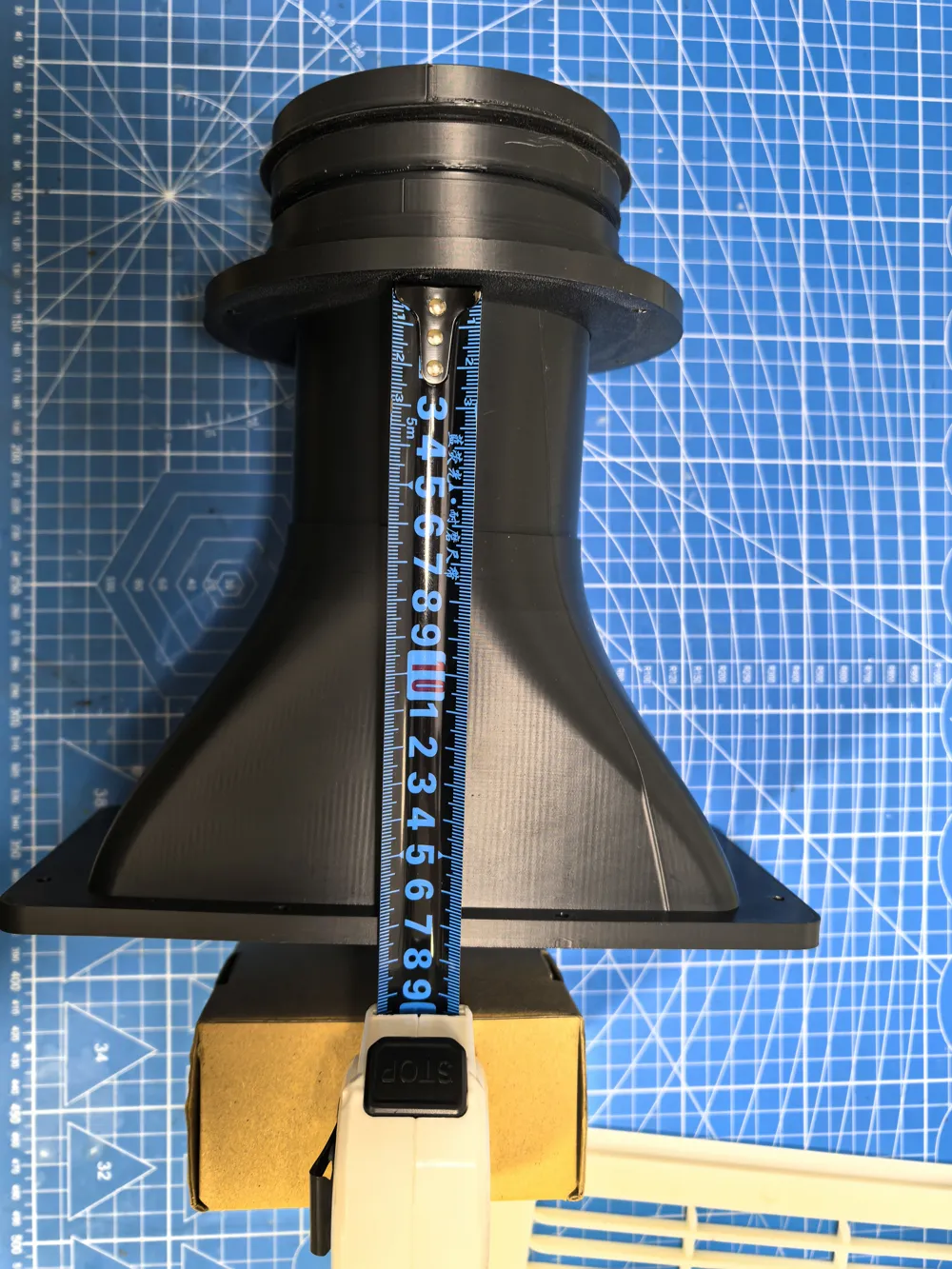

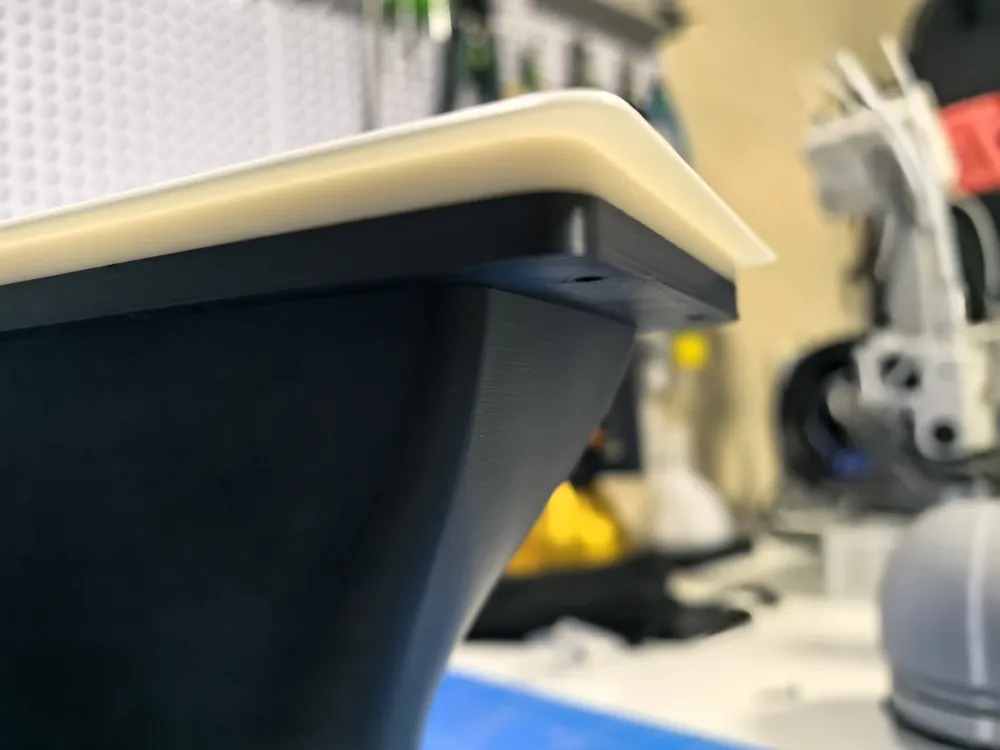

The model in the current print configuration is for a 110mm pipe, with a maximum wall thickness of 17cm, currently used in a 100mm stud partition wall, the panel is mounted using 8*2 magnets
Inlet and Outlet from 悠由 MakerWorld: Free Download 3D Model
I used ASA for printing, ABS or PETG can also be used, parts that cannot be disassembled are best made with ABS or ASA for better weather resistance
