Description

Boost Me (for free)

If you like my model, please consider giving it a Boost. It is free and really helps.

*** UPDATE ****
My new DHD model is now available to go with your Stargate model- On Makerworld !! Download it FREE.

https://makerworld.com/en/models/1850967-stargate-dhd#profileId-1978588

Model Description

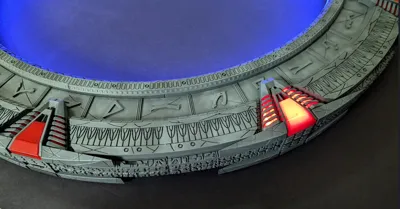

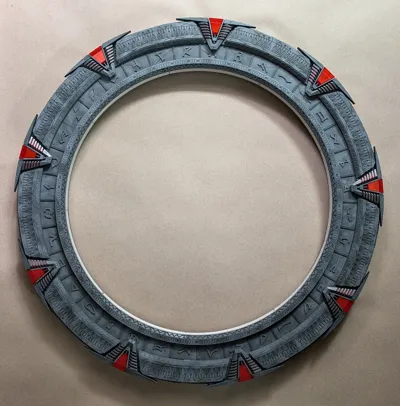

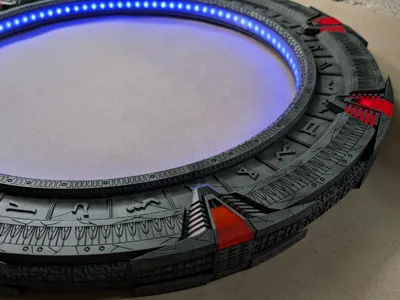

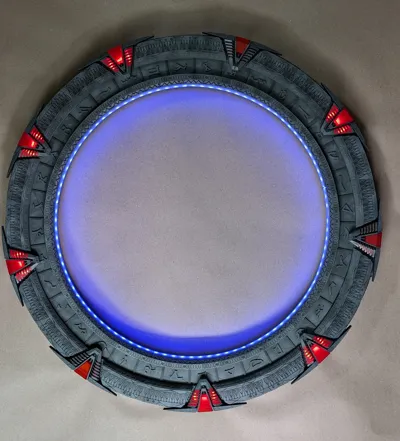

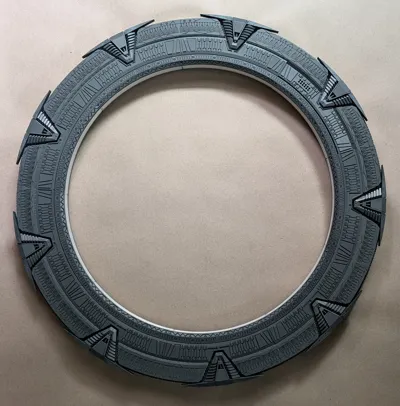

Crafted specifically for 3D printing, my fan-designed Stargate SG-1 model brings the iconic sci-fi portal to life. Measuring over 27 inches (685mm) in width, the design showcases intricate detailing on both the front and back. Build a static version or enhance it with electronics for light and sound. This model includes a comprehensive step-by-step assembly manual. Feel free to give it a Boost etc. if you like it.

A display stand for this model is now available.
You can download it on Makerworld - https://makerworld.com/en/models/1613185-stargate-display-stand#profileId-1701922

Follow me on Twitter at @SGAGatebuilder and visit my model gallery - https://www.gatebuilder.tech/

Documentation (1)

Other Files (1)

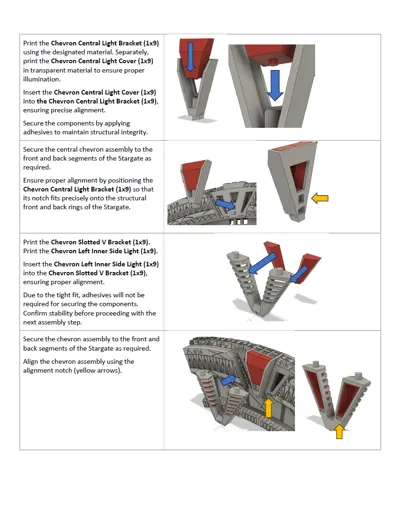

Stargate SG-1 Assembly Manual V5.pdf

Comment & Rating (169)

@DeAngel1990

A cool model <3 I scaled it down for a finished 2-axis infinity mirror and thereby have a massive gate

(Edited)

The designer has replied

Show original

@gatebuilder

Wow, nice job. I love the mirror too, looks great. I'm impressed you scaled it down and got such great results. Well done.

@DeAngel1990

Replying to @gatebuilder :

Thanks, I also simply built myself a different stand that I liked more

Show original

@morten957

Replying to @DeAngel1990 :

@DeAngel1990 Looks great! How much was this scaled down? And did you have problems fitting parts because of it?

@axumite

Boosted

Came out very nice!

The designer has replied

@gatebuilder

I love it, great job. The mirror in it really gives a great look. Thanks for taking the time to print and make my model, appreciated. Hope you enjoyed it.

@pejvl

Hi @axumite, please do you remember what was the inner diameter of the stargate? I also plan to fit a mirror inside, so I need to know, how to scale it to fit correctly. Thank you!

@axumite

Boosted

Replying to @pejvl :

Yeah the diameter is 495mm, the mirror is 500, which I put on the wall first

@Finz

Boosted

Print Profile

GateBuilder Stargate Structural Segments

Excellent model, very few issues that my have been corrected by now.From what I can recall, the chevron blades needed deeper holes, issues with the back electric bumper that required glue to fix, and the instructions had some incorrect part name and counts. I've also made some modifications adjusting the diffusers so that they're larger and sits farther away from the LED strip, and design/printing a custom stand meant to vaguely resemble the clamps used to hold the gate at SGC. Electronics weren't too hard. Lighting accomplished by using WS2812B LEDs - a cheap 2M 60LED/m strip for the wormhole and 5M 50LED "Fairy String Lights". I wasn't confident about how to wire and power the LEDs from a microcontroller, so I ended up using an off-the-shelf dig2GO LED controller, though this does mean that (at least as far as I know), there isn't a way to add sound effects to my setup.

@Myrddin87

Great looking stand, you wouldn't happen to have the files uploaded?

@Finz

Boosted

Replying to @Myrddin87 :

Sorry, I haven't checked maker world recently. I just uploaded the design here: https://makerworld.com/en/models/2811079-stargate-stand

(Edited)

@Myrddin87

Replying to @Finz :

Thank you!

@user_4143357734

Boosted

printed fine. needed to adjust supports on some parts.

The designer has replied

@gatebuilder

This looks really awesome, great job. There is a stand if needed but the wall is ideal.

@GhostriderOne

Where did you get your electronics from for the chevrons & ring?

@Vakarian

How did you handle the electronics?

@asmoyed

Boosted

Awesome model ! Printed really nice, many thanks for the model ! By any chance have you made any way to wall mount it ? Or should I tinker something ? I saw that you had a stand but I don't have that much space on my desk (also I don't want my cats going to other planets)

(Edited)

The designer has replied

@gatebuilder

This looks amazing, congratulations. Thanks for taking the time to make my Stargate. Its a big print and it looks so cool. I don't have a specific wall mounted bracket as I used the desktop mount. For the wall I was going to use a wall hook from The Home Depot. Its about $4 and you don't need to modify your model. It may also stop cats getting through the worm hole :) Your color filament looks great. What would you recommend to others?

(Edited)

@morten957

This looks really good, what filament is it? @asmoyed

@asmoyed

Boosted

Replying to @gatebuilder :

It is bambulab pla matte, the color name on the store is Ash Gray

@KyleKatarn

Boosted

Printed beautifully! I made some minor modifications since I was planning on hanging it on the wall. I was able to use the same segments and just leave the back open for wiring (except for structural parts). I'm still in the middle of painting it. I used the Bambu Metal PLA for everything visible and am dry brushing it with Citadel Runefang Silver. Thanks for a great project that made me remember long forgotten electronics knowledge!

The designer has replied

@gatebuilder

Love what you've done here, it really looks so cool. Great job, I know there is a lot of printing but your results really paid off.

@gatebuilder

A lot of people have been asking if I will produce a Stargate Atlantis edition of the Stargate, Good news !! Yes, I will be making an Atlantis edition, complete with dialing ring that supports electronic lighting and sound.

@ConstructInd

Do you have a timeframe on this new version? I'd also love to have a Destiny style gate to complete the collection! The recent announcement of the new show has renewed my love of Stargate and gave me a good excuse to finally print one, and I imagine it's doing the same for many others. Probably a huge earning opportunity coming up!

@user_3513374718

Boosted

Print Profile

GateBuilder Stargate Back Segments

cool part turned out can only say keep it up

The profile uploader has replied

Show original

@gatebuilder

Great job.

@gatebuilder

There is a stand available if you need it. I made one.

@seaguarodesigns

Boosted

Print Profile

GateBuilder Stargate Structural Segments

This is one of the craziest prints/builds I’ve don’t yet! There’s so much detail, and I scaled it down to 60%!

The profile uploader has replied

@gatebuilder

You did a wonderful job, looks amazing. I think your the first person to scale to 60 percent :)

@nickrozario

Keen to build this, do you have a part list for the electronics? im fairly new to the whole electronics thing

The designer has replied

@gatebuilder

I designed my own electronics, but its not for beginners. However, a cheap fast way was used on this model, does similar to my own electronics with sound etc. Hope this helps. https://www.printables.com/model/688291-stargate-modified-chevron-parts

@user_1504168842

Replying to @gatebuilder :

thank you. the main part of the sign i want to implement is usb power instead of the standard plug tip. I'm not sure what you may have used to apply this change.

@gatebuilder

Replying to @user_1504168842 :

You might want to look at Arduino Nano series for the lights or even Adafruit offerings.
