Ultimate Nintendo Switch 1 Rugged Box with inserts

Ultimate Nintendo Switch 1 Rugged Box with Interchangeable Inserts

This case is based on Whity's exemplary model.

https://www.printables.com/model/258431-rugged-box-parametric

Following the creation of a Rugged Box for the Switch 2, I received numerous requests for a case compatible with the original Switch (non-OLED).

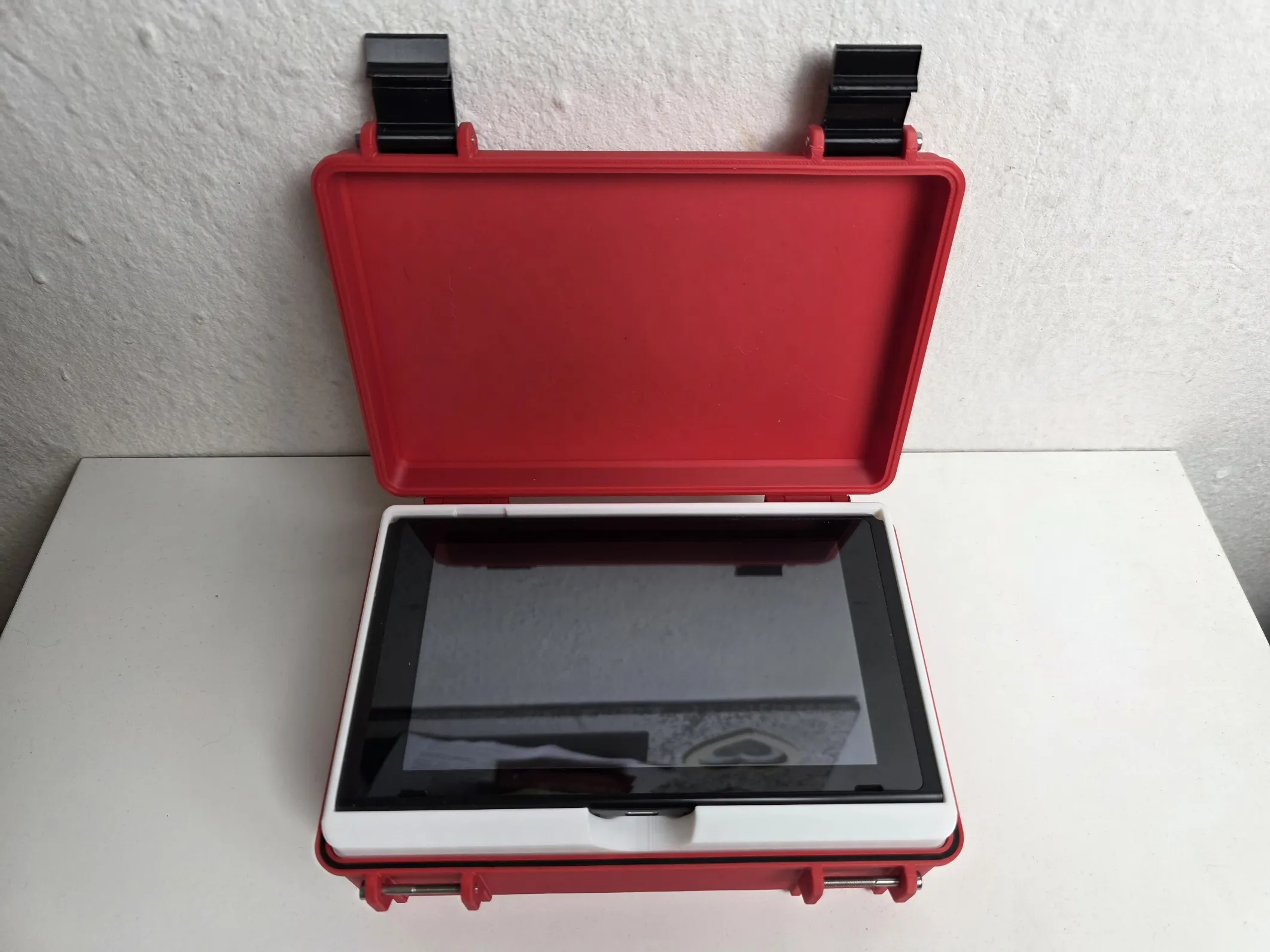

This case comfortably accommodates the console, charger, cables, and games.

The result, delivered promptly:

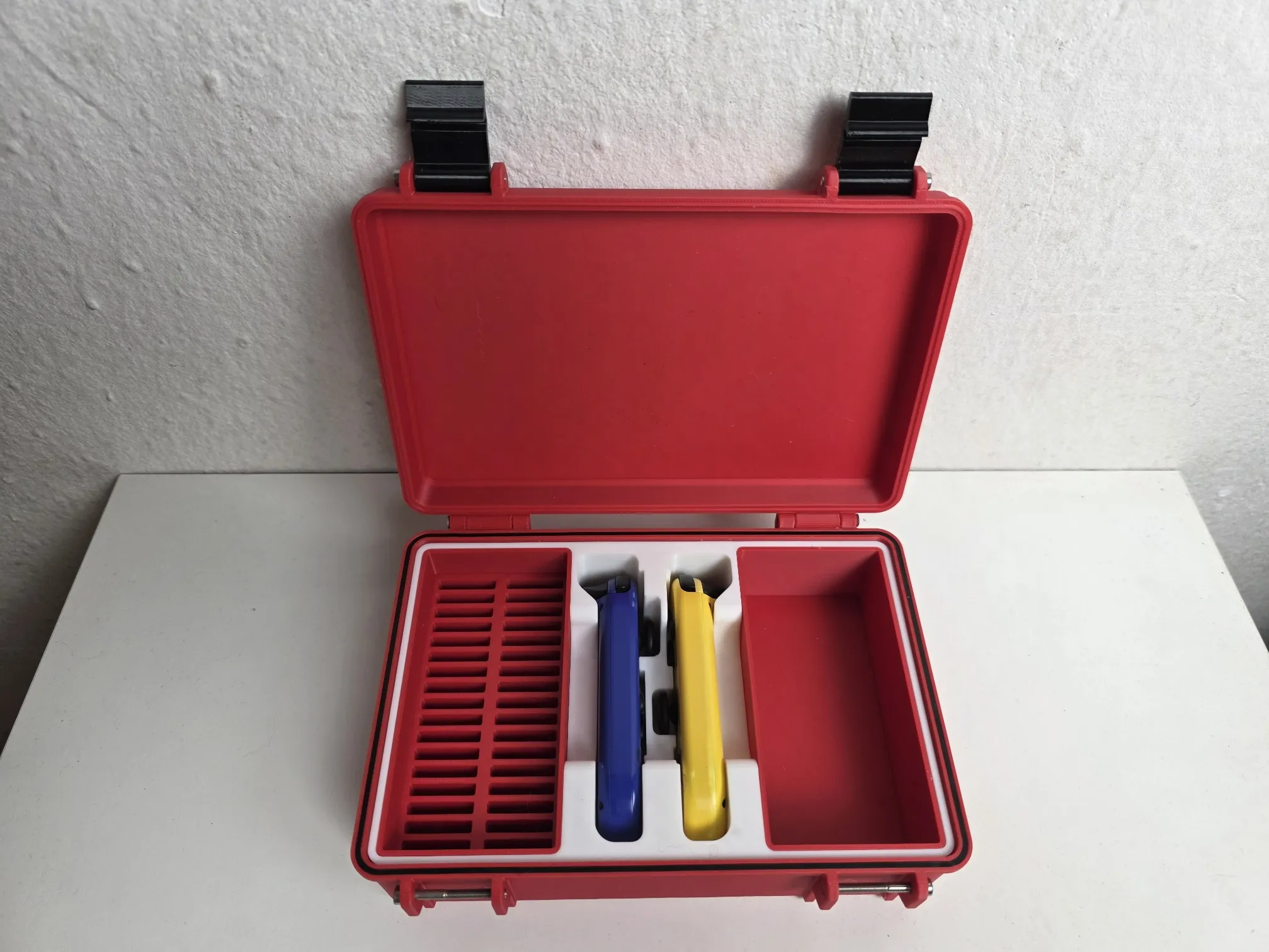

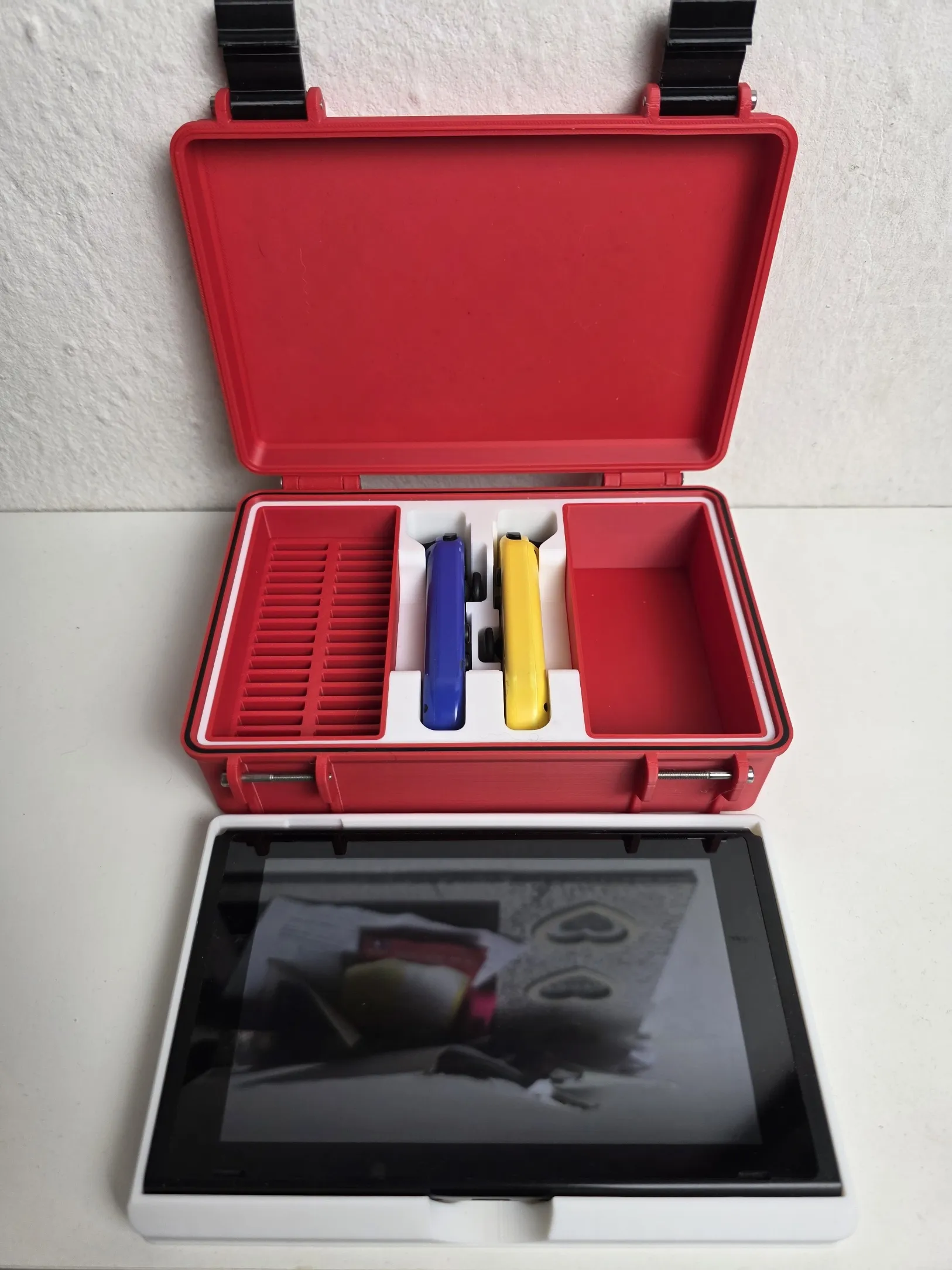

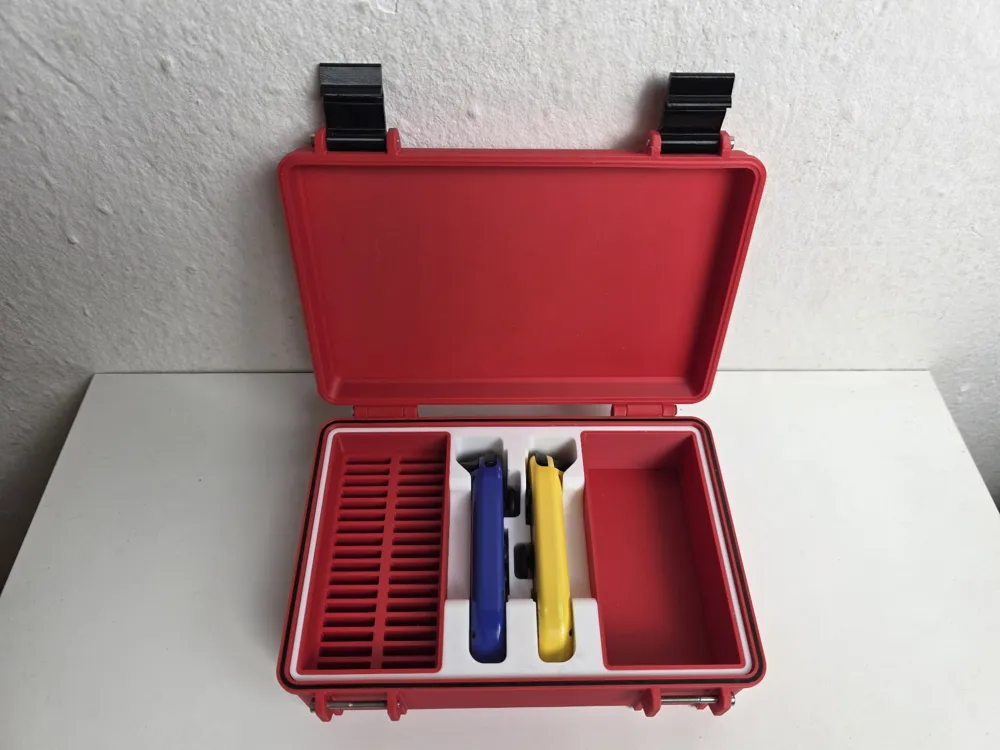

The inserts flanking the controllers are interchangeable, affording users the flexibility to utilize their preferred additional inserts.

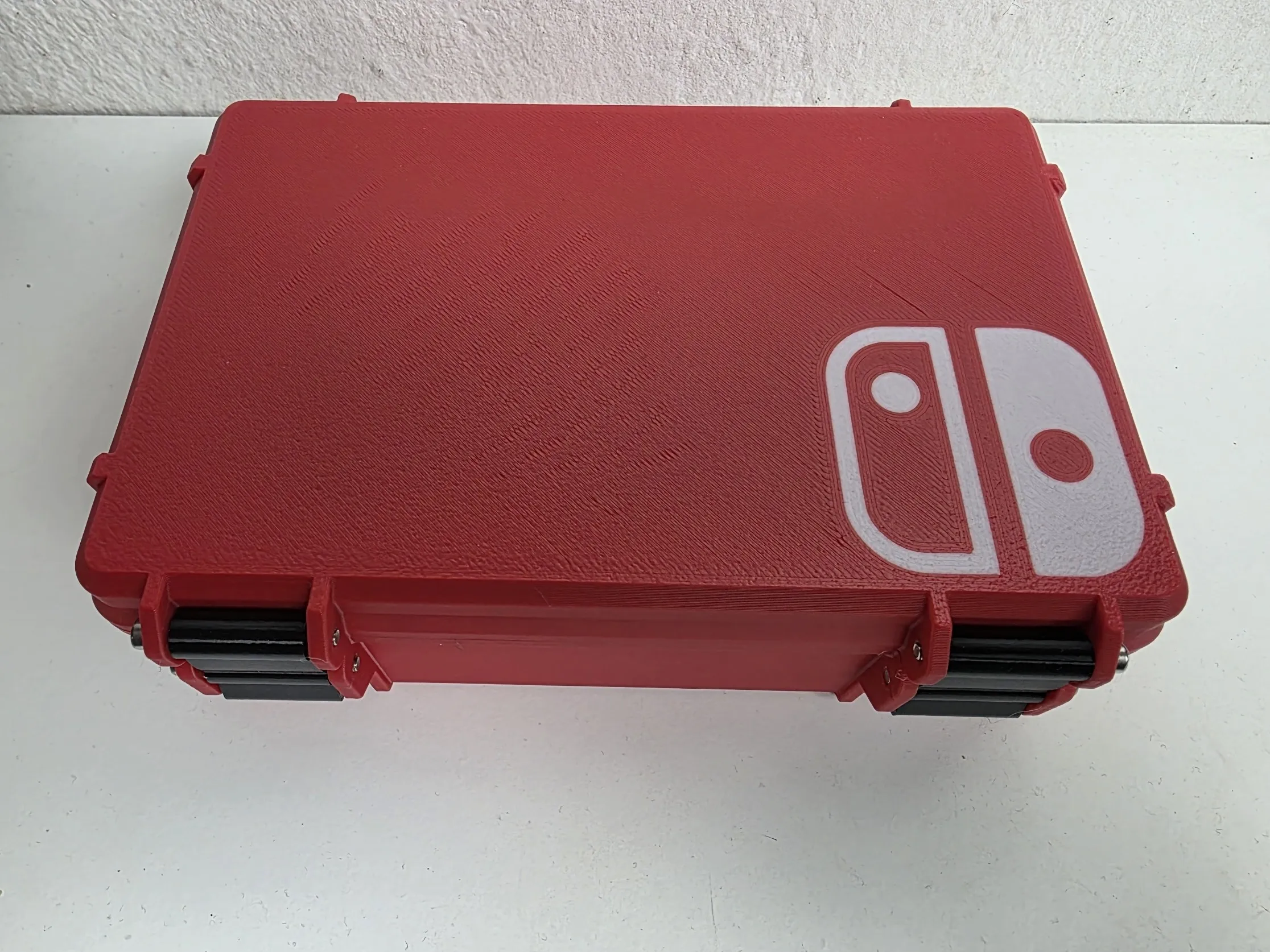

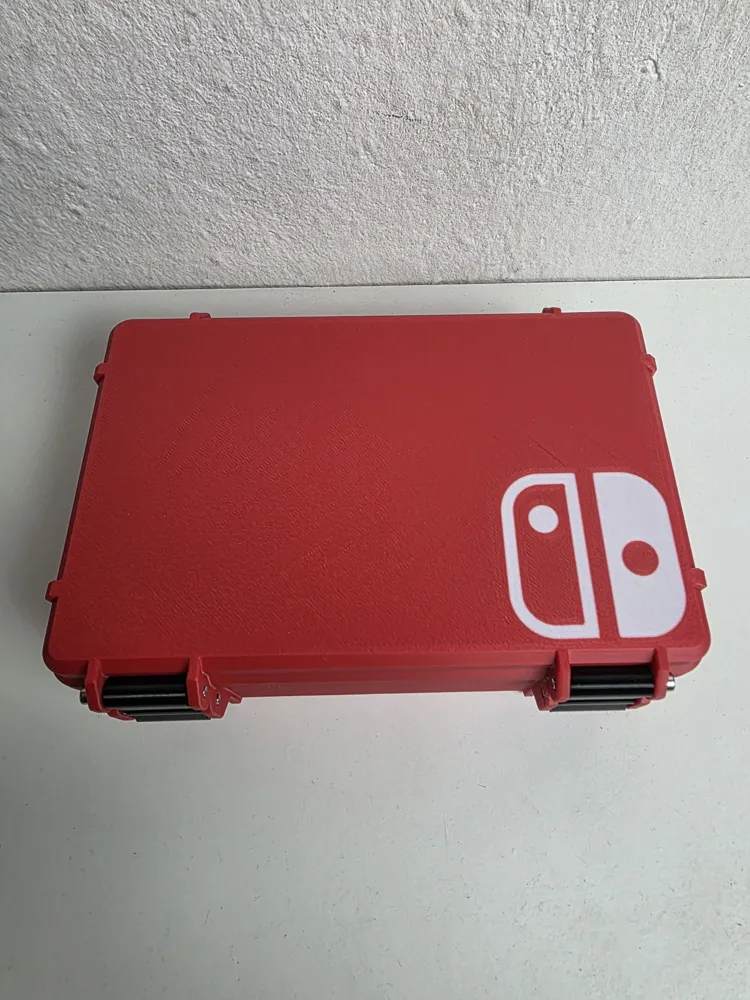

The box lid is available in two versions: one featuring the logo and one without.

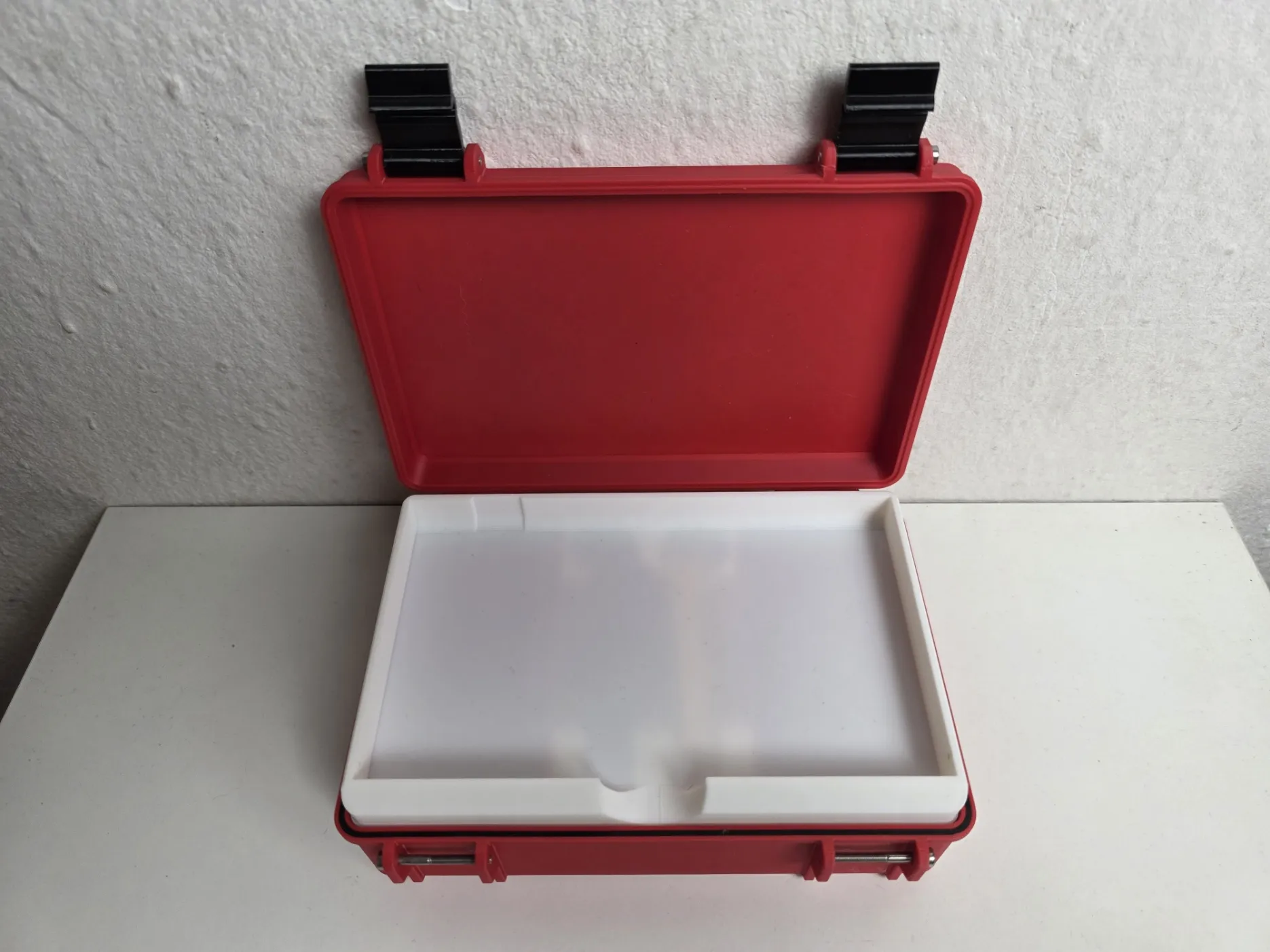

The lid provides ample space for a thin microfiber cloth, offering enhanced screen protection. However, I still recommend applying a screen protector.

All components print seamlessly, requiring no supports.

PLA was my material of choice, except for the clasps, which are PETG for superior flexibility. Nevertheless, PETG should prove equally suitable for all components.

The clasps exhibit exceptional durability and resistance to breakage. Should breakage occur, I recommend a high-tensile TPU.

Assembly requires six M3x30 screws for the clasps and hinges.

Disclaimer:

This is an unofficial, fan-made accessory. Nintendo® and its trademarks are the property of Nintendo Co., Ltd and are used herein solely for descriptive purposes. This product is not licensed, endorsed, or affiliated with Nintendo in any way.

Use at your own risk.

I assume no liability for damage to your console or accessories.

The manufacturer disclaims all liability for hardware damage, data loss, or other issues arising from use. Nintendo and Nintendo Switch are registered trademarks.

While a seal is incorporated, I doubt the case's waterproof integrity due to its PLA construction. Other materials may yield waterproof results, though I cannot guarantee it. :)
