SONOFF MINI-D Full-Scale 1:1 Reference Model
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 8% infill
Designer
29 min
1 plate
Open in Bambu Studio
Boost
4
9
2
0
23
4
Released
Description

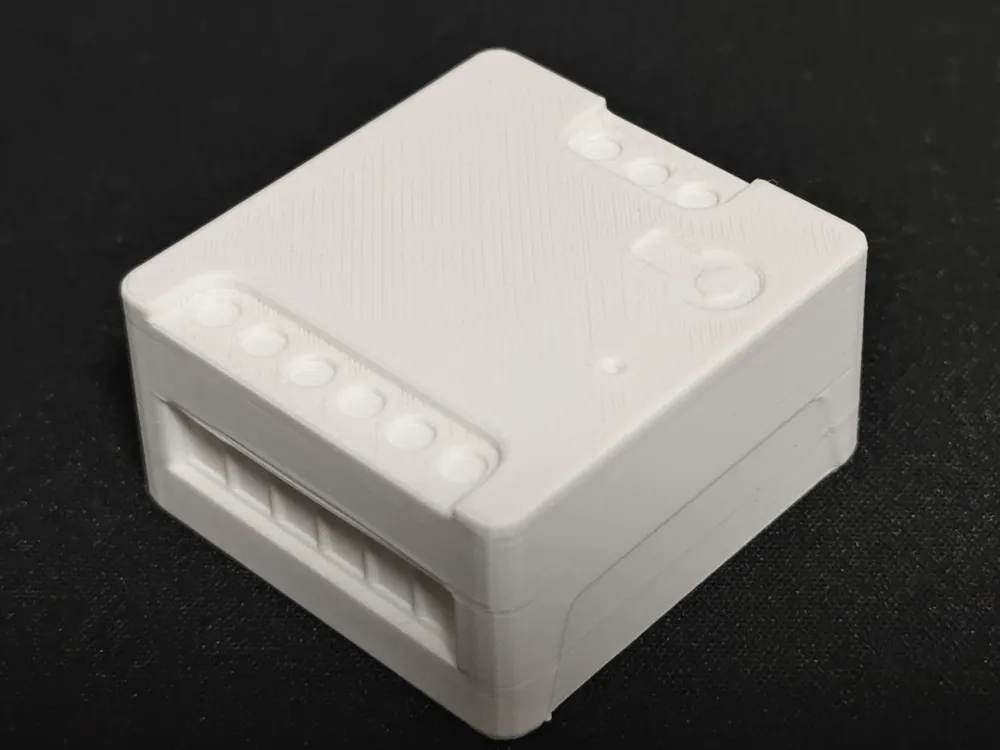

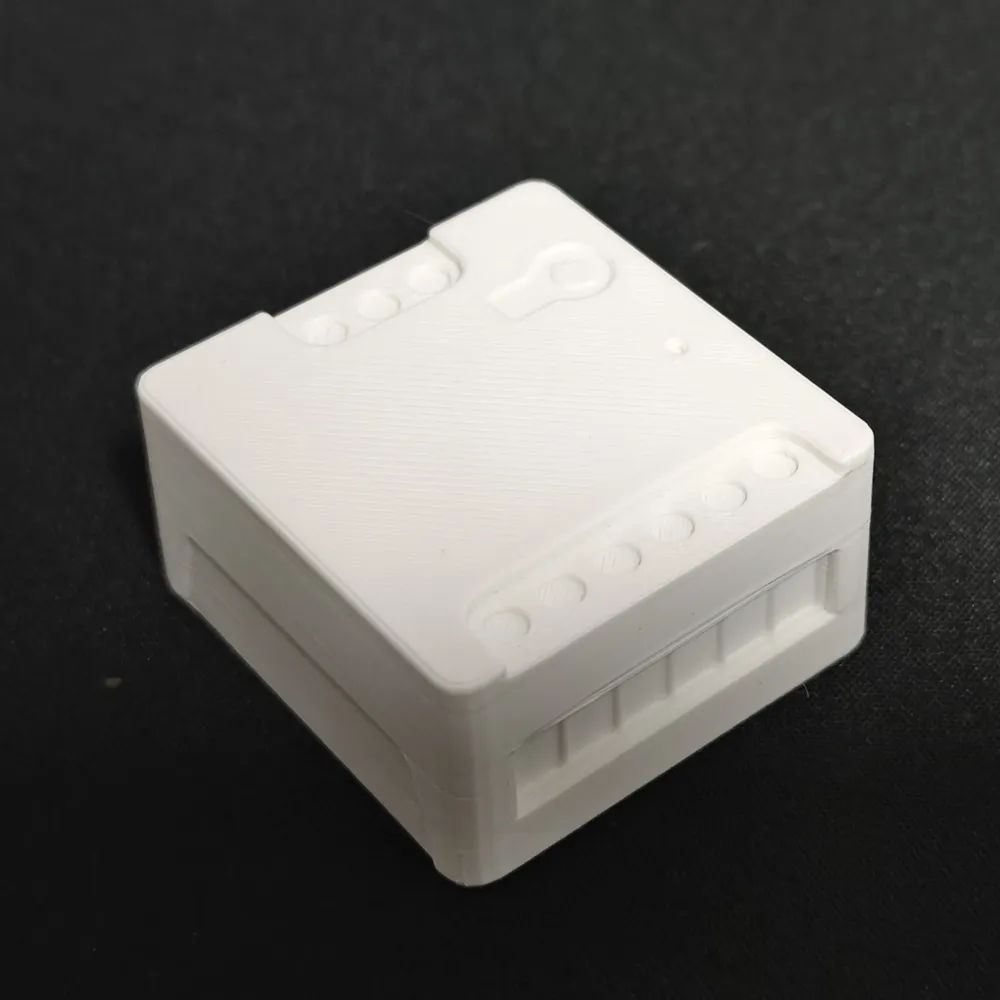

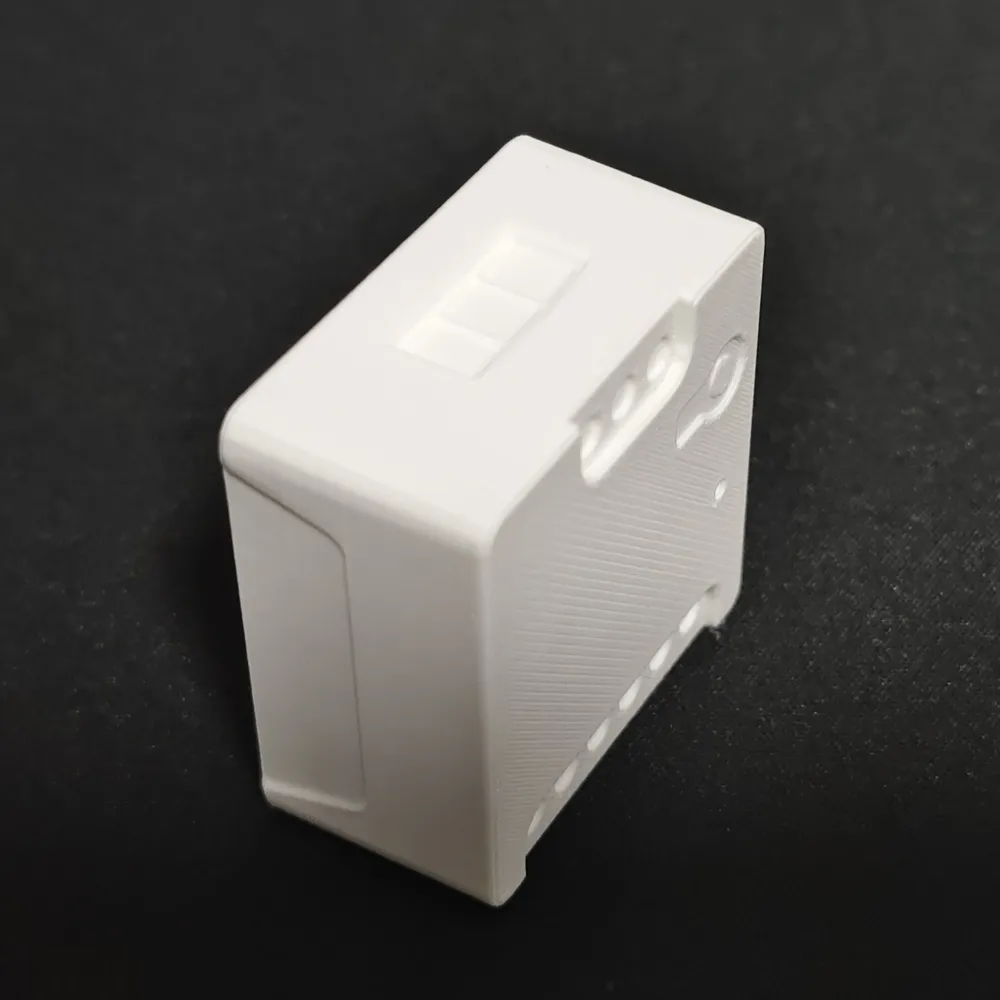

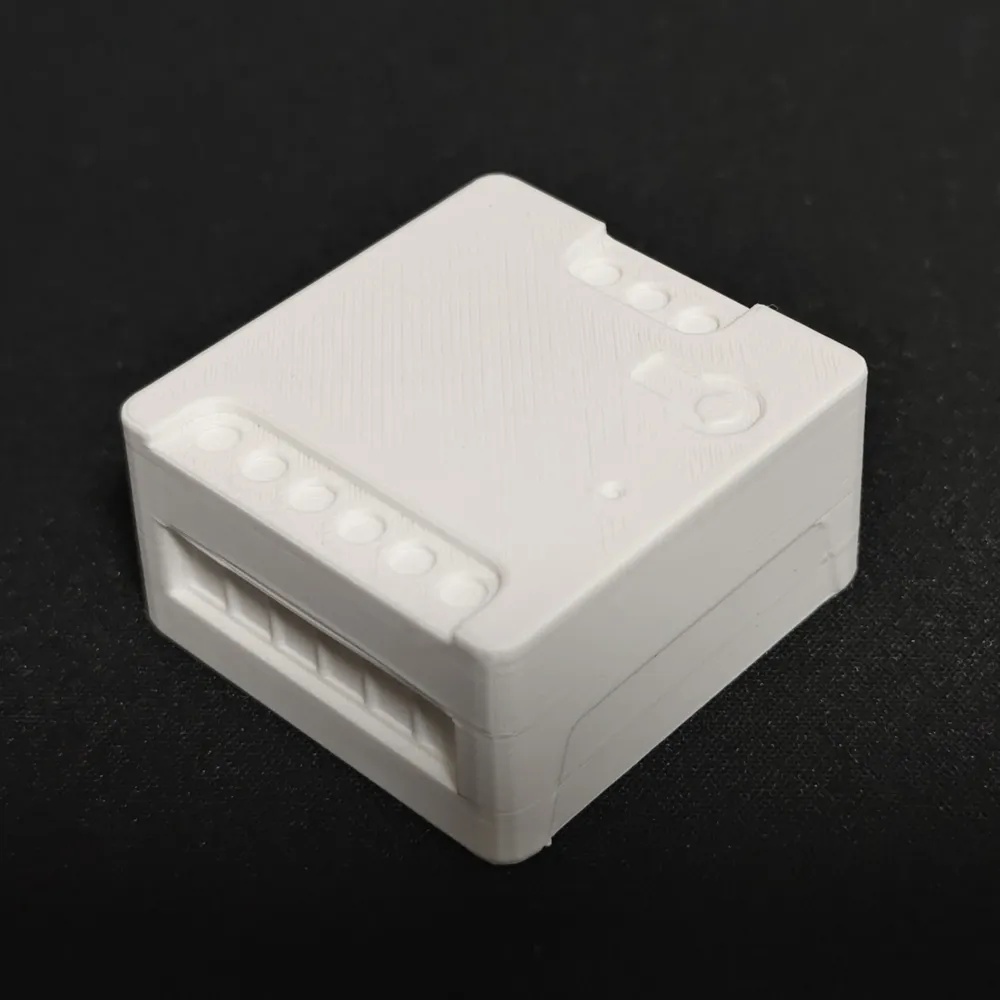

This is a 1:1 scale replica model of the SONOFF MINI-D, created to help users verify its installation fit and assist in accessory design. The model accurately reproduces the full enclosure dimensions, terminal positions and sizes, as well as the placement of the button and LED indicator — making it ideal for evaluating compatibility before purchase or prototyping.
The download includes:

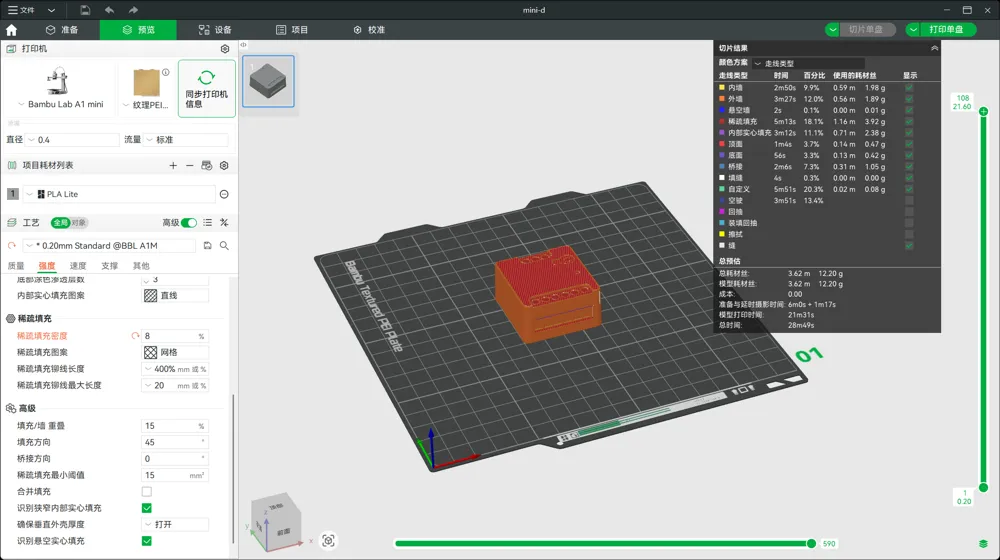

- A .3mf file with recommended print settings for quick testing;

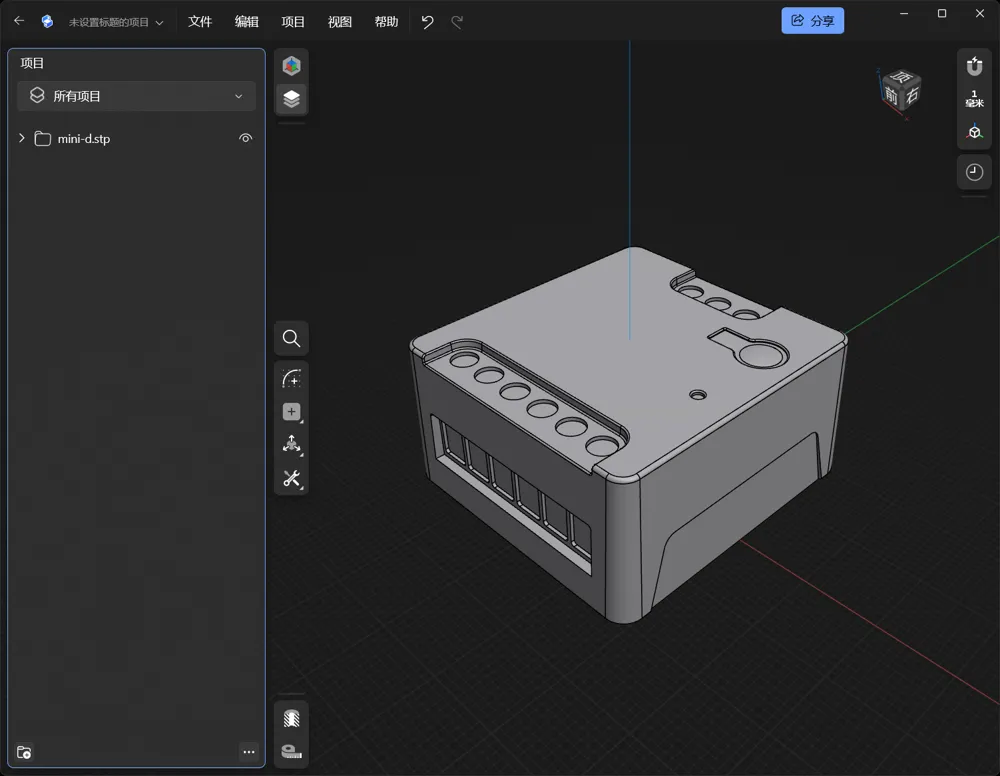

- The .stp modeling file (compatible with Shapr3D and other tools) for direct measurement and custom adaptation.
Perfect for checking whether MINI-D fits inside wall boxes, enclosures, or behind switches — without needing the actual device on hand.yping.
More about SONOFF MINI-D : MINI Dry Wi-Fi Smart Switch (Dry Contact Relay) | MINI-D
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
