42mm thread extension tube for extreme macro.
Print Profile(1)
Description
Modular M42 Macro Extension Tubes – 3D‑Printable Kit for Precision Macro Photography 🔍📷
Overview

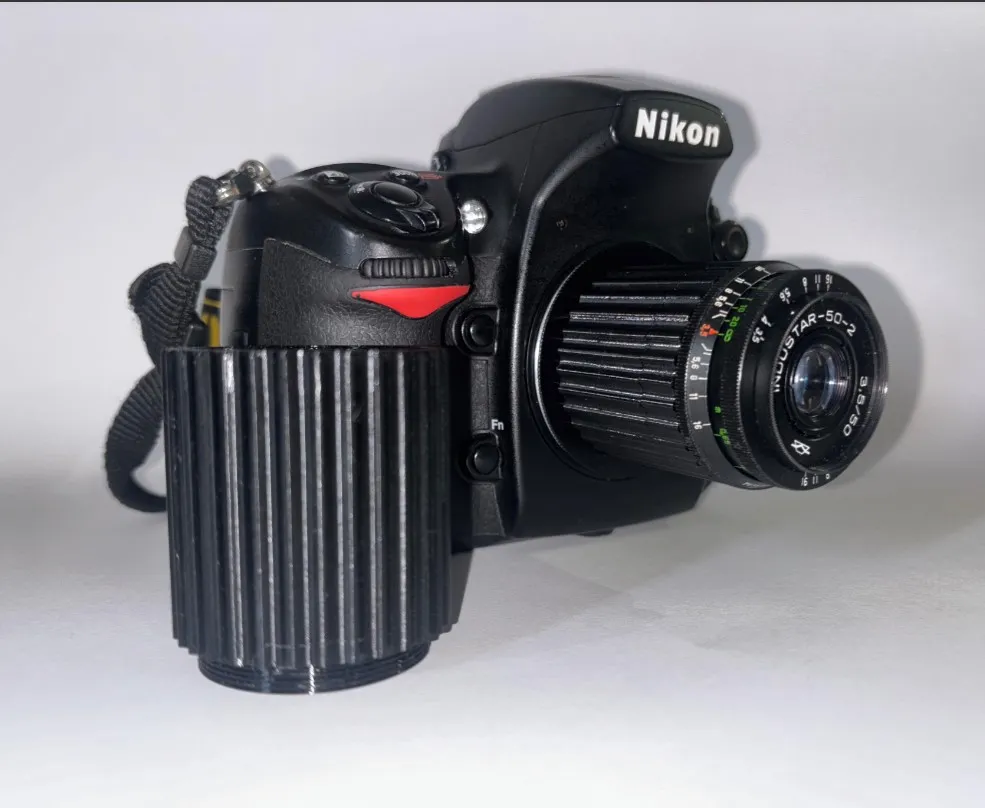

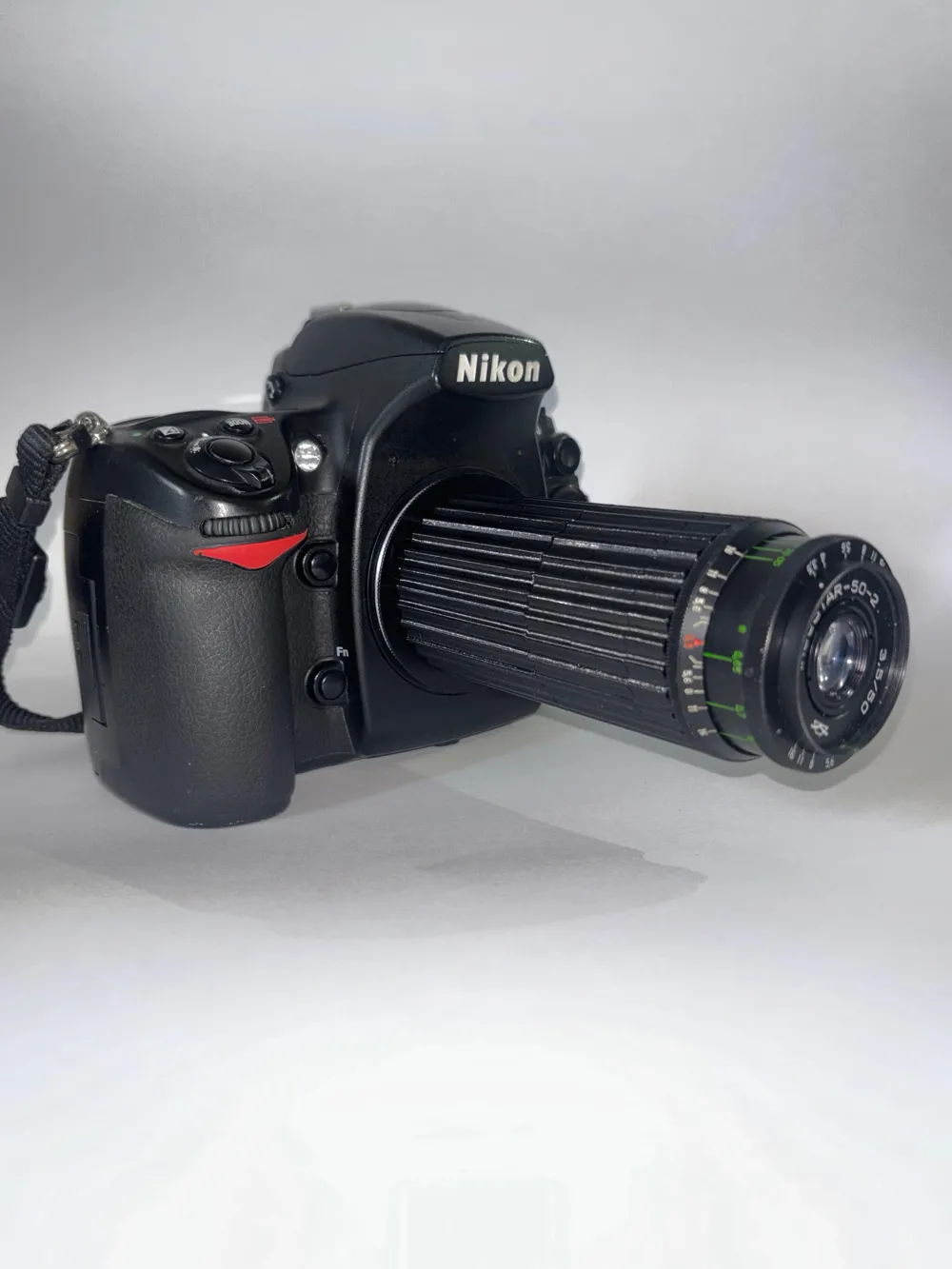

This modular set of 3D‑printed macro extension tubes is made for lenses with the classic M42 screw mount (42 mm × 1 mm pitch). By increasing the lens‑to‑sensor distance, the tubes boost magnification for detailed macro work—especially with vintage optics 🪻🔬. Combine them with any DSLR or mirrorless body via a standard M42 adapter and stack to taste.
📏 Tube Lengths Included
| Length | Typical Use | Note |
|---|---|---|
| 10 mm | Fine‑tuning focus in long stacks | Place this one furthest from the camera for extra stability |
| 30 mm | Moderate close‑ups | Pair with 10 mm for 40 mm total |
| 50 mm | High magnification | Stackable with any other |
| 100 mm | Extreme macro shots | Start here when you need the most reach |
🔧 Key Features
- M42 thread (compatible with Helios, Pentacon, Industar, etc.)
- Stackable modular design for precise extension control
- Generous internal diameter to prevent vignetting
- Textured exterior for secure grip
- FDM‑friendly geometry—no supports required
🖨️ Recommended Print Settings
- Material: PLA / PETG (rigid, dimensionally stable)
- Layer height: 0.20 mm
- Infill: 20 – 30 %
- Supports: None ✅
- Orientation: Print vertically for optimal strength
📸 Usage Tips

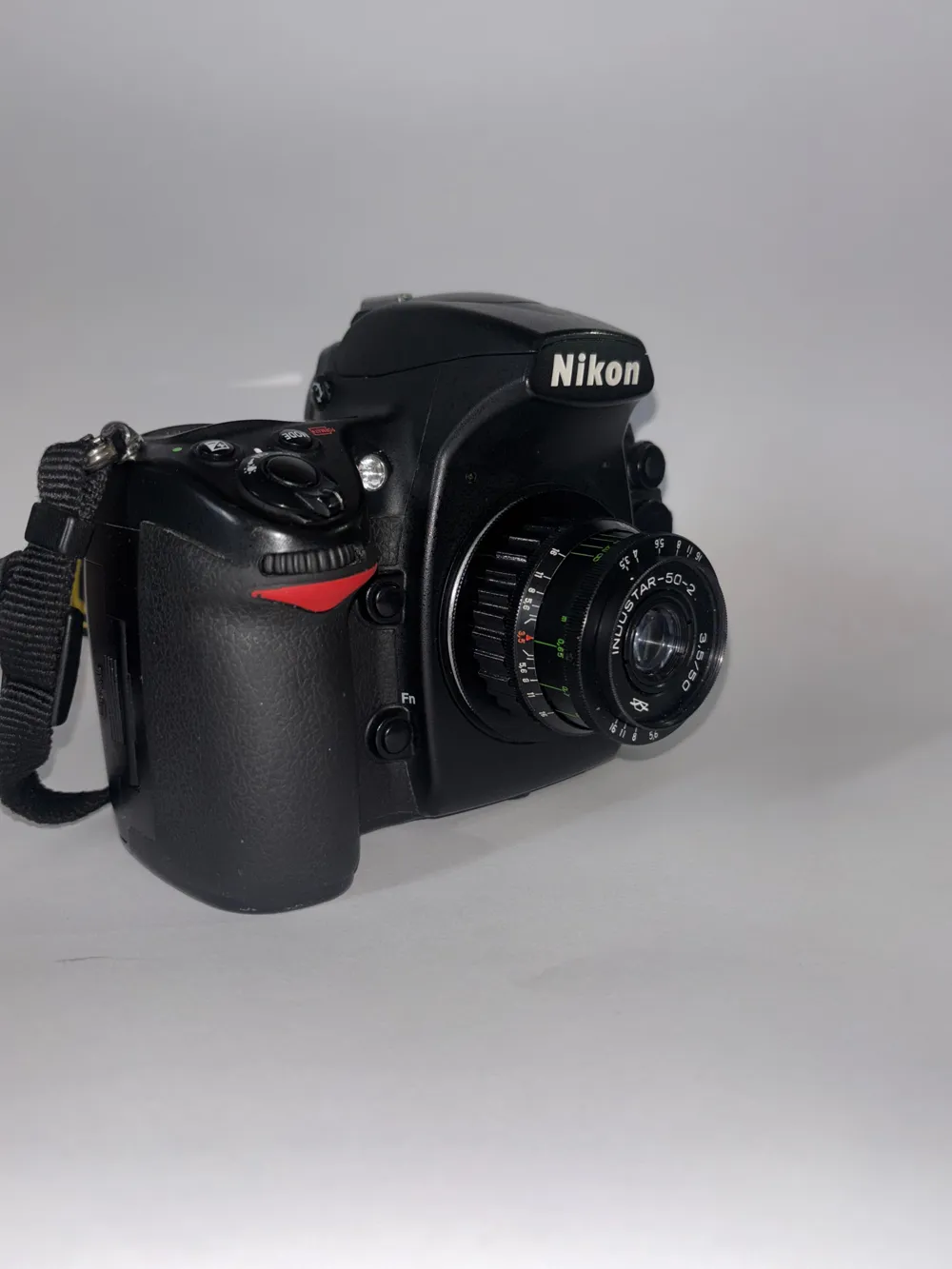

- Pair with any M42 lens plus an adapter (e.g., Helios 44‑2, Pentacon 50 mm)
- A tripod is strongly advised—depth of field is razor‑thin at high magnification
- Ideal for insects, botanicals, tiny mechanical parts, and texture studies
ℹ️ Why M42?
The M42 screw mount—popularized by brands like Zeiss, Asahi, and Soviet manufacturers—remains a favorite among macro enthusiasts for its purely mechanical design, affordability, and easy adaptation to modern digital cameras.
🙏 Thanks & Stay Connected
Thank you for checking out this project! If you build the tubes or capture something cool with them, I’d love to see it.
Follow me on Instagram @PUNTO91HGT See you there! 🚀
