K&F Concept mount tripod (Arca) - For any camera

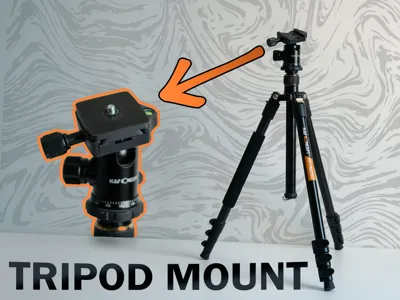

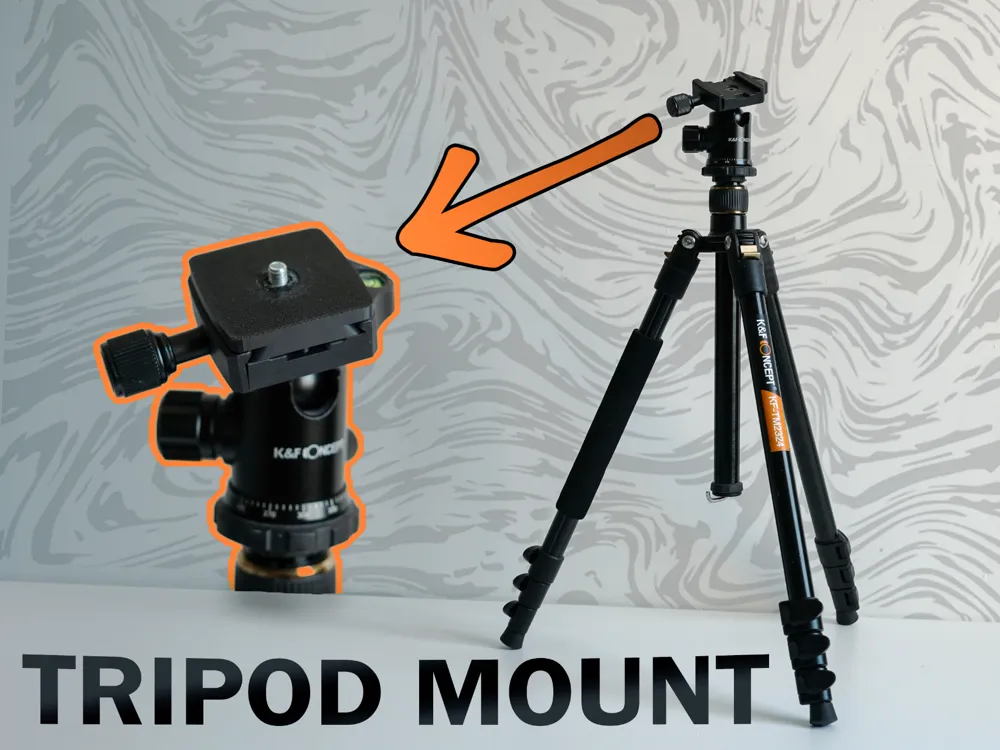

K&F Concept Tripod Quick Release Plate Replacement

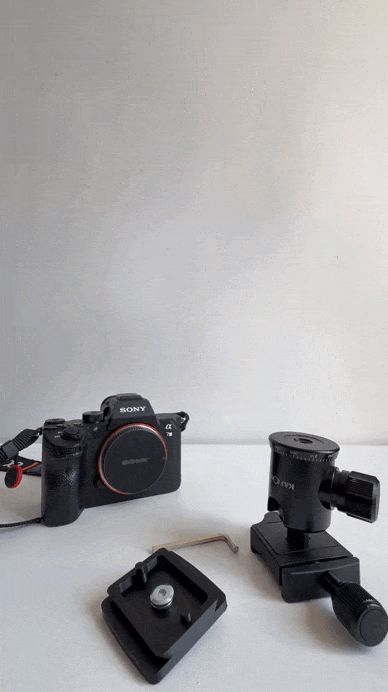

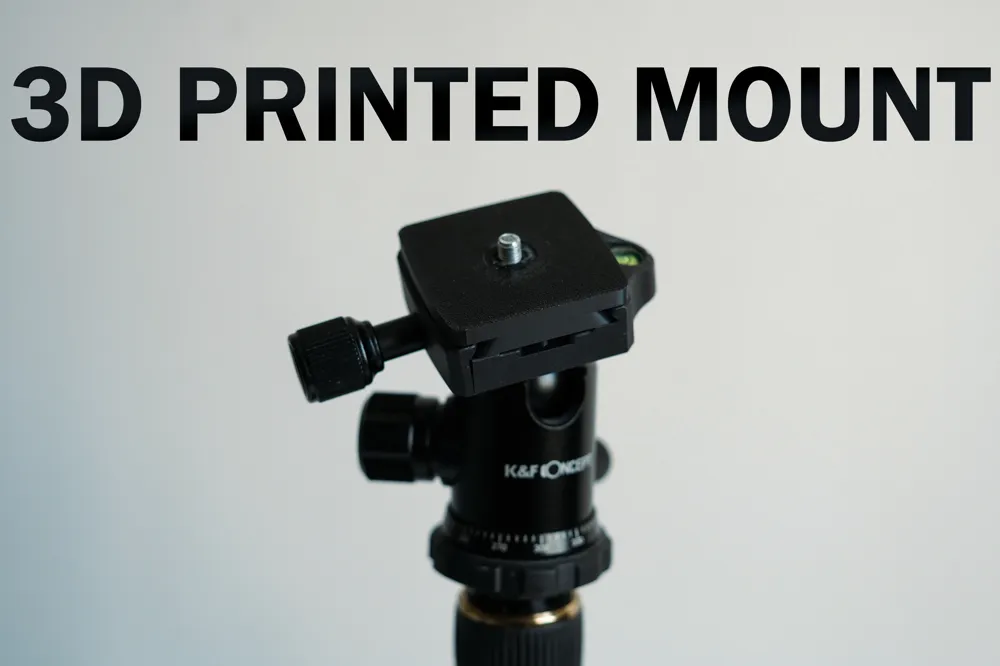

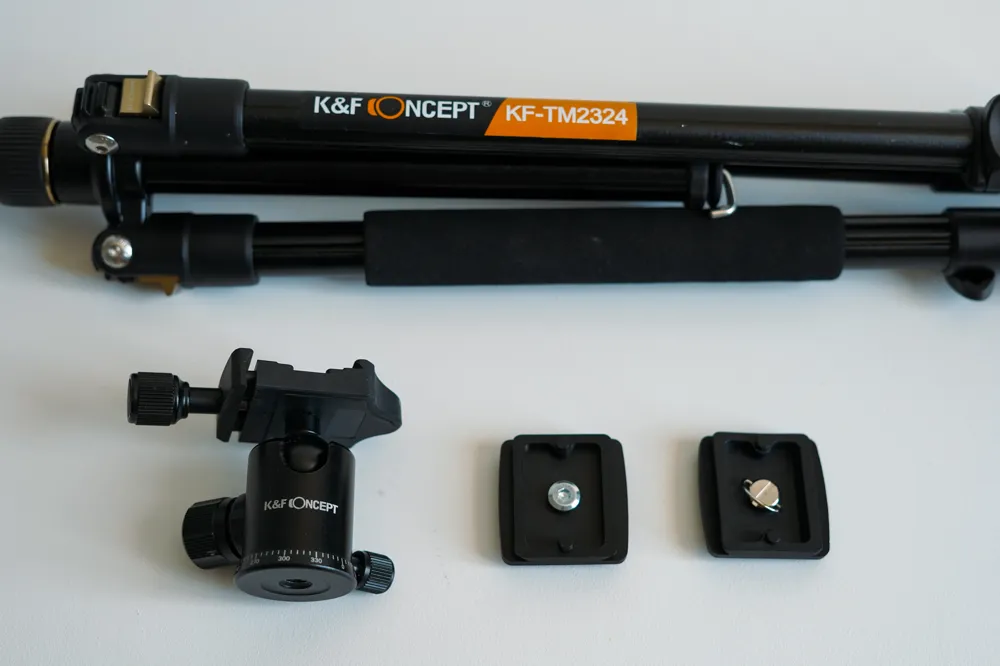

Small replacement part (Arca-Swiss mounting system) compatible with K&F Concept brand tripods, and possibly other models using the same quick release system. Compatible with all professional cameras.

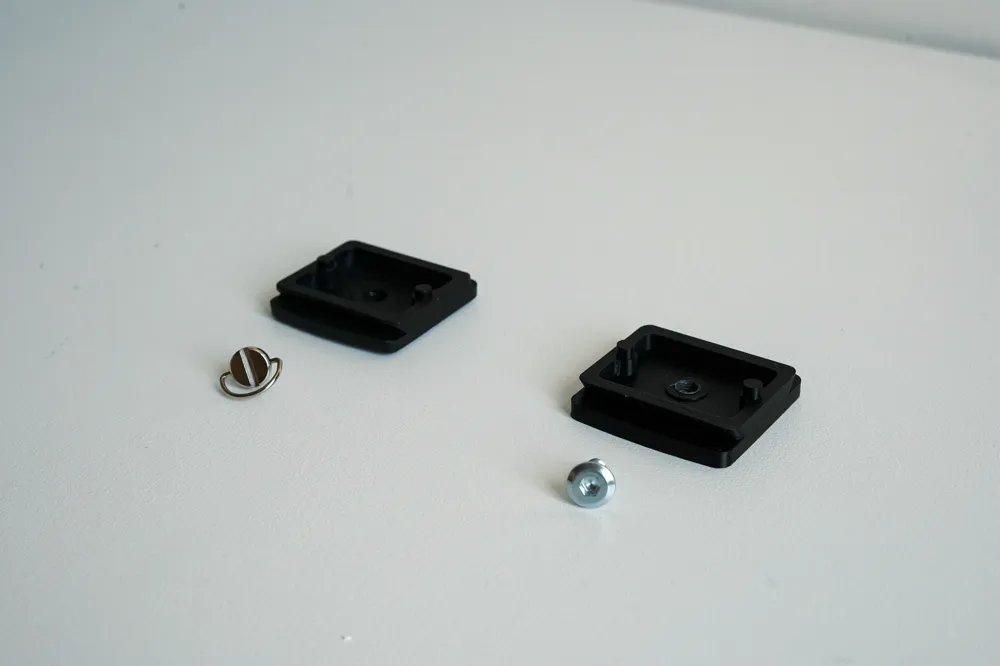

Two versions available (below):

• Version 1: One-piece model, printable in a single piece. Enable supports.
• Version 2: Two-piece model, with a recess for a TPU gasket. Enable supports as well.

Additional Information:

• A 1/4″ screw is required (standard Sony Alpha or equivalent depending on your camera body).

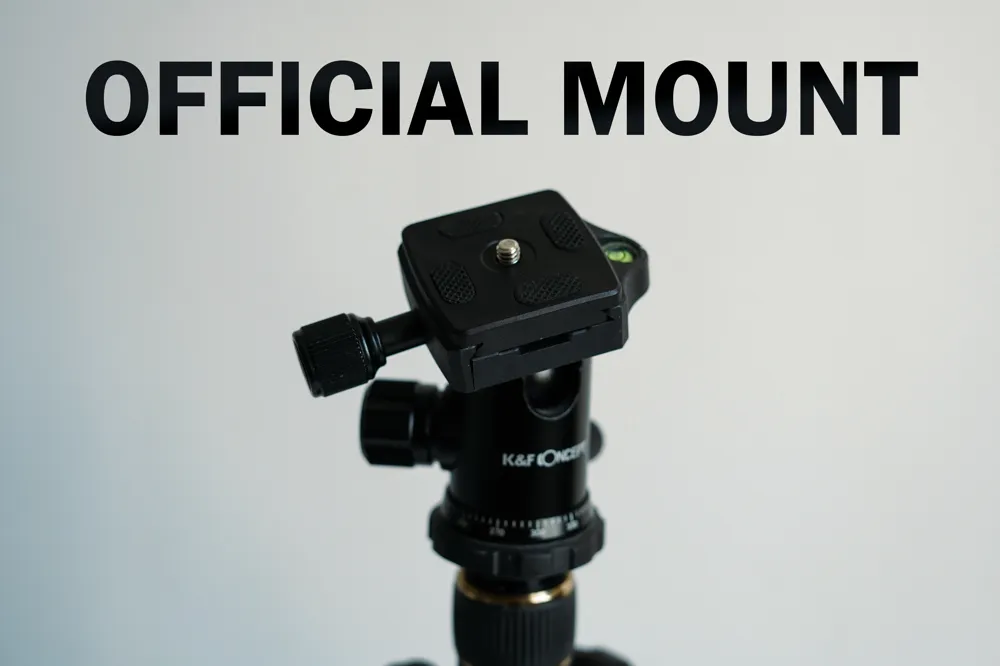

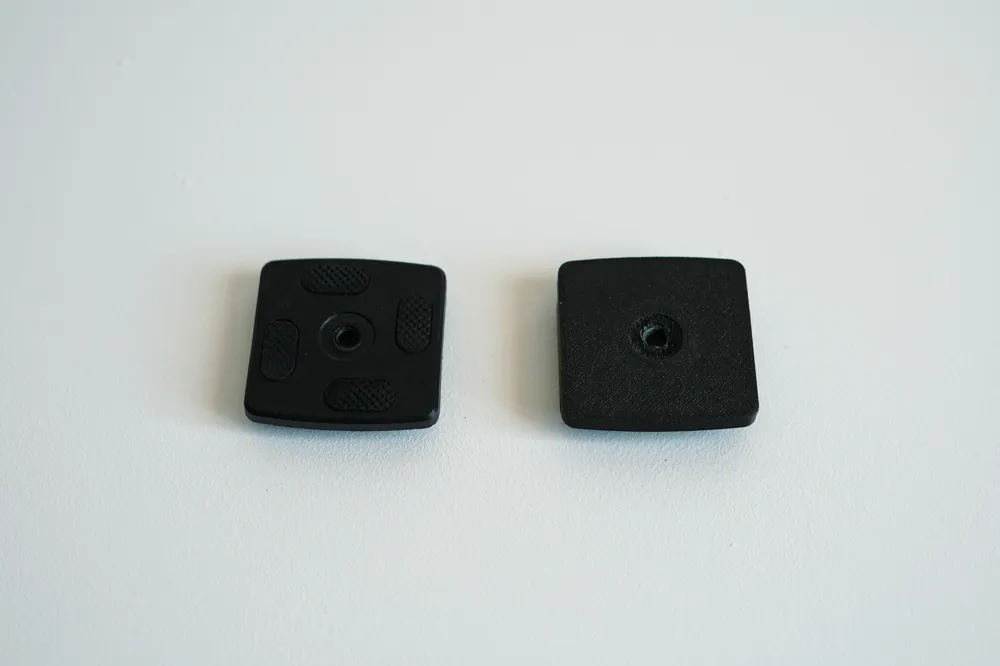

• The small tabs that fit into the grooves have been slightly widened to allow the use of a countersunk screw, similar to those on the official models.


If your screw is a little too long, you can add a washer; the space provided allows for it.

Not recommended: Do not print the screw in plastic. The thread would be too fragile for a high-value camera.

Feel free to provide feedback in the comments, share your photos, and give a like and a boost if you enjoyed it.
Happy printing everyone!
Epsilon
