LED Modular Wall Art Hexagon Nanoleaf Frame 100Hex

Inspired by Sasunoo's Nanoleaf Hexa Wandlampe, but built from scratch to create a fully framed modular art piece.

Sized to fit 100hex designs as inserts on top of the lenses.

Use white PLA for lenses.

LED Strips used were Govee M1 16.4ft strips.  Can be controlled via Bluetooth and synced to music.

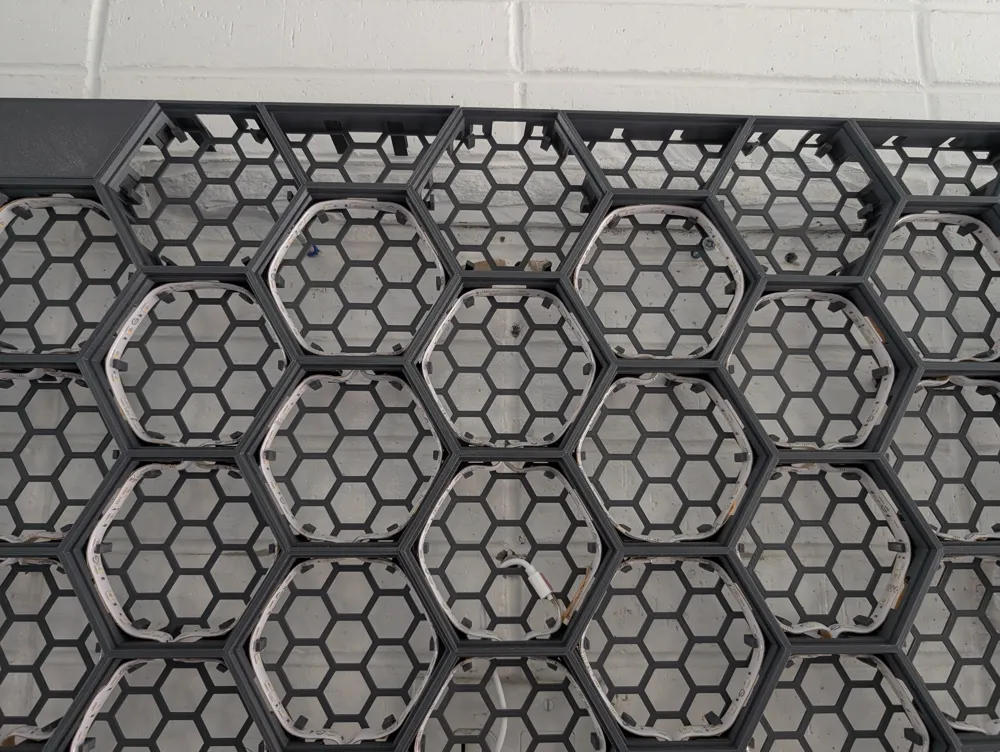

Retainer clips should fit most strip lights.

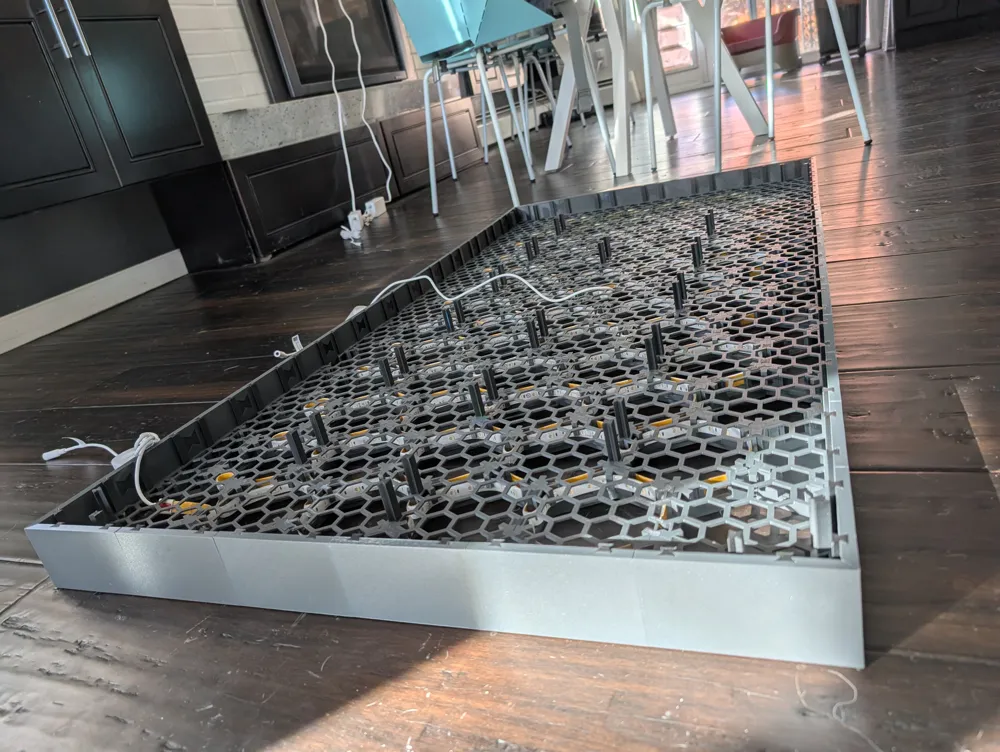

Border depth is sized to fit a LED driver behind the whole assembly;

65mm (2-9/16") total frame depth with 35mm (1-3/8") of clearance for a power supply and plug.

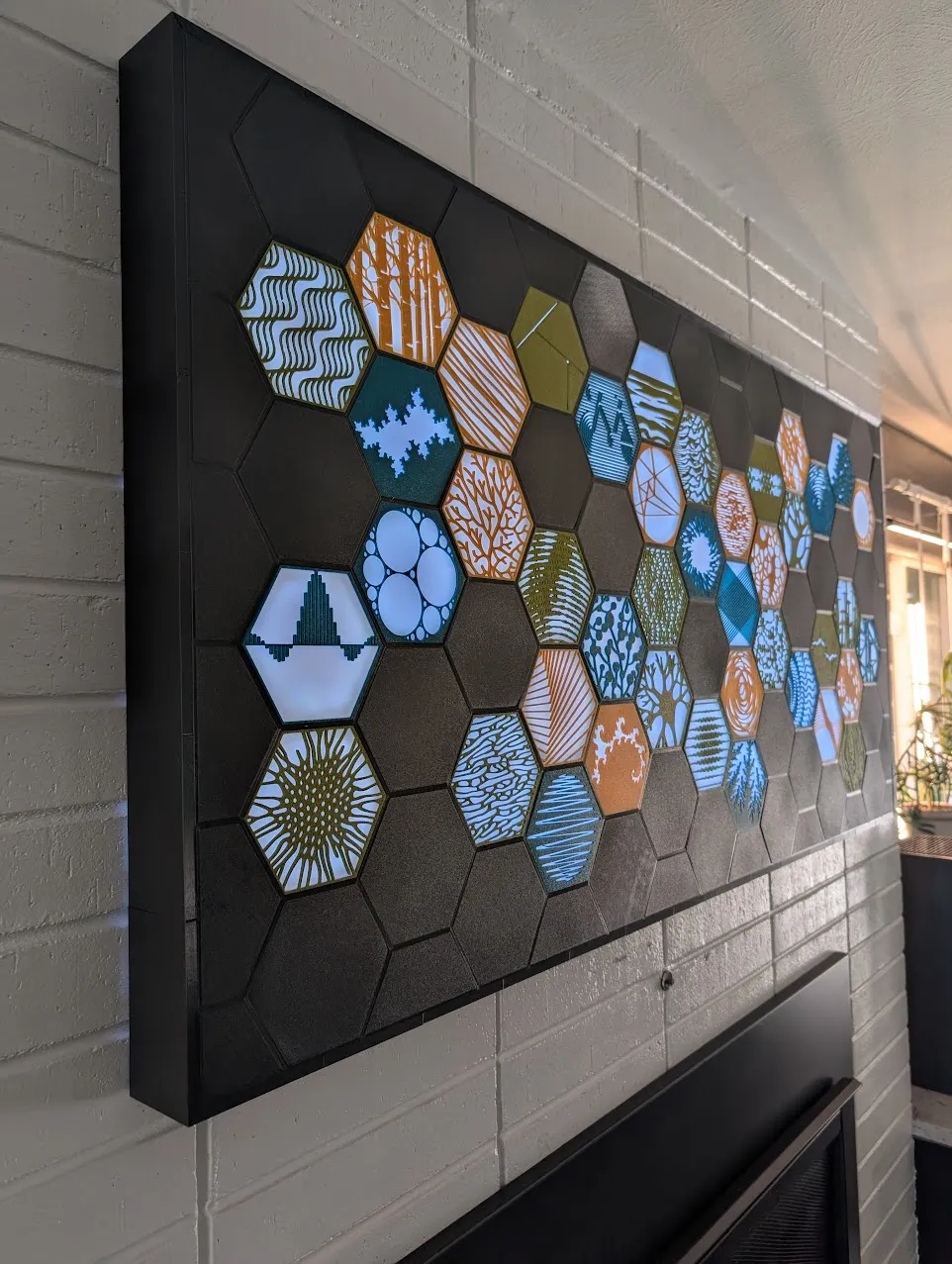

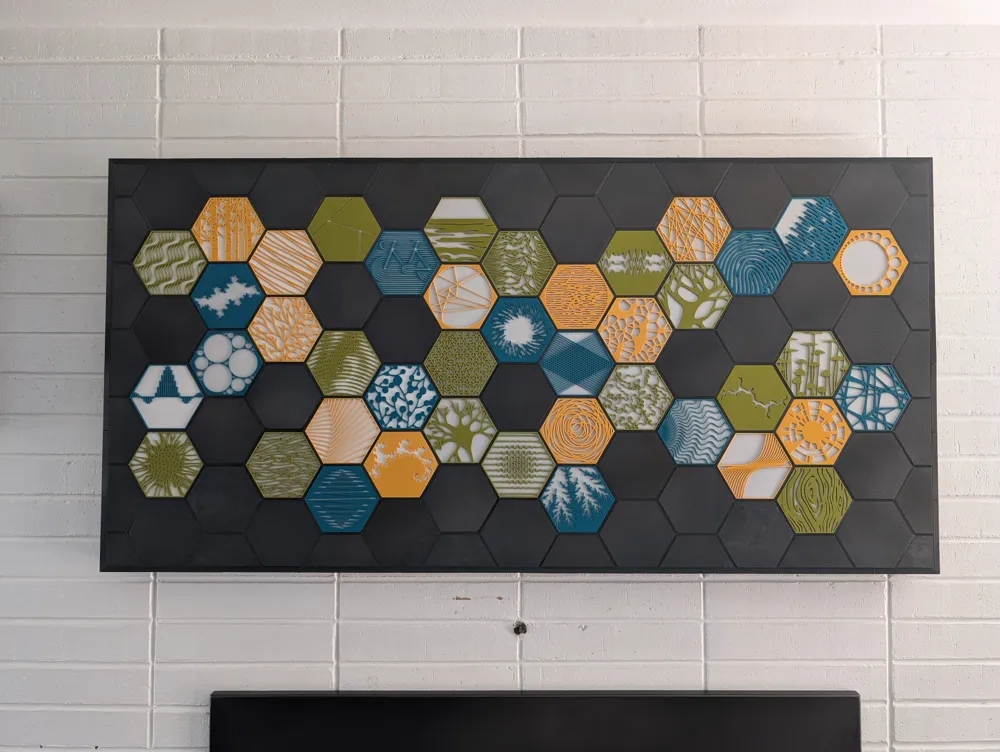

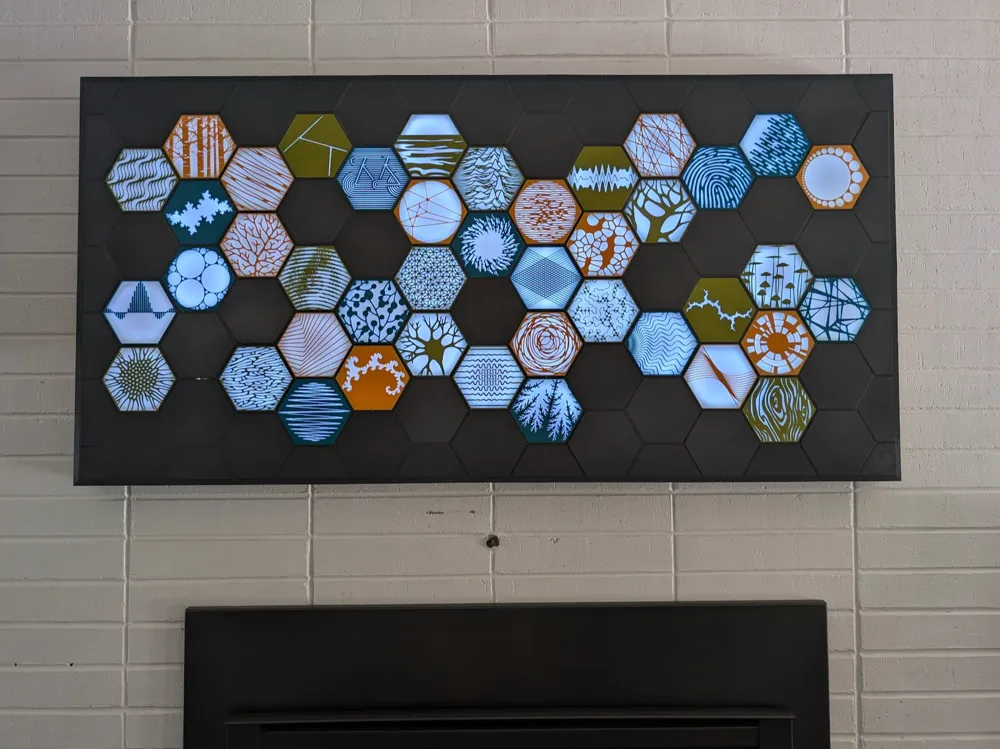

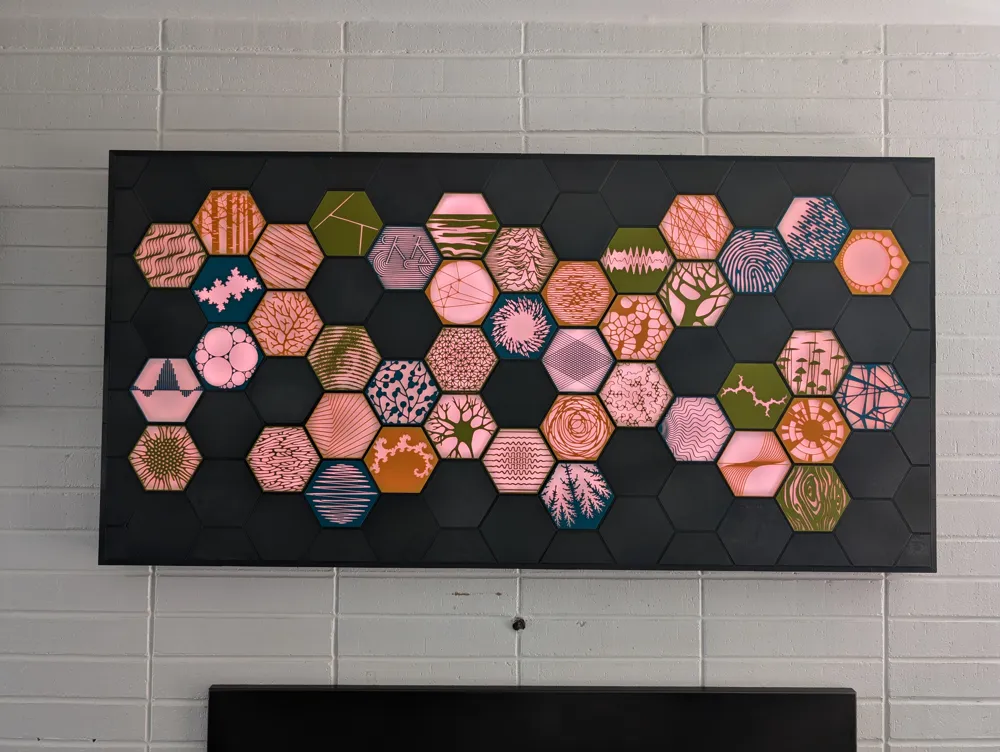

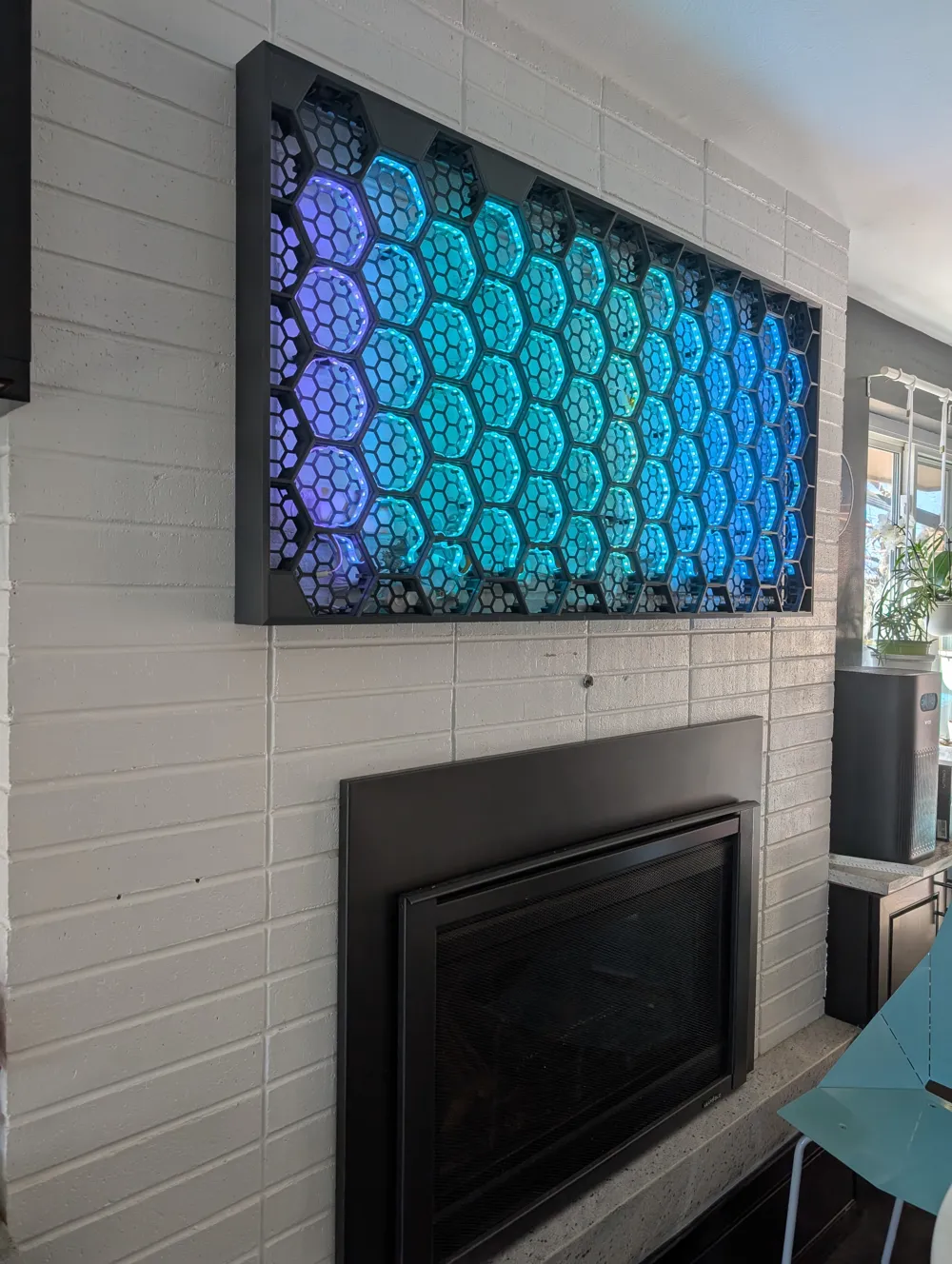

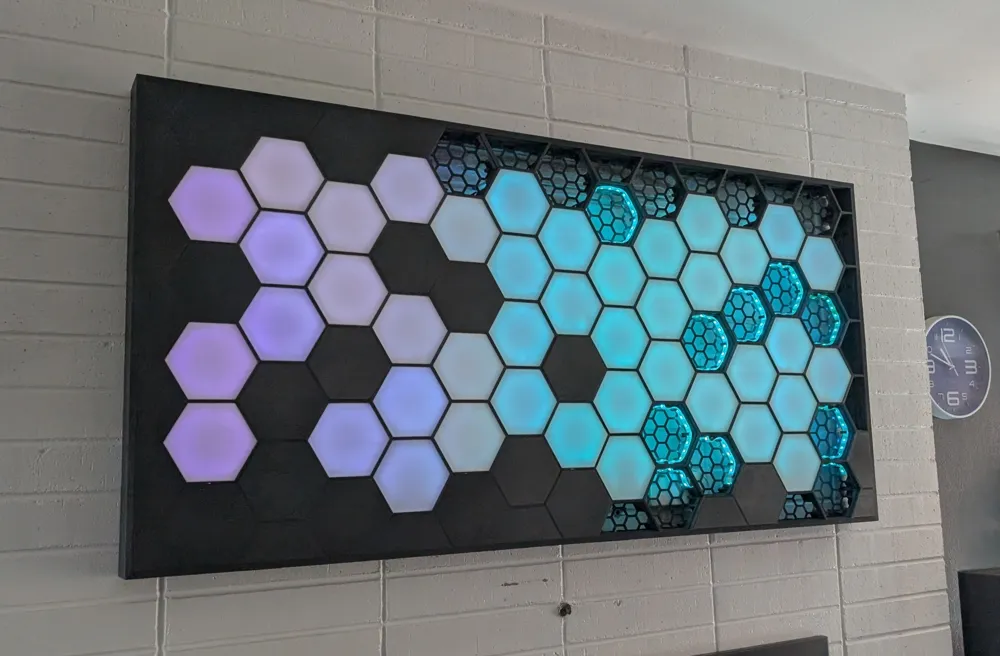

Assembly shown is 664mm H x 1325.43 W  (26-1/8" H  x 52-3/16" W).

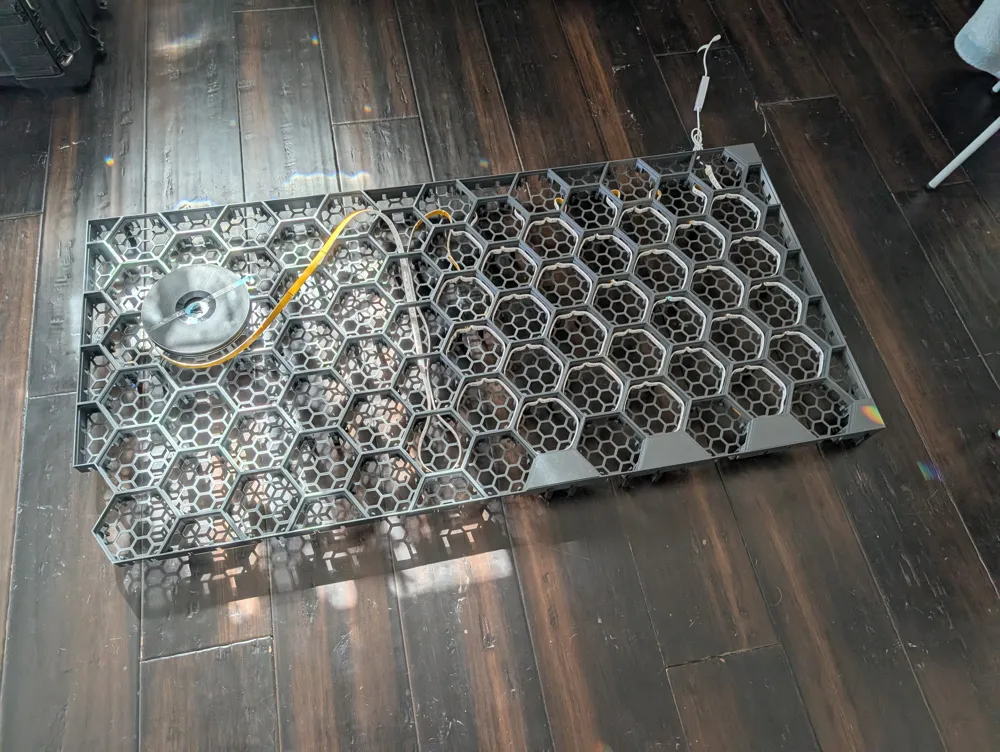

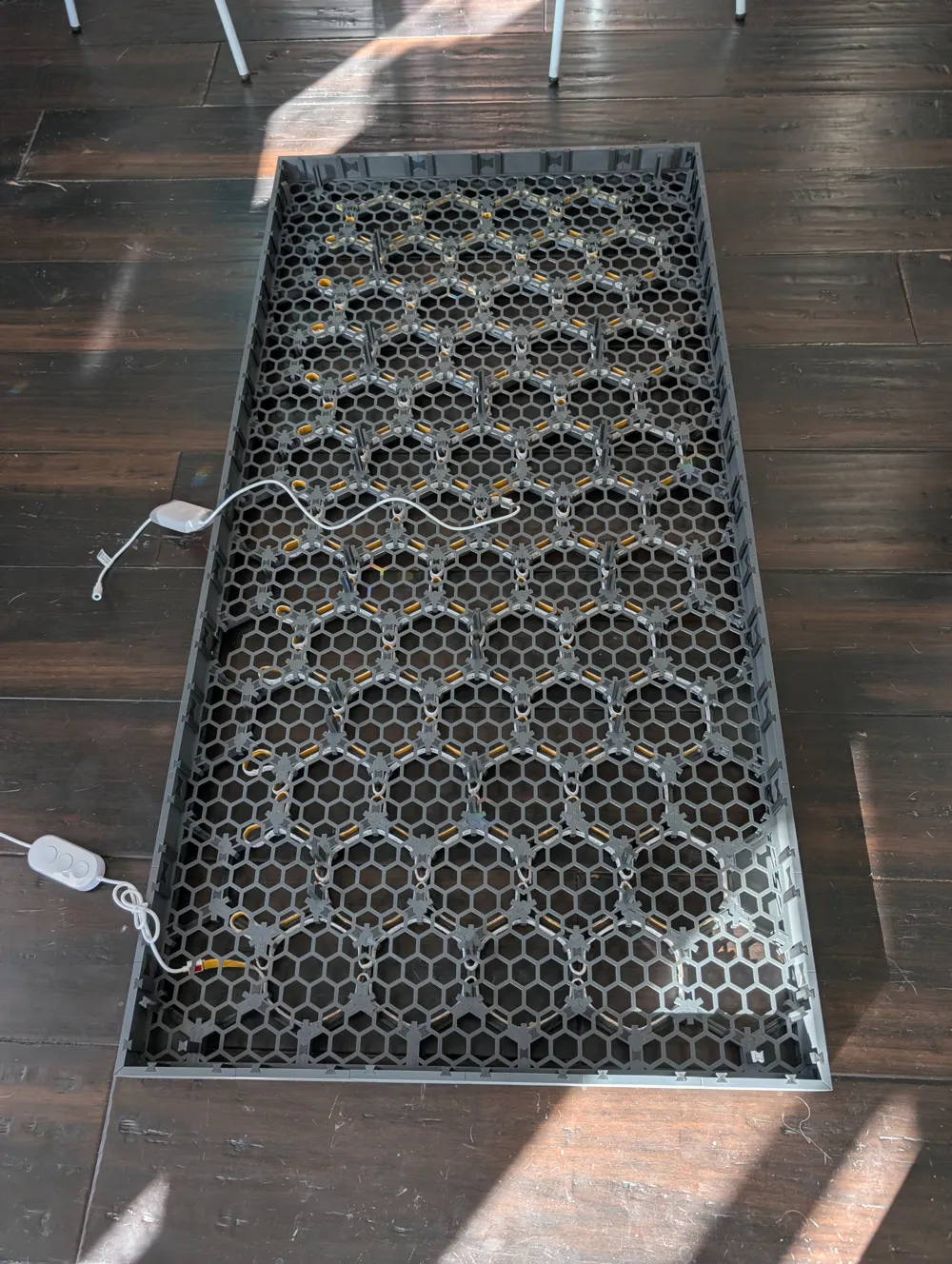

Used (4) 500cm (16.4 ft) light strips routed through the whole frame so that lens locations can be placed anywhere and changed up.

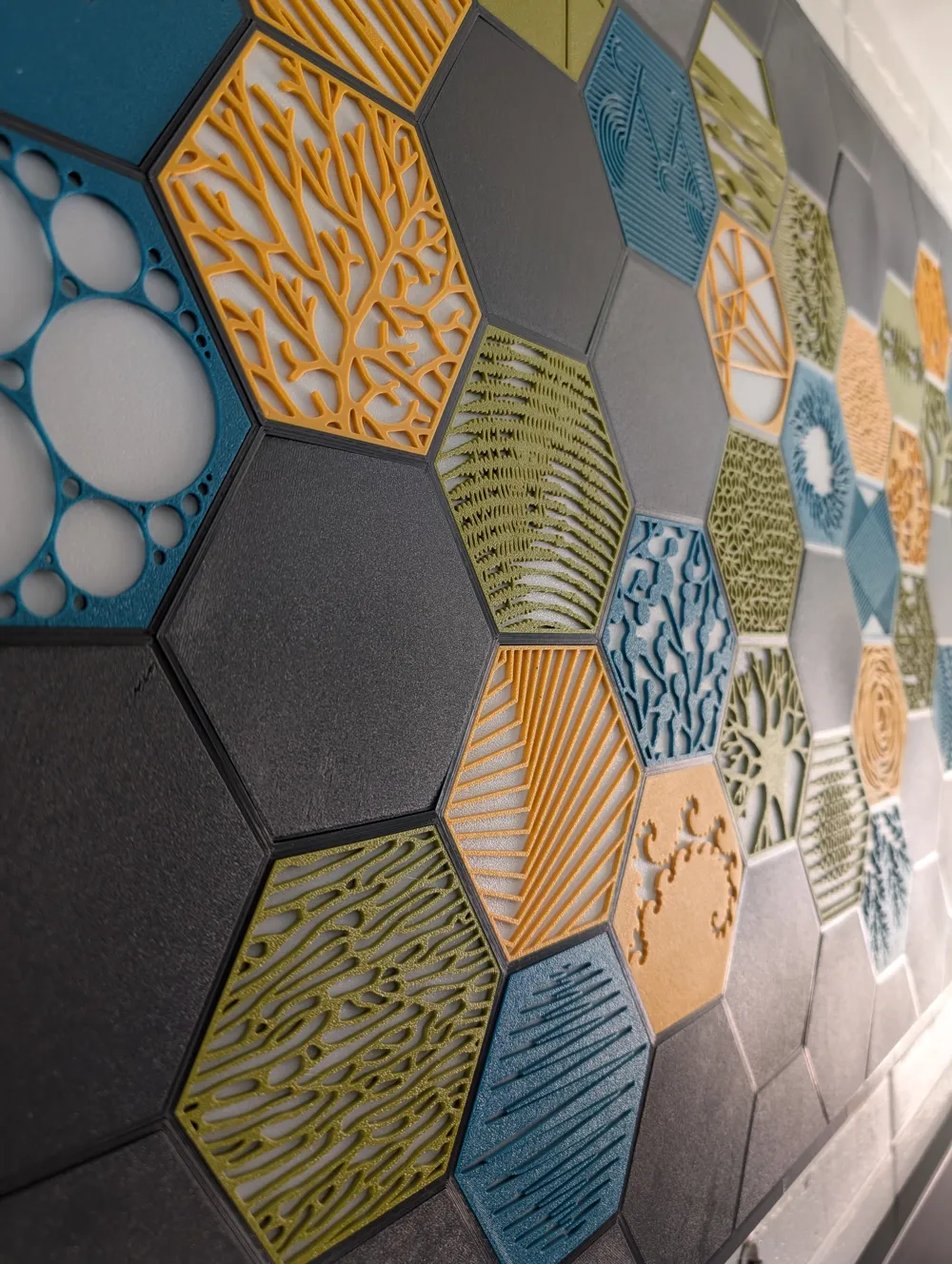

Use a dab of glue to keep hex100 design inserts in place if you don't plan on switching up the design.
