BB-8 CyberBrick Droid (RC Sphere)
Print Profile(2)
Bill of Materials
Description
This is a sphere shaped CyberBrick robot inspired by the fixed-axle mechanism used in some BB-8 builds. Driving it is quite unique and a lot of fun, especially after some practice! Unfortunately, I couldn't get the head to stay on even with strong magnets and significant counter weight while still maintaining reasonable driving experience, so the head is for display only. I hope this inspires more droid inspired CyberBrick builds. :)
The diameter is 126mm (1:4 scale of real BB units).
Tips for driving:
- Start really slow. Slamming full forward will only make the internal mechanism spin around in place. The bot can go really fast, but you need to start softly.
- The turning is based on shifting the battery weight from side to side. The servo is really slow so you need to give it some time.
- The faster the bot is going, the slower the turning. The bot can turn in really small space, but it needs to be inching forward.
- When decelerating from high speed, ease of the throttle gradually. If you need to turn, start it well beforehand.
- There are some cool tricks I've discovered but can't quite phrase, such as quick turning in place by flicking the throttle quickly while turning. You'll learn the ins and outs of the bot after a bit of driving!
Boost Me (for free)
This was a passion project for myself and for my kids, but I hope it finds love here as well. Please consider leaving a Boost if you think the model deserves it.
The following components are needed from the CyberBrick Hardware Kit:
- 1x Multi-Function Core Board
- 1x Remote Control Receiver Shield
- 1x Power Switch Module with 2Pin XH2.54 Connector
- 1x 14500 7.4V 800mAh Li-ion Battery
- 1x 100mm Wire with 2Pin XH2.54 Connectors
- 2x 030 Micro DC Motor with SH1.0
- 2x 1:48 Single-axis Plastic Reduction Gear Kit
- 1x 180° 9g Servo Motor with Clutch Protection
- 1x Ø33.7×13.85mm Rubber Tire
- 19x M2.5x6 BHCS Machine Screw
- 1x Lubricant Grease (for the gearboxes)
Tools needed:
- Small Phillips head screw driver (for servo screws)
- 1.5mm hex screw driver (for BHCS screws, comes with Bambu machines)
- Super glue or similar adhesive for the head assembly

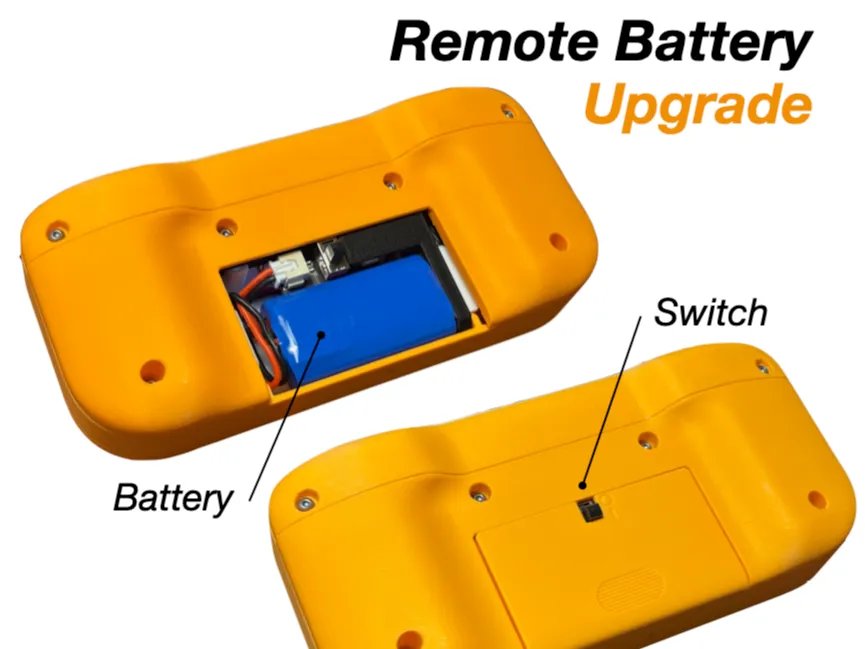

I also recommend updating the controller to use the rechargeable battery with this easy mod:
