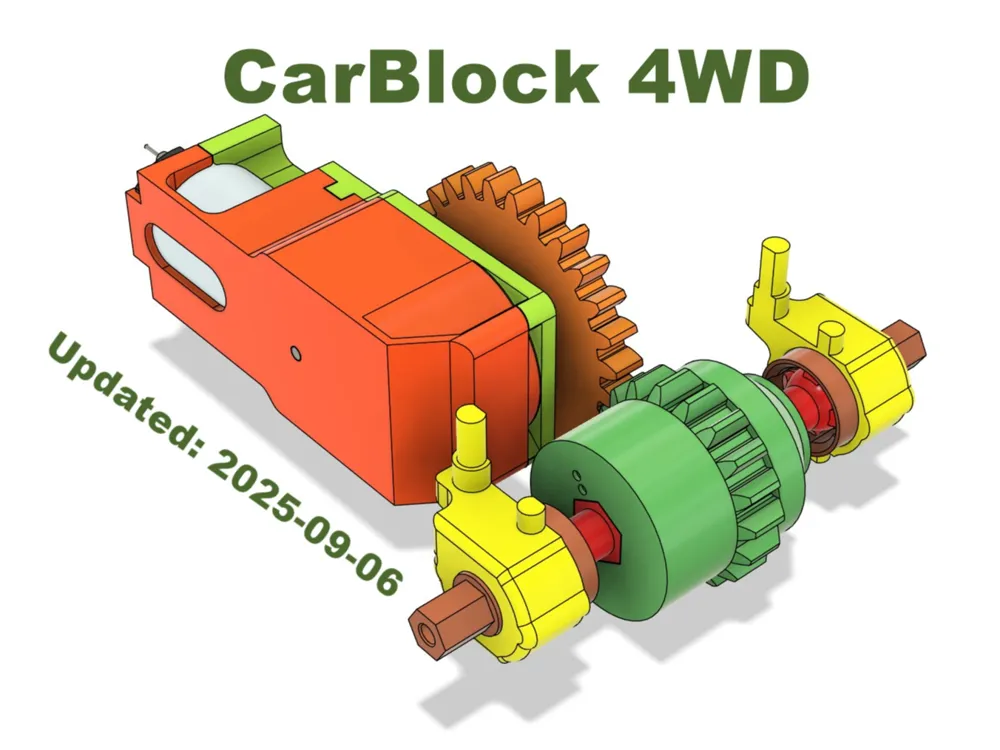

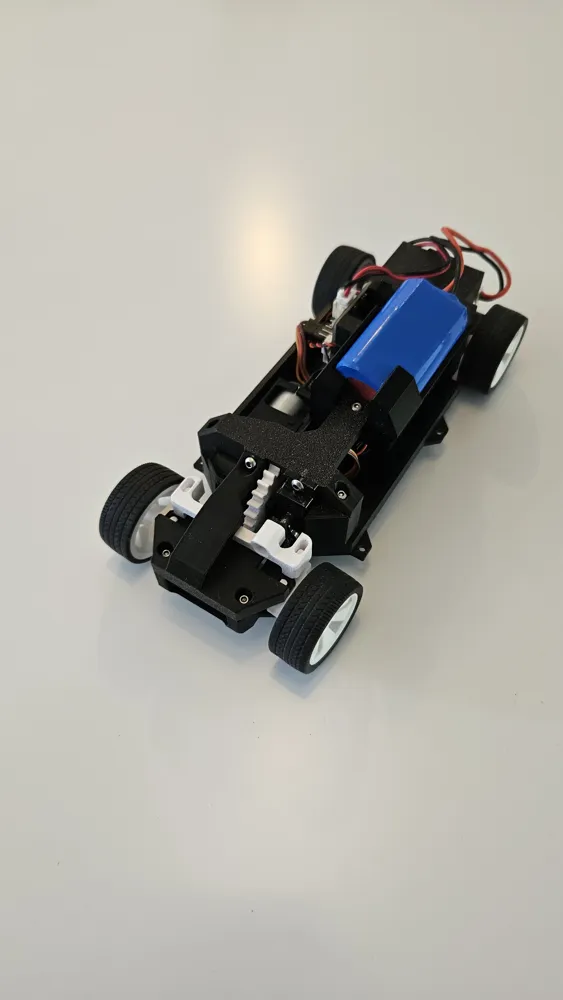

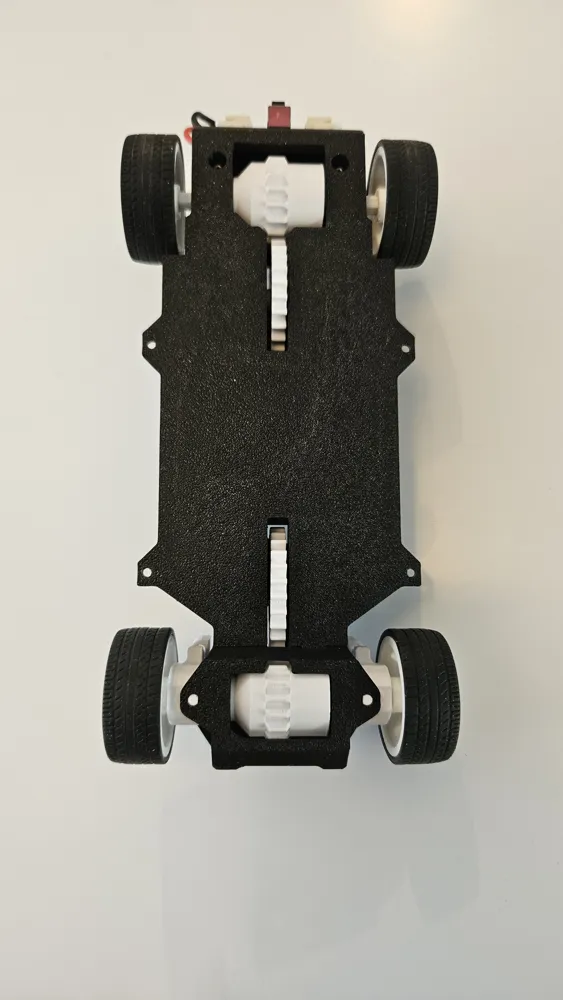

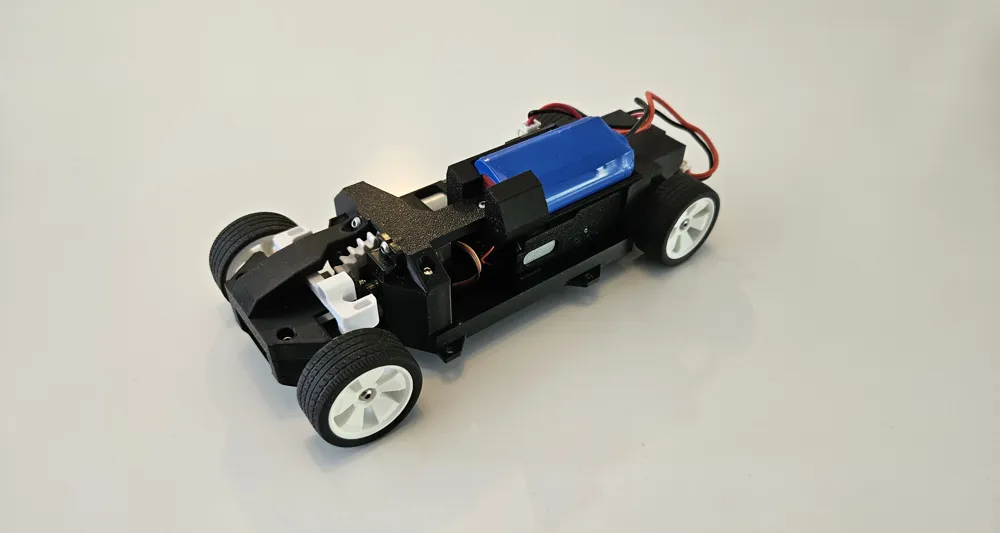

This 4WD Conversion Kit is an add-on specifically designed for the CarBlock RC model (1:24 scale, Cyberbrick-compatible). It allows you to upgrade your existing rear-wheel drive CarBlock into a full four-wheel drive machine, offering improved traction and handling.
For this kit, I created a simplified joint design. The goal was to keep the design as accessible and easy to print as possible
Key Features:
- Designed to fit seamlessly with the CarBlock chassis
- Balanced layout for smooth power distribution
- No structural changes to the main chassis required
Important Notes:
- This kit includes only the components needed to add front-wheel drive
- The original rear-wheel drivetrain remains in place
Design Considerations:
Due to tight space on the chassis, a small modification to the gearbox housing was necessary.
Modified gearbox housings are included for:
- The original 1:48 Cyberbrick gearbox
- The G21 1:21 reduction gearbox
For gearbox assembly instructions, please refer to the CarBlock manual.
Update History
2025-09-06
This kit has been updated with a simplified joint design. This makes assembly much easier compared to the previous version.
