Description
This palm-sized, 3-D-printed fan puts a full 100 mm high-flow propeller in your hand, driven by a smooth gear train that packs serious air into every squeeze
A built-in free-wheel clutch lets the middle gear disengage the instant you release the trigger, so the blades keep spinning—no more timed pumping or sudden stops
Whether you’re fighting a stuffy office afternoon or grabbing a quick breeze on the balcony, this compact gadget brings engineering fun and instant cooling anywhere the sun gets too bold
Both PTA and PETG works but PETG is highly recommended for the spring.
Assembly Steps
Step #1
Lubricate gears and pins, Assemble gear "A" and “1”

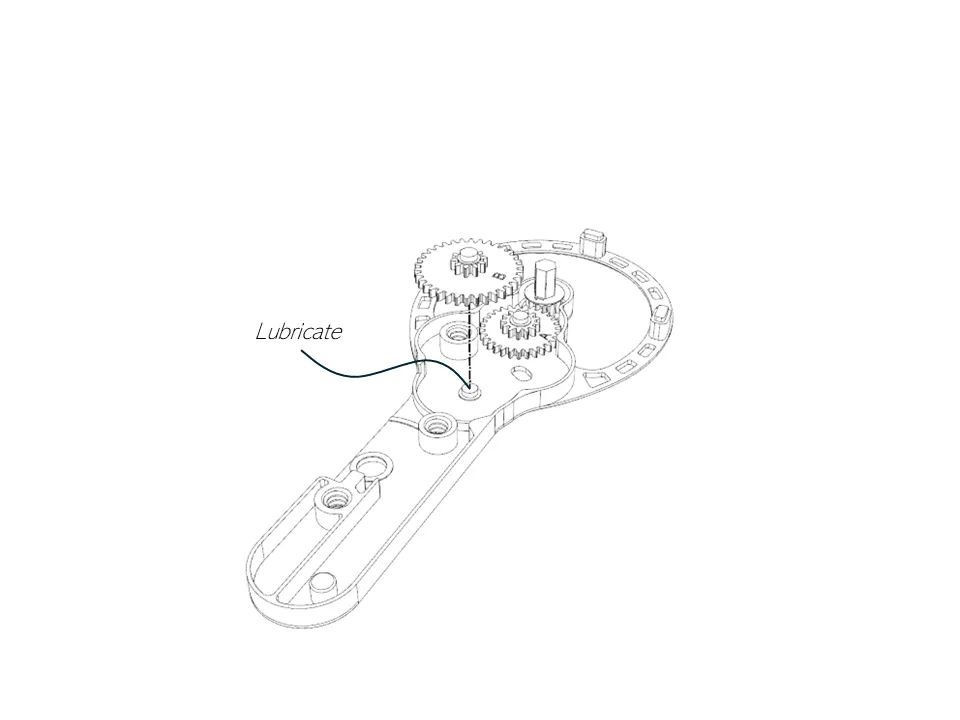

Step #2
Lubricate pin and assemble gear “B”

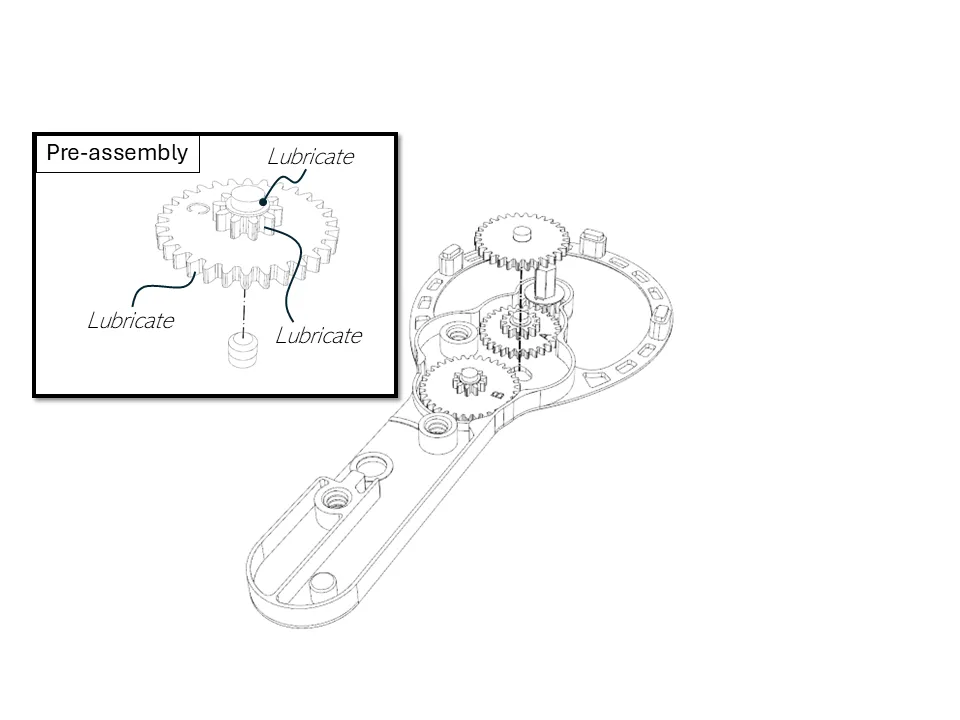

Step #3
Pre-assemble shaft onto gear “C”, lubricate, rotate 180° and assemble in the middle.
Step #4
Inställ spring and trigger

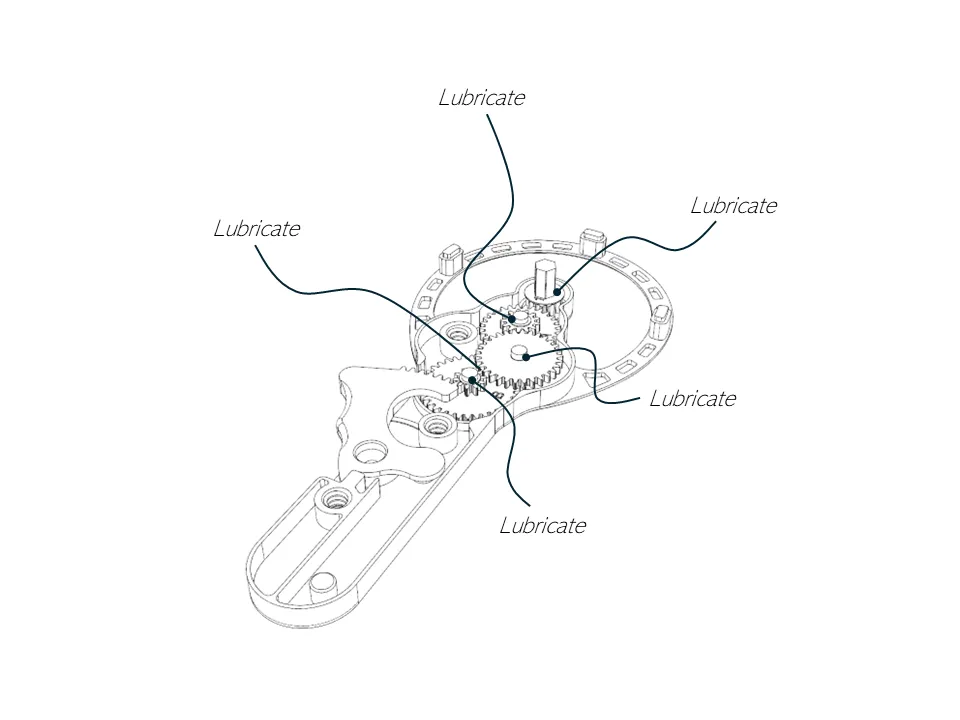

Step #5
Lubricate gear shafts

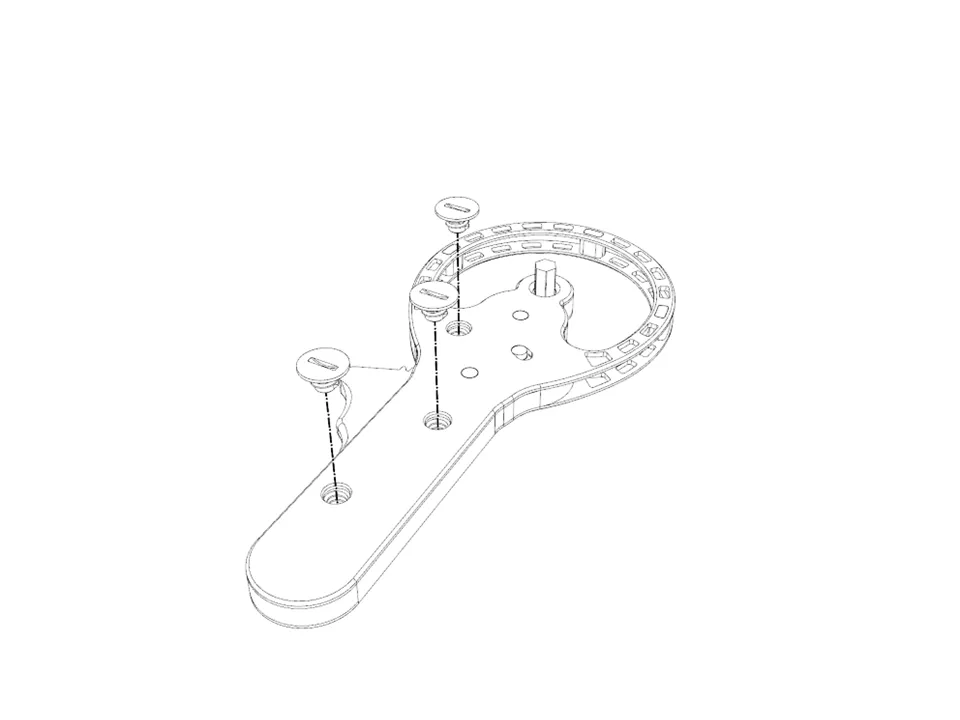

Step #6
Assemble top cover and secure with screw. Do not overtighten! Rotating by simply pressing with the thumb is usually enough. Lubricate if needed.

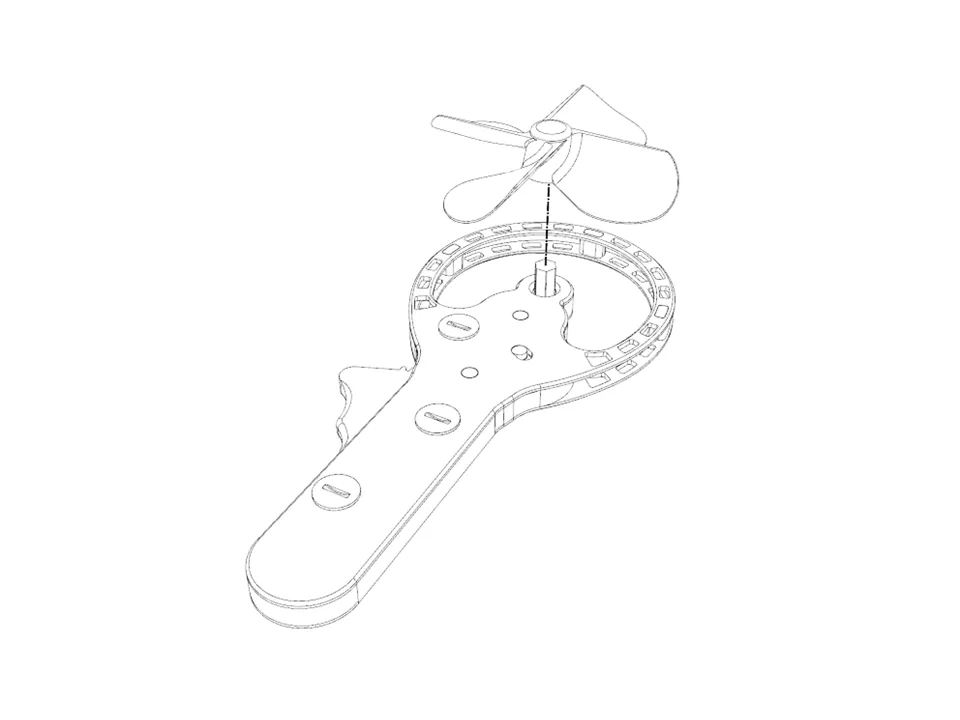

Step #6
Assemble fan blade by pressing.
Step #8

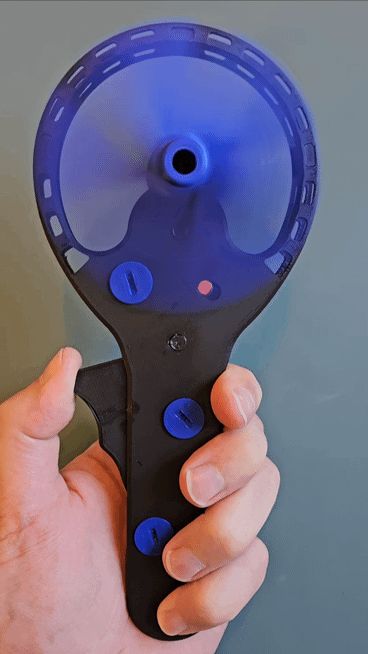

Enjoy the breeze… feel the wind.
