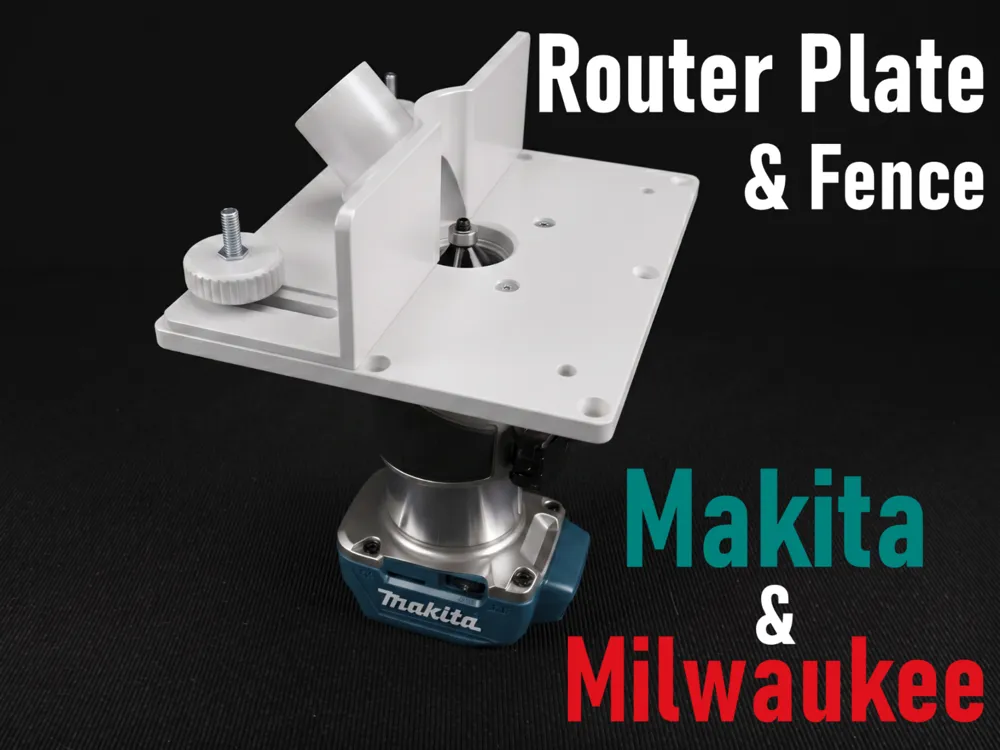

Makita & Milwaukee Router Plate & Fence
Print Profile(6)
Description

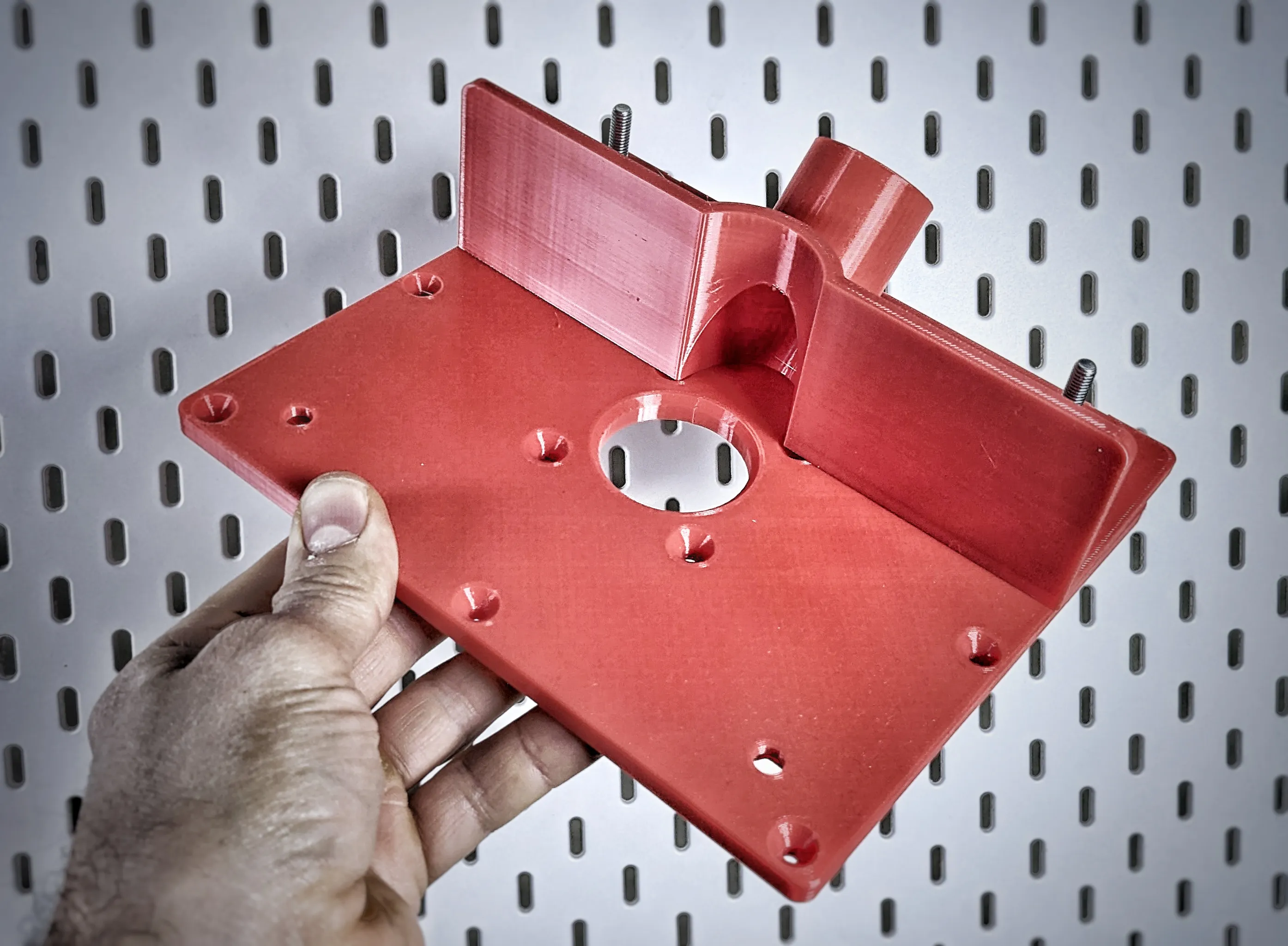

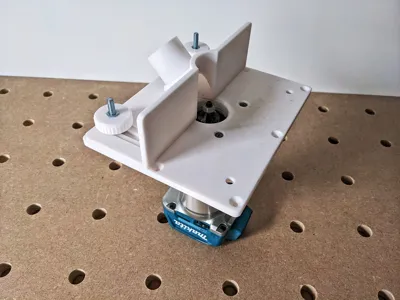

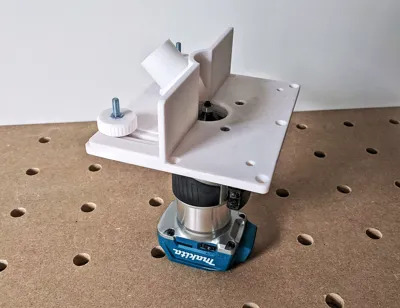

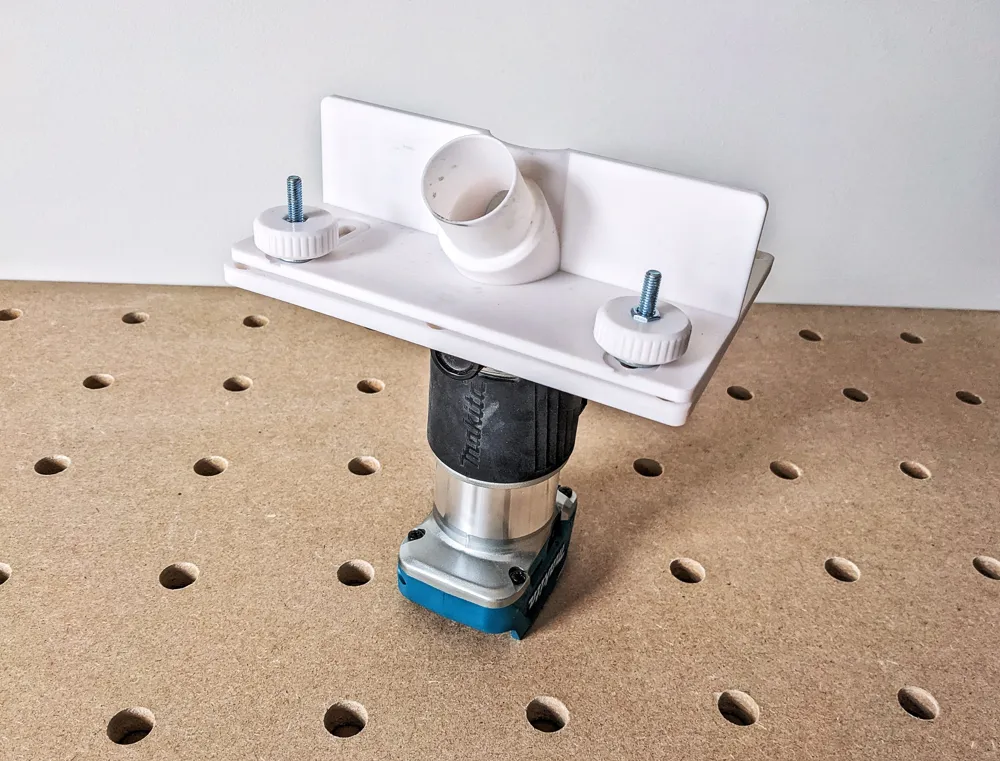

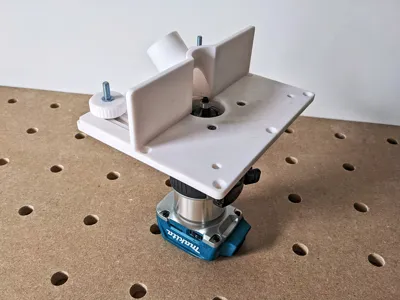

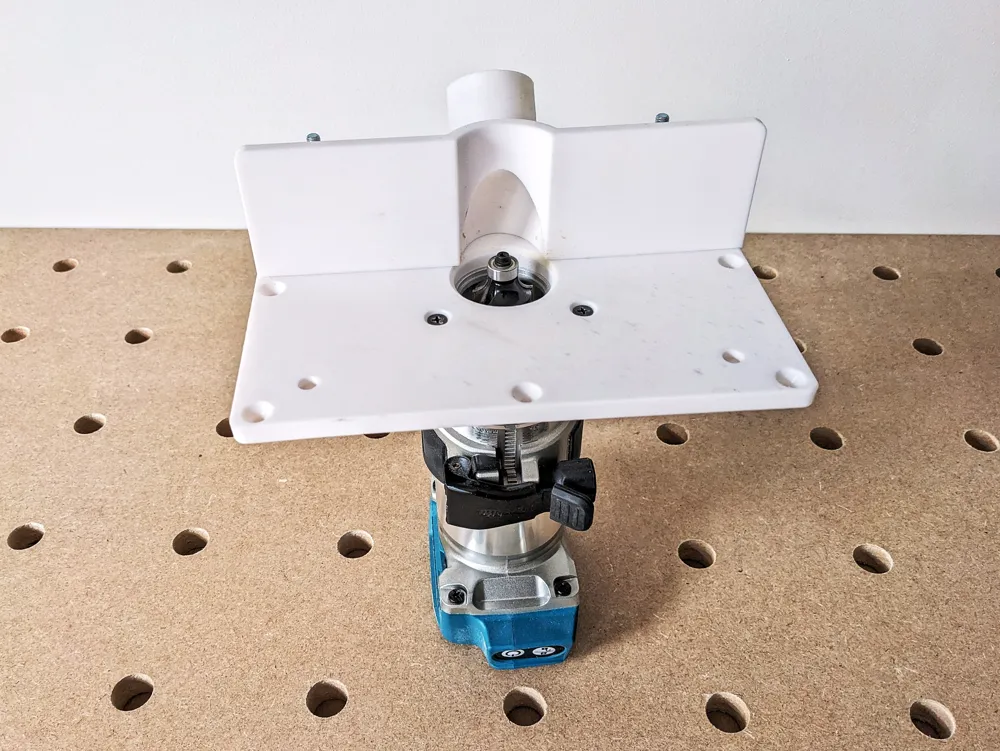

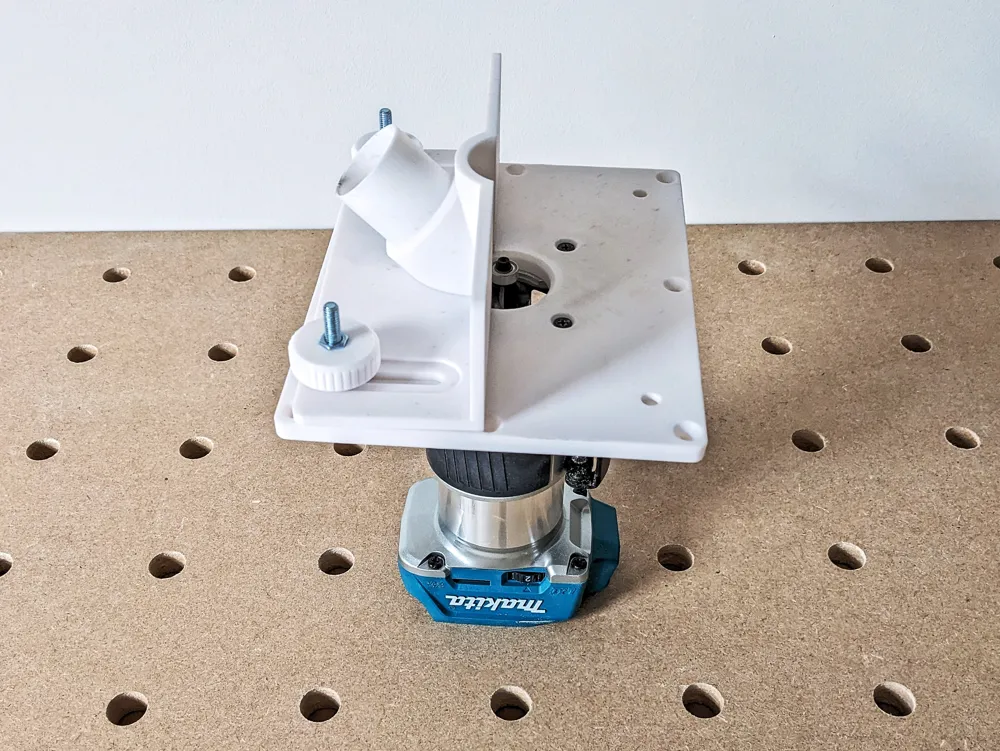

Drop-in router plate and adjustable fence for Makita RT0700, RT0702, DRT50 and Milwaukee M18 Fuel Compact Router (2723-20). Mounts flush into a workbench or side-mounts with a frame, includes a 35mm dust port and fine-positioning fence.
Key Features
✔ Universal Mounting Options – Can be flush-mounted into a workbench or side-mounted with a frame for flexible installation.

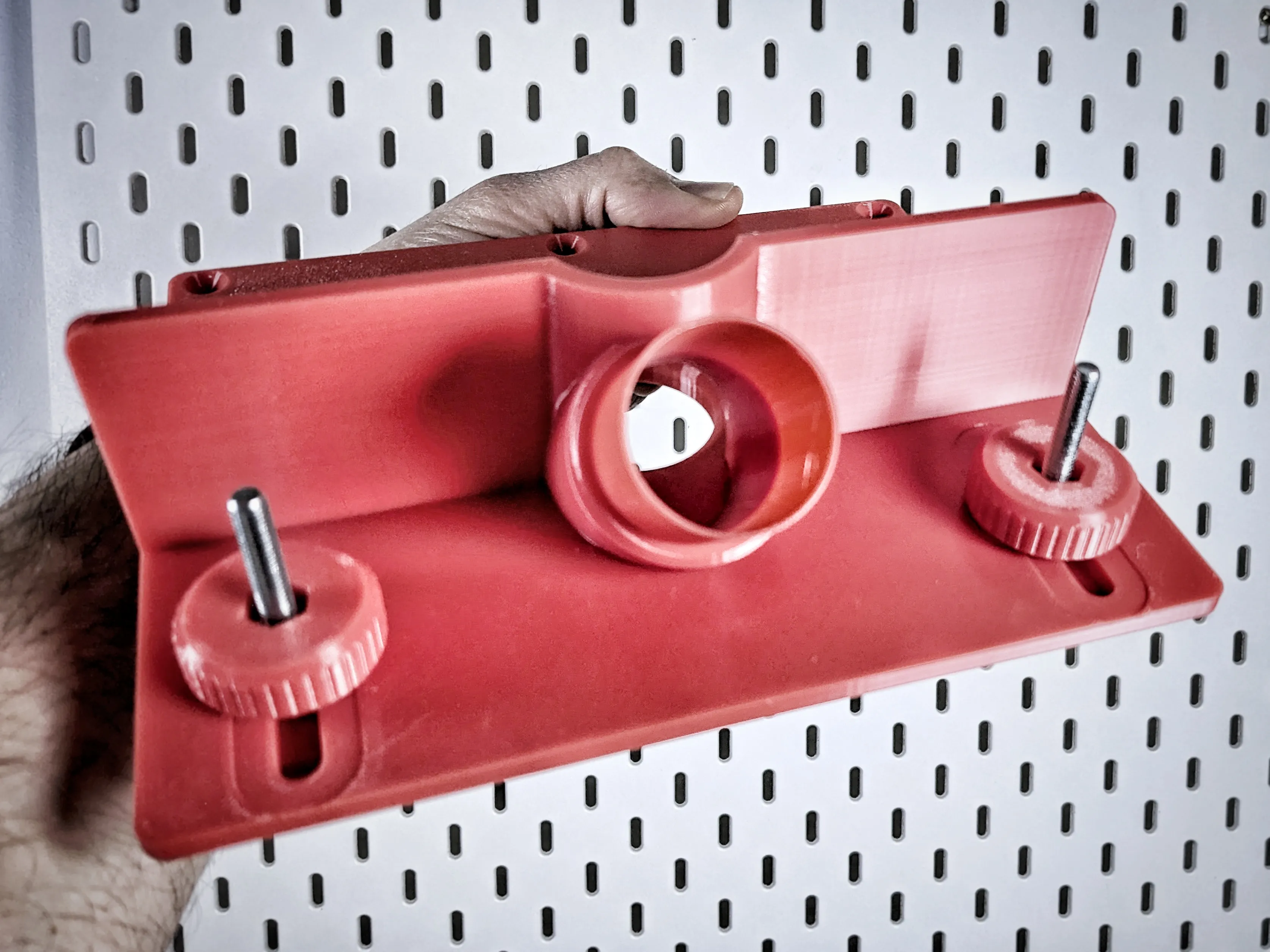

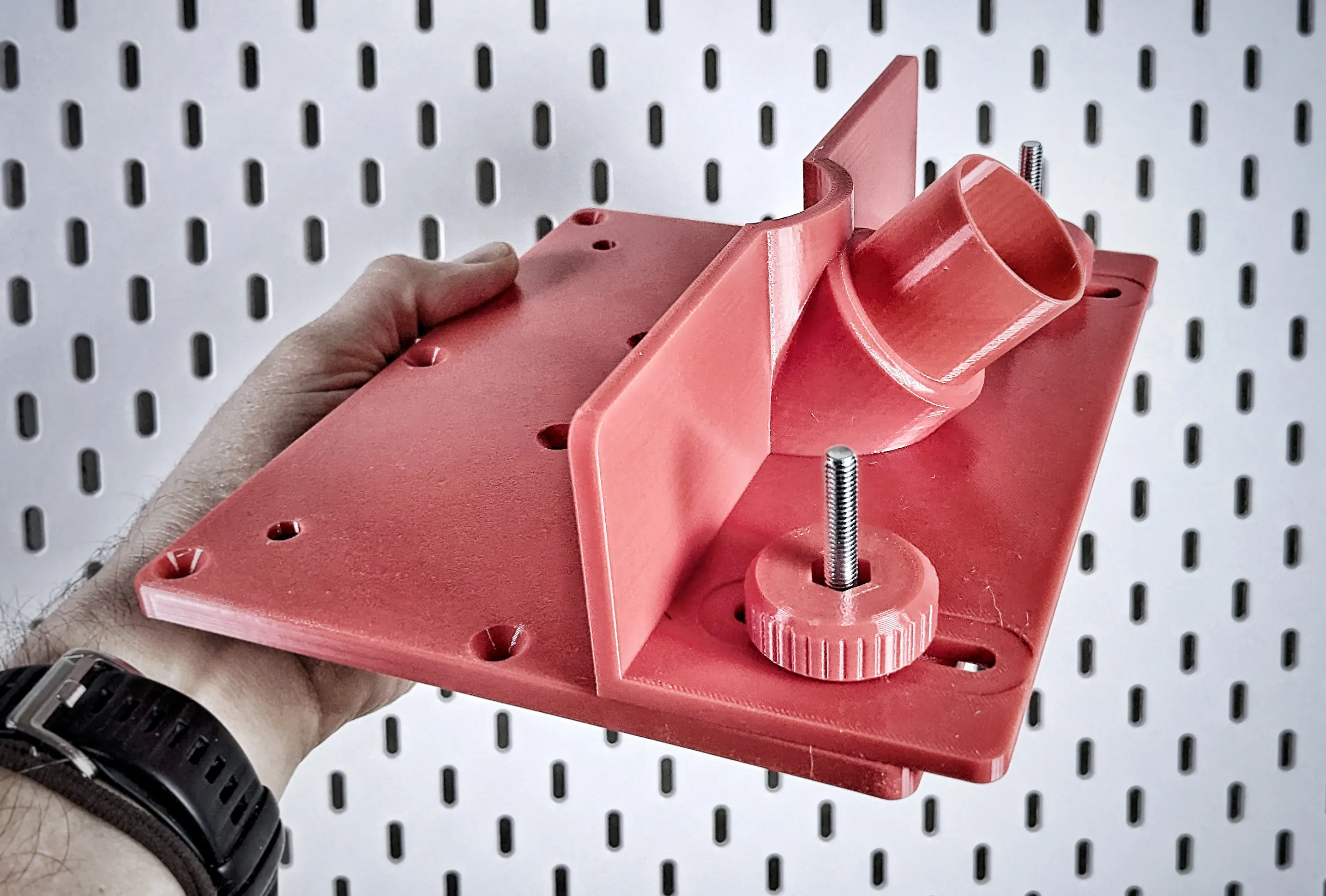

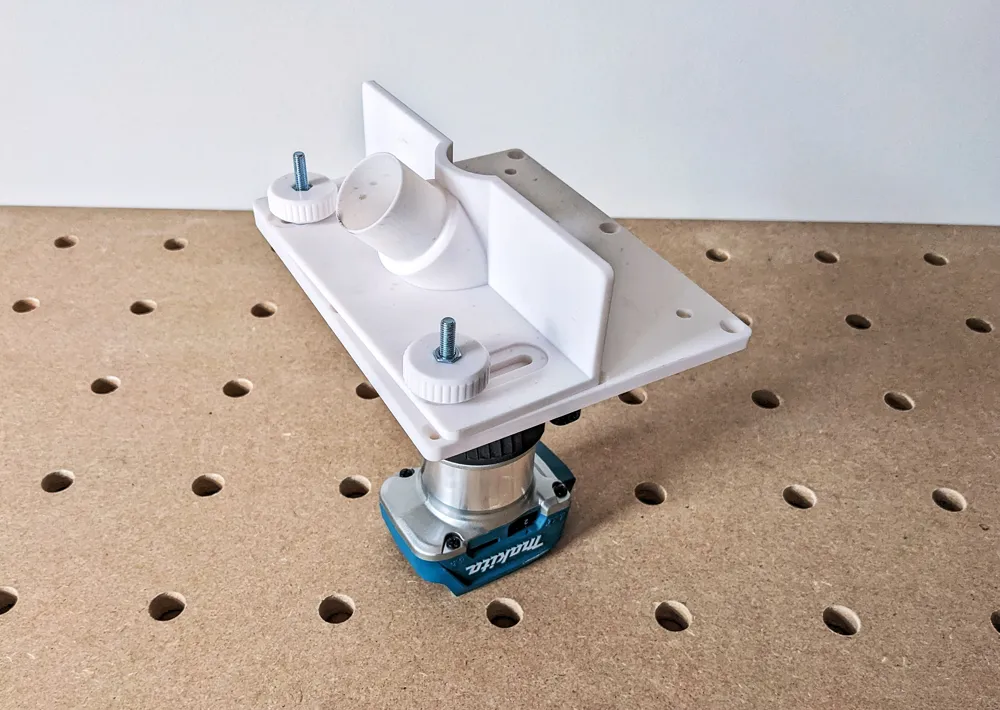

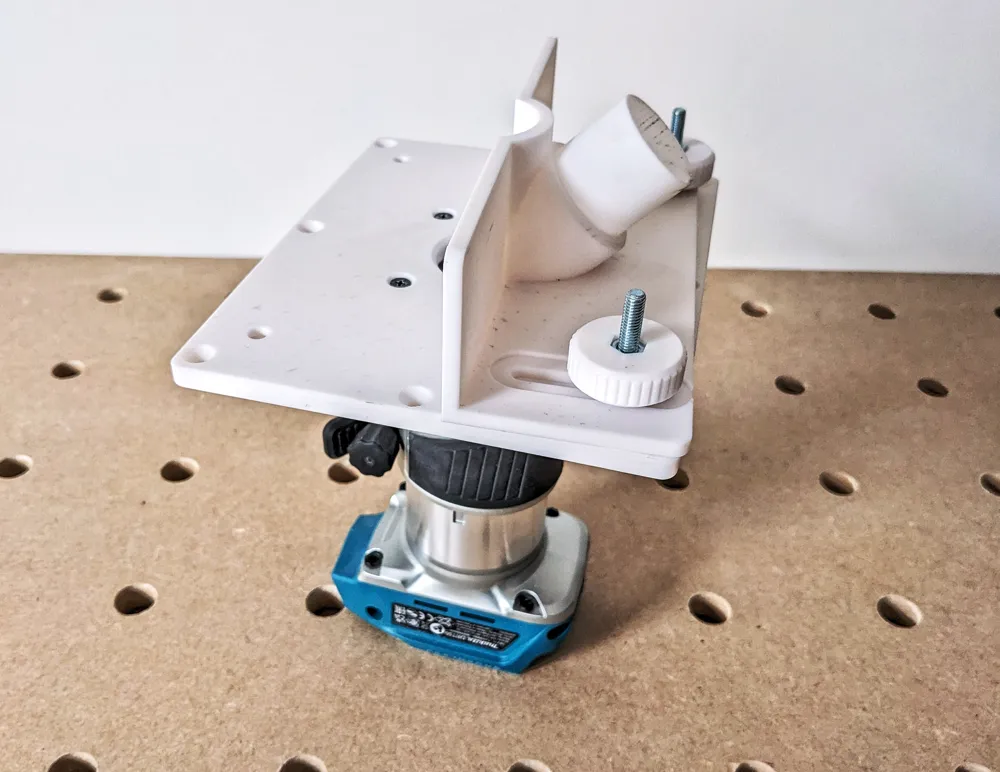

✔ Adjustable Fence with Dust Port – Features fine-positioning adjustment and a 35mm dust port for effective chip collection.
✔ Compatible with Makita DRT50, RT0700, RT0702 and Milwaukee M18 Fuel Compact Router (2723-20).
✔ Sturdy & Secure – Fence attaches using two M6 nuts and two M6x30mm+ screws (hardware not included).
Looking for a plate for a different router? Check out the full family
⚠ Important Printing Note
Due to the large surface area of these parts, proper bed adhesion is critical for successful prints. Ensure your print bed is clean, level, and properly prepared to avoid warping or deformation.
Dimensions

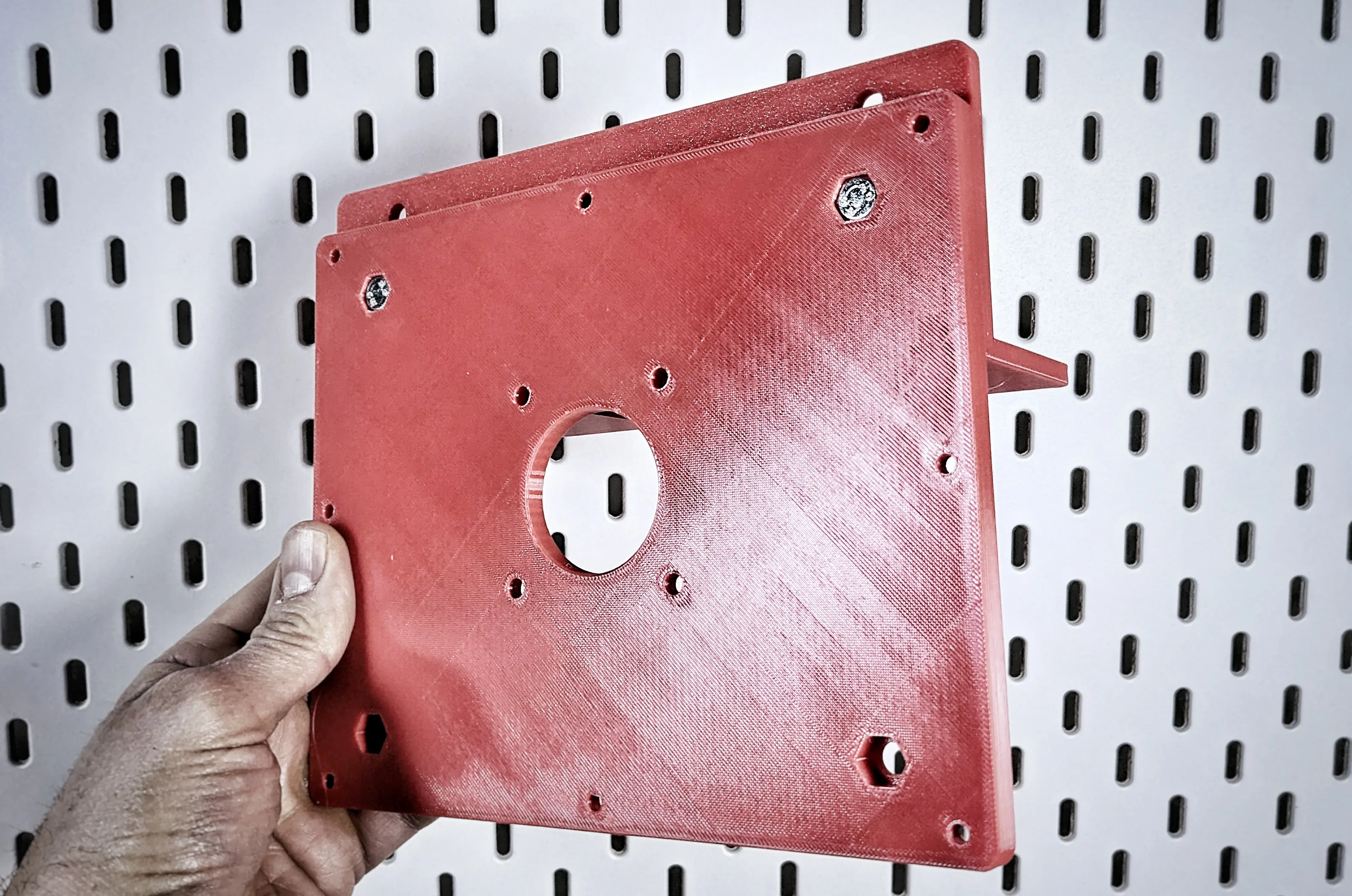

- Insert Plate: 200x160x8mm
- Dust Port Inner Diameter: 35mm

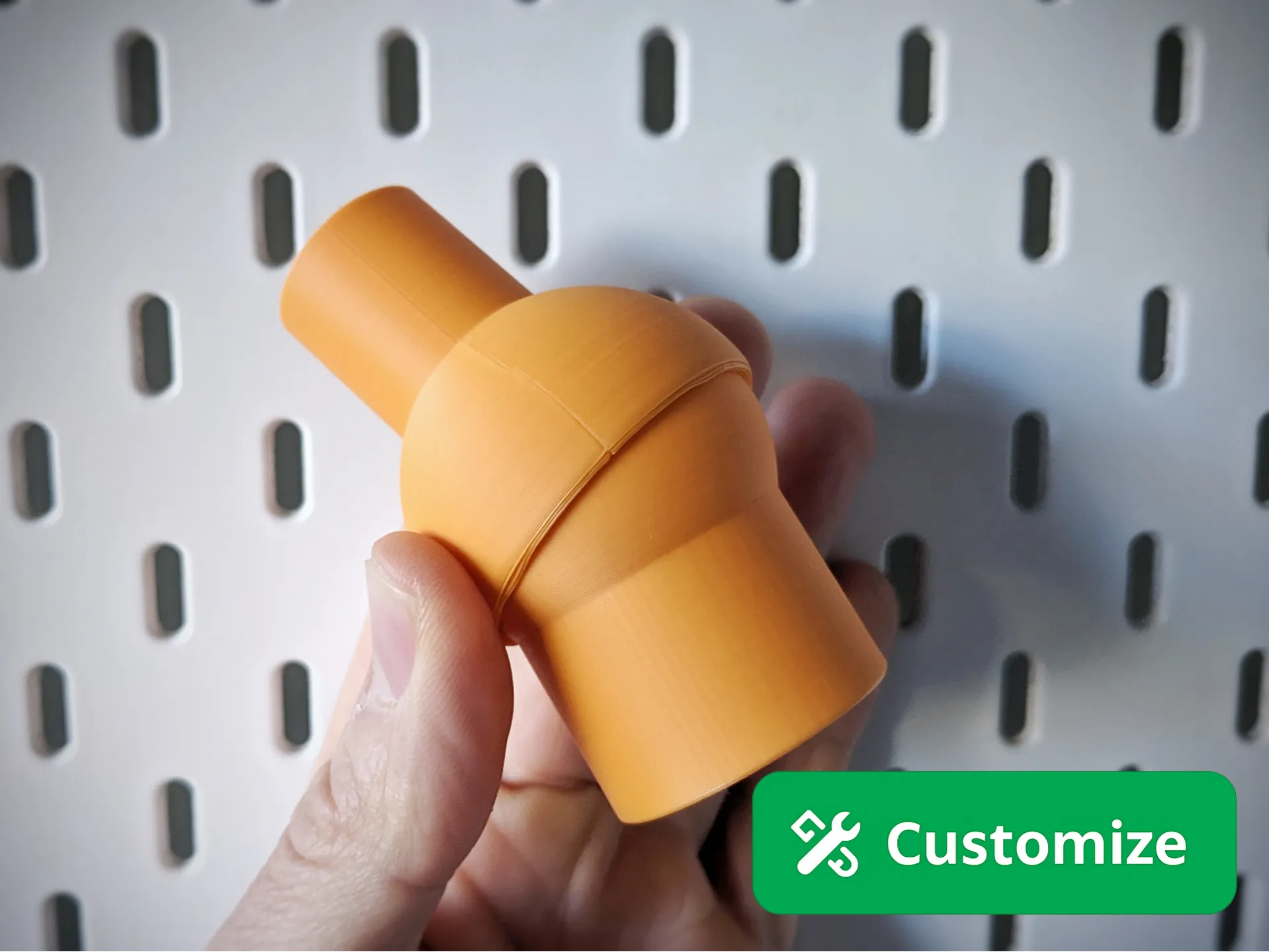

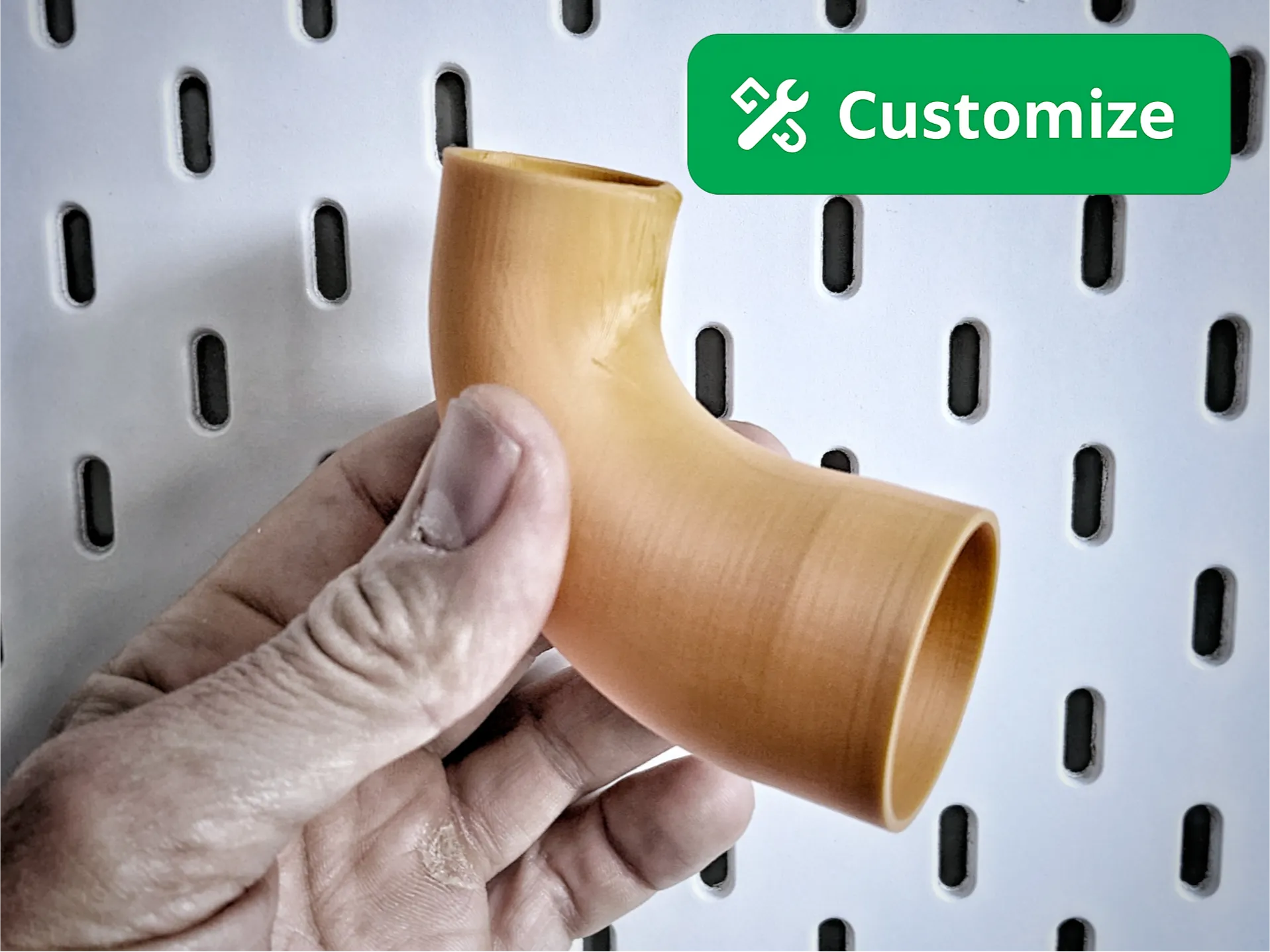

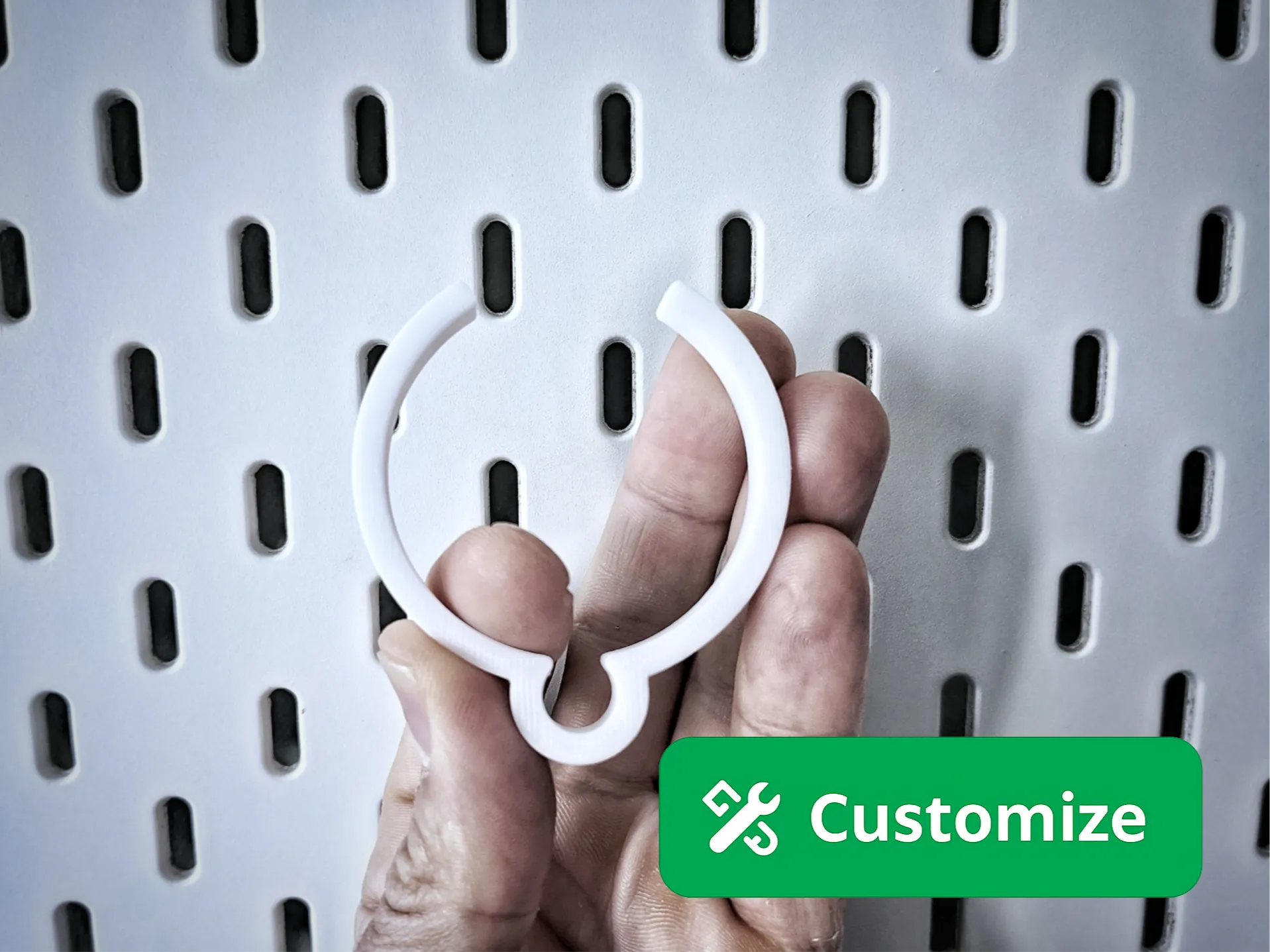

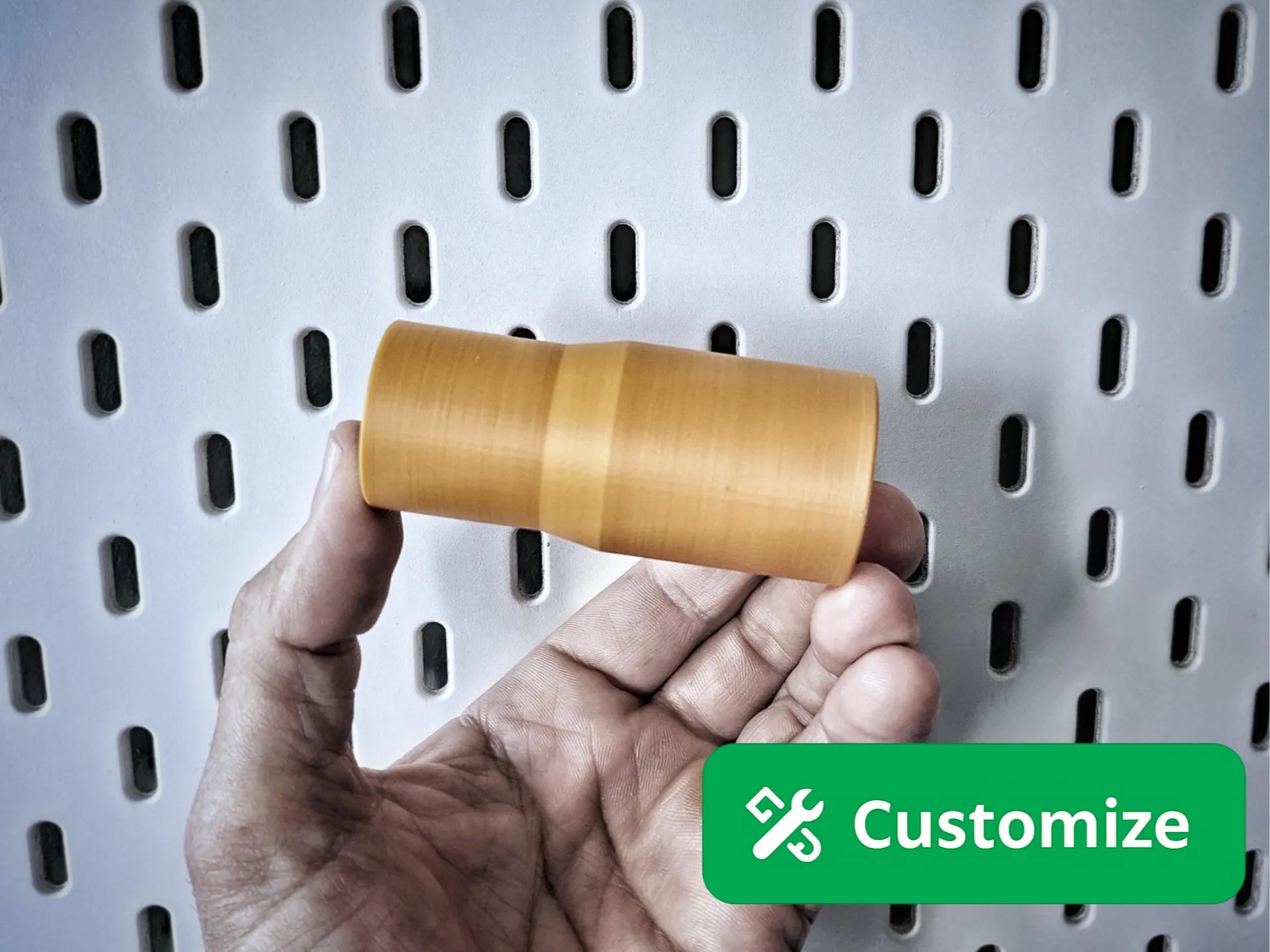

Dust extraction accessories - click to open model page
 |  |
 |  |
If you print it, please leave a rating - it helps a lot. Check out my other workshop models in the Ikea Skadis collection.
Updates
Update 26/01/2026: Added a second fence model to both Makita & Milwaukee print profile, featuring reinforcements and a base that is 20 mm longer with extended adjustment slots. Added an alternative base plate with a smaller 20 mm opening. Thanks for the valuable feedback, @JJ-Fin.
Update 23/01/2026: Added a version for Milwaukee palm router users. A small test piece has been included on the last plate (≈1.45 g of filament), allowing you to verify the mounting hole fit on your router before printing the full set.
 |
|
 |
|
