Description

Features:
NO need AMS, one-piece joints crafted from a single material

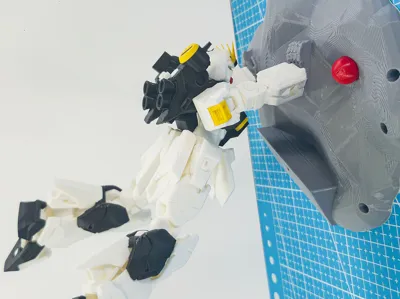

It recreates the scene in CCA where the ν Gundam pushed Axis at the end of the Second Neo Zeon War. It can also be freely transformed into other impressive scenarios from that battle.
Must-Read:
Before printing, you should ensure that Filament does not have excessive extrusion.
Encounter any problems during printing? Contact me at any time.
…Well, I've been quite exhausted recently, so may take some time to fix.

——————More Information——————
SPEC:
Overall height: 19.4 cm, head height: 14.8 cm, body weight: 89g. 40+24 (FFL) joints, 2 Beam sabers, 1 Beam rifle, 1 Bazooka, 1 Shield, 6 Fin funnel, 2 Vulcan.

Frame:

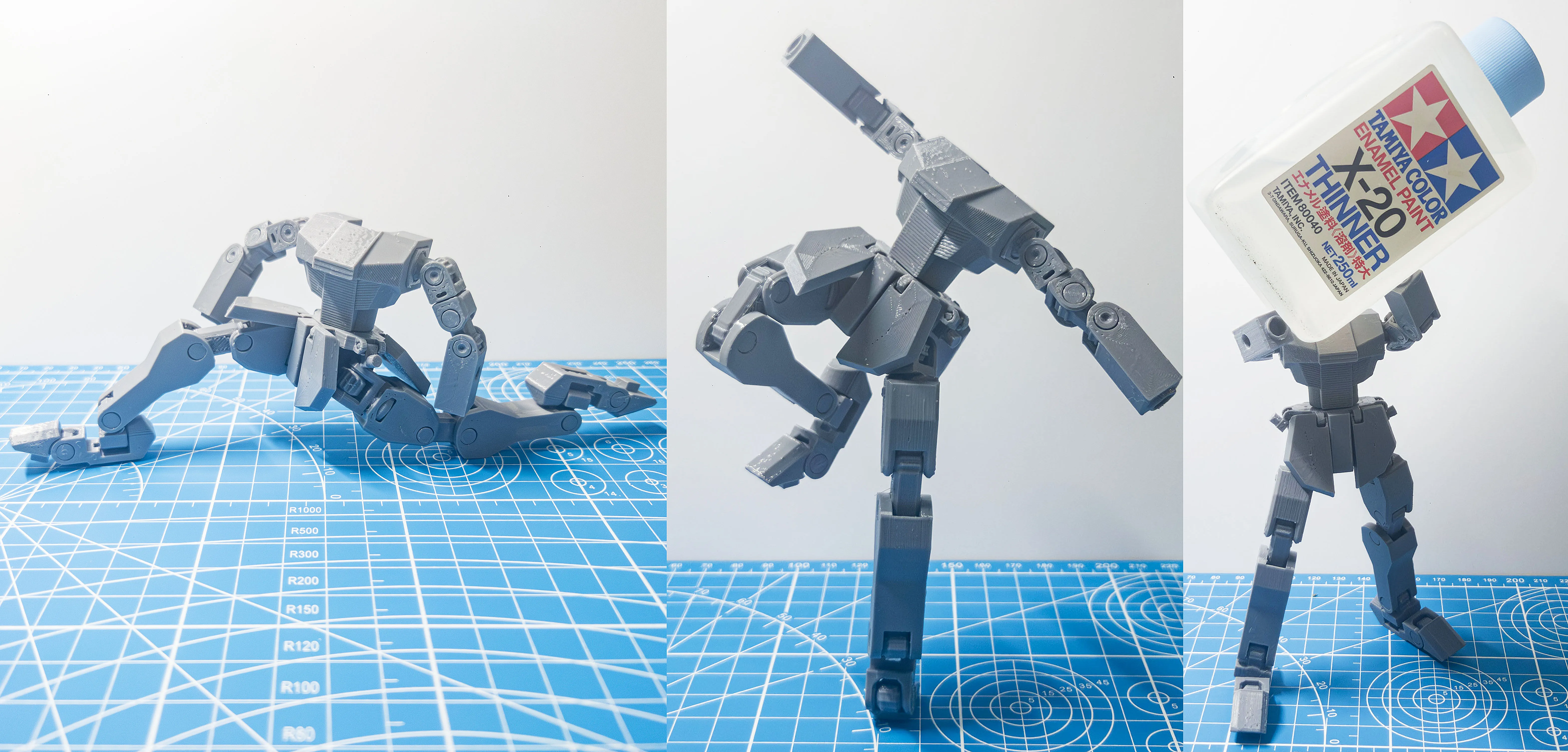

This project is based on LUCF The Last Universal Common Frame and is introduced in a half-shell form: The ZZ joint is a miniaturized version of the Conchi, and this frame is a developed version of the ZZ. Joints are further reduced in size, and the load-bearing capacity is significantly improved. As shown in the picture, there are 36 joints in the 7 main parts of the body, ensuring a wide range of motion.
However, there are still deficiencies in the joints: there will be a large swing range in the initial angle after printing. Currently, this problem is being further corrected, and perhaps more time is needed to study the characteristics of FDM.

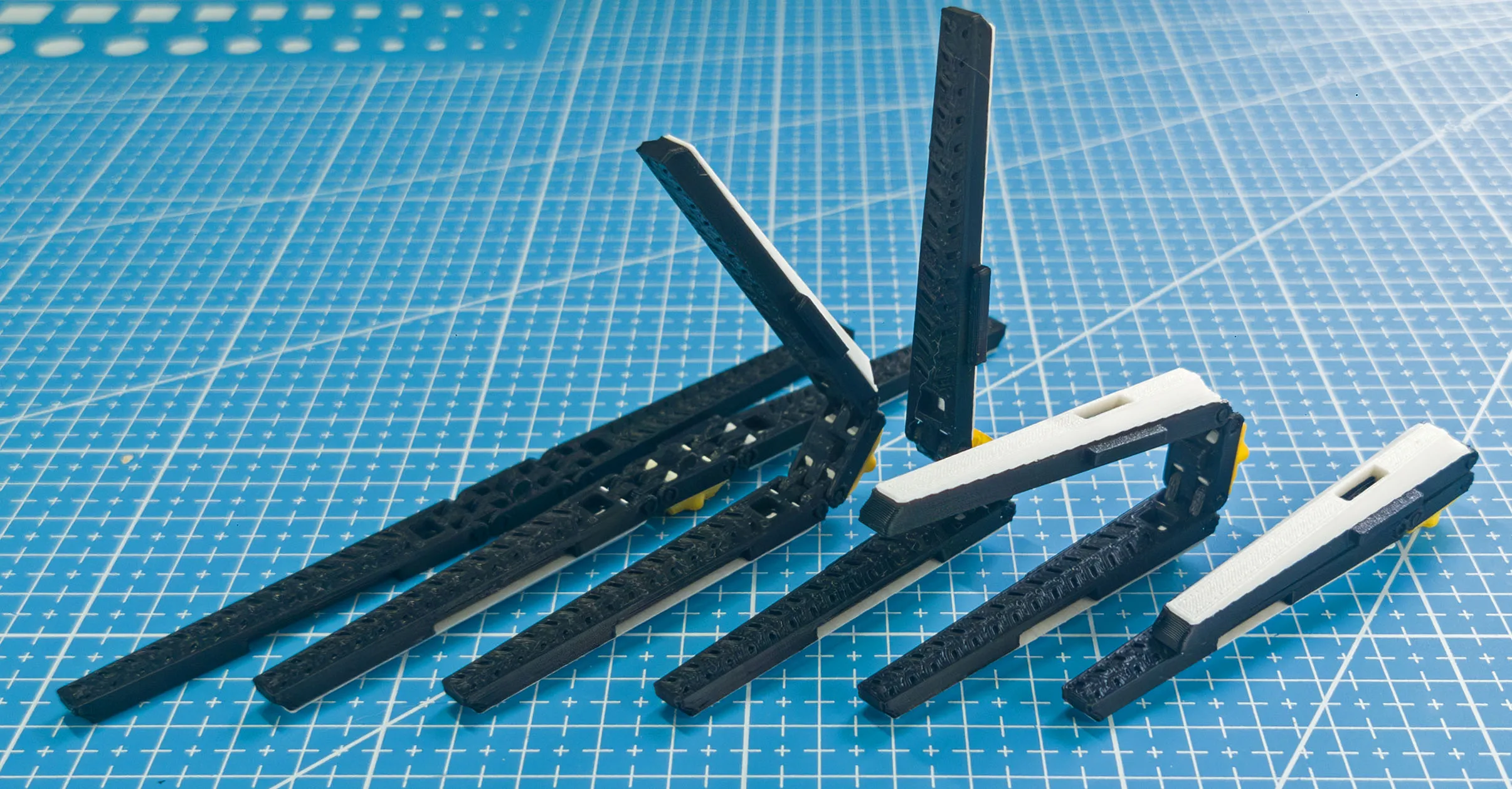

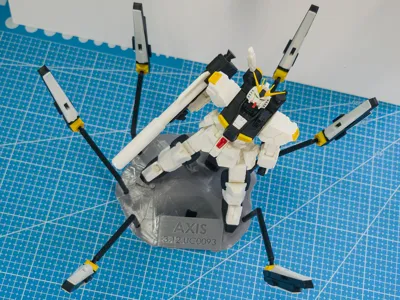

Each funnel has four sets of one-piece printed shafts, enabling full opening and closing. At the same time, allowing it to hover at any angle.

Other:
Shape...νGundam is just for show, appearance is decorative.

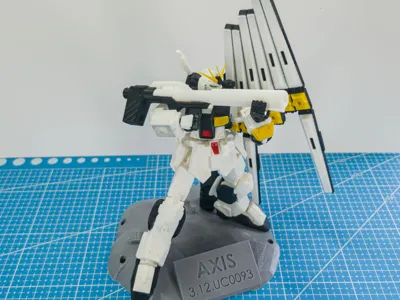

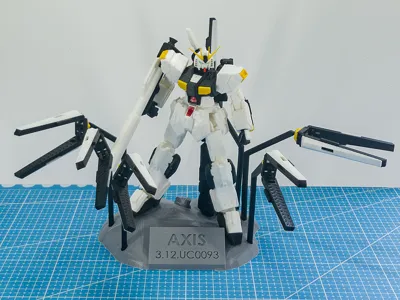

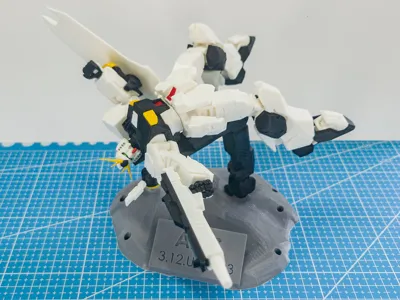

The base part recreates the scene of pushing Axis in 0093. You can also remove the cockpit of the Sazabi to use as a stand. The buckle locking method is as shown in the picture. Its effect is not as good as that of a regular GUNPLA stand. It is mainly used to solve the problem of unstable center of gravity when carrying the funnels.
Due to size and strength issues, almost all the yellow nozzles couldn't be made into separate parts. Otherwise, the detail effect would be much better.
In addition to LUCF, from this model onwards, easy-to-print universal hands will also be introduced, greatly reducing the problem of repeated work.
