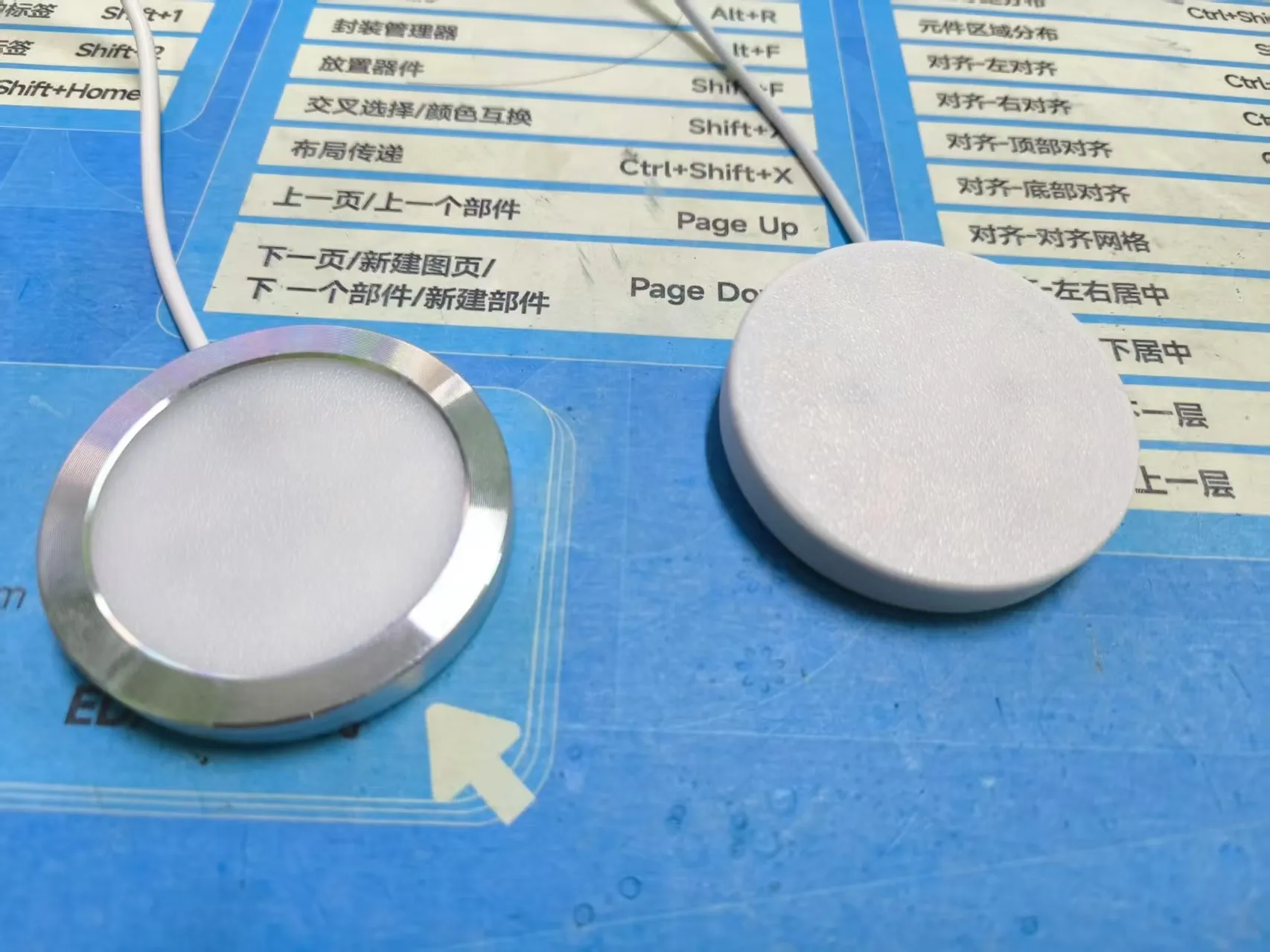

Integrates with Mijia's dual-color temperature LED (completely compatible with the LED001 kit)
Print Profile(1)
Description
Utilizes widely available third-party Mijia ESP32 modules from Xianyu/PDD, adapting to the IO definitions of the two most commonly disassembled modules.

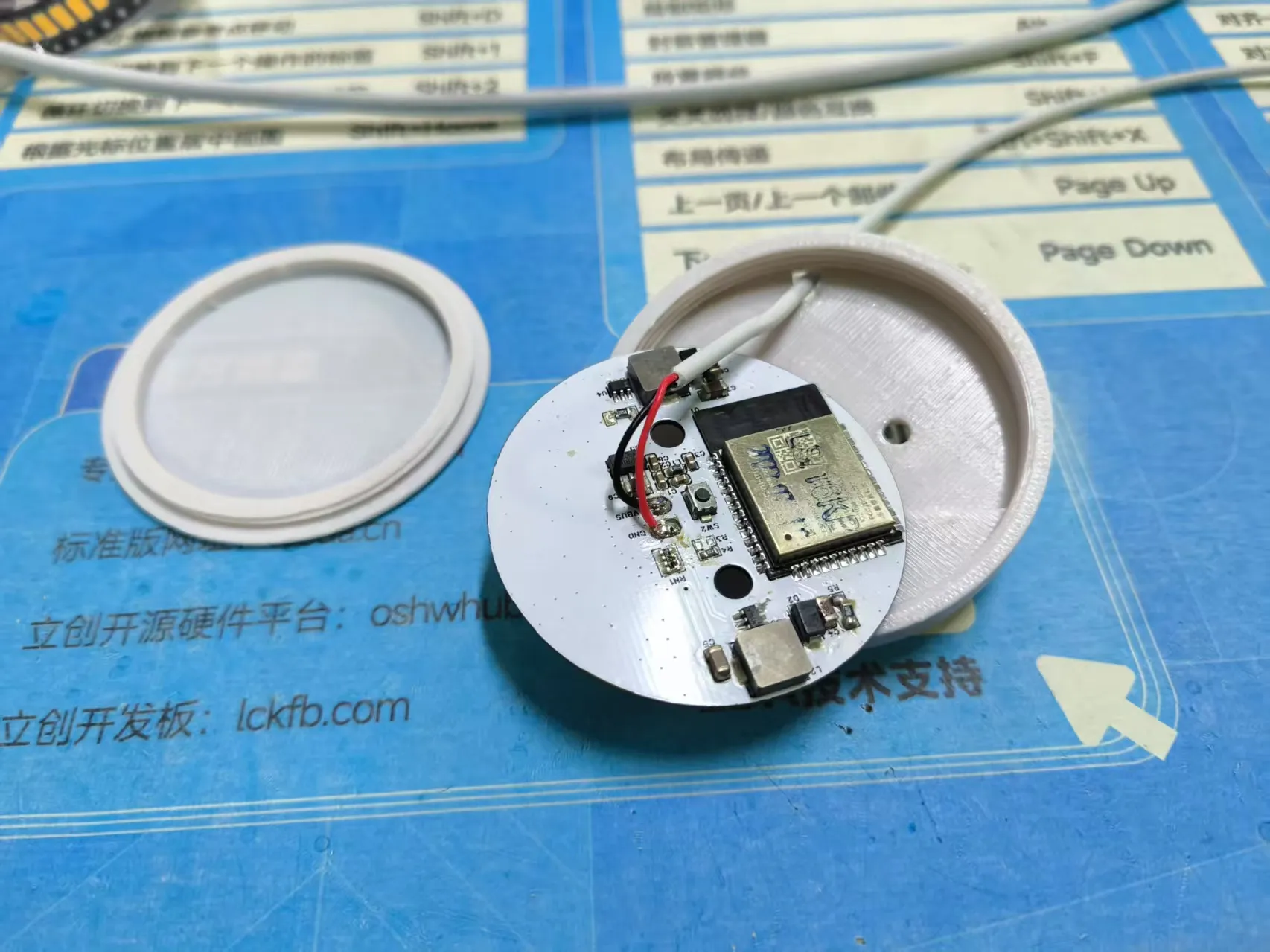

Hand-tightened screw installation, with upper and lower shells, requiring no additional hardware.
Powered by 5V; wires must be inserted into the housing before soldering to the board.

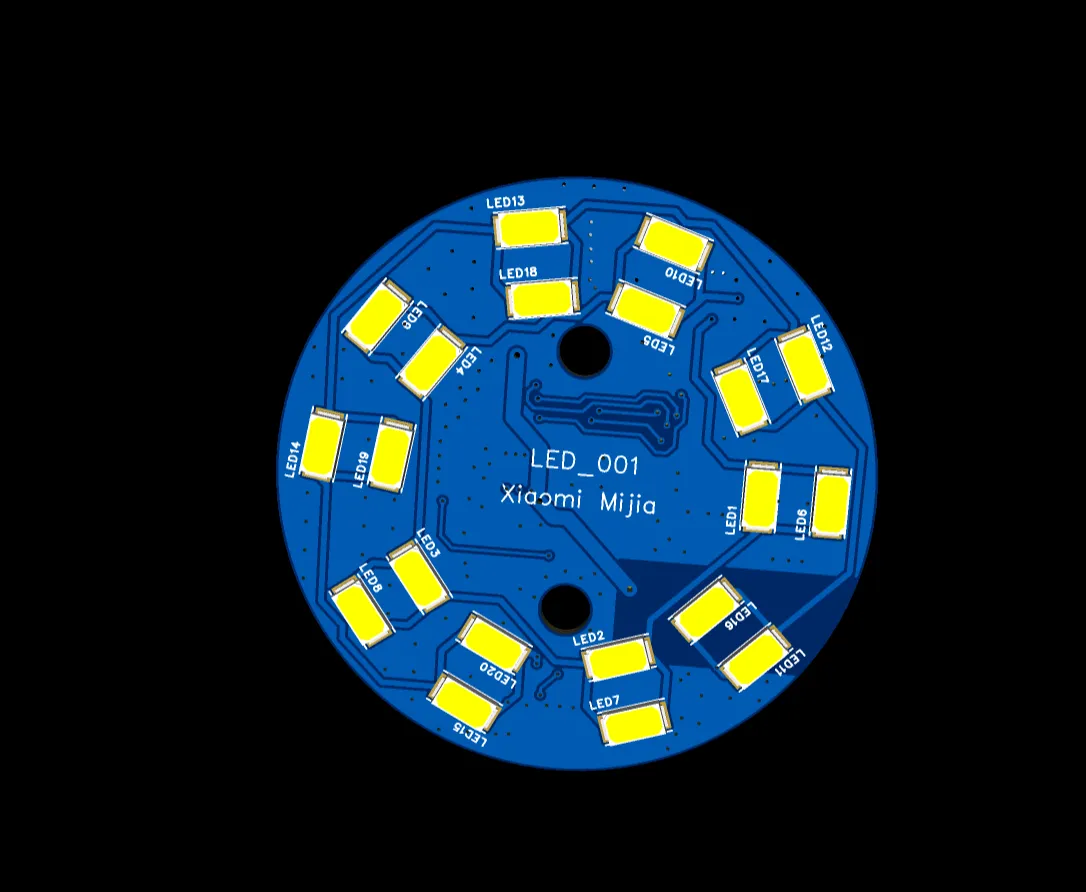

It is recommended to use Osram 5730 RA>95 LEDs for soldering.

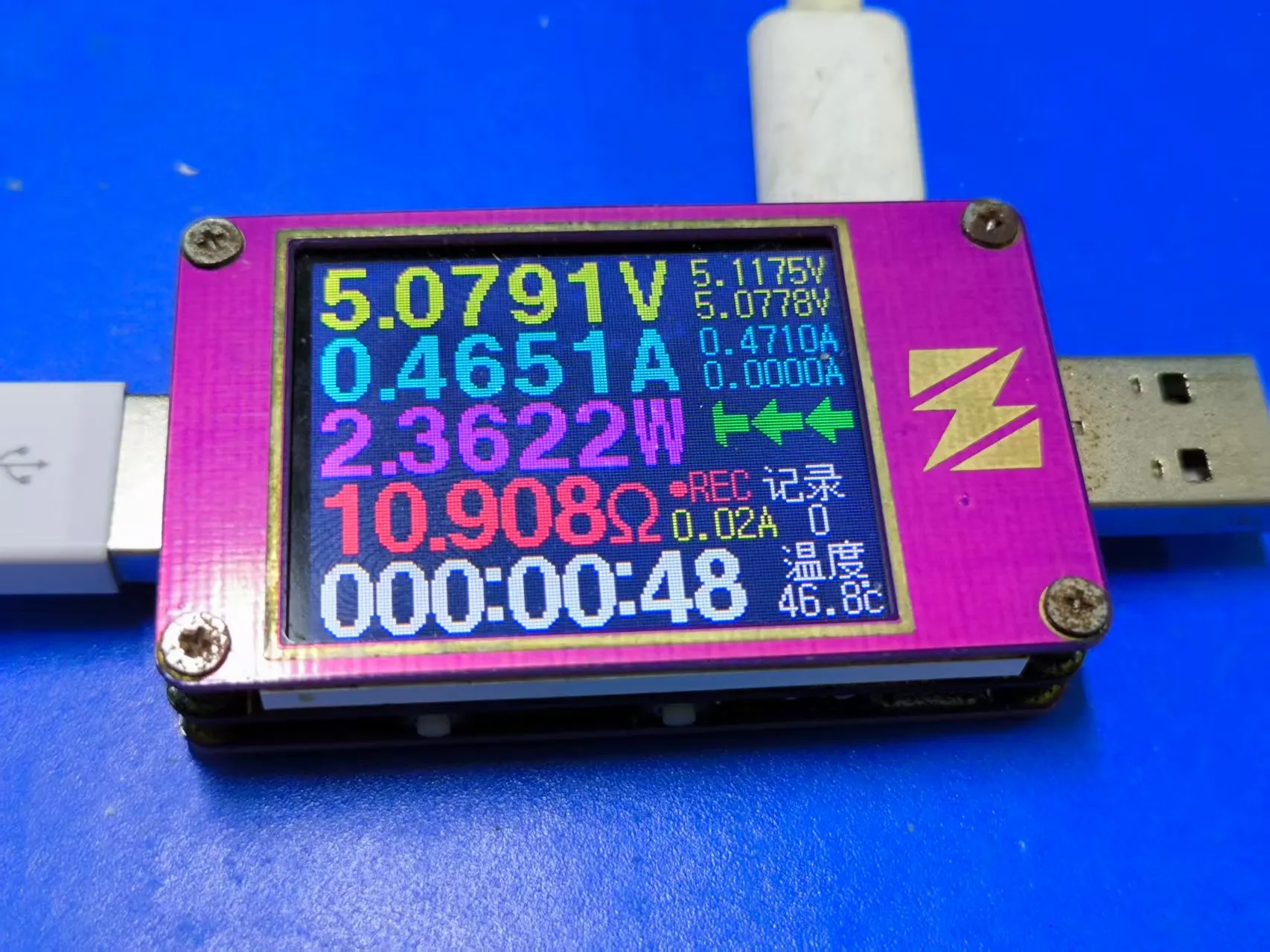

Power consumption is also matched to LED001 (1.9W); actual measurement at full brightness is around 2.3W.
Hardware will soon be open-sourced, and finished products will soon be listed on Xianyu @an_ye-666
