Weber Genesis II E-325 GBS Gas Grill - Swivel Casters
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
3.2 h
1 plate
Open in Bambu Studio
Boost
17
37
16
6
59
21
Released
Description
Content has been automatically translated.

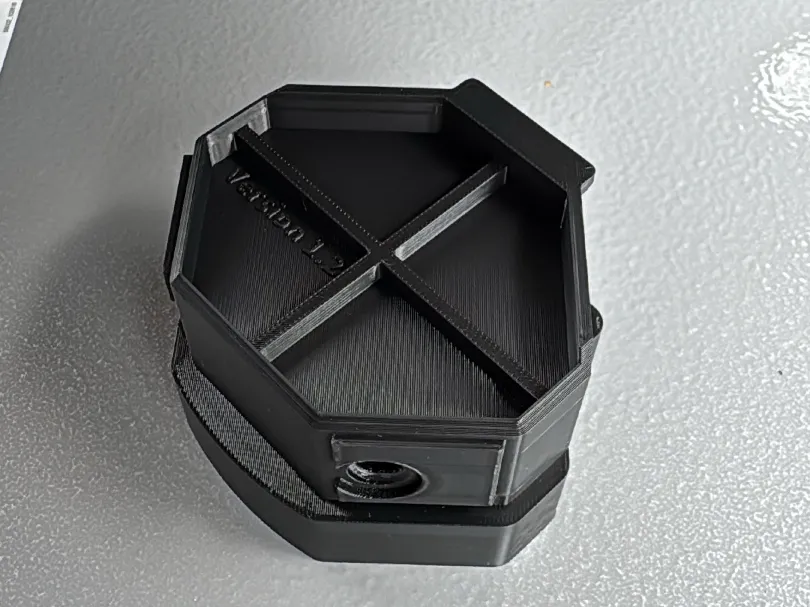

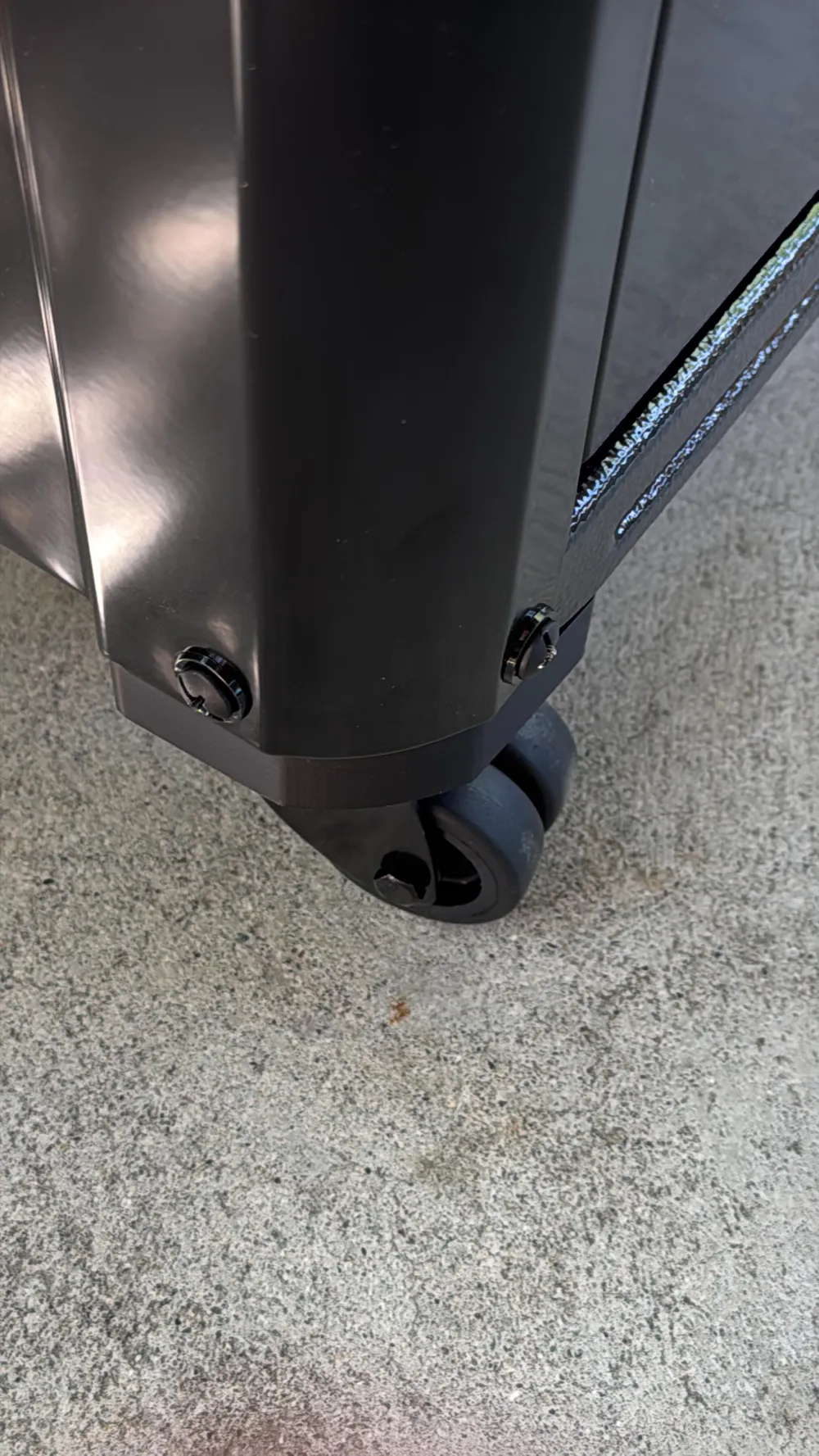

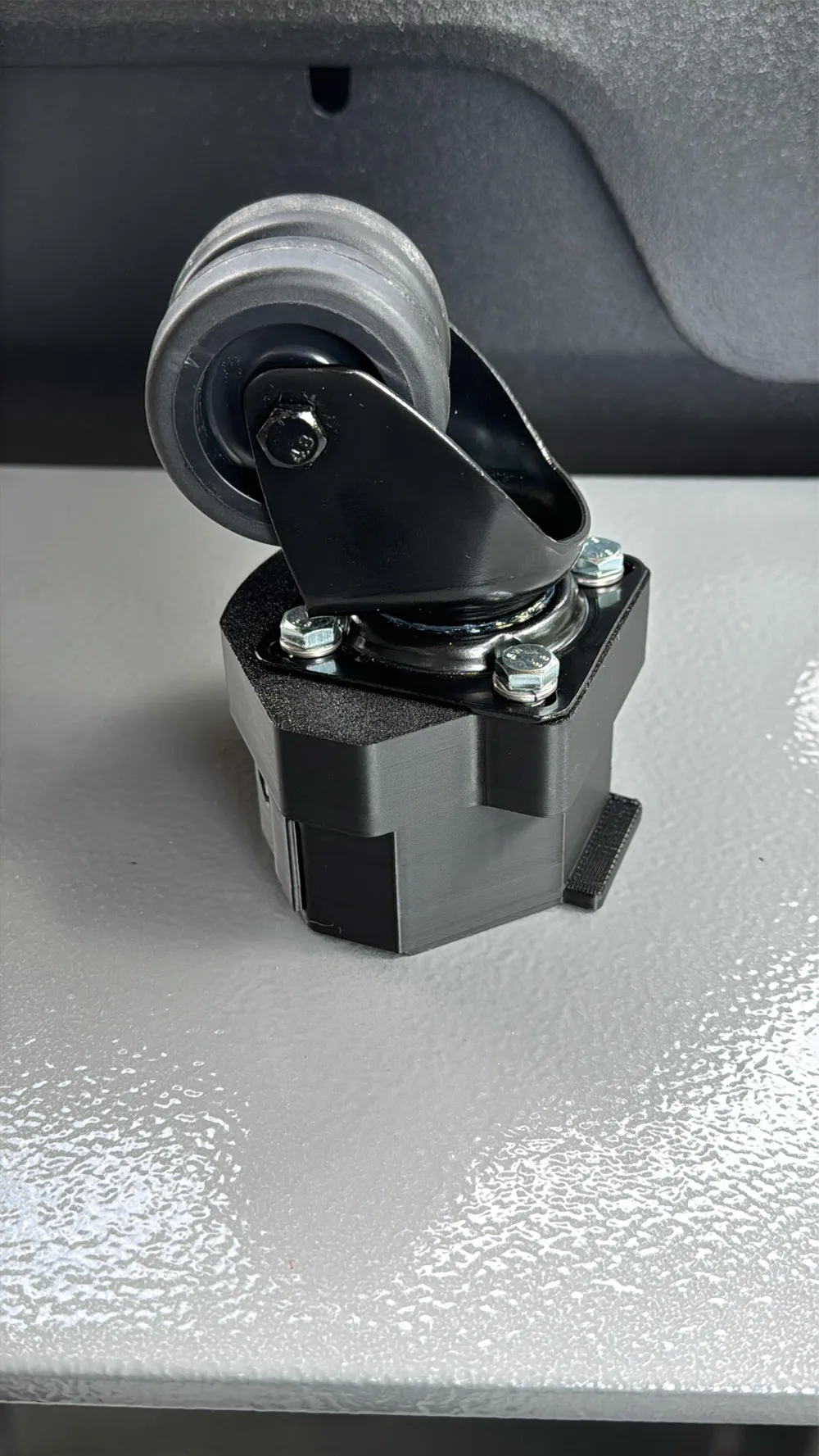

My Weber Genesis II E-325 GBS gas grill (2025 model) lacked the small swivel casters. The original design only included fixed feet on one side; however, I prefer swivel casters, which is why I designed a corresponding adapter.

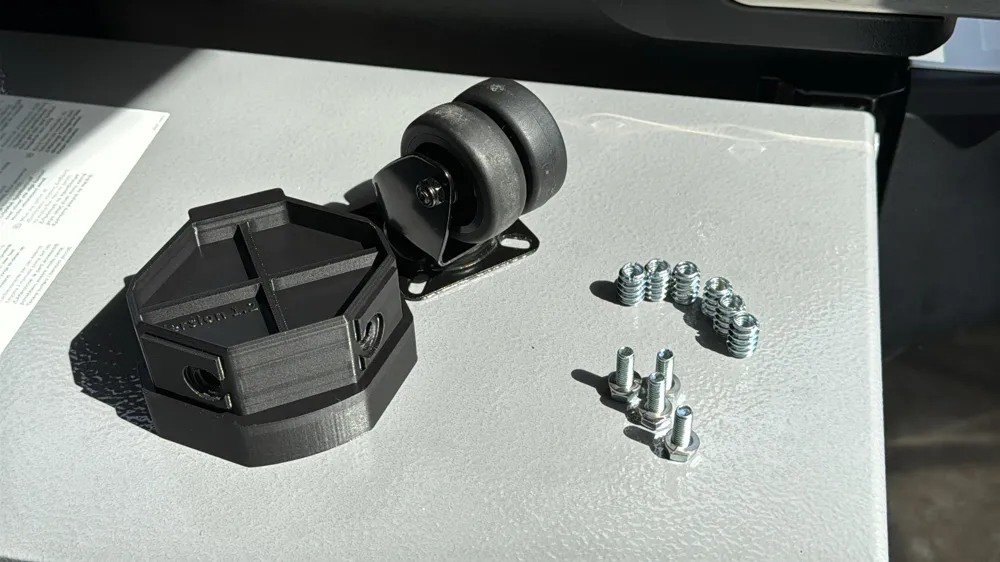

Parts list for conversion:
2x Swivel casters with 50mm wheel diameter, 60mm mounting plate, 73mm height
12x Threaded inserts → M6 internal thread and 10mm (3-degree pitch) external thread
8x M6/16 screw with spring washer (lock washer)
I used ASA filament for this project.
