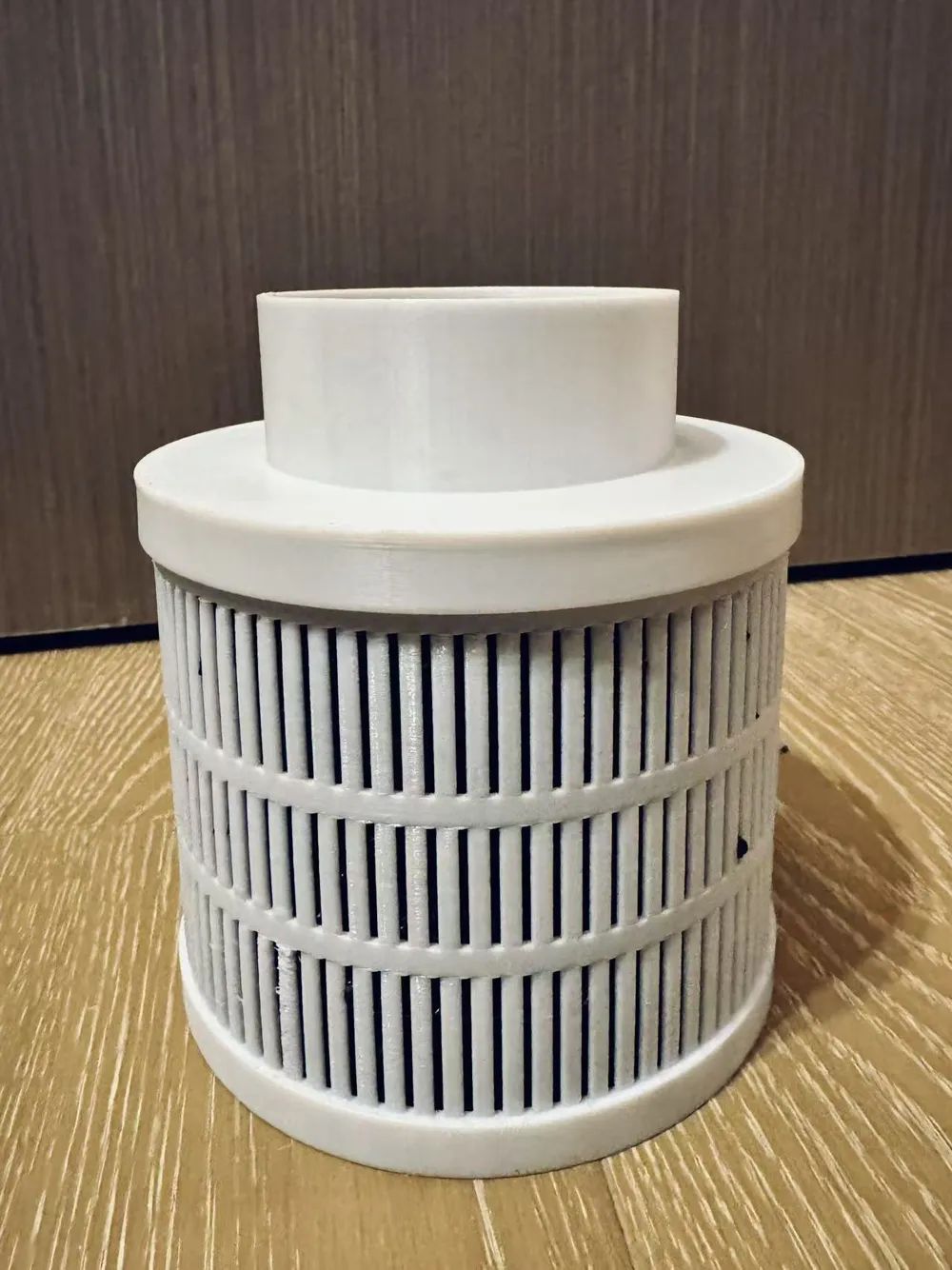

3D Printer Indoor Activated Carbon Filter - Low-Cost Solution
A dual-mode filtration system designed to address air-conditioned closed-window scenarios in summer and periods of pest infestation, seamlessly compatible with 80mm diameter exhaust pipes, enabling safe printing even when it's inconvenient to open windows.
Cost only ~5 yuan
Core Innovative Design
✅ Flexible Switching Between Internal/External Exhaust Modes

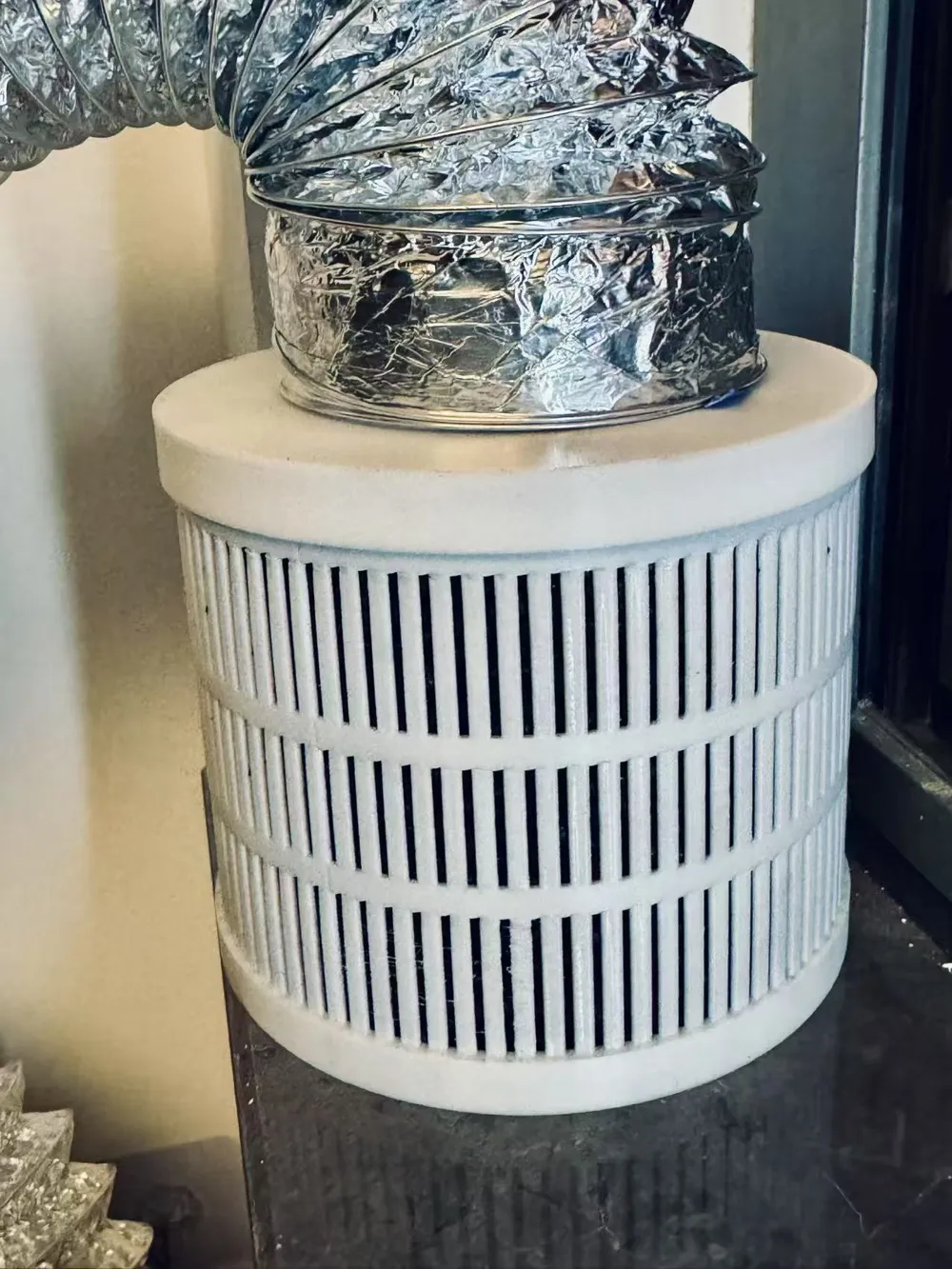

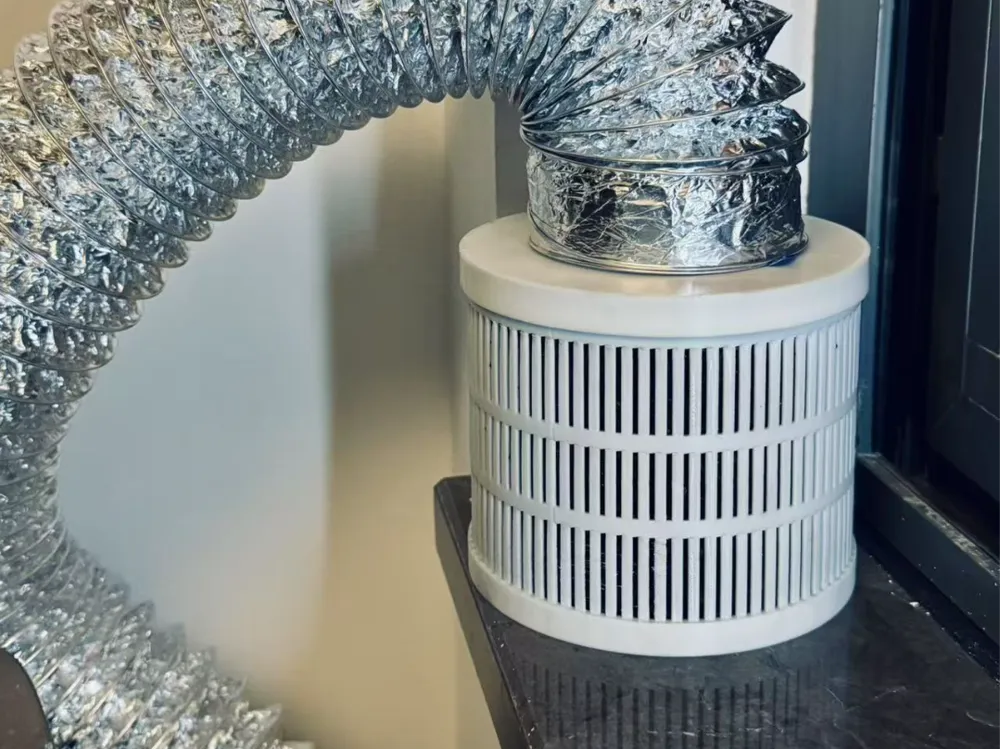

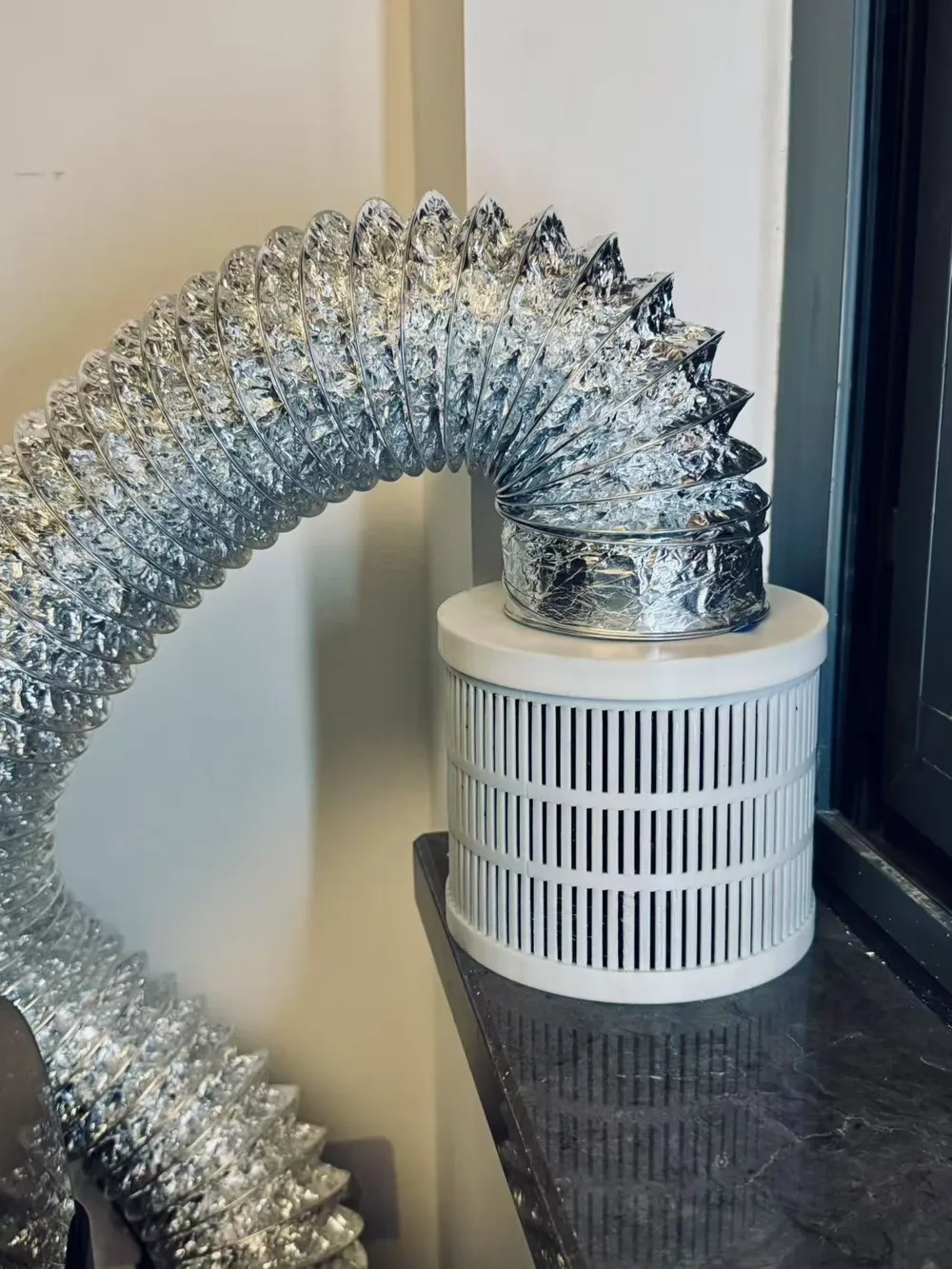

→ Closed-Window Mode: The exhaust pipe is connected to the activated carbon layer, effectively adsorbing organic waste gases
→ Open-Window Mode: Unplug the filter to directly exhaust outdoors, maintaining efficient discharge
✅ Modular Filtration Structure

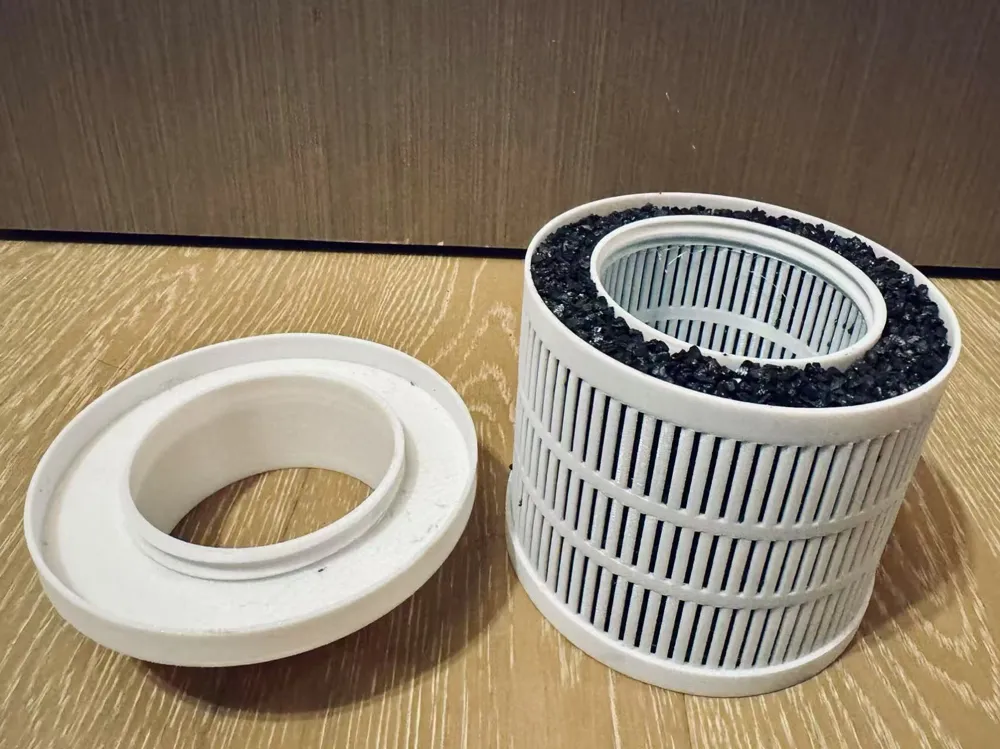

- Removable activated carbon chamber (filling amount ~400g)
- Supports convenient charcoal particle replacement (rotary cap design for manual operation)
✅ Adaptation Performance
- 80mm standard duct interface (tolerance ±0.5mm)
- Filter gap ~1.5mm
Usage Scenario Guide
- Suitable for existing outdoor exhaust systems, but during times when it is inconvenient to open windows
- It is recommended to use with a duct fan; direct use has slightly lower air pressure but is still better than direct discharge
