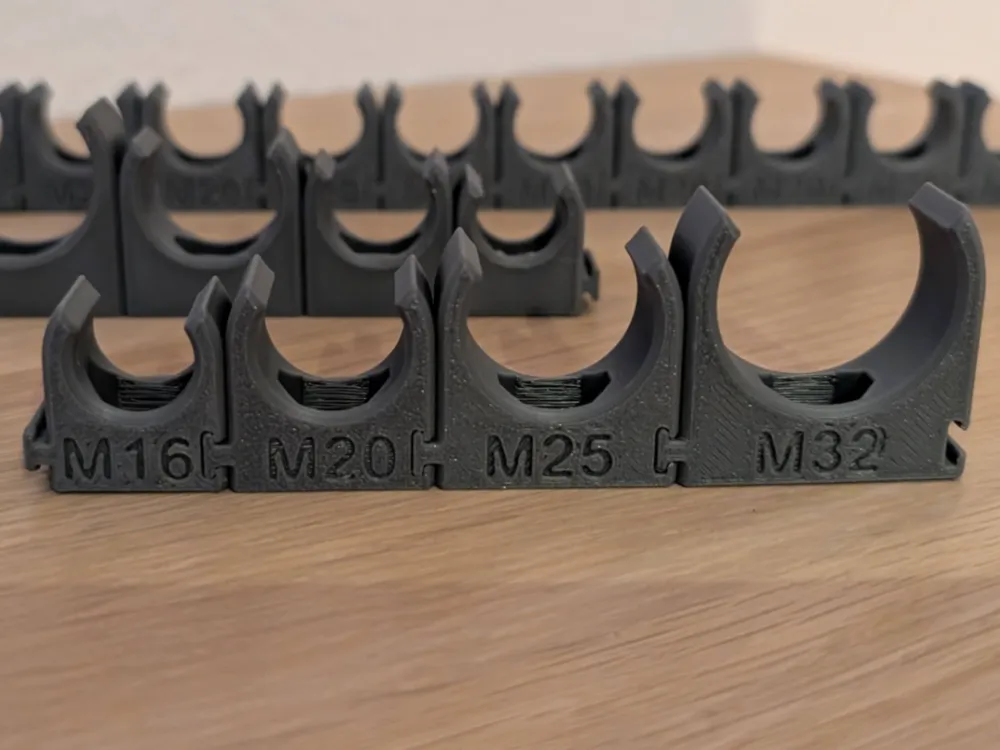

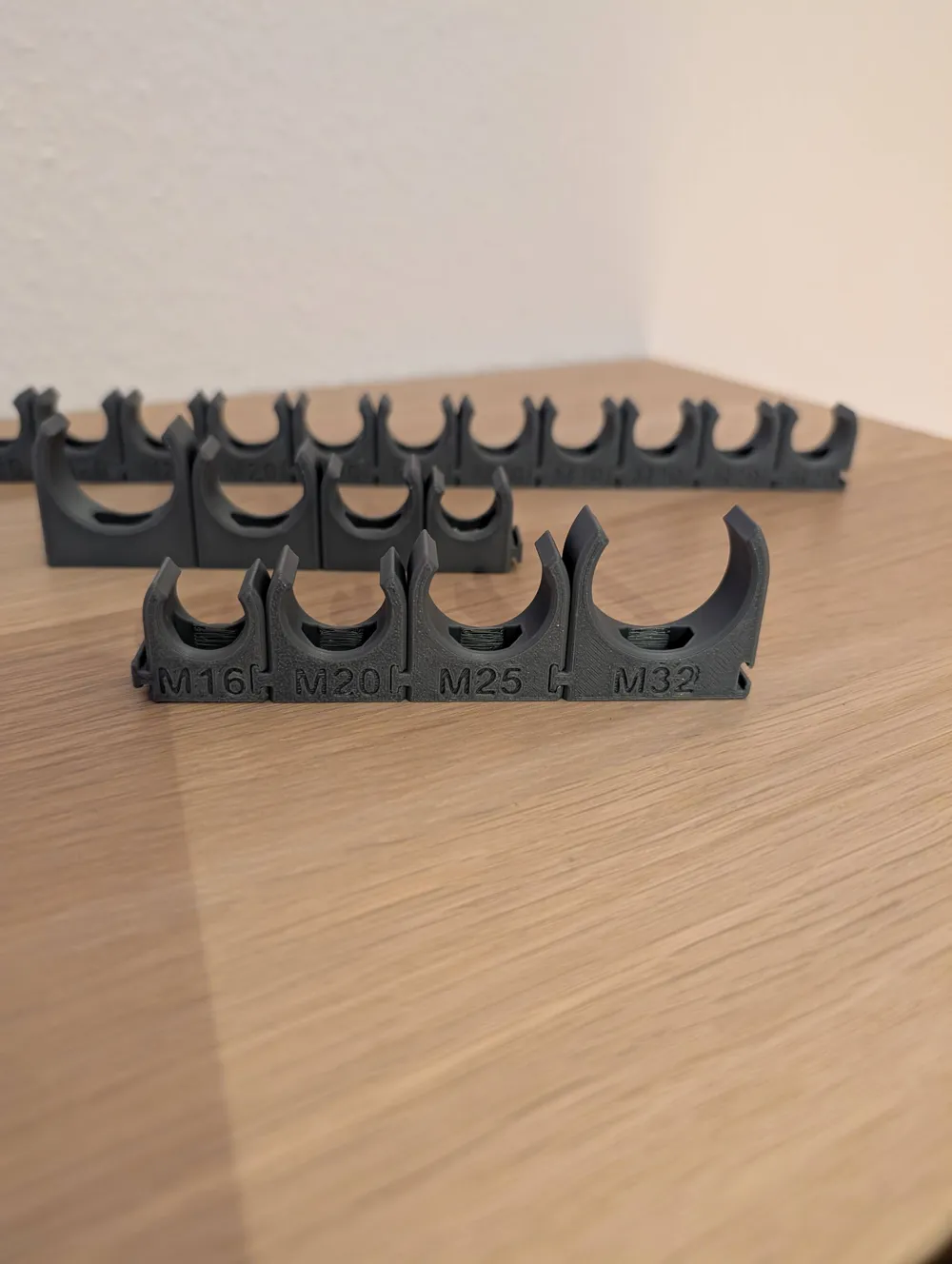

M16 M20 M25 M32 Cable Pipe Clamp with interlock
Print Profile(4)
Description
These pipe clamps are designed for standard cable installation pipes in M16, M20, M22, M25,M32, M38 or M40.
Features Clamps M16 to M40:
- elongated screw hole, so you can correct the position ca. 10mm
- 0.5mm undersized (eg M20 is 19.5mm) for strong grip
- interlock feature for easy mounting of multiple pipes
- 3 tolerances for the interlock: 0.10; 0.12 and 0.14mm
I recommend 0.12mm version, choose a tighter or looser version if needed - size label
Features Clamps M9 to M11:
- same features but no elongated screw hole, because of small size
If you need a different size, write it in the comments or use the customize button.
