LingLong LL SG98 Single dosing hopper
Print Profile(1)
Description

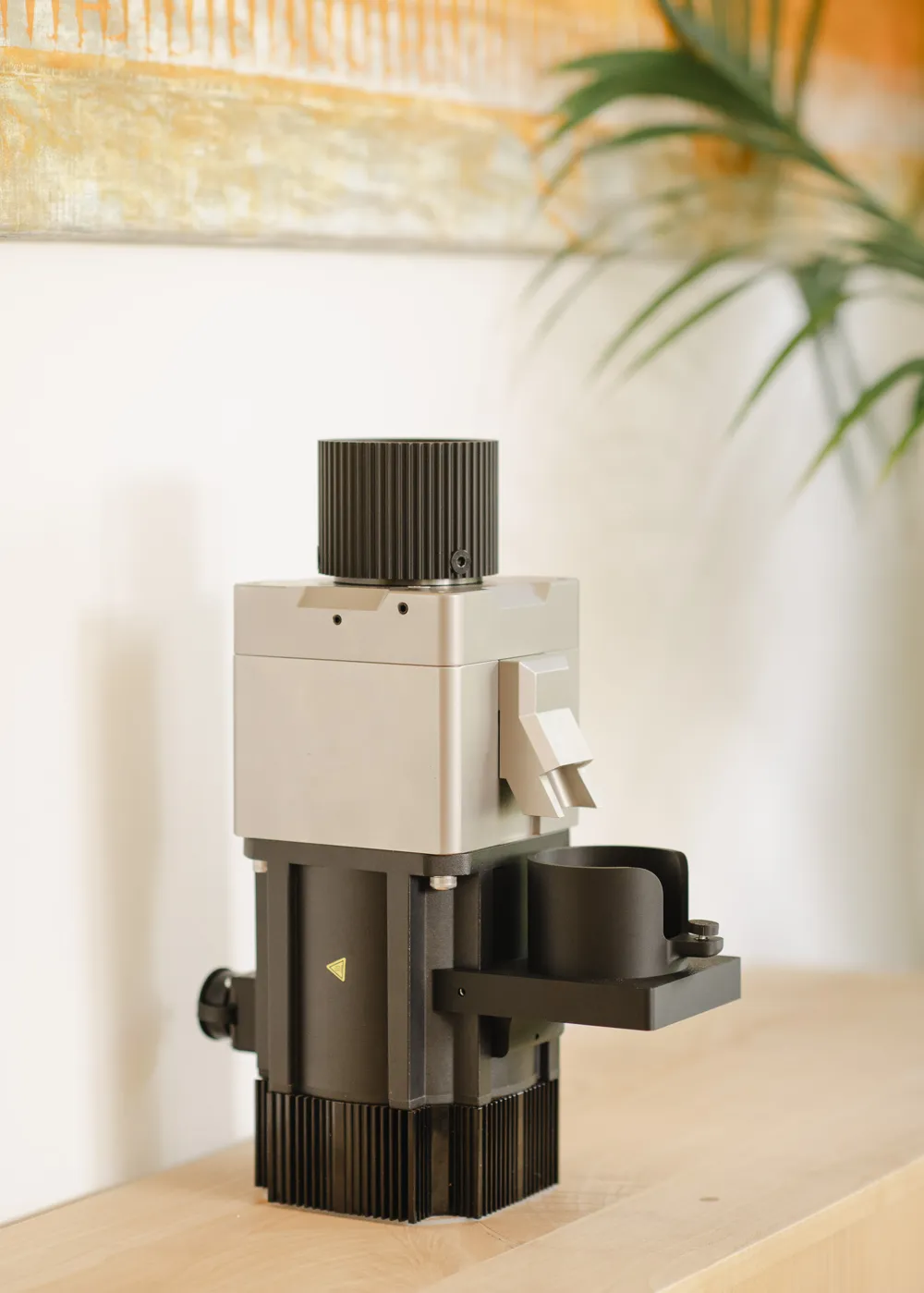

I’m sharing the single dosing hopper with an updated dial indicator that I designed for the LL SG98 Grinder.

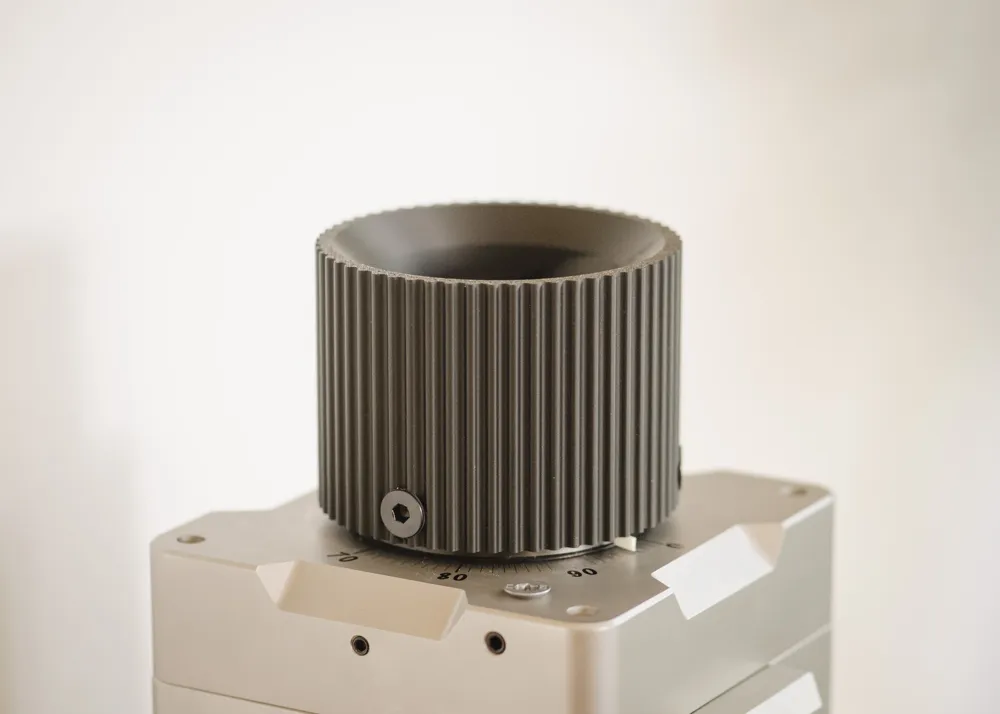

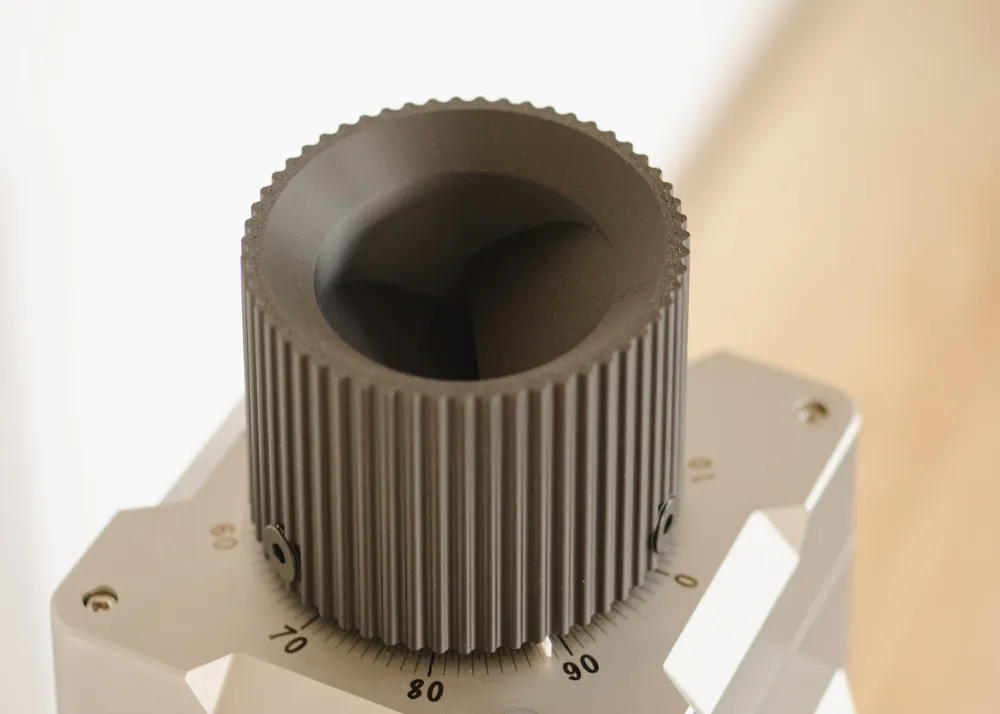

The hopper features an anti-popcorning design and offers an improved grip for adjusting the grind dial.

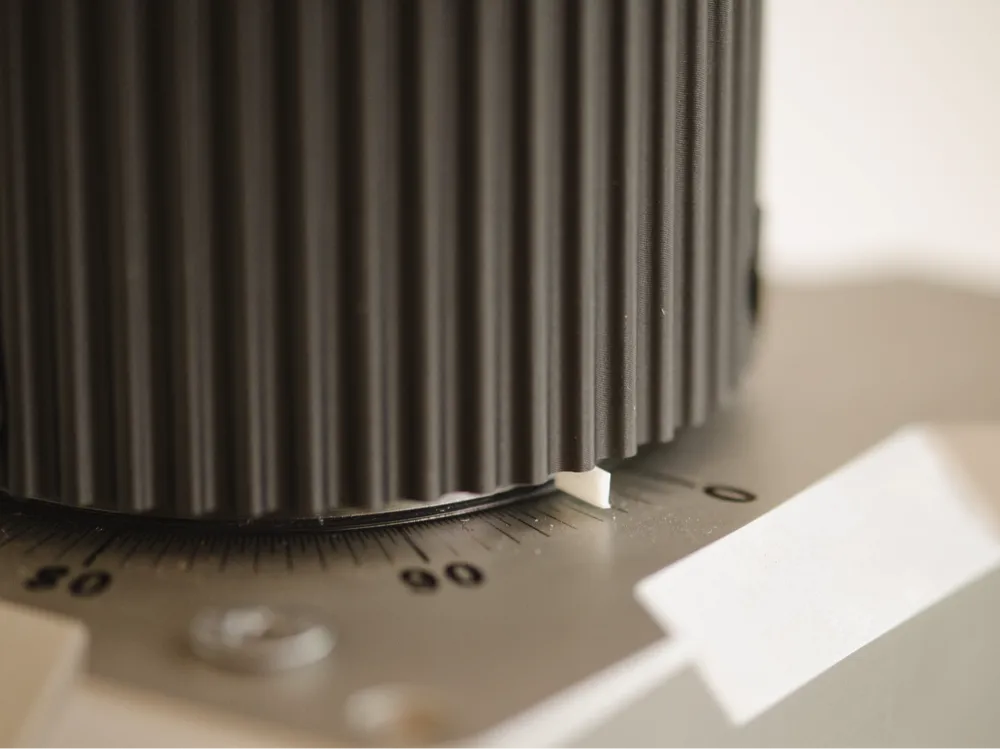

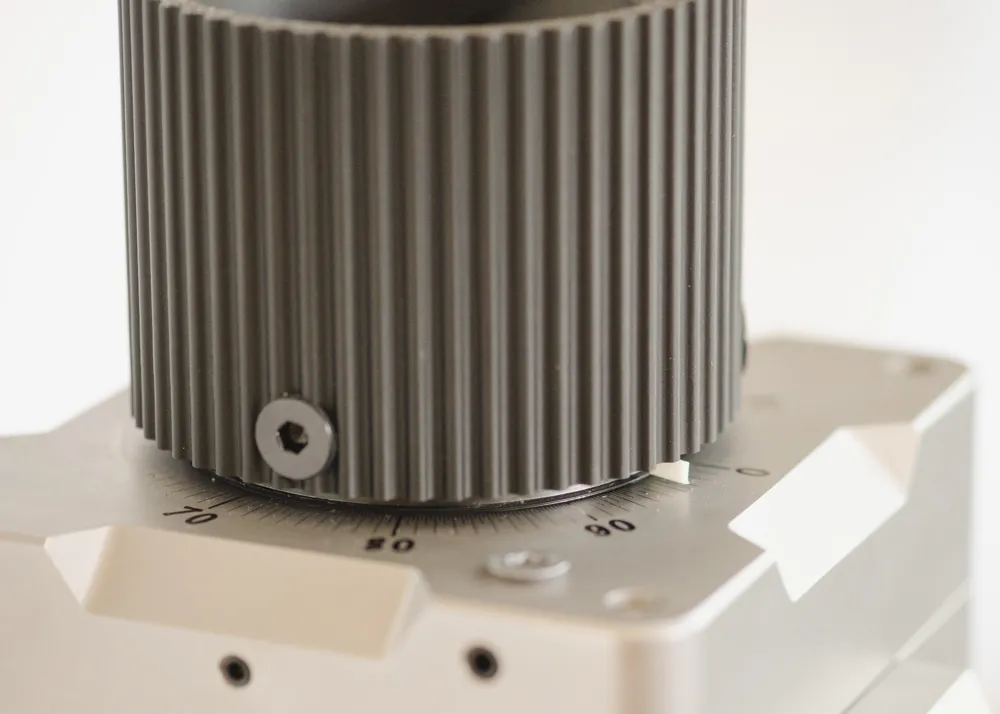

The original dial indicator sticker has been replaced with a new, more readable version. It can also be repositioned in case your zero point changes after replacing the burrs.
Note: Tolerances are extremely tight and may require a test print for the indicator ring.
For assembly, you will need:
- 4x M6x10mm countersunk screws (preferably in a color matching your filament)
Superglue
Assembly Instructions:
- Glue the indicator into the dial ring.
- Slide the ring onto the metal hopper and align the indicator to your preferred position.
Slide the hopper into place and secure it with the four countersunk screws.
