Screw Hose Clamp (120-170 mm) – 6" Version!
Print Profile(1)
Description

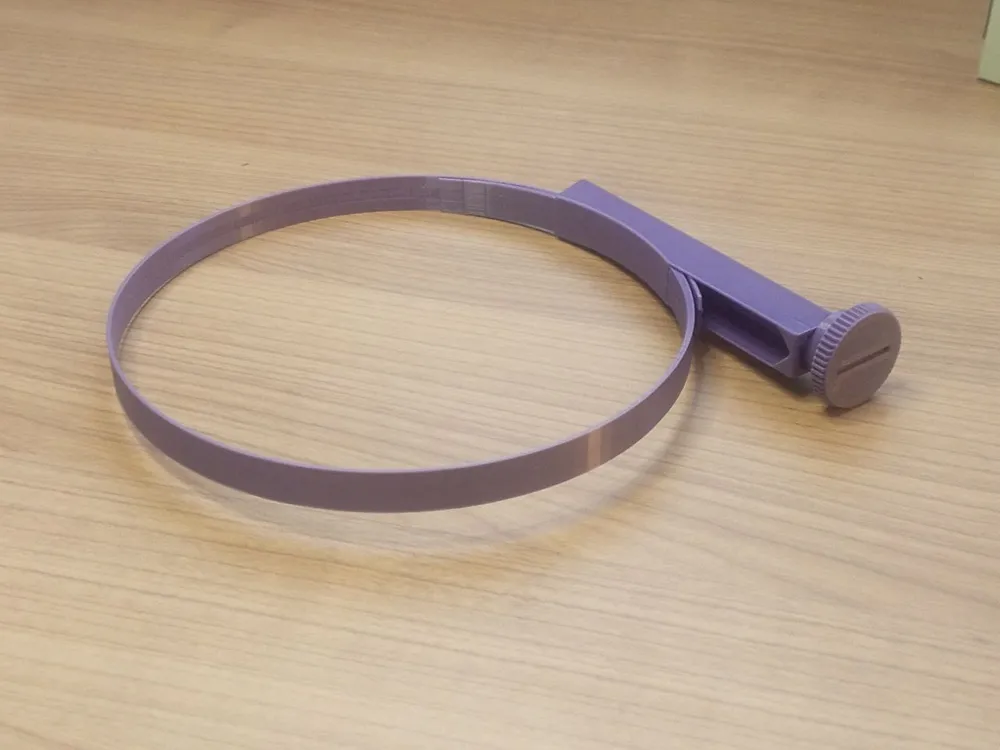

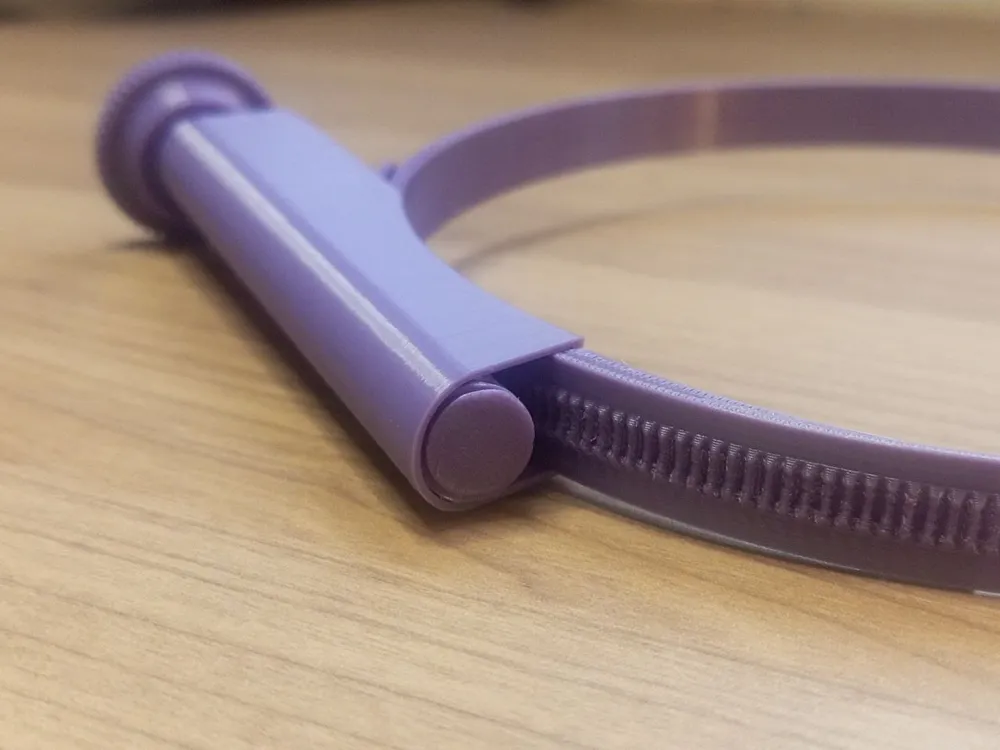

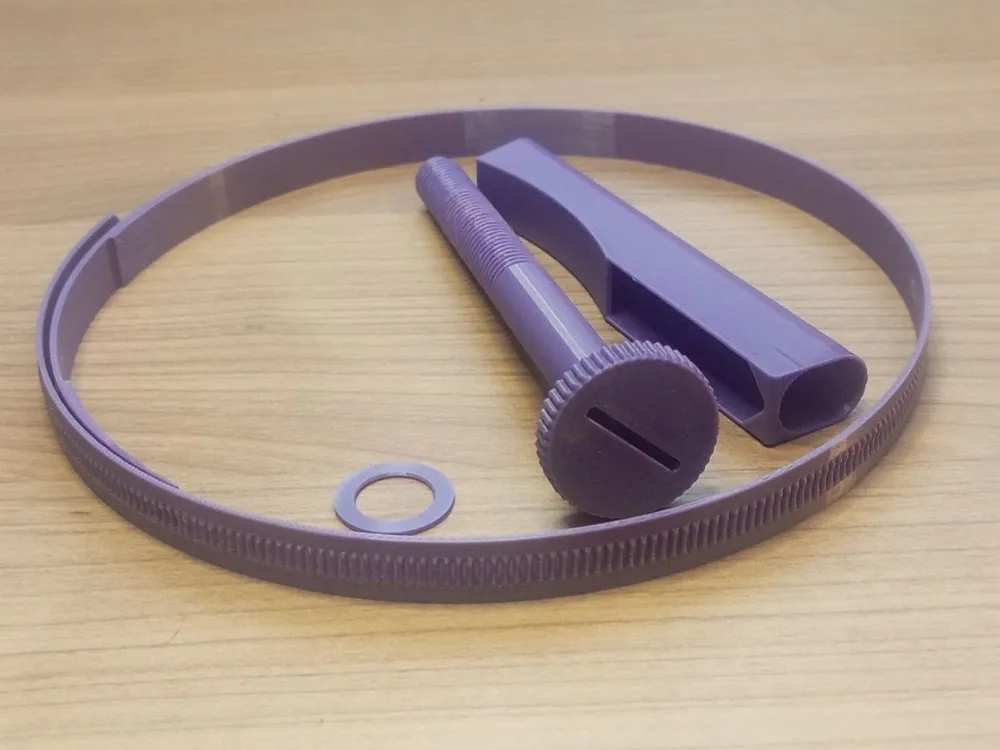

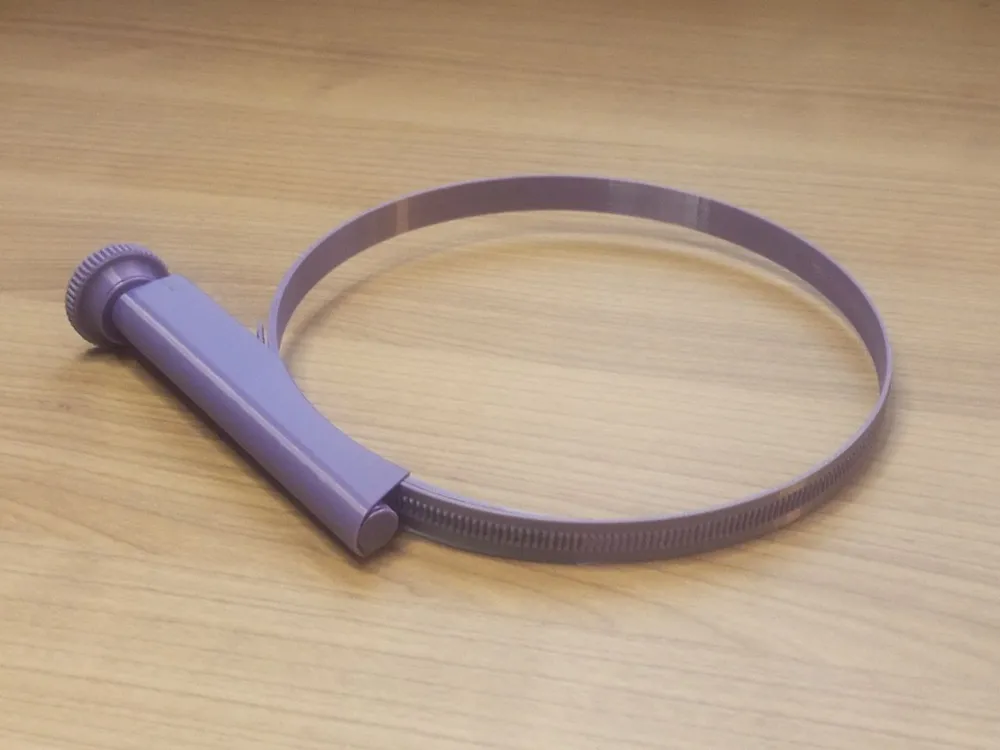

3D-Printed Screw Hose Clamp (120–170mm) – 6" Heavy-Duty Air Duct Solution
Community-Driven Design
Boost Me (for free)
🔧 Precision Matters
This 6-inch (120–170mm) clamp leverages PLA’s dimensional accuracy to maintain critical geometry – crucial for large-diameter seals. PETG works but may warp slightly.
Key Upgrades:
✔ Brim + supports now on the "house" part (prevents lifting)
✔ Reinforced band for ductwork vibration resistance

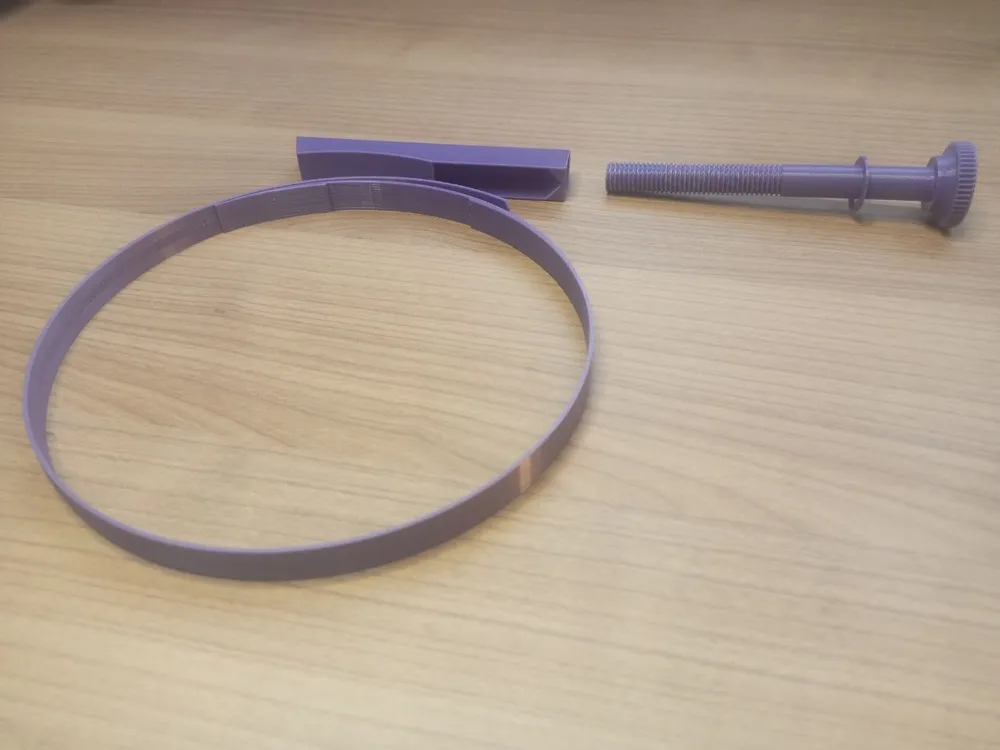

✔ M12 knurled screw (included) or you can use standard metal alternative
⚠️ Safety First!
• Designed for:
- HVAC draft systems
- Workshop dust collection
- Non-pressurized air ducts
• Never use for: - Flammable liquids / gases
- High-pressure lines
🖨️ Print Smart
• Material: PLA strongly recommended (best dimensional stability)
• Settings:
- Brim: Required on "house" part
- Supports: Enabled (for overhangs)
Speed: ≤100 mm/s (large-part warping prevention)

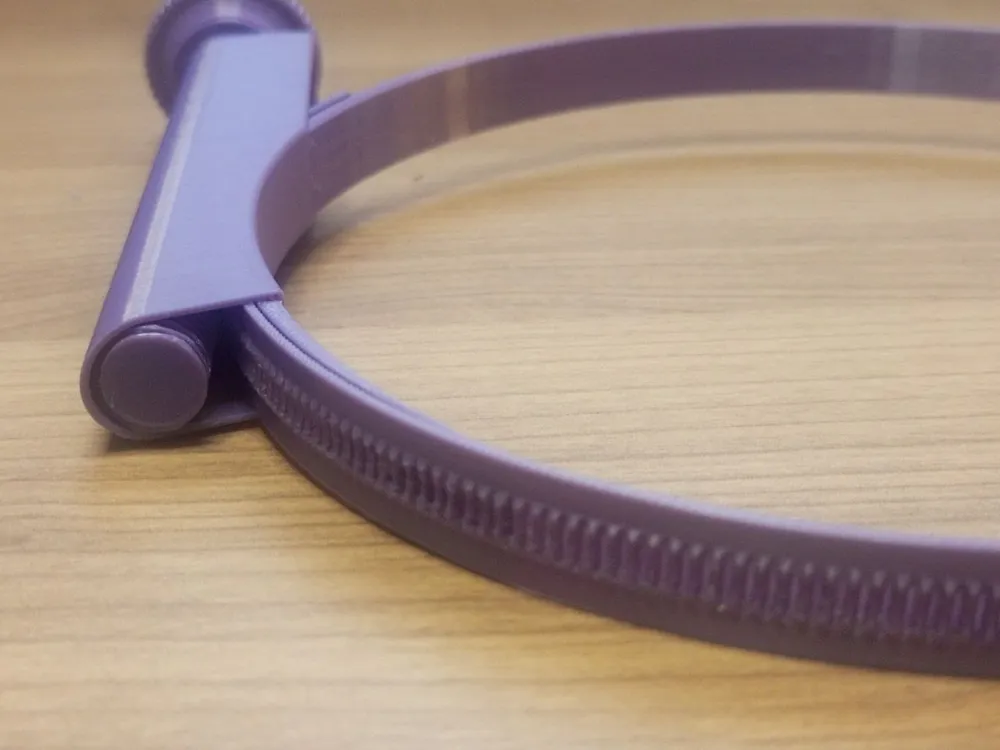

• Post-print: Check groove alignment before assembly
How it works:
🚀 Join the 6" Revolution!
→ DOWNLOAD & test on your ducts
→ BOOST to support open engineering
→ SHARE results with #BigAirClamp
💡 Need Another Size or something else? Check another versions – or message me for custom requests!
