Compact CyberBrick Case

Update Log:

20250807
Given that the space design of the previous 1.0 version of the storage box was not very complete, version 2.0 has been updated

Update content:

1. Increased the original size, the updated size is 200*140*26

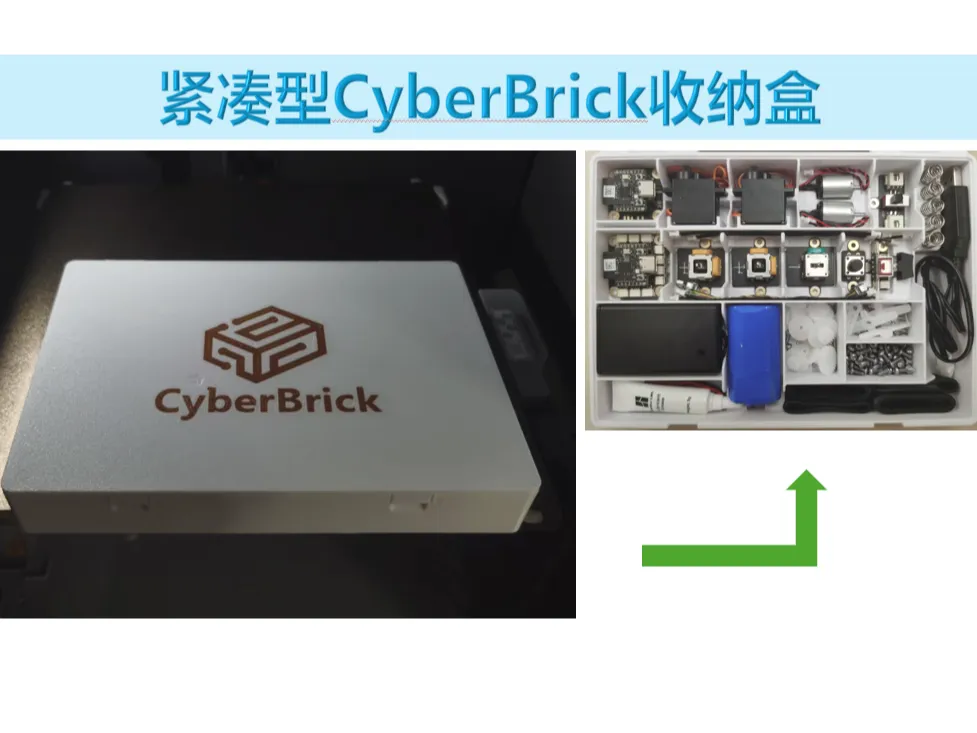

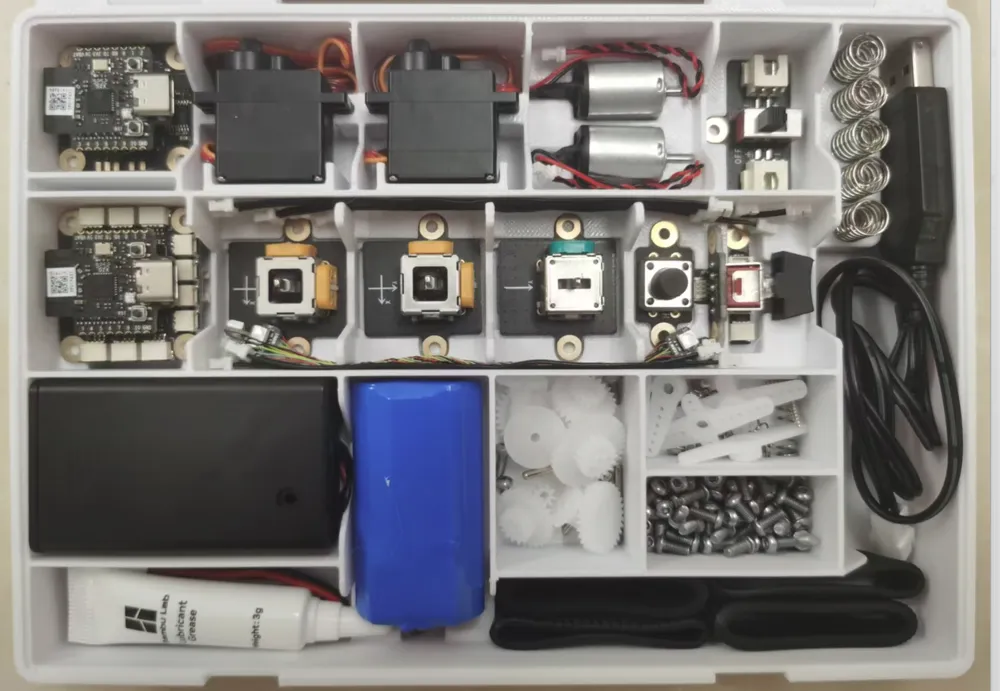

2. Redesigned the layout to make the size more reasonable; the previous storage box could not store batteries for charging, but version 2.0 can store all parts from the beginner's starter kit

It is recommended to print version 2.0 of the storage box

print profile for both PLA and PETG filament has been added

Project source:

CyberBrick's official storage box looks good, but it's too big and takes a long time to print, so I designed a smaller storage box myself

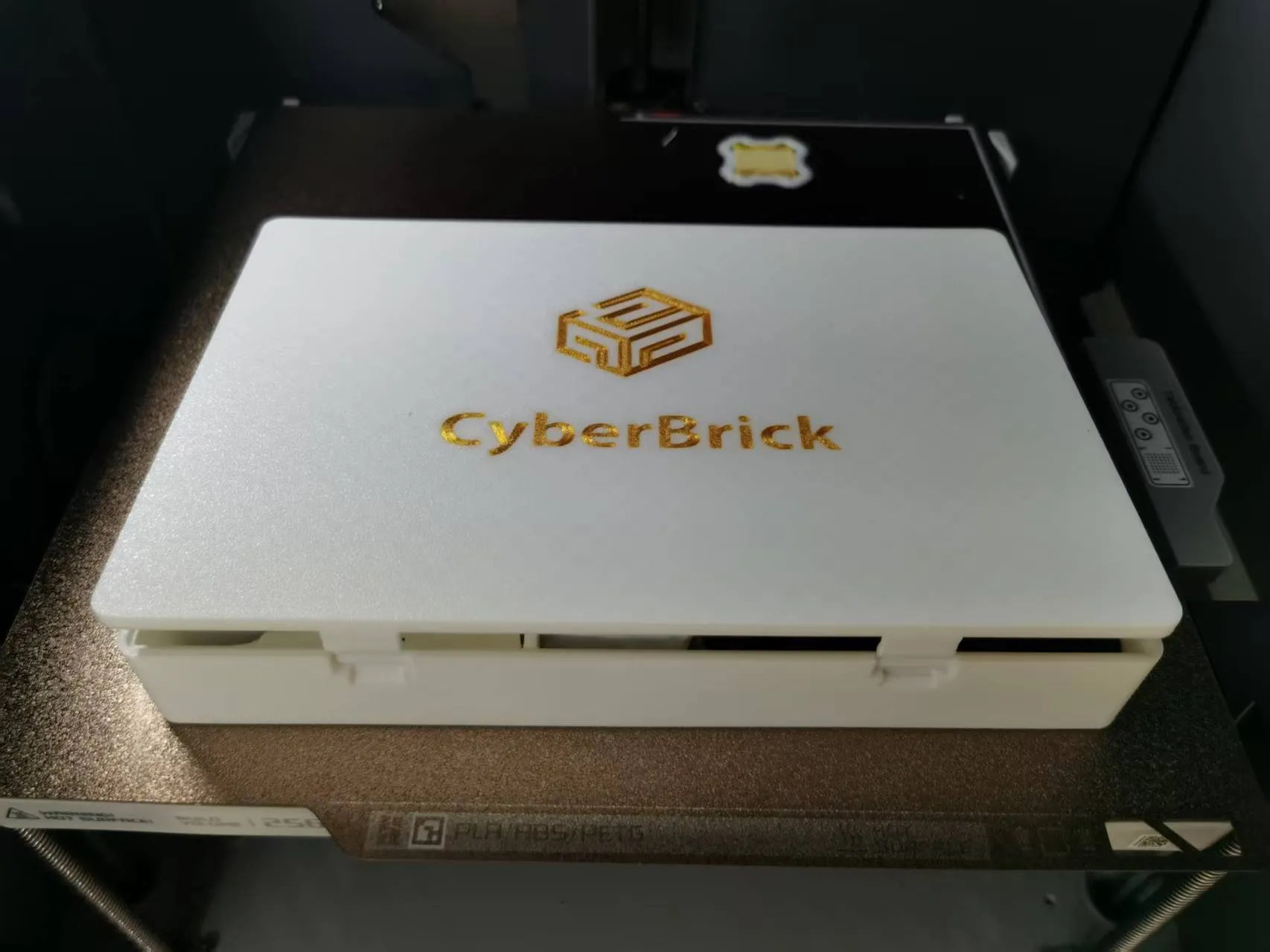

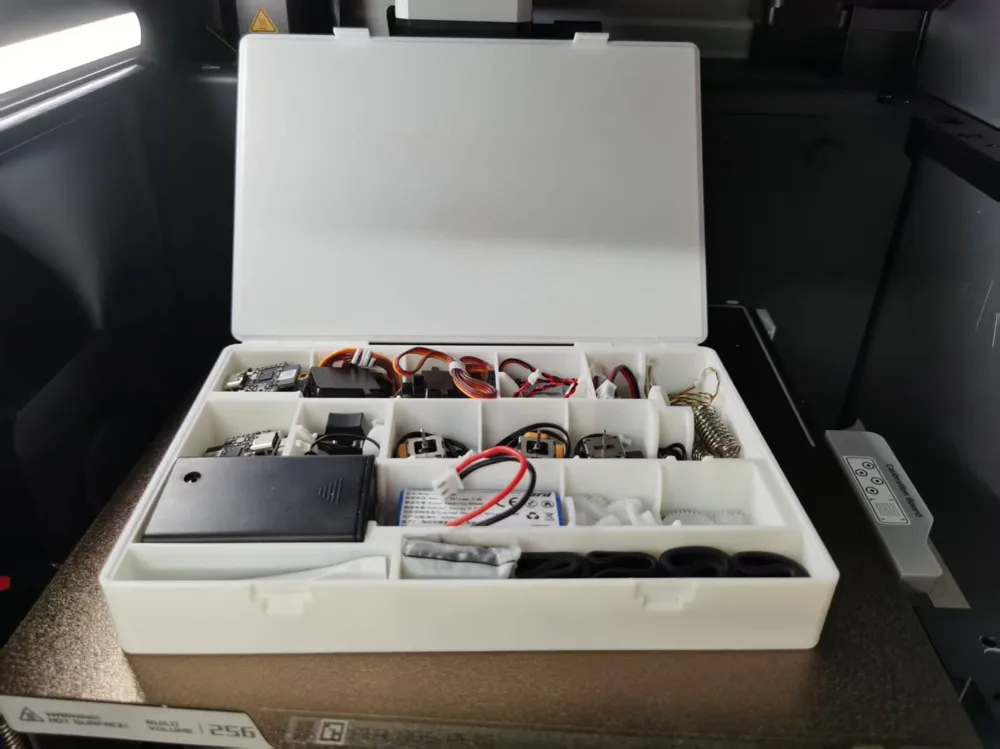

Project photos:

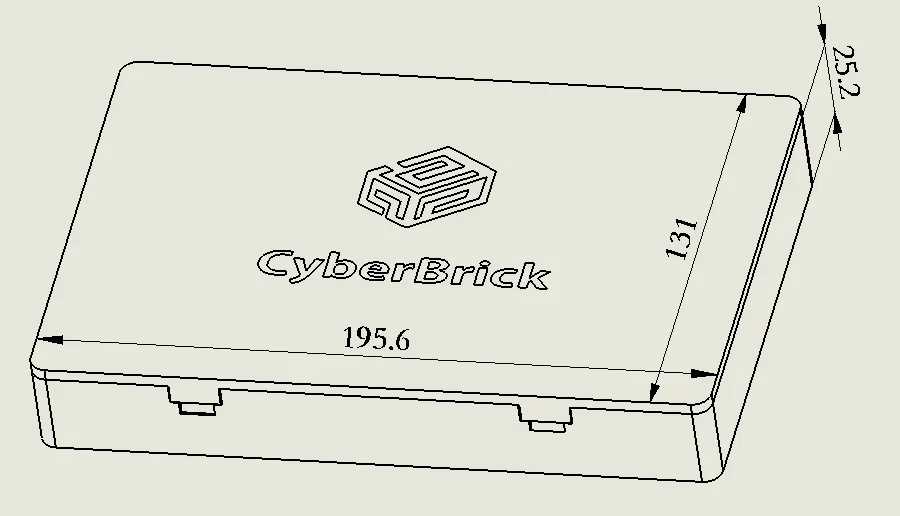

Below are the dimension photos (units in mm)

Assembly requirements:

There are no special requirements; after printing the storage box and lid, you need to cut two pieces of PLA/PETG (other materials can also be used) filament

approximately 45-50mm long filament to act as connecting shafts

Connecting shaft: 45-50mm PLA/PETG filament

Special note:

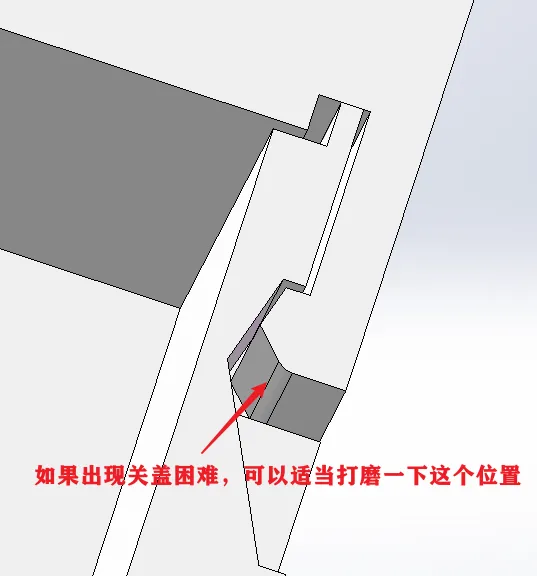

Due to 3D printing tolerances, if closing the lid is difficult, you can lightly sand the latching point indicated in the image below
