Instant Coffee dispenser for IKEA Citronhaj bottle

GIF

Print Profile(2)

All
H2D
P1S
X1 Carbon
X1
P1P
A1
X1E
H2D Pro
A1 mini
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 12% infill
0.2mm layer, 2 walls, 12% infill
Designer
5.8 h
4 plates
4.7(14)

0.2mm layer, 2 walls, 12% infill - A1Mini
0.2mm layer, 2 walls, 12% infill - A1Mini
Designer
6.4 h
4 plates
5.0(3)

Open in Bambu Studio
Boost
593
1509
35
32
721
295
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
0.5x7x12 mm (10PCS) - BB005
M3x8 SHCS Machine Screw (20PCS) - AA037
List other parts
  • IKEA Citronhaj bottle x 1: 35cl (12oz)

Description

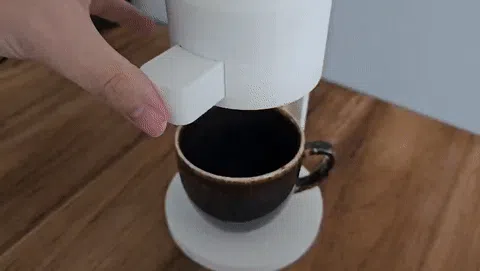

I wanted to optimize the process of making Nescafe Gold in order to further my instant coffee addiction. My goal was to make a dispenser that dispenses one cup worth of coffee each time you press the button. I tried to use minimal non printed parts, all you will need is 6 springs and 2 screws (Linked below). My original design was made to fit Nescafe Gold bottles, but a lor of commenters asked for different brands or bottles. That is why I made a new design that fits onto the IKEA Citonhaj 35cl bottle. This bottle can be filled with whatever coffee you like.



  • Dispenses ~2,5 grams, the reccomended amount for one cup.
  • Easy to assemble.
  • Multiple ways to store the dispenser:

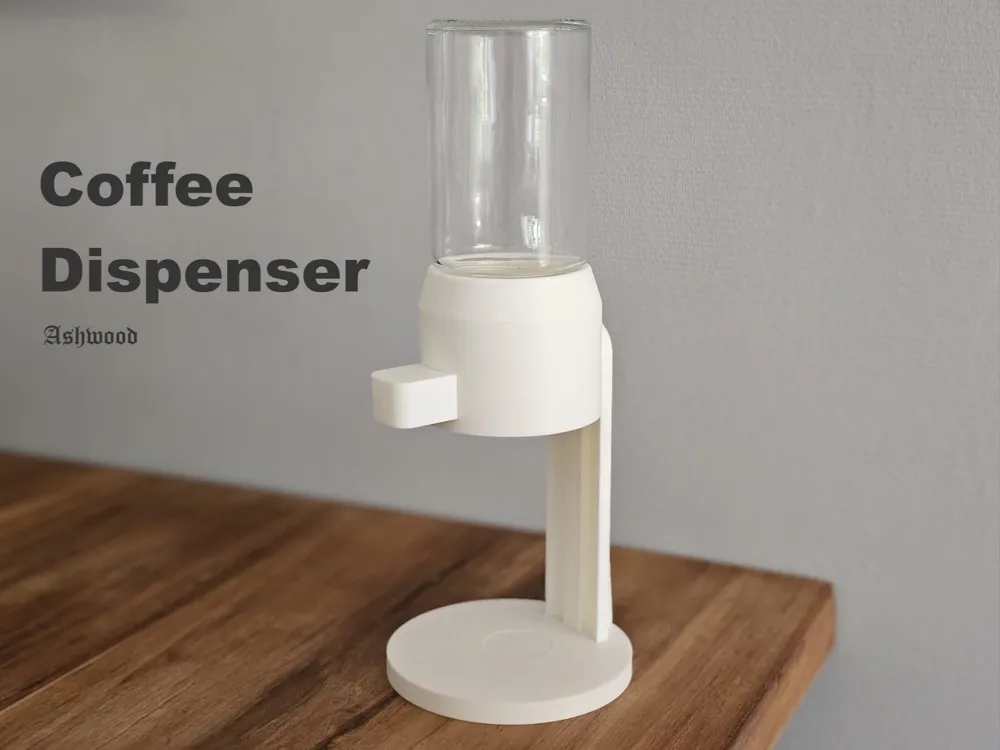

    • With a stand.
    • Hanging from the wall with the wallhook.
    • Hanging on an IKEA Skadis board with the Skadishook.
    • Without a stand or hook.

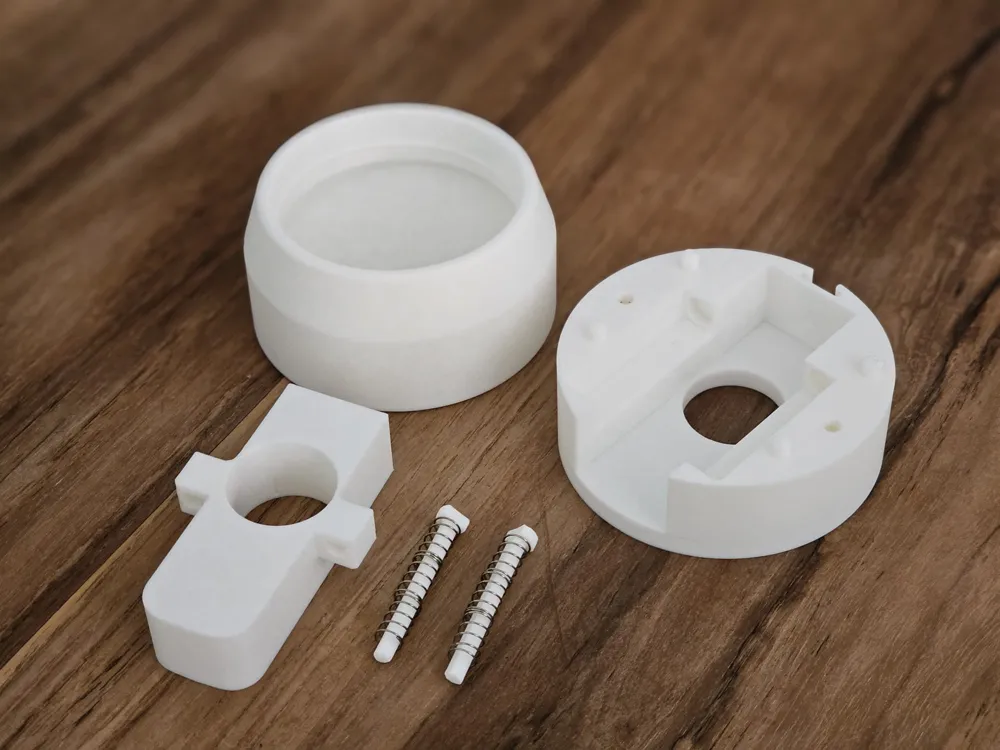

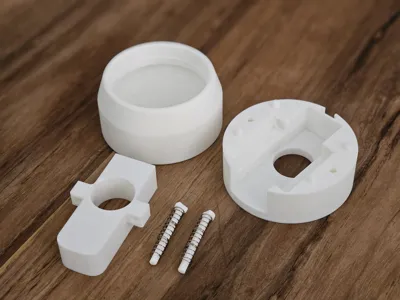

Assembly

  1. Check the orientation of the button. Both the button and the base have a triangle on them, when assembled these triangles should match and touch eachother (When the button is pressed in).
  2. Leave the button out of the base for now, but set it down in the correct orientation.

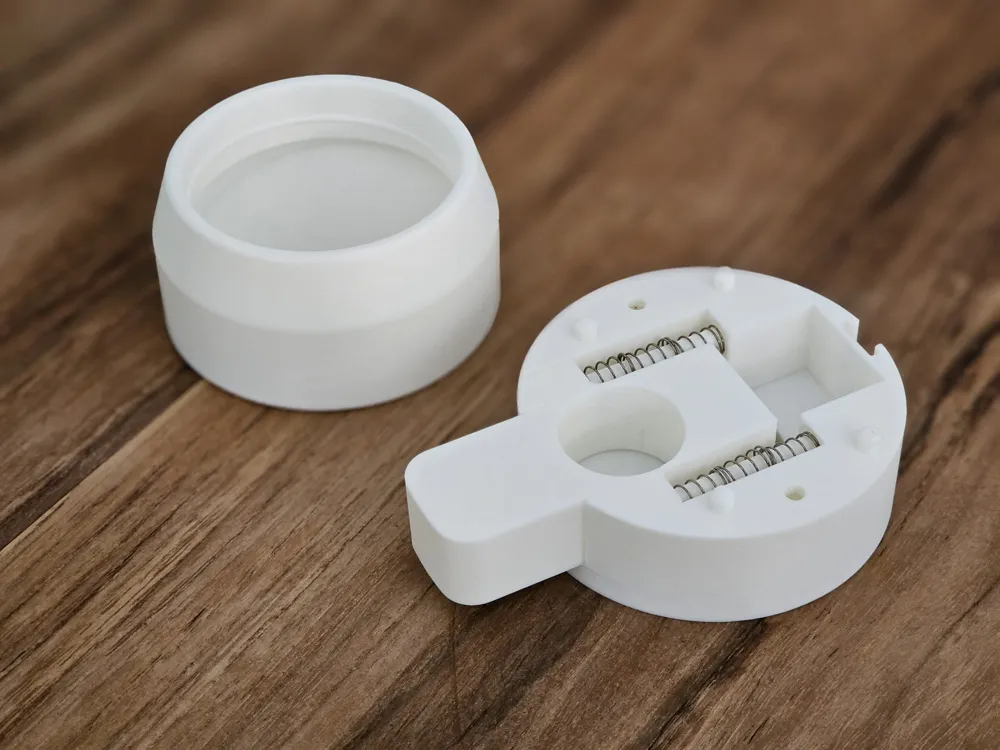

  3. Put the springs on the springpins, 3 on each.
  4. Put the end op the springpins in the holes in the button, at the side of the triangle. The pins and holes have a flat spot, so there is only one orientation in which they can go in. Be carefull to not launch the pins across the room
  5. push the pins in slightly and drop the button inside of the base.
  6. Let go of the pins, they should both go in their round cavity, keeping them in place.

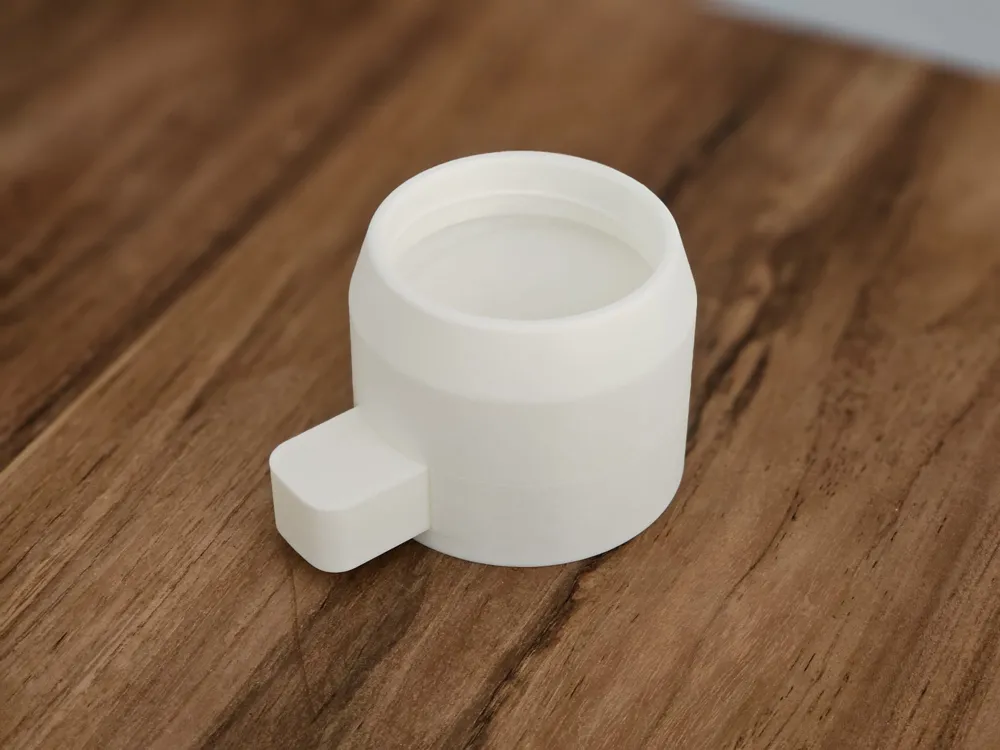

  7. Place the lid on the base.
  8. Screw the two screws into the two holes in the bottom of the base.
  9. Screw the dispenser onto the IKEA bottle.
