(SNUG Window Exhaust Fan) Flexible Segmented Pipe
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 20% infill (Slow print speed)
Designer
17.3 h
4 plates
Open in Bambu Studio
Boost
82
192
5
2
163
30
Released
Description
Content has been automatically translated.

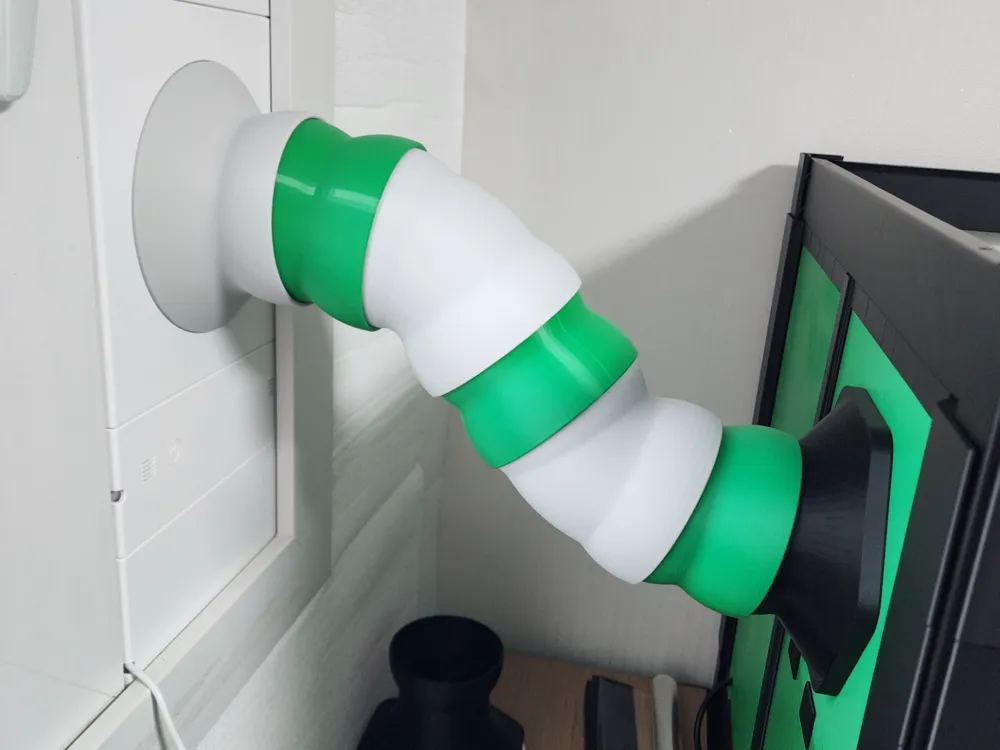

Modular pipe for chamber exhaust, including an adapter compatible with the SNUG electronic window fan (2nd generation).
(Product details - https://smartstore.naver.com/snugelectronics )
The adapter that mounts to the SNUG fan is designed with a slightly loose fit,
and the corresponding component’s STEP file is provided separately to allow for adjustments to the assembly tolerance. Please refer to it.

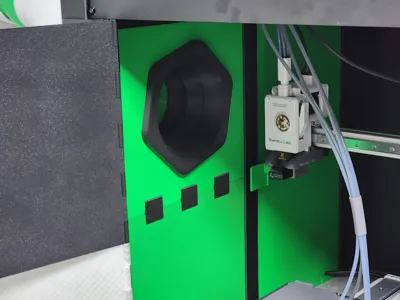

The chamber side is designed for assembly via screws, fitting a 120mm hole without requiring additional hardware (see image).
