Rotary encoder knob / Volume control knob 30x17mm
Print Profile(1)
Description
Rotary encoder knob / Volume control knob
Quick and easy print this time
30mmx17mm encoder knob / volume knob

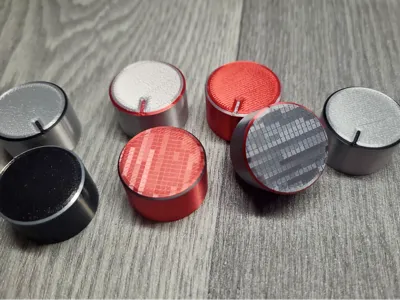

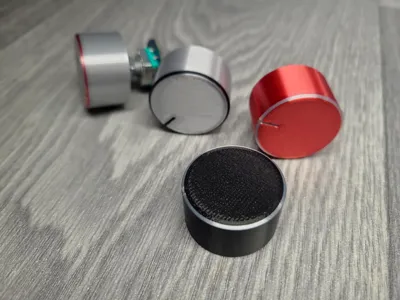

Here set to two colors (silver and black), easy to change to the ones that suit you, examples in the pictures.

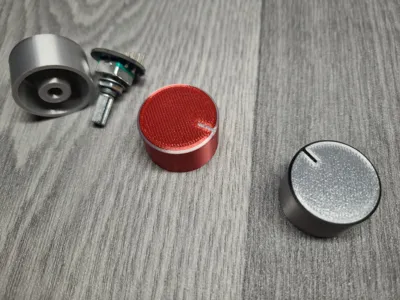

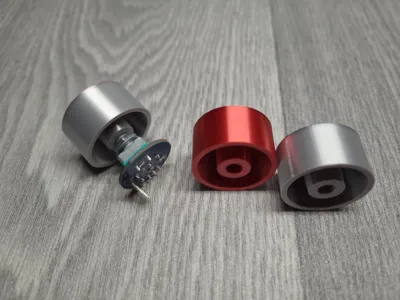

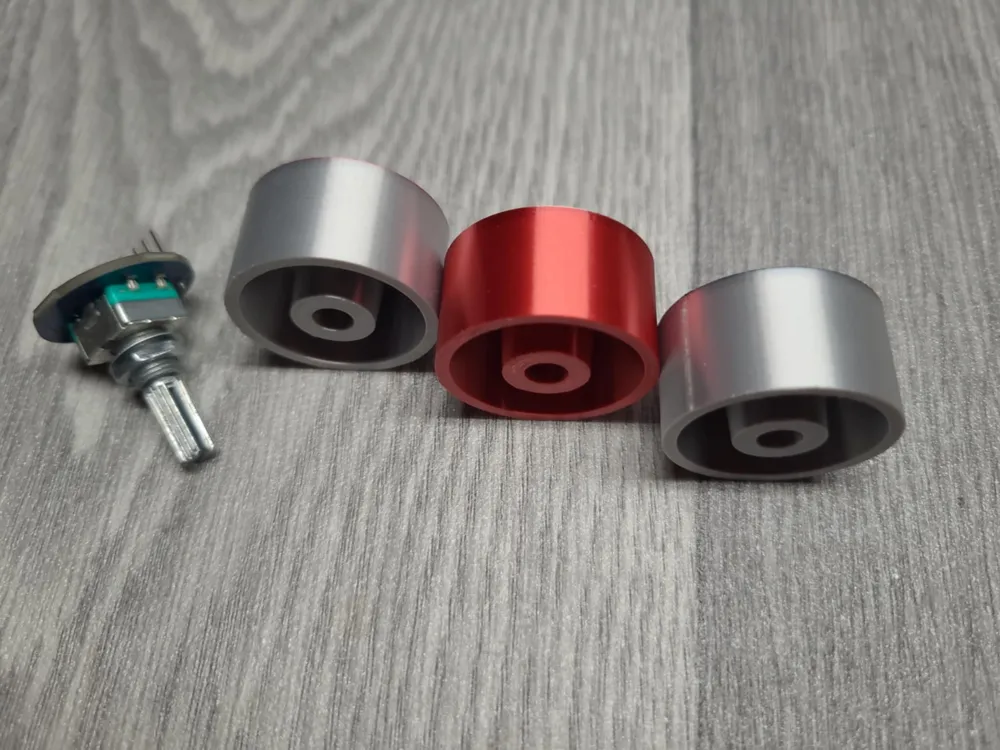

The knob can be placed on a 6mm diameter encoder (example in the photo - EC11)
I used silk filaments.

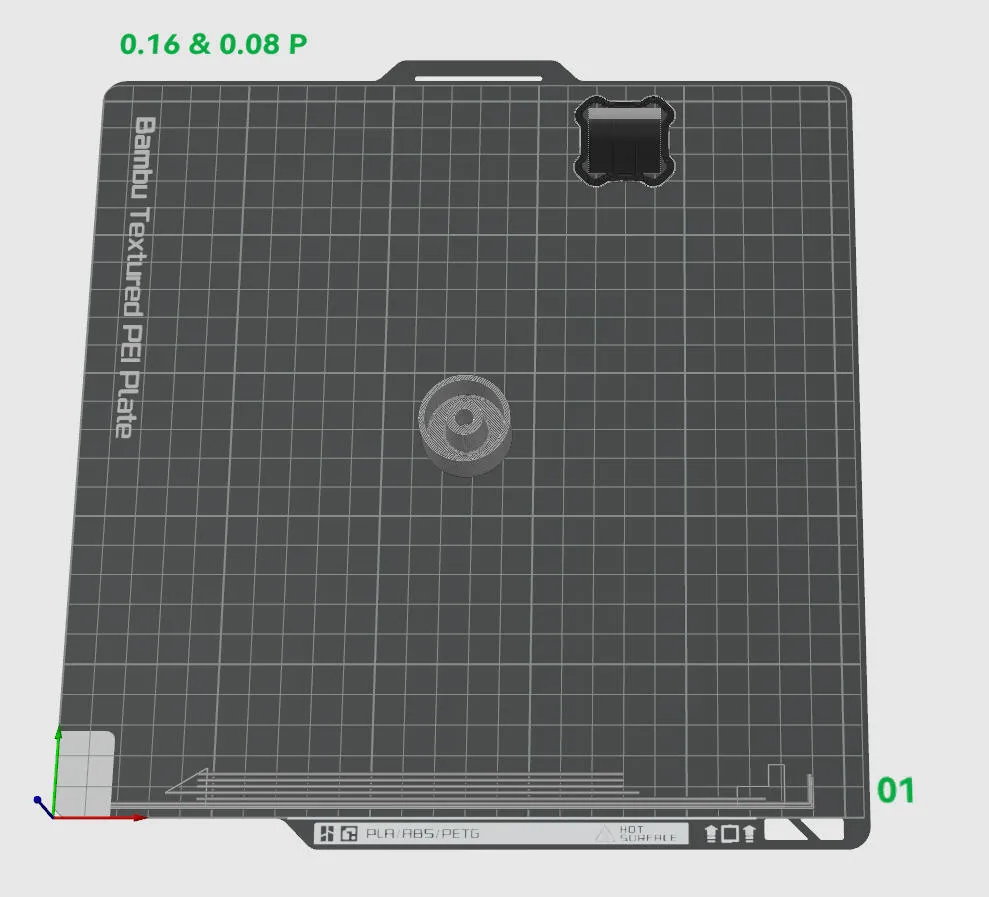

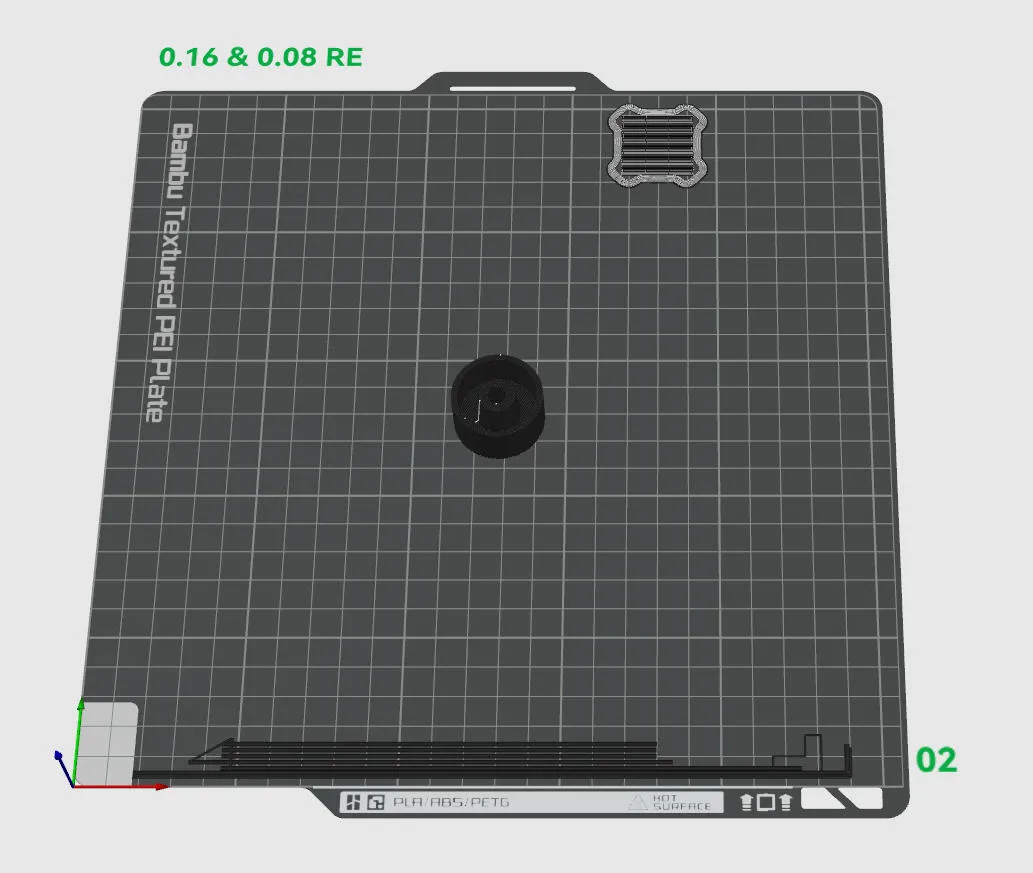

First layer 0.16mm

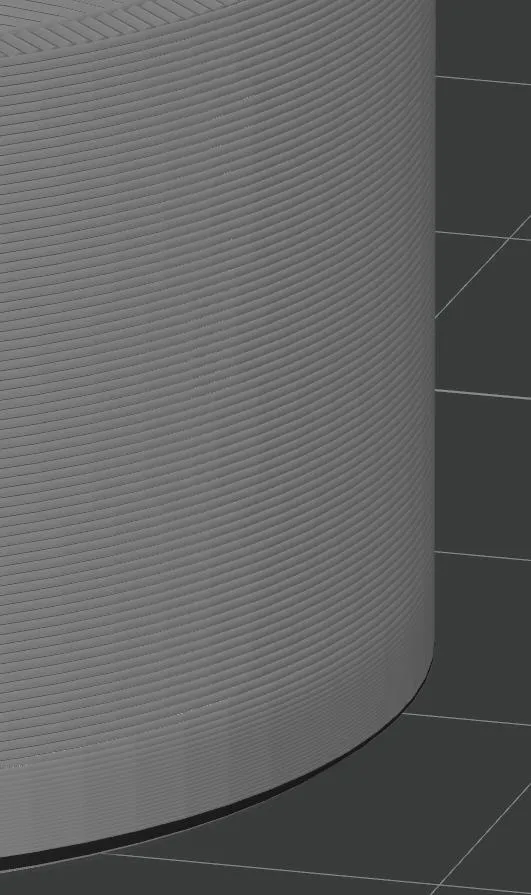

Each subsequent layer 0.08mm

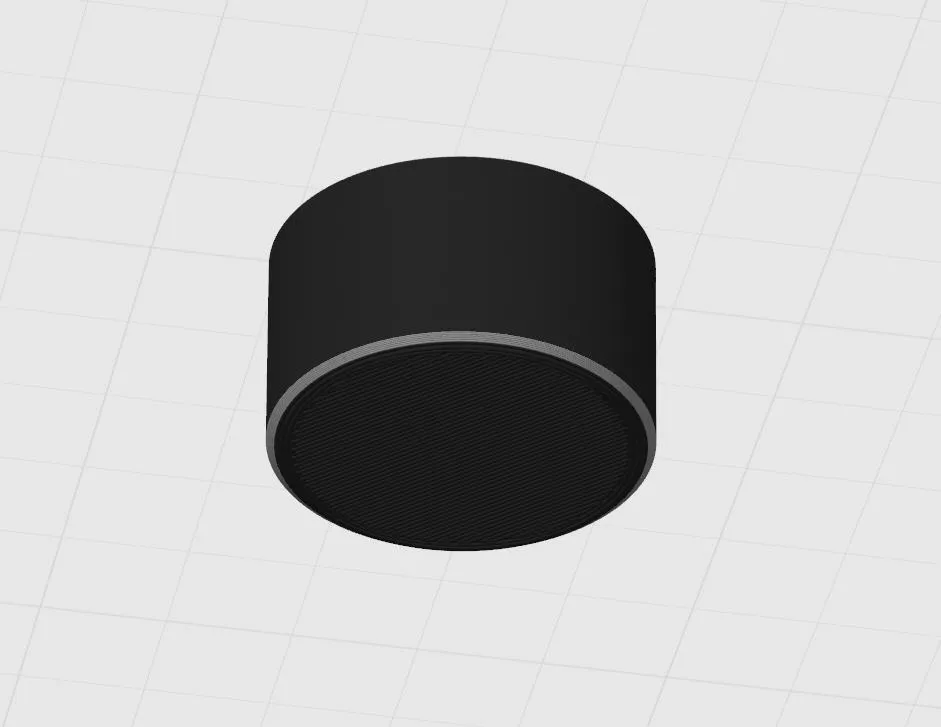

Filament change at layer:
1-2 silver
3-8 black
9-101 silver

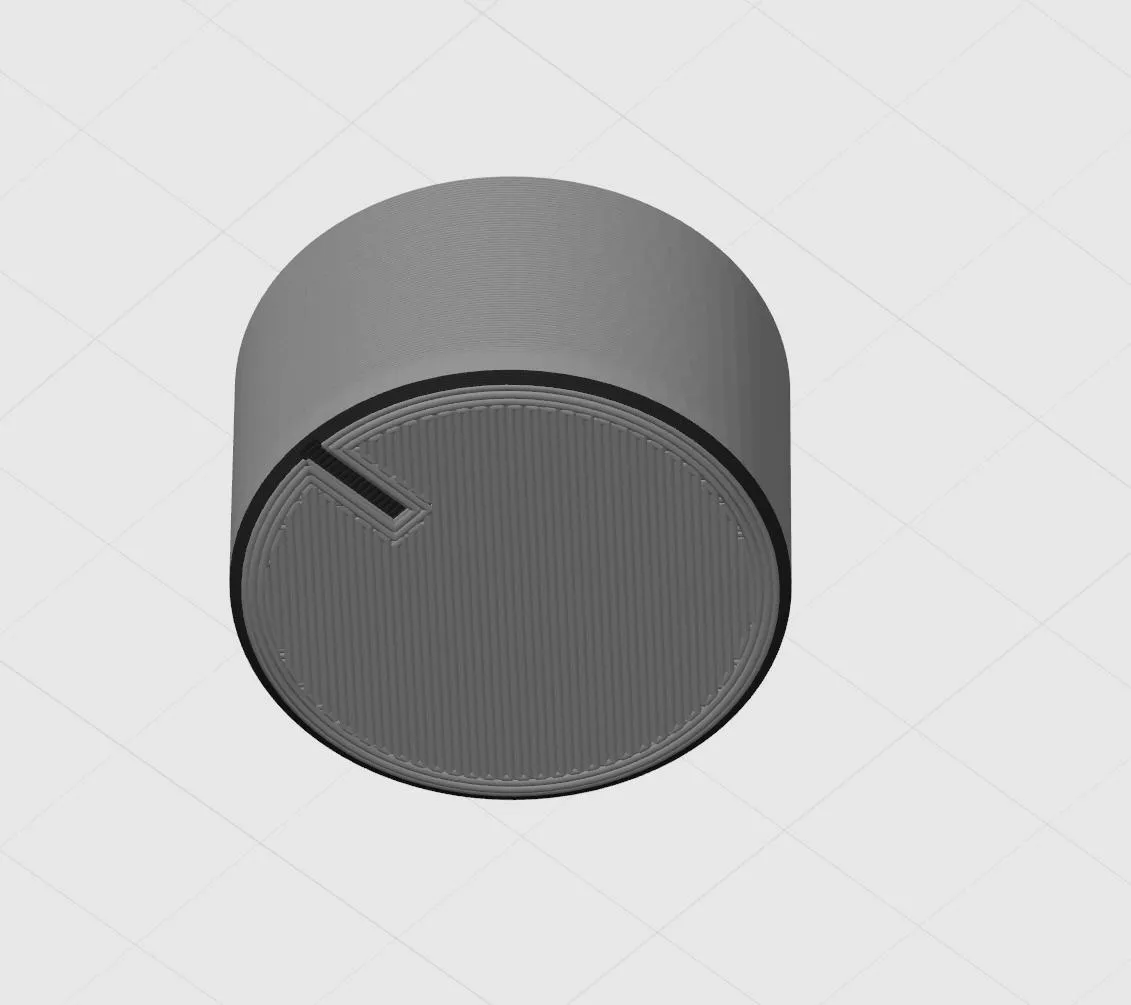

After setting the colors, you can change the layers at the top to 0.2 to make it print faster. The profile has it set that way.
Volume control knob
Volume control knob
Rotary encoder knob
Rotary encoder knob
Happy printing.
