I noticed AMS lite keeps moving or shaking when A1 Mini's extruder moves.

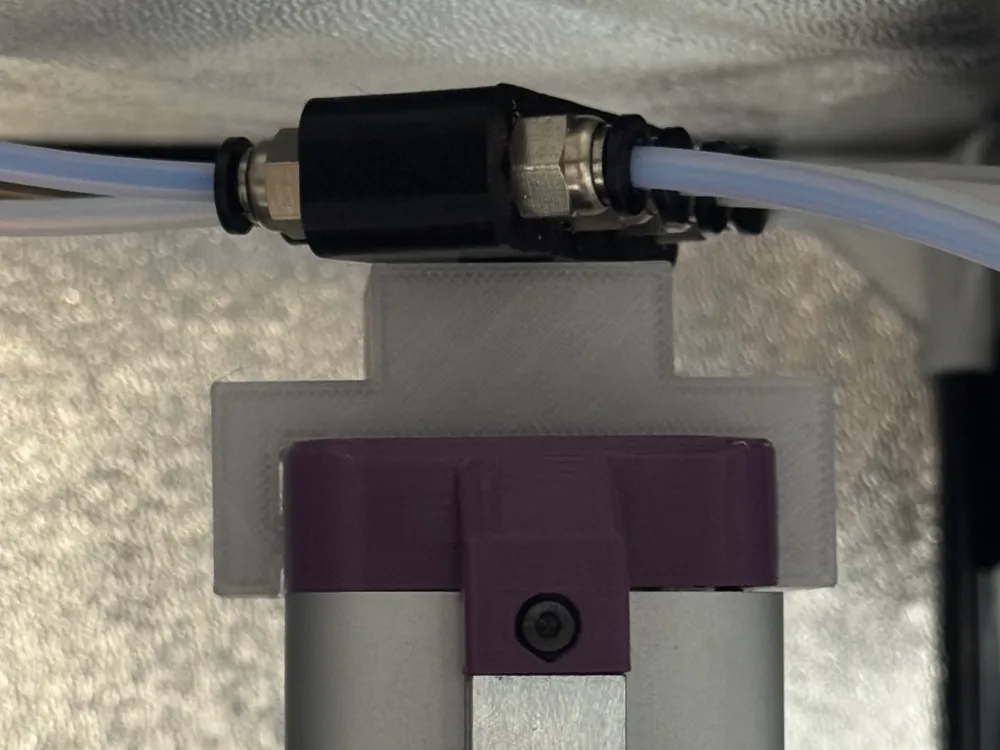

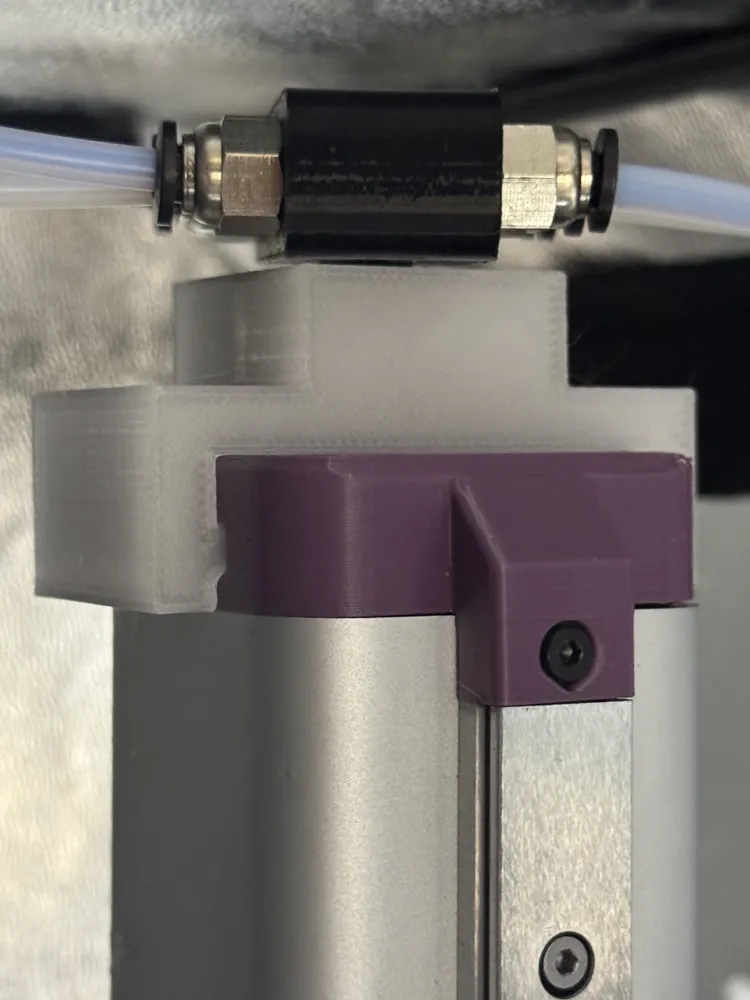

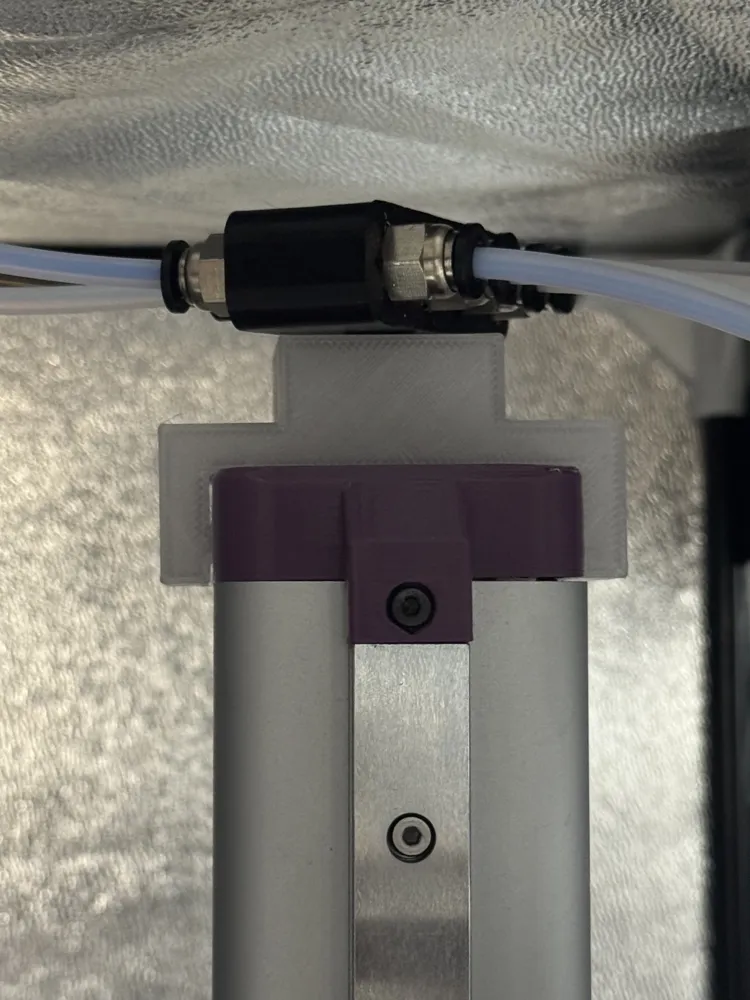

So, I have modified the top bit of the Z Axis Cover so we can separate AMS lite and the extuder.
By installing this, your enclosure won't move when extruder moves.
You need 8 x PC4M10 connectors.
You can choose either roratable one or fixed one.
If the filament hole (2.1mm) is a bit tight, just insert a filament and move forward and back few times.
