Curtain hooks

2025.8.7: The hook structure has been finely tuned, it is now very secure and won't fail to hold

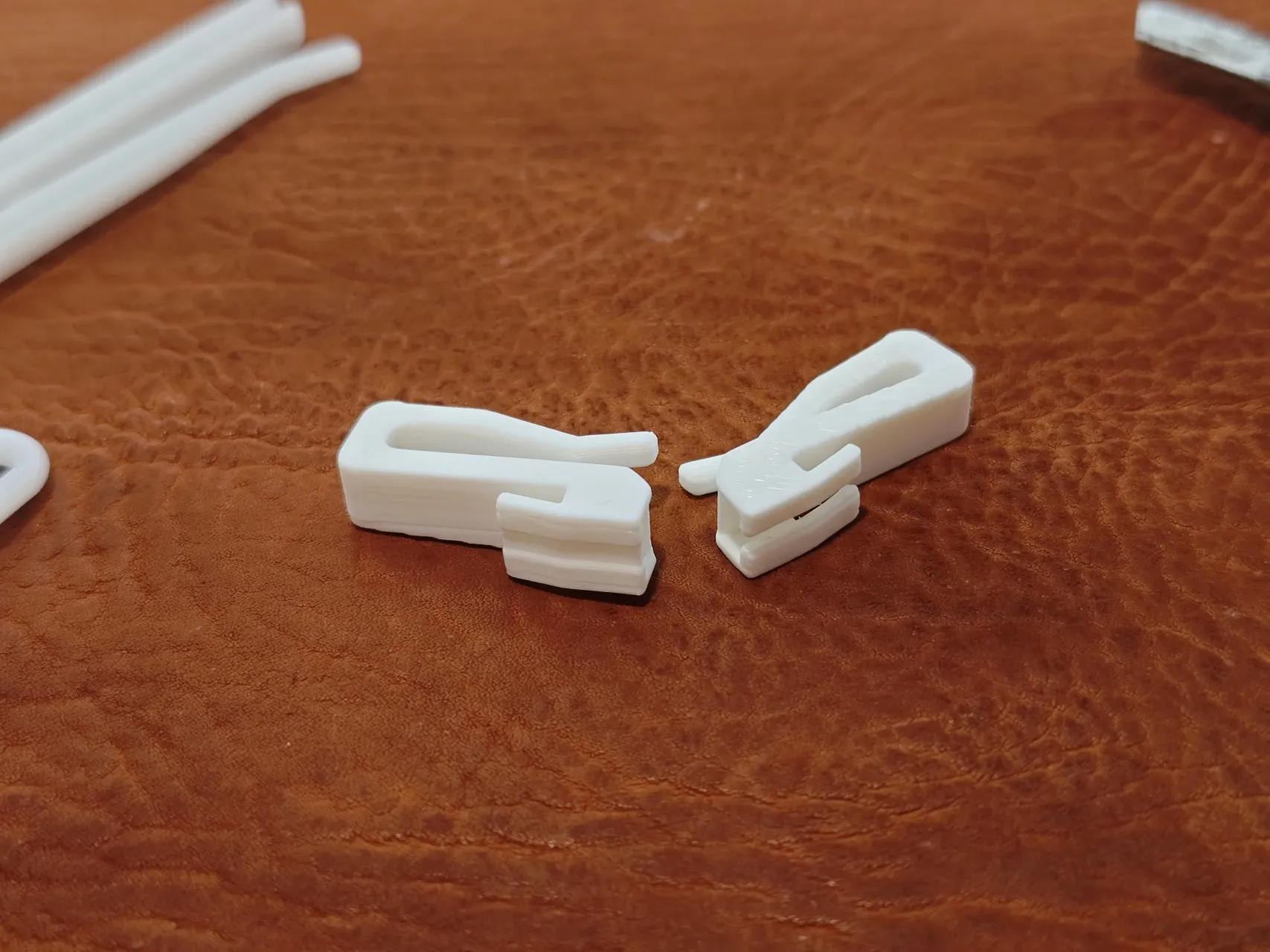

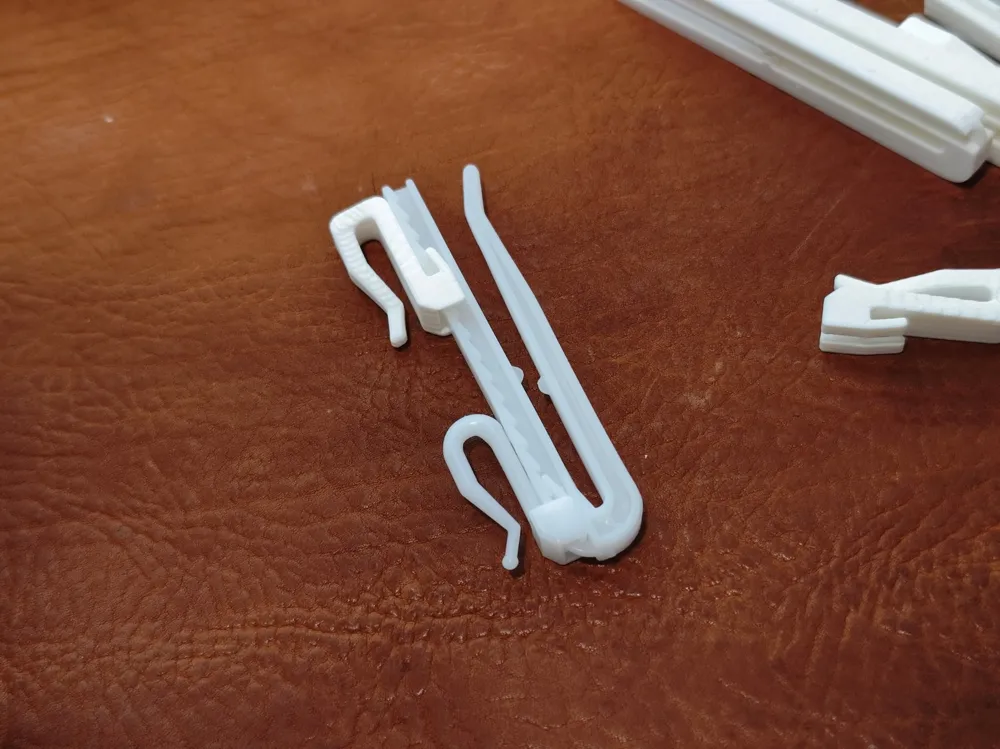

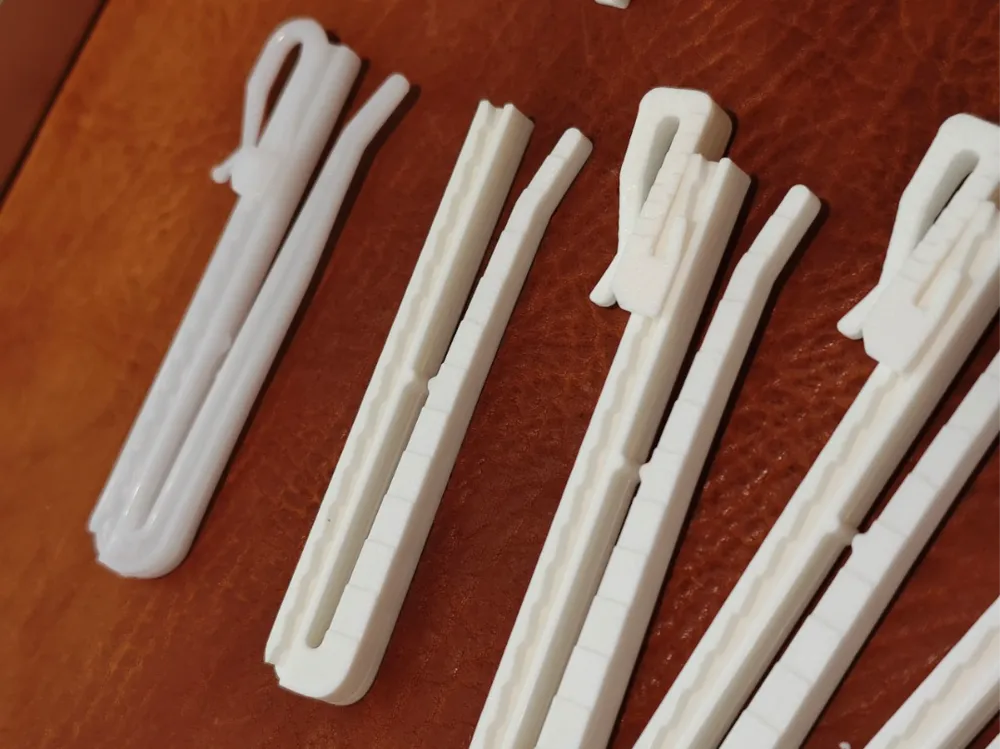

The left side of Figure 1 shows the original curtain hook style, which is a modular and height-adjustable hook, suitable for some finished curtains with hidden hanging points, and the sub-hook on the other end hangs on the movable ring at the bottom of the curtain rod, I have already installed it, it fits perfectly and can also be combined with the original accessories

Both the main and sub-hooks require no supports for printing, it is recommended to use Bambu Lab white ABS or Bambu Lab PETG Translucent for optimal strength

To ensure print quality and avoid supports, the middle of the sub-hook needs to be cut twice with a utility knife, I have already made the parts that need to be cut off thin, be sure to pay attention to safety and don't cut your hand

Also, considering that gcode might output the sub-hook's clasp as curved, it might not hold securely, if it doesn't hold the main hook's slot, cutting the sub-hook's clasp with a utility knife to make it square will solve the issue
