Bosch Kiox system's USB port
Print Profile(1)
Bill of Materials
- Bosch Display cable 30cm x 1:
- USB DC DC x 1:
Description

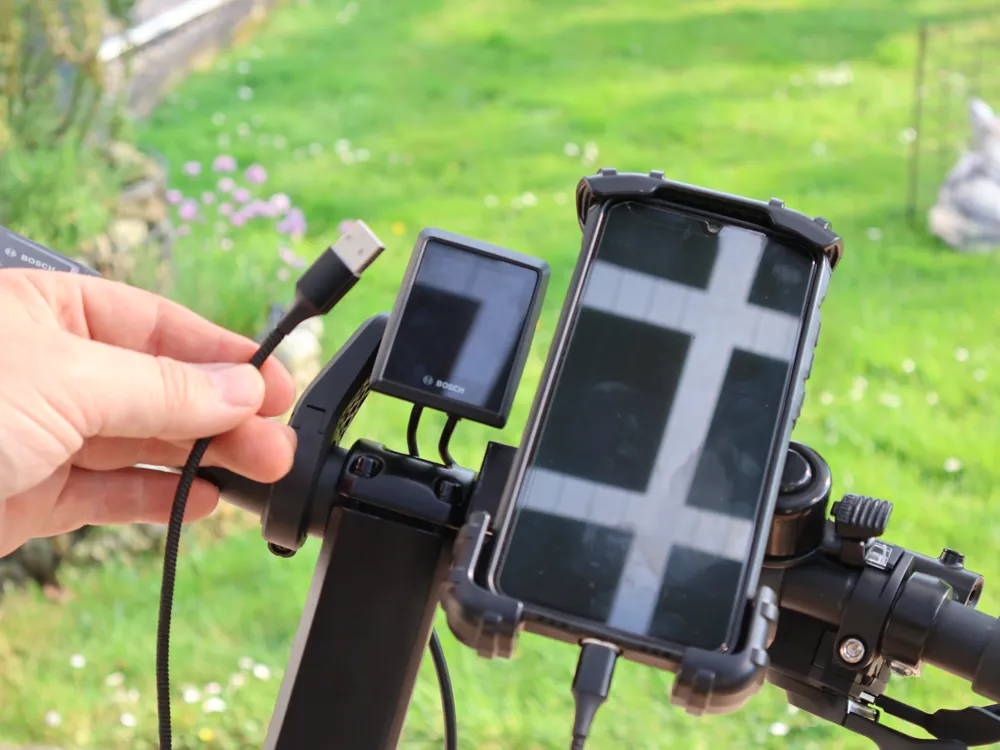

🔌 Custom USB Connector for Bosch Kiox Cable Integration
This DIY solution allows for the direct integration of a custom USB port into the existing Bosch Kiox cable system. Instead of the standard micro-USB port, a specially designed connection is used, allowing for inconspicuous installation and seamless integration into the original wiring.
💡 Key Features:
- Compactly integrated USB port in a custom-made housing
- Direct connection to the internal wiring harness of the Kiox display
- Designed for reliable power supply (5V output, up to 1A)
⚙️ Typical Applications:
- Custom-integrated bike computer mounting
- Invisible USB charging port for external devices
📽️ Installation and Implementation Video:
https://www.youtube.com/watch?v=zR3mULCp06E
