Banana picatinny grip
Print Profile(1)
Bill of Materials
- M4 X 25 mm x 1:
- M4 nut x 1:
Description

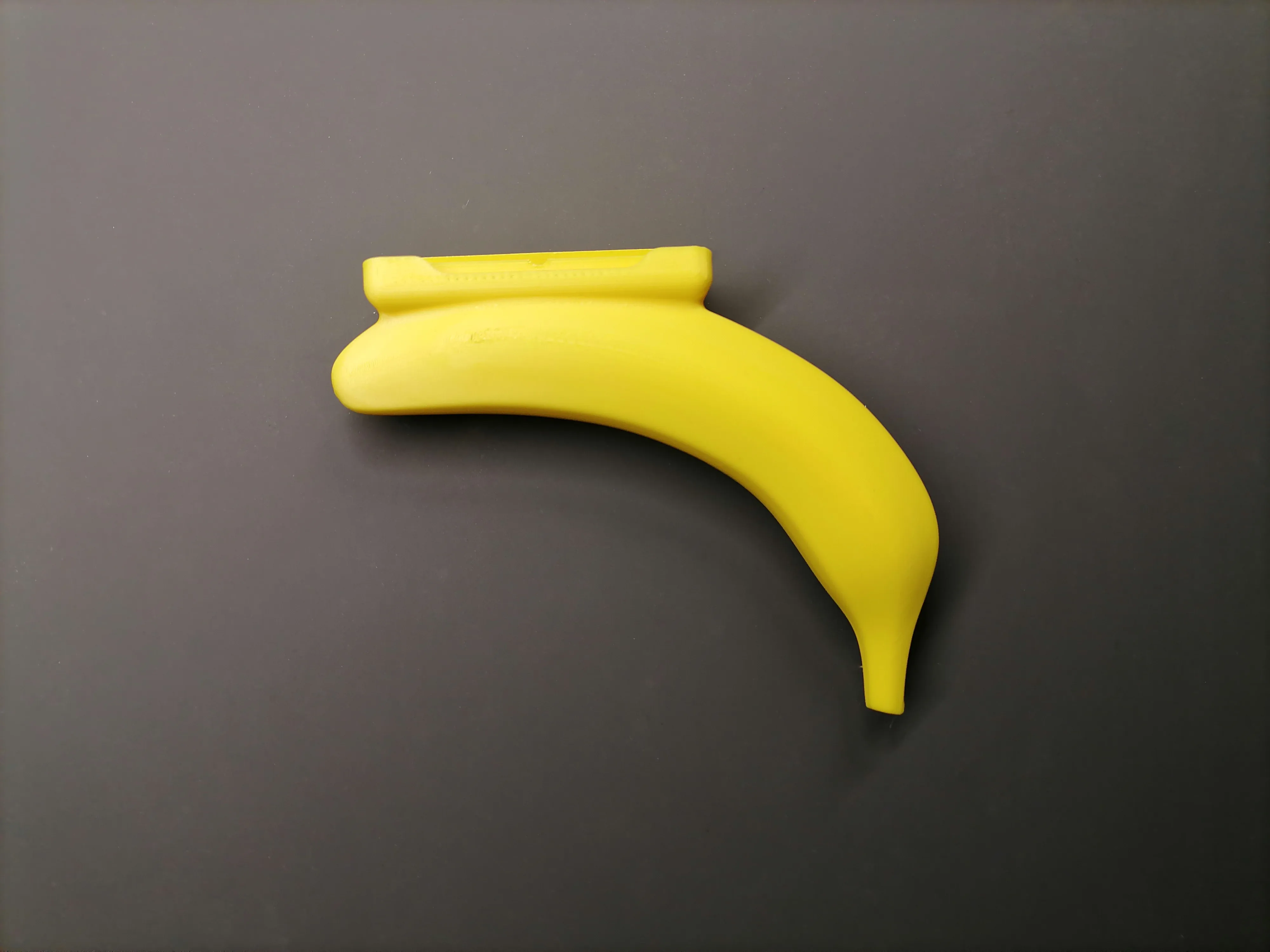

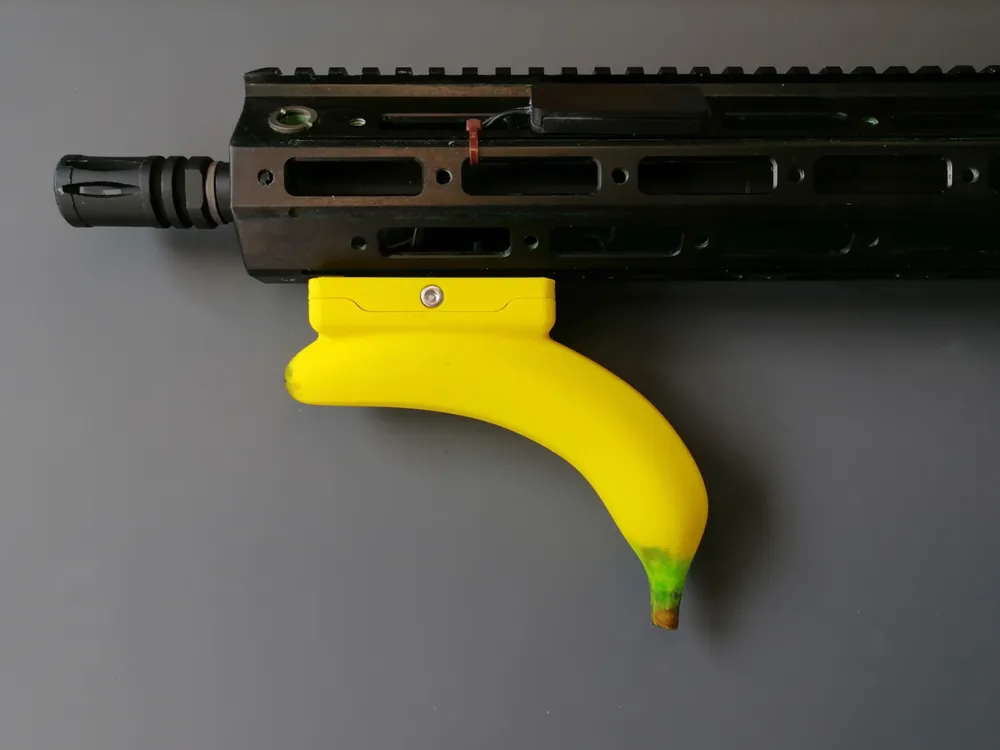

Banana picatinny grip for all your airsoft needs
Need a vertical grip? banana grip has got you covered
want a horizontal grip? banana grip is here for you
Require something at an angle in between? no problem its curved!
( I printed mine on a smooth plate for a smaller gap while gluing )
Materials required
- M4 x 25mm screw
- M4 nut
- super glue (or something similar to glue plastic together)
Assembly

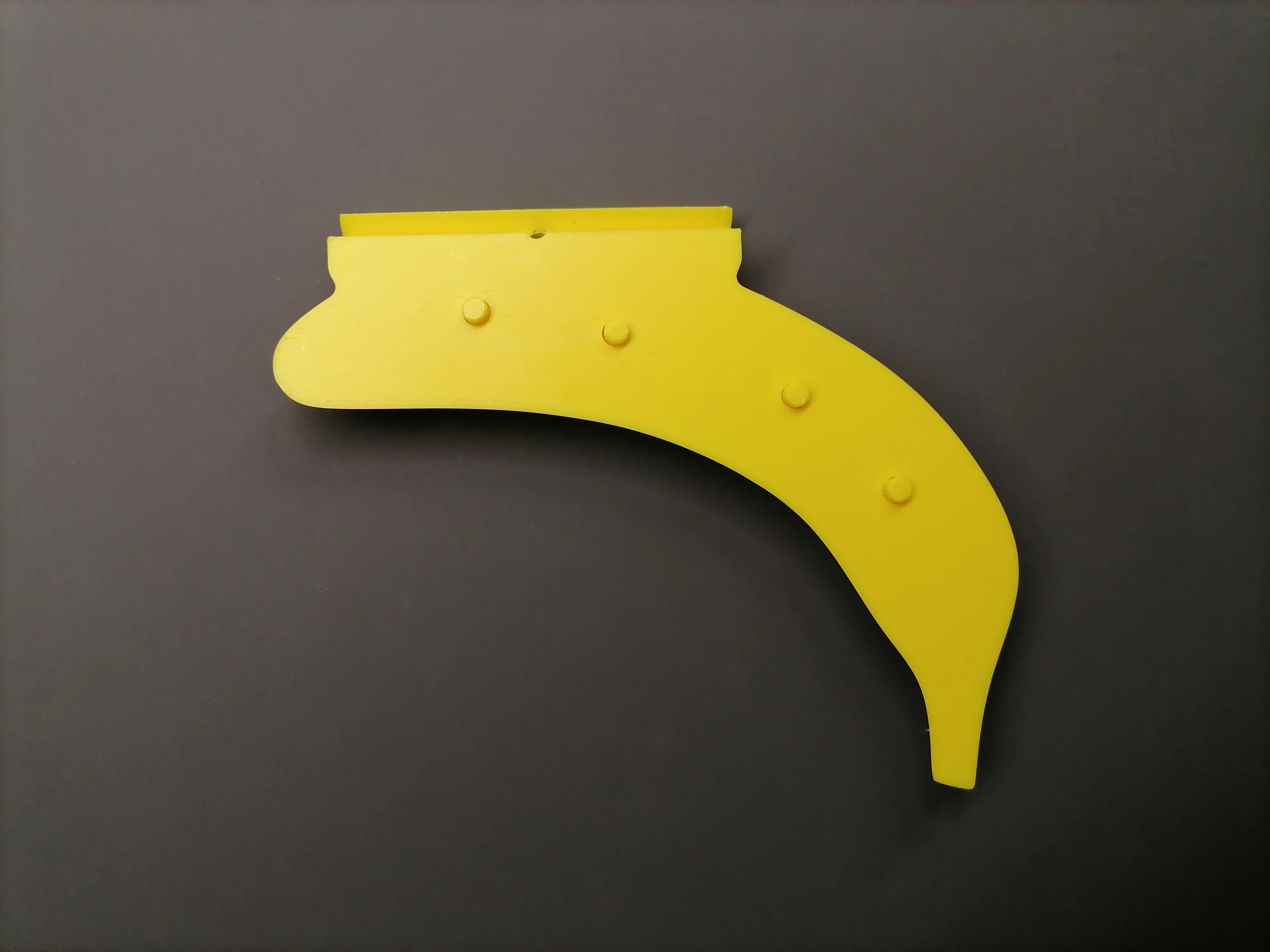

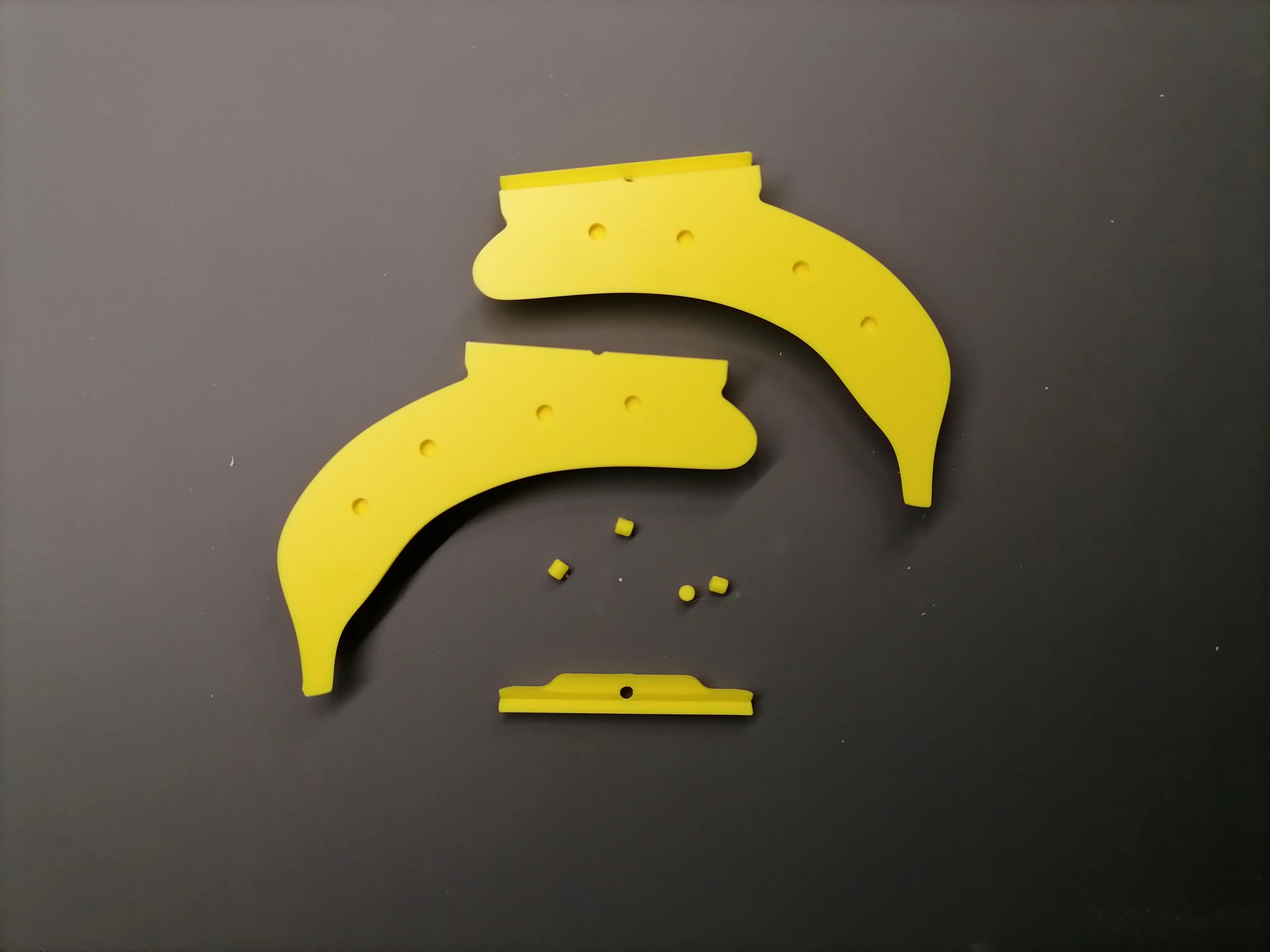

First, place the alignment pins into one side.

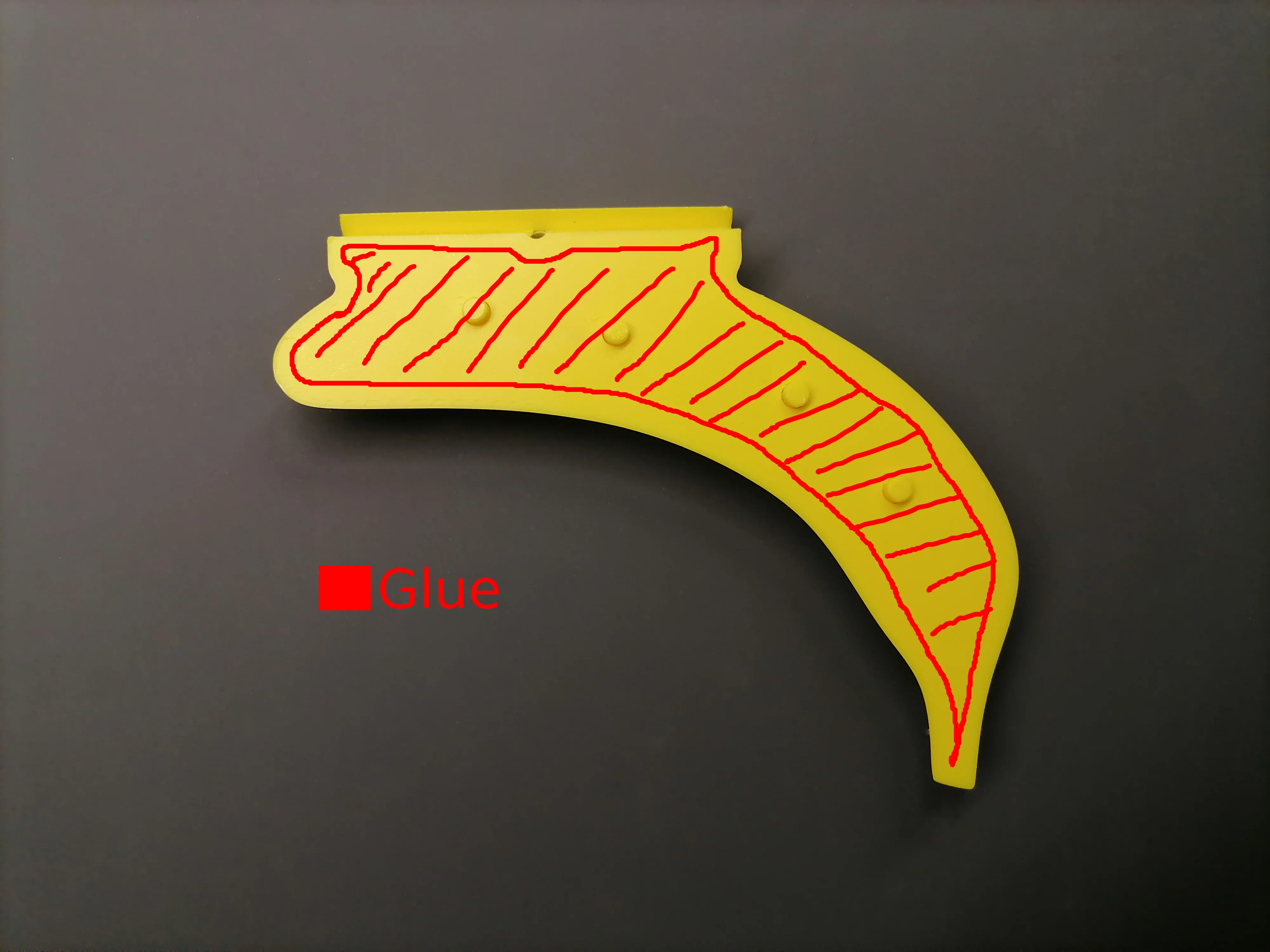

Then add glue
( not too much so that it doesn't spill out )
Then place the other half on top

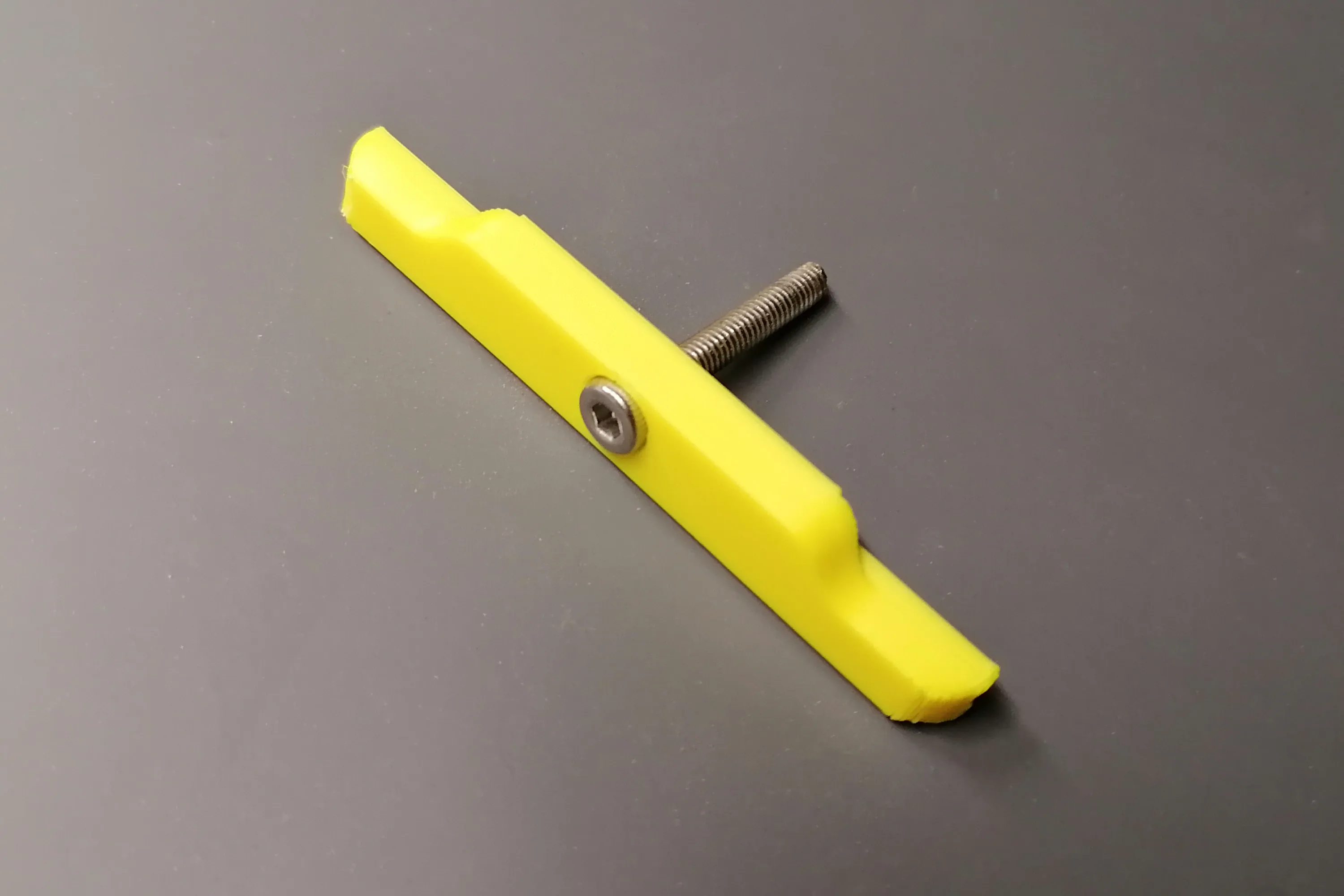

Heres how the clamp goes

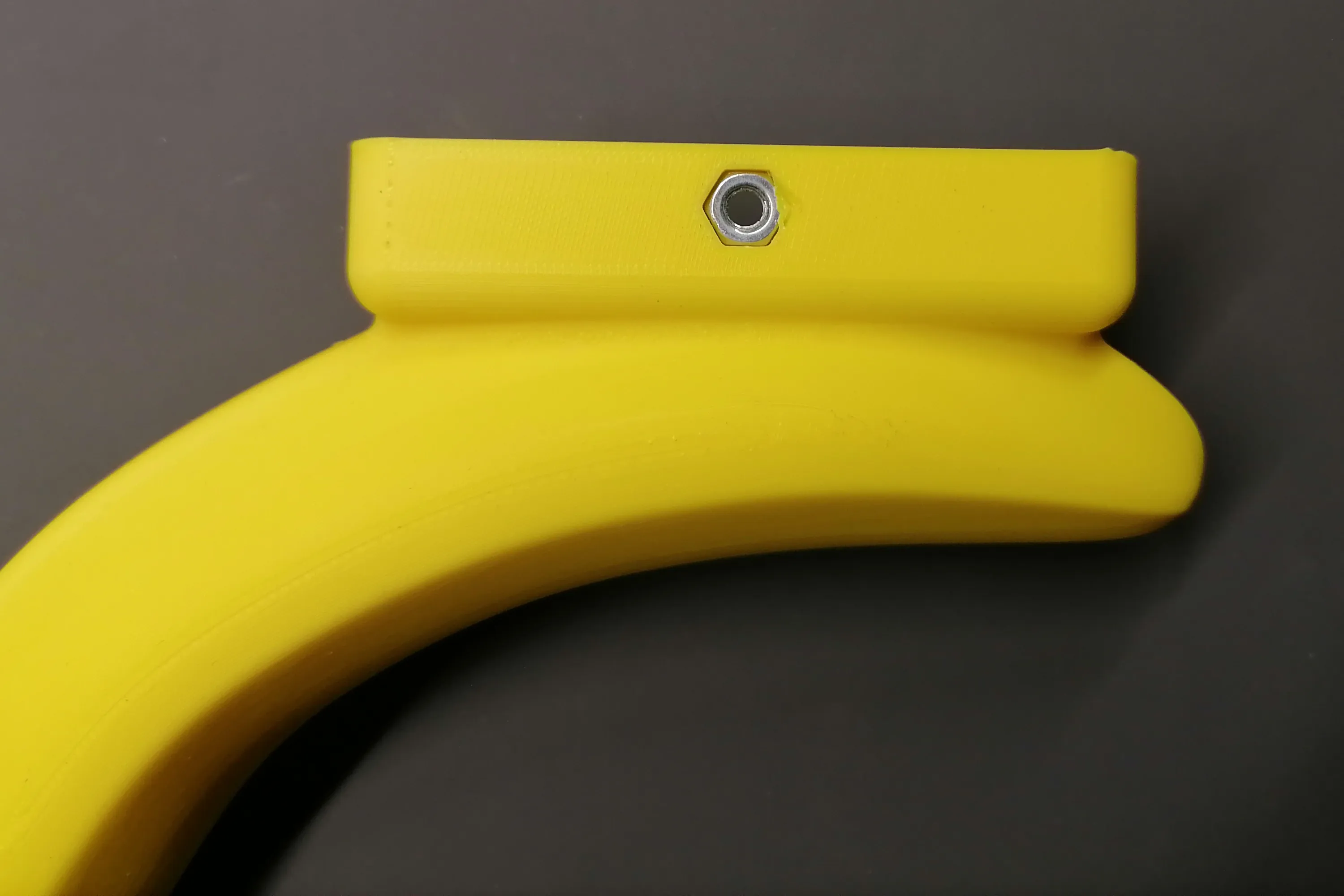

The M4 nut placement is obvious
I've melted one of the corners inwards so that it doesn't fall out, you could also glue it in place
(not for real firearms)
