Raspberry Pi Zero 2WH with e-Paper HAT

Raspberry Pi Zero 2WH with e-Paper HAT+ Snap-Fit Case – Vertical Slide-In | TPU Bumpers

This case was modeled for fun and as a print orientation experiment, designed to house the Raspberry Pi Zero 2WH with a Waveshare 2.13” e-Paper HAT+ in a clean, functional, and symmetrical shell.

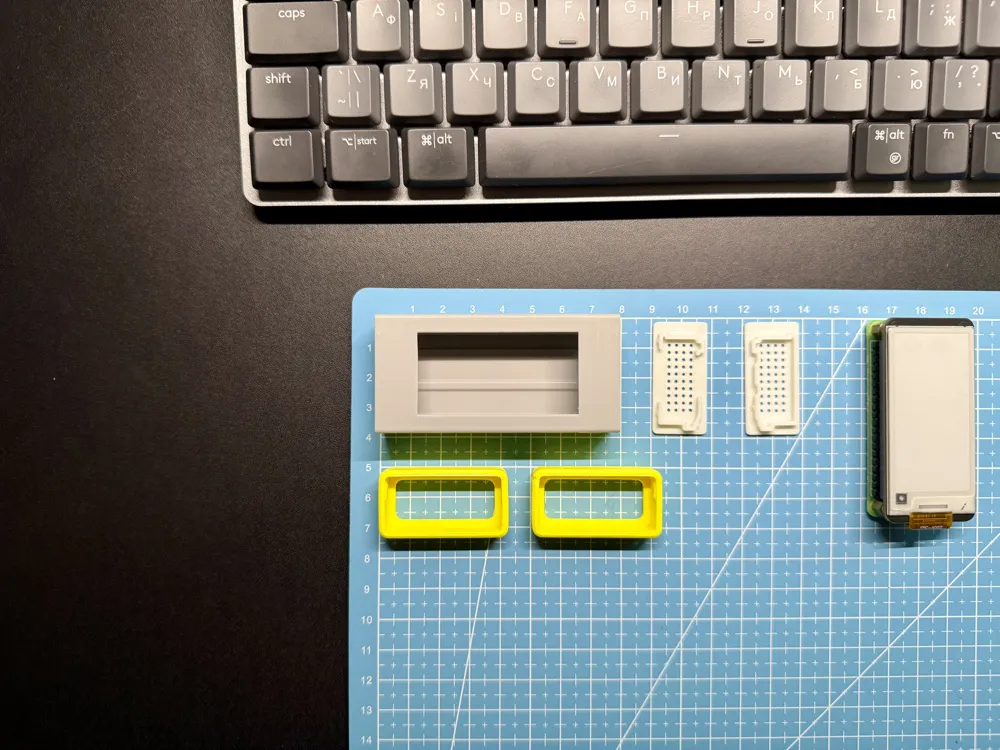

Model Overview – 5 Parts:

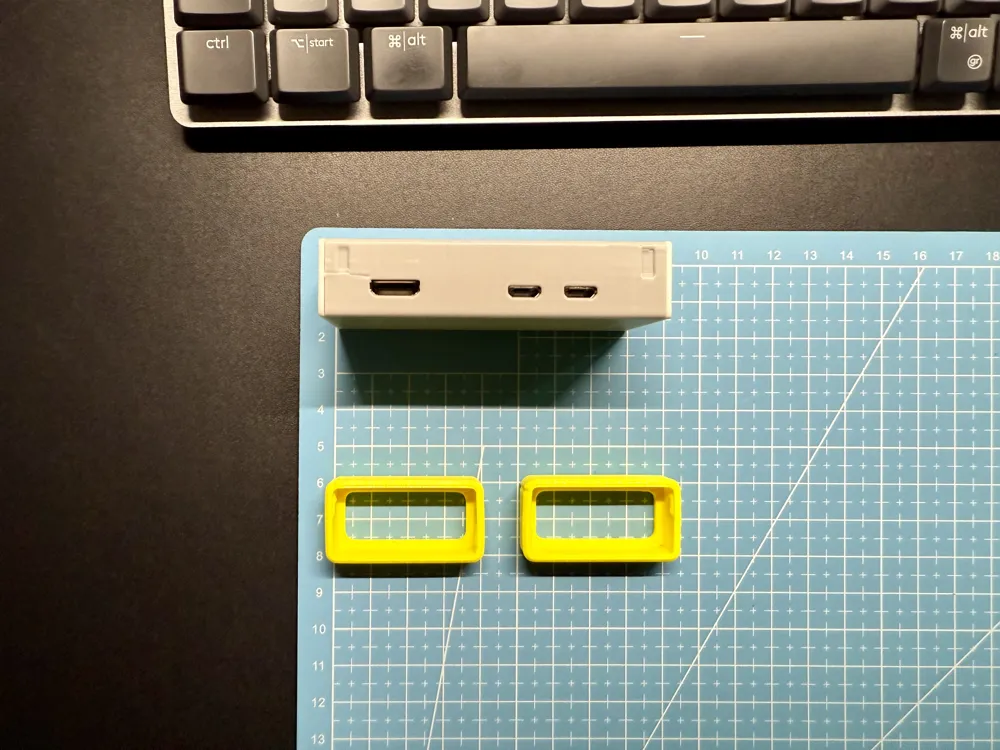

• Main body (printed vertically):

   • Holds the Pi + e-Paper HAT in place via a slide-in slot

   • Oriented for a 45° overhang stopper to align USB & HDMI ports (Do not change orientation)

   • Extra interior space adds symmetry but has no technical function

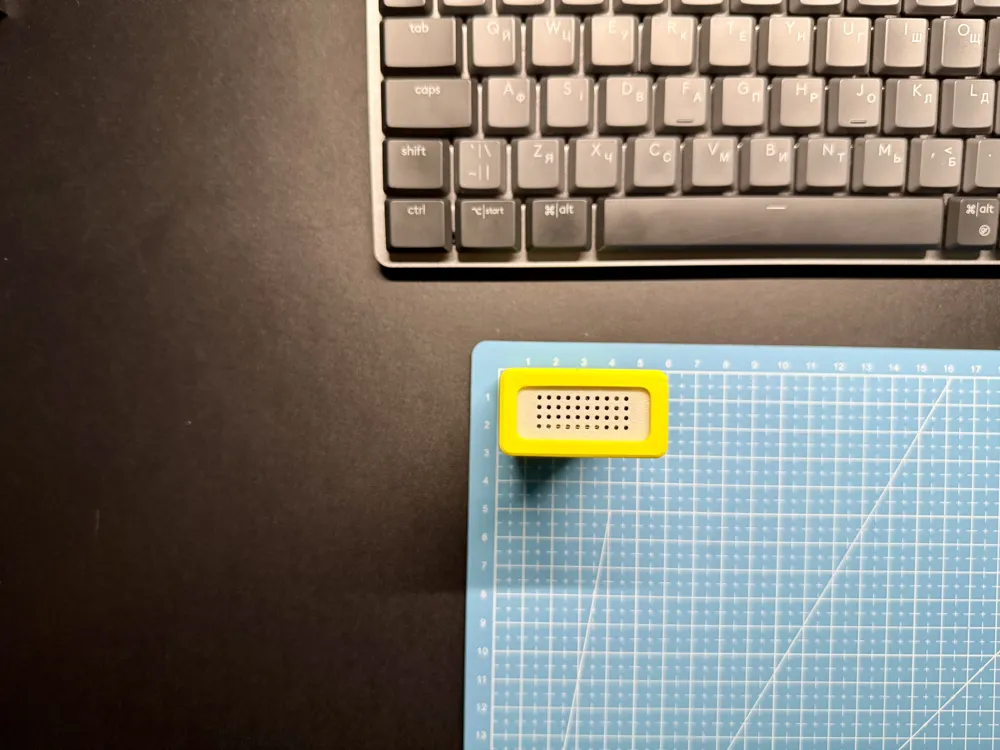

• Top and bottom lids:

   • Snap-fit design to enclose the case and allow airflow

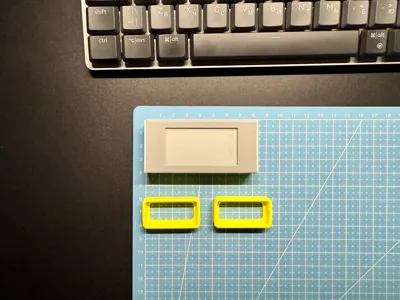

• Two TPU bumpers:

   • Help secure the lids in place

   • Designed with tight tolerances for TPU only (not guaranteed to work in PLA/PETG)

Assembly:

• Entirely snap-fit – no screws or glue

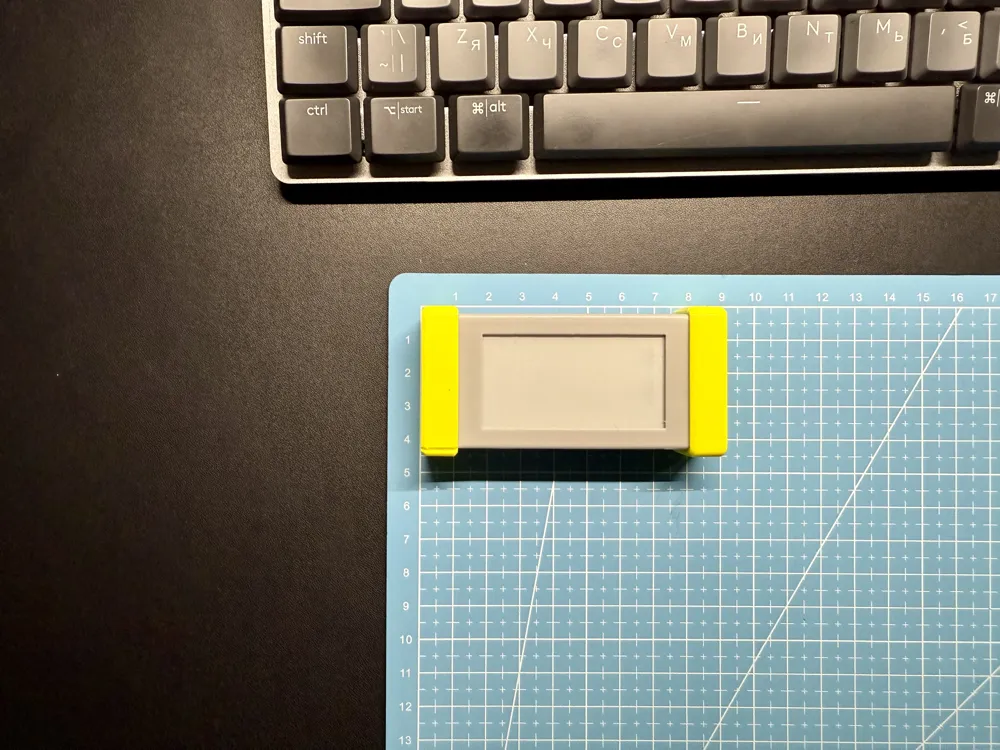

• TPU bumpers stretch slightly to lock the case securely

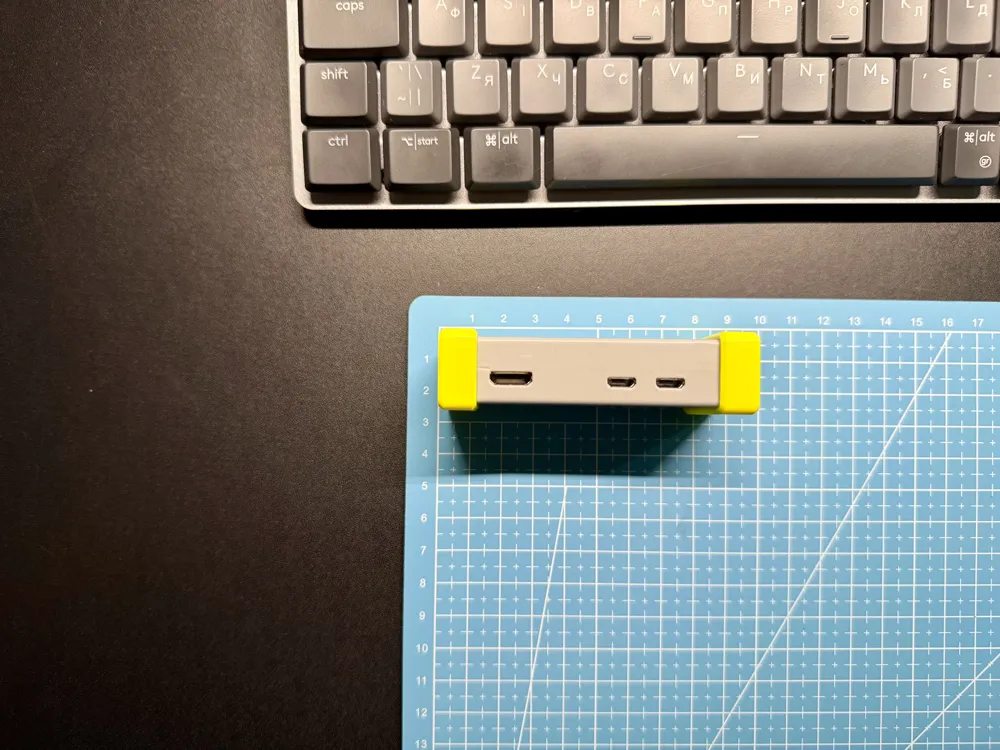

• Insert Pi and display from the top; leads snap on; bumpers press into side slots

Print Notes:

• Material: PLA (for main parts), TPU (for bumpers)
• Print by object: Set up for multi-color printing
• TPU parts are on a separate plate – plate settings tuned for high-temp bed
• Layer height: 0.2mm
• Nozzle: 0.4mm
• Walls: 2 loops
• Top/Bottom layers: 3
• No supports needed

Fun Build, Clean Look:

This model prioritizes clean aesthetics and print experimentation. Great for learning about tight tolerances, vertical printing, and mixed-material assembly.

P.S. I've also added a STEP file with this case to allow easy modifications.
