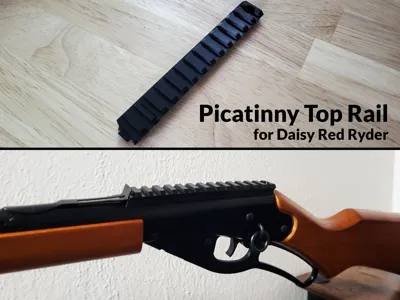

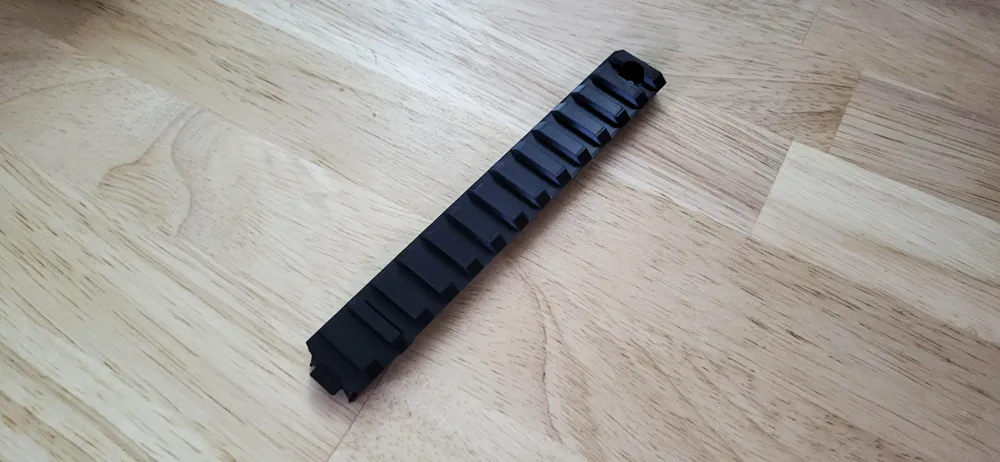

Simple picatinny sight rail for a Daisy Red Ryder Air Rifles.

Note: This will not work with my “Ranger” handguard. That handguard has a modified version in it's .3mf file that fits.

⚠️ Safety First ⚠️
Before starting any modification:

Make sure the airgun is unloaded
Engage the safety

Easy Installation Instructions:

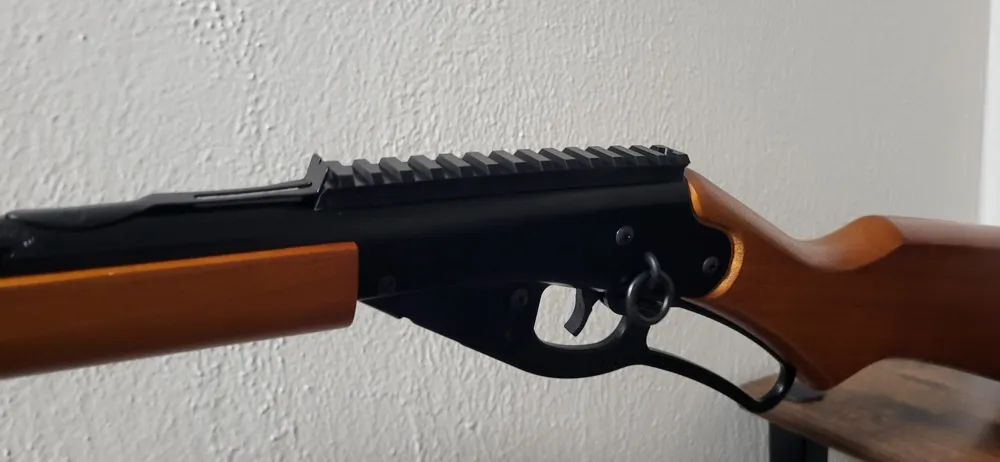

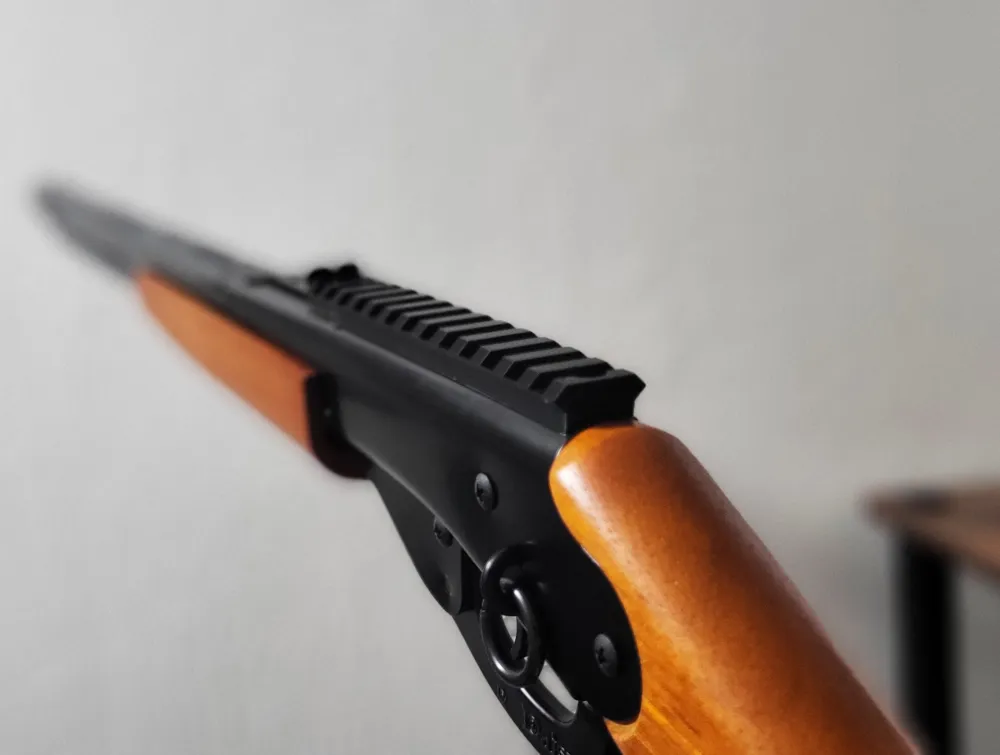

Remove the single Phillips screw located on top of the rifle.
Lift the rear sight so that the rail can fit under it.
Position the rail by sliding it over the height adjustment blocker plate.
Reinstall the Phillips screw through the top of the rail to secure it in place.

Like this model? Check out my other Daisy airgun accessories on my profile!
